SYNOLOGY FLASHSTATION FS2500 | COST-EFFECTIVE ALL-FLASH STORAGE FOR SMALL AND MEDIUM-SIZED BUSINESSES
FEATURES:
- High Performance – Handles intensive I/O efficiently with over 170,000/82,000 4K random read/write IOPS
- Flexible Virtualization Storage – Certified support for VMware vSphere, Microsoft Hyper-V, Citrix XenServer and OpenStack with Kubernetes CSI driver
- Convenient Networking Options – Built-in dual 10GbE and dual Gigabit Ethernet ports offer easy integration with existing environments
- Data and Services Protection – Back up critical data and cut your recovery time objective with built-in data protection and high availability tools
Synology FlashStation FS2500 | Cost-Effective All-Flash Storage for Small and Medium-Sized Businesses

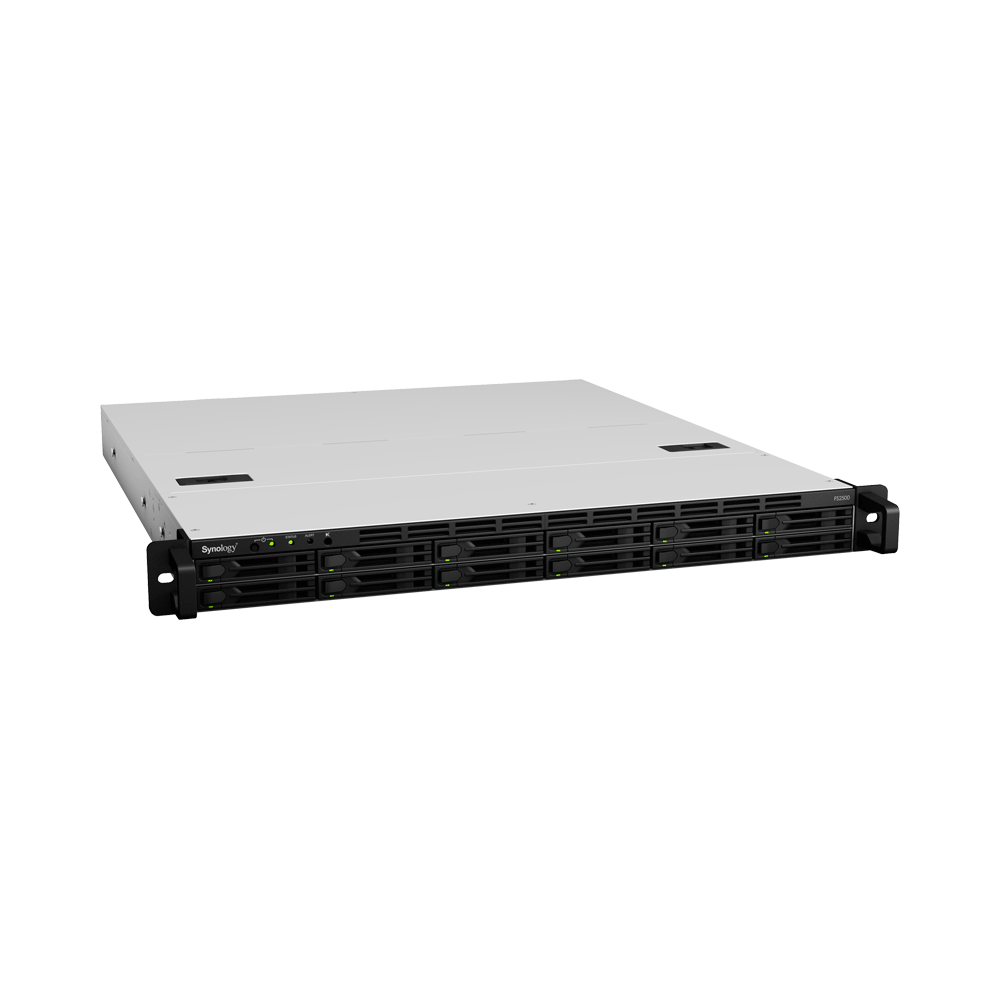

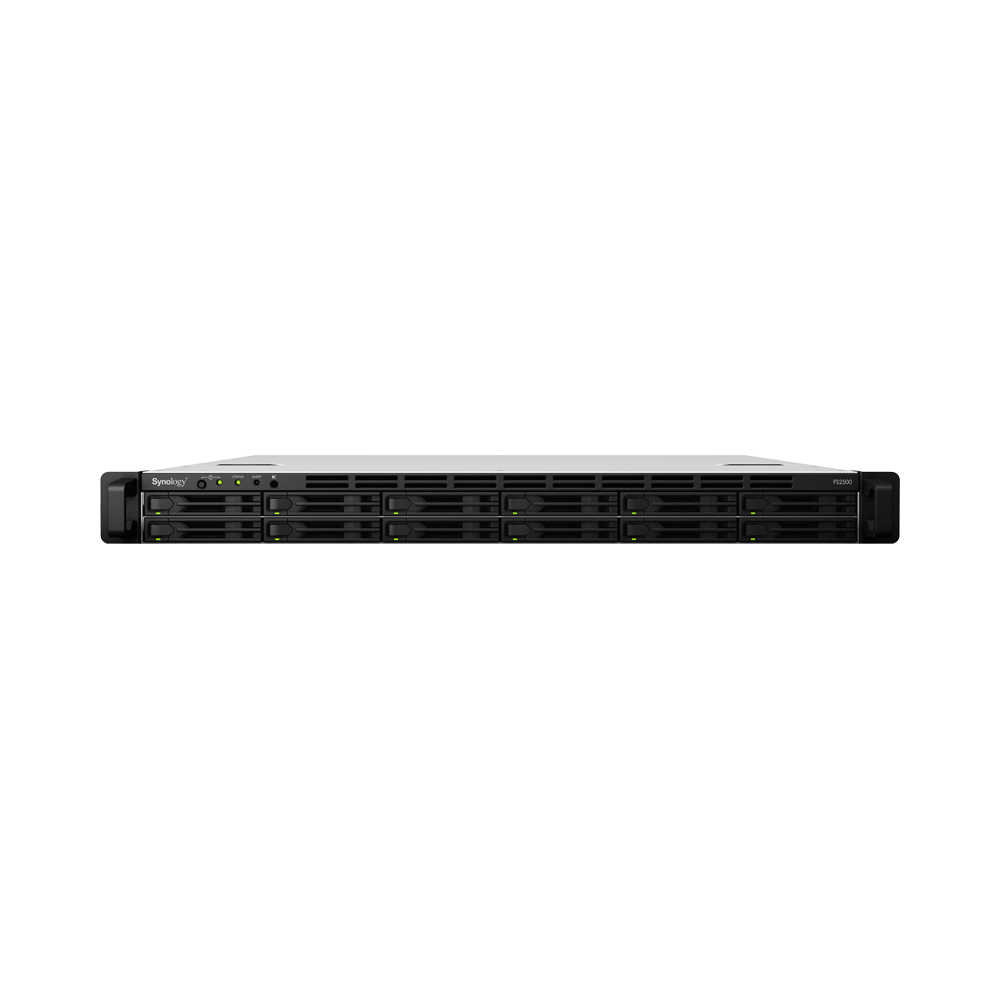

Synology FlashStation FS2500 features 12-bays for 2.5” SATA SSDs in a 1U enclosure. Its compact form factor and processing power make it an ideal solution for I/O-intensive and latency-sensitive applications such as VM storage and email servers in small to medium-size deployments. Powered by Synology DiskStation Manager (DSM), the FS2500 comes with reliable and easy-to-set-up solutions for uptime and data protection.
FEATURES:
- High Performance - Handles intensive I/O efficiently with over 170,000/82,000 4K random read/write IOPS
- Flexible Virtualization Storage - Certified support for VMware vSphere, Microsoft Hyper-V, Citrix XenServer and OpenStack with Kubernetes CSI driver
- Convenient Networking Options - Built-in dual 10GbE and dual Gigabit Ethernet ports offer easy integration with existing environments
- Data and Services Protection - Back up critical data and cut your recovery time objective with built-in data protection and high availability tools
SPECIFICATIONS:
| HARDWARE SPECIFICATIONS | ||
| CPU | CPU Model | AMD Ryzen V1780B |
| CPU Quantity | 1× | |
| CPU Core | 4× | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 3.35 (base) / 3.6 (turbo) GHz | |
| Hardware Encryption Engine | Yes | |
| Memory | System Memory | 8GB DDR4 ECC UDIMM |
| Memory Module Pre-Installed | 8GB (1× 8GB) | |
| Total Memory Slots | 2× | |
| Max. Memory Capacity | 32GB (2× 16GB) | |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
| Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. | ||
| Storage | Drive Bays | 12× |
| 2.5" SATA SSD | ||
| Hot Swappable Drive | Yes | |
| External Ports | RJ45 1GbE LAN Port | 2× |
| RJ45 10GbE LAN Port | 2× | |
| USB3.2 Gen 1-Port | 2× | |
| Notes | This device's 1GbE LAN ports have a Max. transmission unit (MTU) size of 1,500 bytes. | |
| PCIe | PCIe Expansion | 1× Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 1U |
| Dimensions (H × W × D) | 44 × 481.9 × 555.9mm | |
| Weight | 8.3kg | |
| Rack Installation Support | 4-Post 19" rack (Synology Rail Kit - RKS-01) | |
| Notes | The rail kit is sold separately | |
| Others | System Fan | 4× 40x40mm |
| Fan Speed Mode | Full-Speed Mode | |
| Cool Mode | ||
| Quiet Mode | ||
| Easy Replacement System Fan | Yes | |
| Power Recovery | Yes | |
| Noise Level | 57.6dB(A) | |
| Scheduled Power On / Off | Yes | |
| Wake on LAN / WAN | Yes | |
| Power Supply Unit / Adapter | 350W | |
| Redundant Power Supply | Yes | |
| AC Input Power Voltage | 100~240V AC | |
| Power Frequency | 50/60Hz, Single Phase | |
| Power Consumption | 74.83W (Access) | |
| British Thermal Unit | 255.17 BTU/hr (Access) | |
| Notes | Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | |
| The power consumption of the NAS model is measured when it is fully loaded with Synology SAT5200-3840G solid-state drives. | ||
| Temperature | Operating Temperature | 0°C~35°C |
| Storage Temperature | -20°C~60°C | |
| Relative Humidity | 5% to 95% RH | |
| Certification | FCC | |
| CE | ||
| BSMI | ||
| VCCI | ||
| RCM | ||
| UKCA | ||
| EAC | ||
| KC | ||
| UL | ||
| Environment | RoHS Compliant | |
| Packaging Content | 1× Main Unit | |
| 1× Accessory Pack | ||
| 2× AC Power Cords | ||
| 1× Quick Installation Guide | ||
| Optional Accessories | DDR4 ECC UDIMM: D4EU01-8G/D4EU01-16G | |
| Enterprise Series 2.5" SATA SSD: SAT5200 Series | ||
| 25GbE Network Interface Card: E25G30-F2 | ||
| 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1 | ||
| Rail Kit Sliding: RKS-01 | ||
| DSM SPECIFICATIONS | ||
| Storage Management | Max. Single Volume Size | 200TB (32GB Memory Required) |
| 108TB | ||
| Max. Internal Volume Number | 256 | |
| SSD Read/Write Cache (Determining Cache Size) | Yes | |
| SSD TRIM | Yes | |
| RAID Group | Yes | |
| Supported RAID Type | RAID F1 | |
| Basic | ||
| JBOD | ||
| RAID 0 | ||
| RAID 1 | ||
| RAID 5 | ||
| RAID 6 | ||
| RAID 10 | ||
| RAID Migration | Basic to RAID 1 | |
| Basic to RAID 5 | ||
| RAID 1 to RAID 5 | ||
| RAID 5 to RAID 6 | ||
| Volume Expansion with Larger HDDs | RAID F1 | |
| RAID 1 | ||
| RAID 5 | ||
| RAID 6 | ||
| RAID 10 | ||
| Volume Expansion by Adding a HDD | RAID F1 | |
| JBOD | ||
| RAID 5 | ||
| RAID 6 | ||
| Global Hot Spare Supported RAID Type | RAID F1 | |
| RAID 1 | ||
| RAID 5 | ||
| RAID 6 | ||
| RAID 10 | ||
| Notes | Usable capacity for each volume will be lower than the Max. volume size and is dependent on the filesystem and the amount of system metadata stored. | |
| Volumes over 108 TB require 32 GB of memory or more. | ||
| File System | Internal Drives | Btrfs |
| ext4 | ||
| External Drives | Btrfs | |
| ext4 | ||
| ext3 | ||
| FAT | ||
| NTFS | ||
| HFS+ | ||
| exFAT | ||
| File Services | File Protocol | SMB |
| AFP | ||
| NFS | ||
| FTP | ||
| WebDAV | ||
| Rsync | ||
| Max. Concurrent SMB/AFP/FTP Connections | 2,000 | |
| Max. Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 8,000 | |
| Windows Access Control List (ACL) Integration | Yes | |
| NFS Kerberos Authentication | Yes | |
| Notes | Regarding data concerning tests with RAM expansion, all memory slots are installed with the Max. capacity of supported RAM. | |
| During testing, the Max. number of SSDs supported by this model is installed in a RAID 5 configuration. | ||
| The testing standard was based on the Max. number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed. | ||
| Account & Shared Folder | Max. Local User Accounts | 16,000 |
| Max. Local Groups | 512 | |
| Max. Shared Folder | 512 | |
| Max. Shared Folder Sync Tasks | 32 | |
| Hybrid Share | Max. Hybrid Share Folders | 30 |
| Hyper Backup | Folder and Package Backup | Yes |
| Entire System Backup | Yes | |
| Notes | Full-system backup requires DSM 7.2 or later. | |
| High Availability | Synology High Availability | Yes |
| Log Center | Syslog Events per Second | 3,000 |
| Virtualization | VMware ESXi 6.5 and VAAI | Yes |
| Windows Server 2022 | Yes | |
| Citrix Ready | Yes | |
| OpenStack | Yes | |
| General Specifications | Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | Chrome | |
| Firefox | ||
| Edge | ||
| Safari | ||
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| ADD-ON PACKAGES | ||
| Central Management System | Yes | |
| Synology Chat | Suggested Users | 300× |
| Notes | Models with expandable memory are tested with their Max. supported memory. | |
| SAN Manager | Max. iSCSI Target Number | 256× |
| Max. LUN | 512× | |
| LUN Clone/Snapshot, Windows ODX | Yes | |
| Synology MailPlus / MailPlus Server | Free Email Accounts | 5× (Additional accounts require purchase of licenses) |
| Suggested Users | 5,000 | |
| Notes | Suggested users is derived from testing in an environment with 20% heavy users (each with 20,000 pre-populated emails and receiving 240 emails per day) and 80% light users (each receiving an average of 20 emails per day). | |
| The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. | ||
| Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only). | ||
| Models with expandable memory are tested with their Max. supported memory. | ||
| Snapshot Replication | Max. Snapshots per Shared Folder | 1,024 |
| Max. of System Snapshots | 65,536 | |
| Surveillance Station | Default Licenses | 2× (Additional cameras require purchase of licenses) |
| Suggested Max. IP Cameras and Total FPS (H.264) | 1080p: 100-Channels, 2800fps | |
| 3M: 100-Channels, 1200fps | ||
| 5M: 70-Channels, 700fps | ||
| 4K: 50-Channels, 500fps | ||
| Suggested Max. IP Cameras and Total FPS (H.265) | 1080p: 100-Channels, 3000fps | |
| 3M: 100-Channels, 2400fps | ||
| 5M: 100-Channels, 1300fps | ||
| 4K: 80-Channels, 800fps | ||
| Notes | Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. | |
| The number of streams that can be viewed simultaneously is twice the suggested Max. number of cameras. For example, if the suggested Max. number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20× streams of the same specification at the same time. | ||
| Synology Drive | Recommended Number of Concurrent Sync Clients | 900 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
| Recommended Number of Hosted Files | 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes | Exceeding the recommended numbers above will not block application operations, but may result in longer response time. | |
| Utilizing SSD cache can significantly improve performance. | ||
| Models with expandable memory are tested with their Max. supported memory. | ||
| Btrfs file system and non-encrypted shared folders were used during the aforementioned testing. | ||
| Synology Office | Suggested Users | 12,500 |
| Notes | Suggested users is derived from testing in an environment with 60% idle users (each logging in and viewing documents) and 40% active users (each executing random actions at intervals of 20 to 40 seconds) operating within documents, each document having 30 users. | |
| Models with expandable memory are tested with their Max. supported memory. | ||
| Client performance may affect Max. simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM | ||
| Virtual Machine Manager | Recommended Virtual Machine Instances | 8× |
| Recommended Virtual DSM Number (Licenses required) | 8× (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| VPN Server | Max. Connections | 60 |
Additional information
| Weight | 10.88 kg |
|---|---|
| Dimensions | 65.4 × 57 × 16.4 cm |
