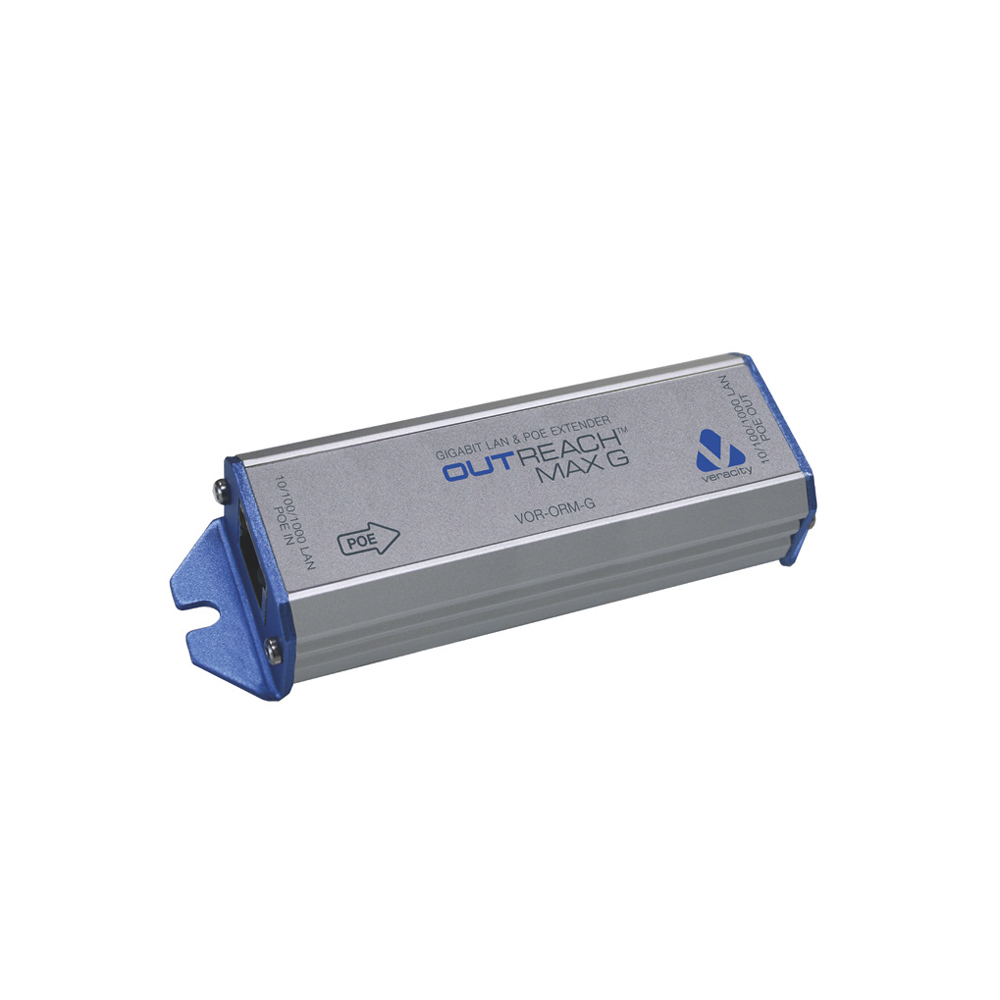

VERACITY VOR-ORM-G | OUTREACH MAX G POE-POWERED GIGABIT ETHERNET REPEATER TO EXTEND NETWORK REACH BY 100M WITH POE
FEATURES:
- Instantly doubles cable range to 200m
- No local power required
- Full Gigabit Ethernet
- Universal 10/100/1000Mbps compatibility
- Extends PoE and PoE+ up to 90W
- Integrated mounting holes
Veracity VOR-ORM-G | OUTREACH Max G PoE-Powered Gigabit Ethernet Repeater to Extend Network Reach by 100m with PoE

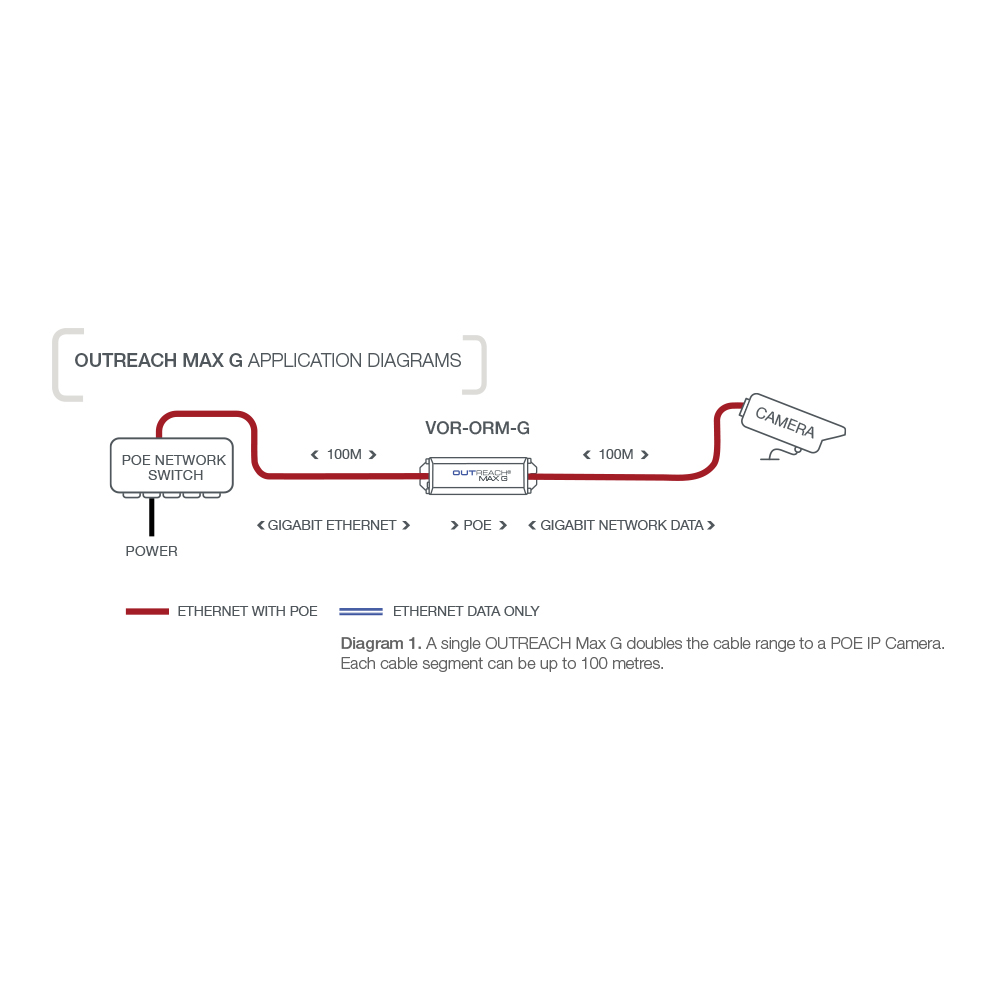

Designed to extend the reach of Gigabit Ethernet networks by 100m per device, OUTREACH Max G is powered by PoE and passes PoE to the end device, such as an IP camera. OUTREACH Max G can handle all PoE power levels up to 802.3bt. Lite, external and 100Base-TX versions are all available.
FEATURES:
- Instantly doubles cable range to 200m
- No local power required
- Full Gigabit Ethernet
- Universal 10/100/1000Mbps compatibility
- Extends PoE and PoE+ up to 90W
- Integrated mounting holes
SPECIFICATIONS:
| POWER | |
| Power Consumption | 1.3W via PoE |
| POE POWER COMPATIBILITY | |
| 90W Max. (Full 802.3bt Class 8, 71W Camera Power) | |
| Max. Current 1.92A per Pair at Rated Operating Temperature | |
| POE STANDARDS | |
| IEEE 802.3af PoE (15W) and IEEE 802.3at at PoE+ (2-Event Signature) (25-30W) | |
| IEEE 802.3bt PoE (to 90W+, Non-LLDP) | |
| Custom PoE (Including “Always-on 48V” and “4-Pair” PoE) | |
| ETHERNET INTERFACE | |
| Two Independently Auto-Configuring 10/100/1000Mbps Ports | |
| (10Base-T/100Base-TX/1000Base-T, Half / Full Duplex) | |
| Patch or Crossover Cables Supported | |

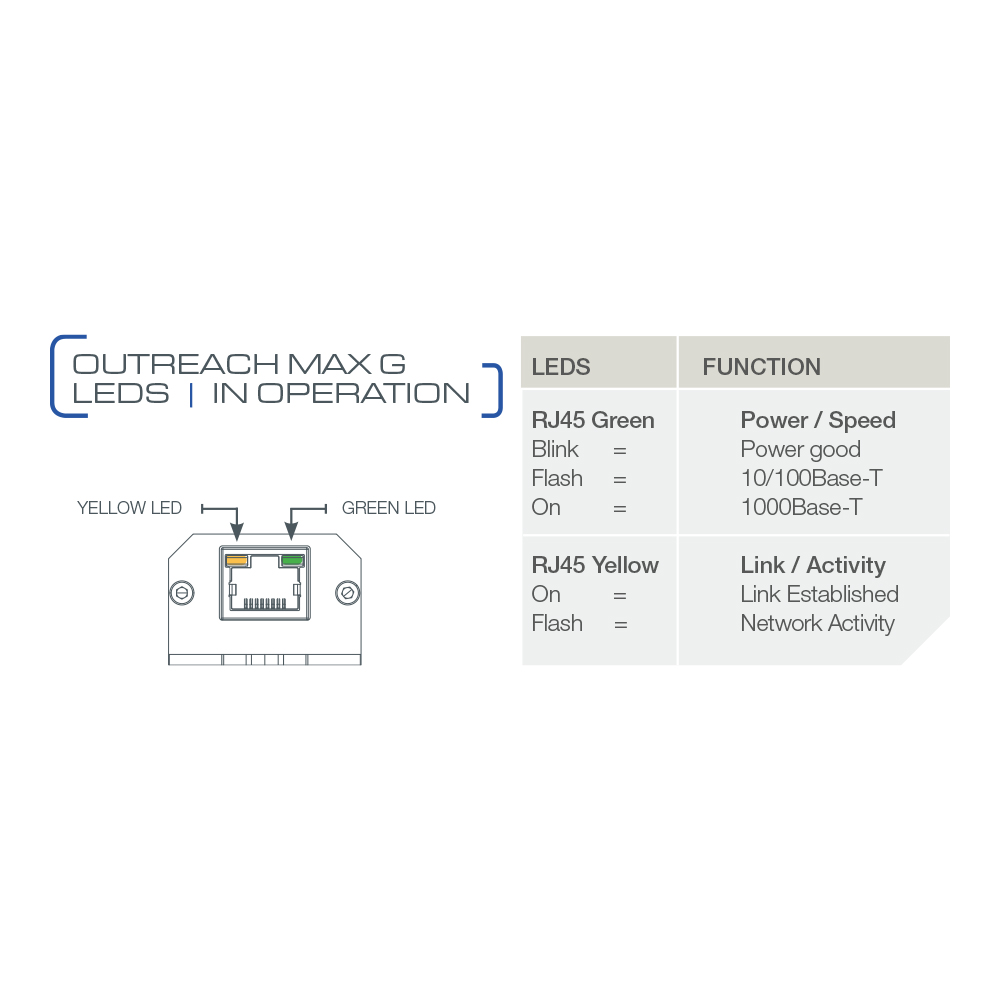

| LEDS | |
| Status Indicators | Green LED - Shows PoE Power Good / Speed |
| Green LED Blink = Power Good | |
| Green LED Flash = 10Base-T/100-BaseTX | |
| Green LED On = 1000Base-T | |
| Yellow LED - Shows Ethernet Link/Activity | |
| PHYSICAL / ENVIRONMENTAL | |

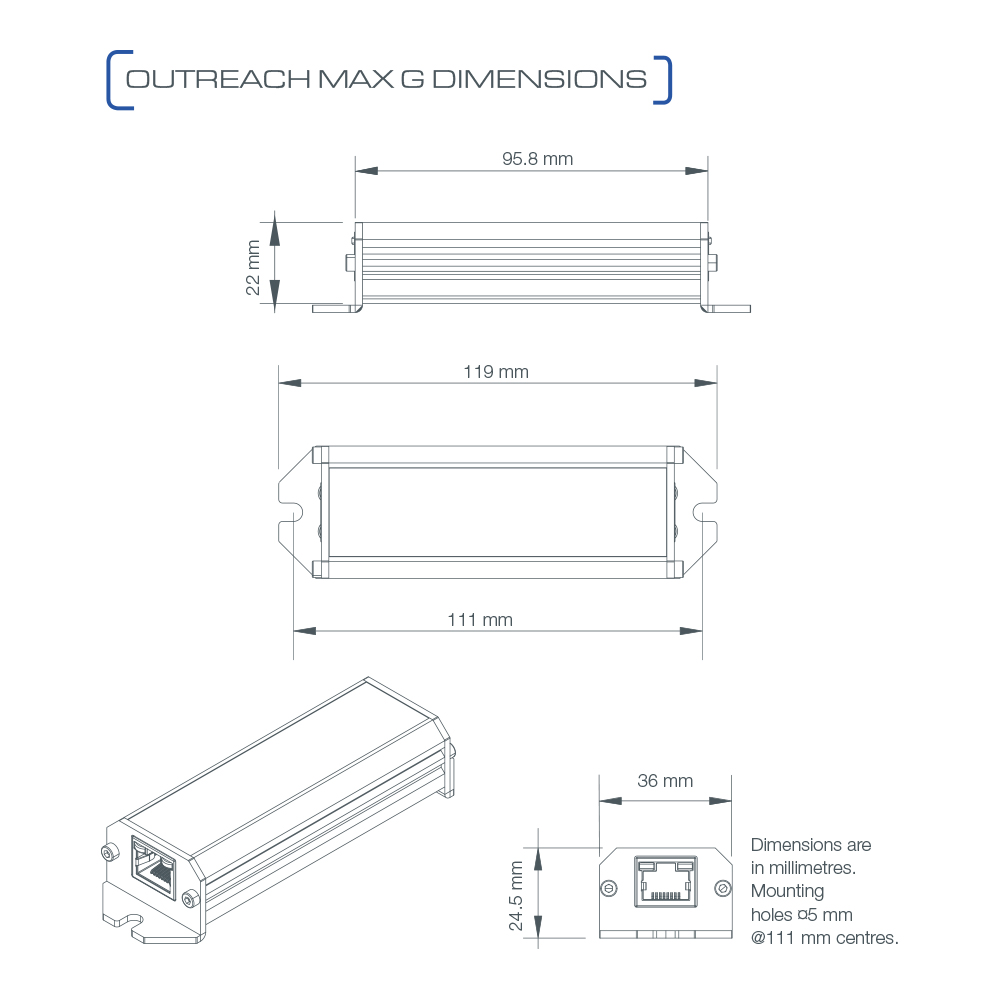

| Dimensions (L × W × H) | 119 × 36 × 24.5mm |
| Weight | 79g |
| Mounting | Two 5mm Diameter Mounting Holes. Centres 111mm Apart |
| Operating Temperature | -40~70°C |
| Relative Humidity | up to 85%, Non-Condensing |
| Compliance | CE, FCC, RoHS, UKCA, UL |
