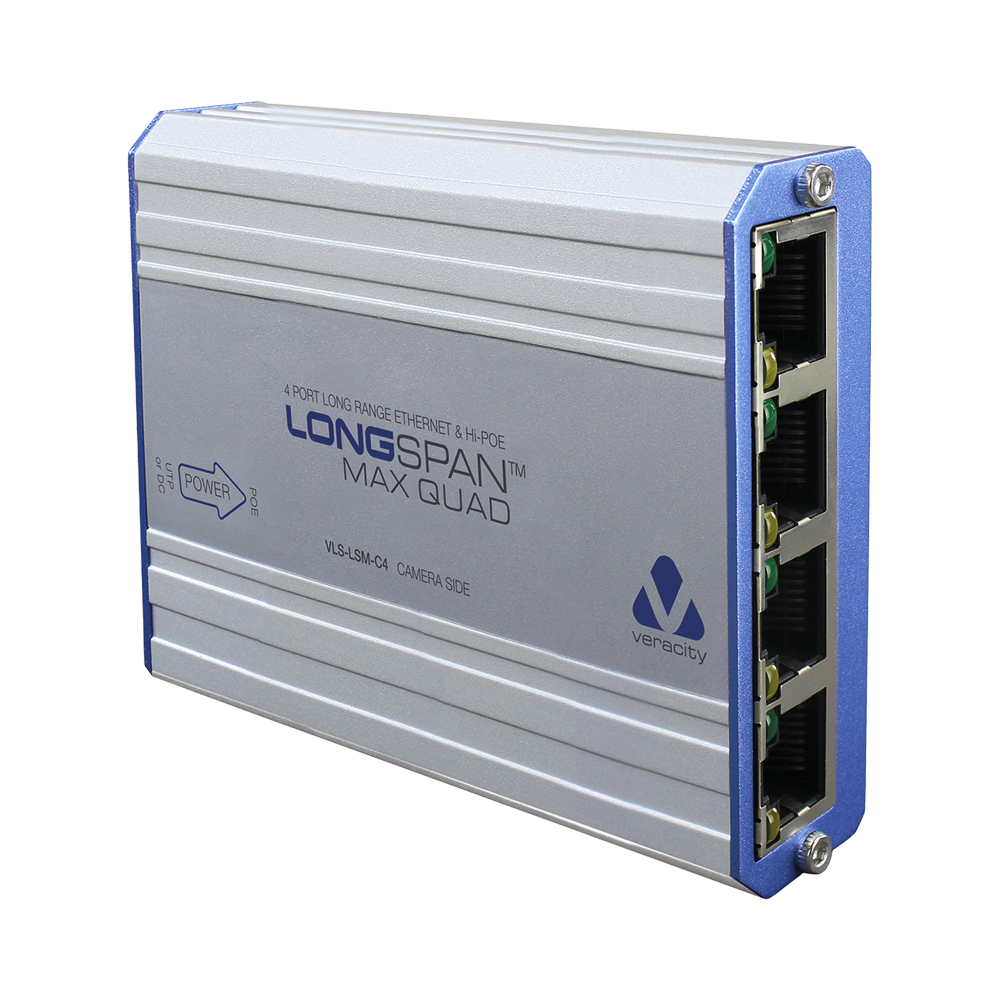

VERACITY VLS-LSM-C4 | LONGSPAN MAX QUAD – 4-PORT CAMERA ADAPTER FOR LONG-RANGE ETHERNET AND HIGH-POWER POE

Veracity VLS-LSM-C4 | LONGSPAN Max Quad - 4-Port Camera Adapter for Long-Range Ethernet and High-Power PoE

The Max Quad provides an extremely cost-effective way of connecting up to four high-power IP cameras (or other devices) over a single long-distance 100Base-TX Ethernet connection. This LONGSPAN device with integrated four-port PoE switch may also be locally powered for maximum 802.3bt PoE output per port.

FEATURES:

• Quad LONGSPAN camera device with 802.3bt PoE
• Long-range point-to-point Ethernet over CAT5e or CAT6 cable
• Unrestricted 100Base-TX with PoE at over 820m
• Delivers power for 4× 13W IP cameras up to 290m from base device
• With local power, can deliver PoE for 71W IP cameras at 820m
• Ruggedised for high-performance over a wide temperature range
• Smart PoE power and diagnostic display for reliable installation
• Fully automatic, simple to install and maintenance-free

SPECIFICATIONS:
