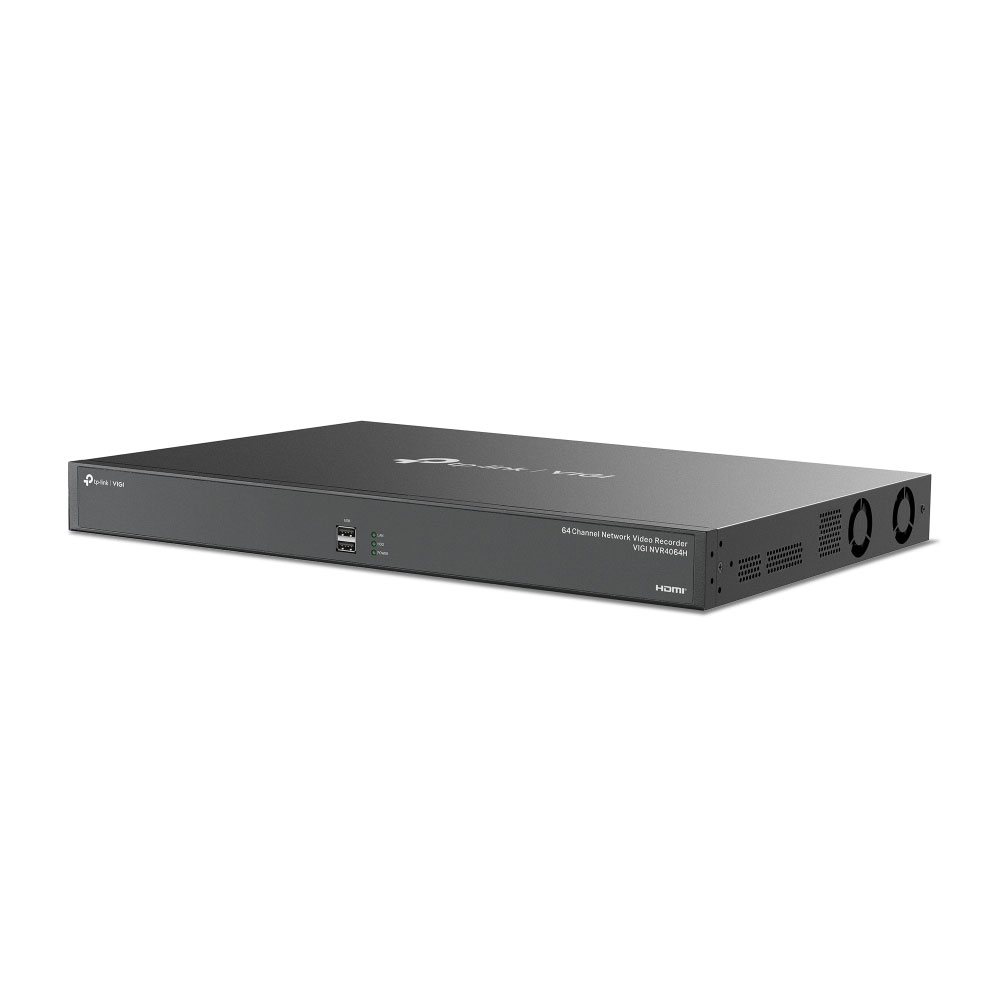

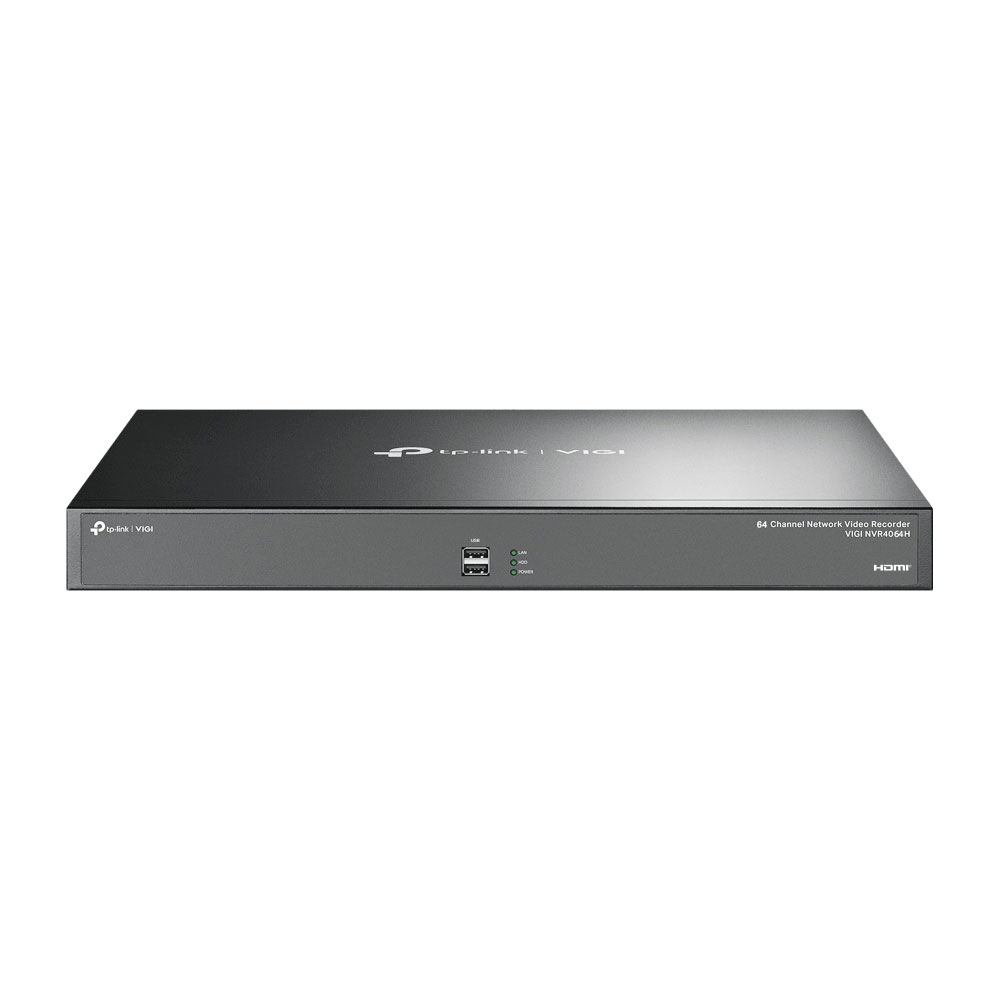

TP-LINK VIGI NVR4064H | 64-CHANNEL NETWORK VIDEO RECORDER
FEATURES:
- 64-Channel Live View and 4K HDMI Video Output
- Up to 16-Channel @2MP (25fps) / 8-Channel @4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320Mbps Incoming Bandwidth and 320Mbps Outgoing Bandwidth
- 4× SATA Interfaces up to 16TB each
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
TP-Link VIGI NVR4064H | 64-Channel Network Video Recorder
Security Never Shuts Down
FEATURES:
- 64-Channel Live View and 4K HDMI Video Output
- Up to 16-Channel @2MP (25fps) / 8-Channel @4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320Mbps Incoming Bandwidth and 320Mbps Outgoing Bandwidth
- 4× SATA Interfaces up to 16TB each
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
SPECIFICATIONS:
| VIDEO AND AUDIO | |
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260Mbps |
| Extended Bandwidth Mode: 320Mbps | |
| Outgoing Bandwidth | Default: 180Mbps |
| Extended Bandwidth Mode: 320Mbps | |
| HDMI Output Resolution | 1-Channel, Resolution: 3840×2160 @30Hz, 1920×1080 @60Hz, 1680×1050 @60Hz, 1440×900 @60Hz, 1280×1024 @60Hz, 1280×720 @60Hz |
| VGA Output Resolution | 1-Channel, Resolution: 1920×1080 @60Hz, 1680×1050 @60Hz, 1440×900 @60Hz, 1280×1024 @60Hz, 1280×720 @60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 25fps: |
| 16-CH @2MP, 32-CH @720P, 64-CH @D1 | |
| 30fps: | |
| 4-CH @8MP, 6-CH @5MP, 8-CH @4MP | |
| RECORD MANAGEMENT | |
| Record Mode | Manual Recording |
| Scheduling Recording | |
| Motion Detection Recording | |
| Playback Mode | Instant Playback |
| Regular Playback | |
| Tag Playback | |
| Event Playback | |
| Backup Mode | Regular Backup |
| Video Clip Backup | |
| Playback Function | Play |
| Pause | |
| Stop | |
| Fast Forward | |
| Fast Backward | |
| Play By Frame | |
| Full Screen | |
| Video Clip | |
| Export Clip | |
| Digital Zoom | |
| Lock Recording | |
| Audio On/Off | |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T/G, CGI |

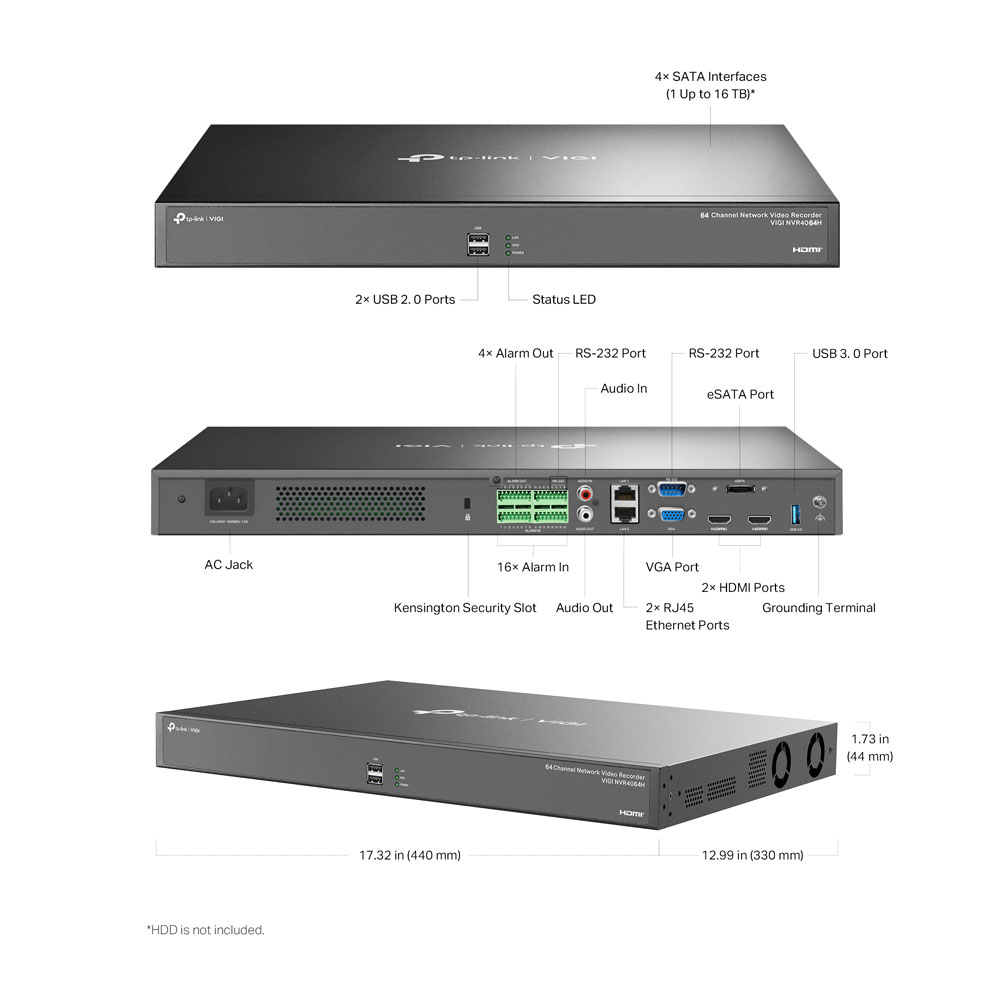

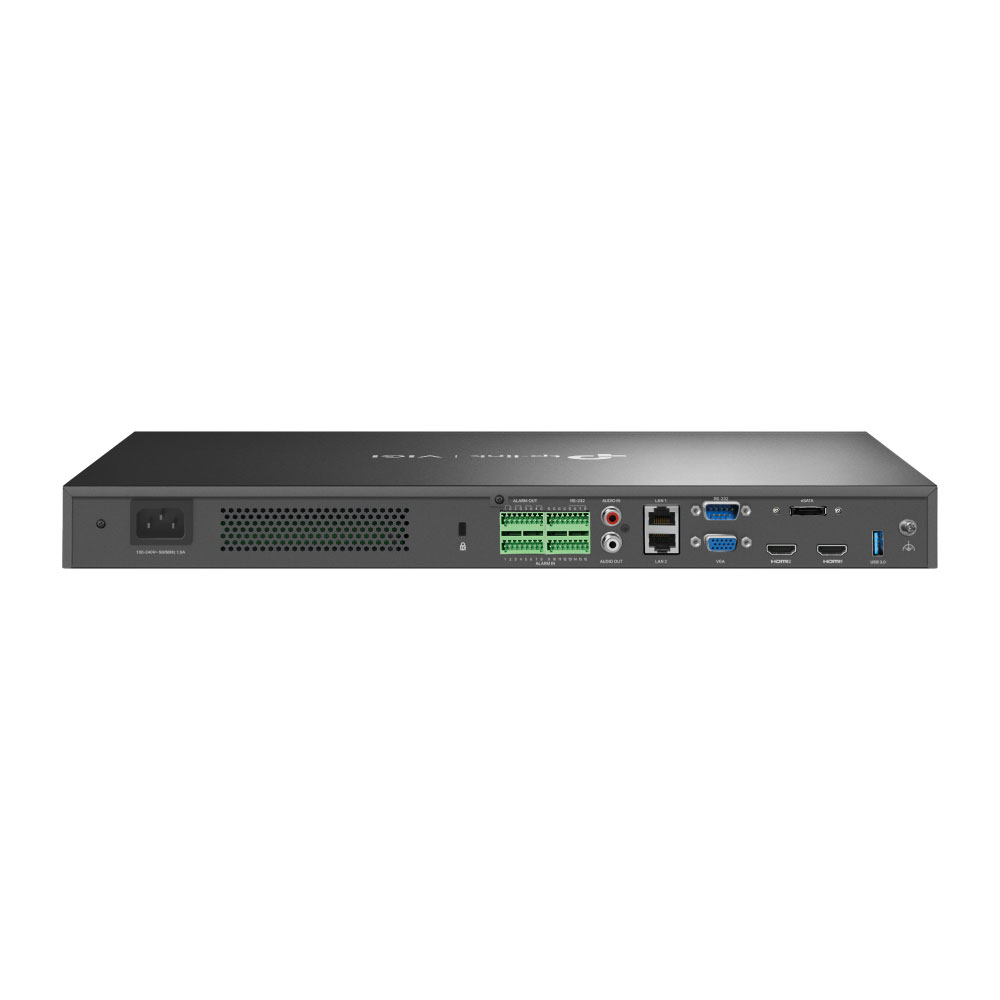

| EXTERNAL INTERFACE | |
| Network Interface | 2× RJ45 10/100/1000Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× Front USB2.0 Ports, 1× Rear USB3.0 Port |
| Audio Interface | 1-CH RCA Input; 1-CH RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | RS232 |
| Power | 1× AC Jack |
| Reset Button | 1× |
| Speaker | N/A |
| eSATA | 1× |
| HDMI | 2× |
| VGA | 1× |
| HARD DISK | |
| SATA | 4× SATA Interfaces |
| Capacity | Up to 16TB Capacity for Each HDD |
| ALARM | |
| General Alarm | Motion Detection |
| Video Tampering | |
| Scene Change Detection | |
| Line-Crossing Detection | |
| Intrusion Detection | |
| Region Entering Detection | |
| Region Exiting Detection | |
| Loitering Detection | |
| Object Abandoned/Removal Detection | |
| Vehicle Detection | |
| Human Detection | |
| Abnormal Sound Detection | |
| Smart Frame | |
| Note: The alarm function requires the use of a camera. | |
| Anomaly Alarm | Video Loss |
| Offline and IP Conflict | |
| Disk Exception | |
| Login Exception | |
| Fan Exception | |
| Note: The alarm function requires the use of a camera. | |
| Alarm Linkage | Recording |
| White Light Alarm | |
| Buzzer | |
| Log | |
| Audible Alarm | |
| Note: The alarm function requires the use of a camera. | |
| GENERAL | |
| Storage Temperature | -40~70°C |
| Storage Humidity | 10~90% RH Non-Condensing |
| Package Contents | VIGI Network Video Recorder |
| Mouse | |
| Installation Guide | |
| Power Cord | |
| HDD Power Cables | |
| HDD Data Cables | |
| Terminal Blocks | |
| Mounting Brackets | |
| Screws | |
| Rubber Feet | |
| Working Temperature | NVR: -10~55°C |
| Working Humidity | 10~90% RH Non-Condensing |
| Dimensions (W × D × H) | 440 × 330 × 44mm |
| External Power Supply | 100~240 VAC, 50/60HZ, 1.5A |
| Net Weight | 4kg |
| Gross Weight | 5kg |
| Power Supply | 100~240 VAC, 50/60HZ, 1.5A |
| Power Consumption | 6.95W (Without Disk) |
| 48.38W (With Disk) | |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
