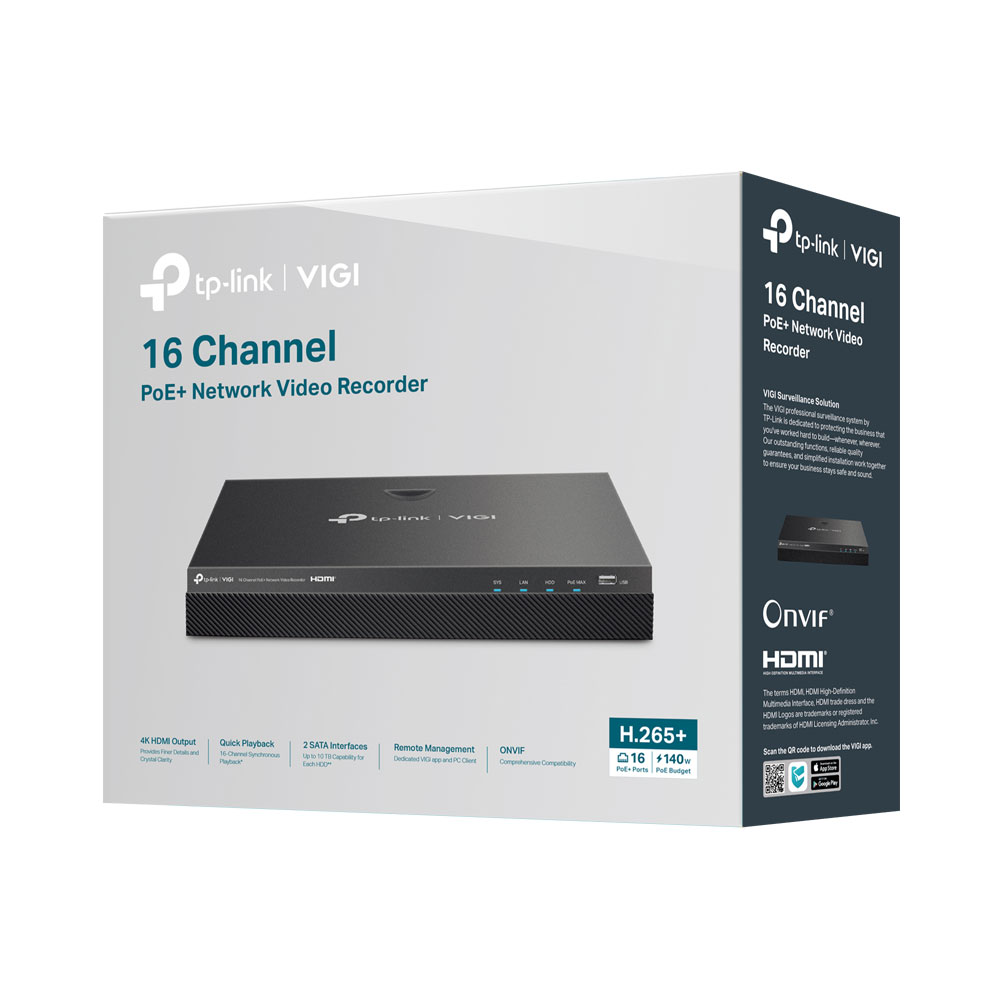

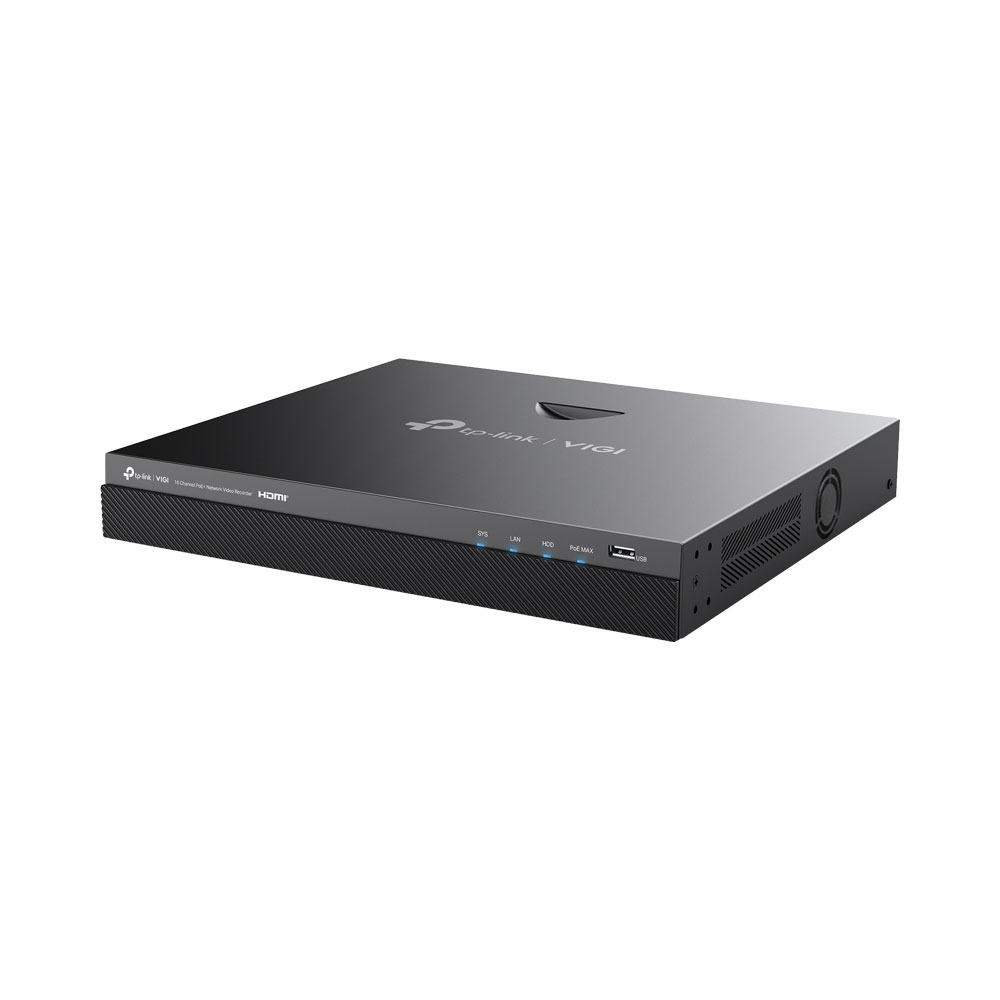

TP-LINK VIGI NVR2016H-16P | 16-CHANNEL POE+ NETWORK VIDEO RECORDER (90W POE BUDGET)
FEATURES:
- 4K HDMI Video Output and 16MP Decoding Capacity – Sharp image definition up to 8MP and 8-Channel @2MP decoding capacity allows you to enjoy more channels live view and playback at the same time
- 90W PoE Budget – 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90W
- 16-Channel Simultaneous Playback – Replay the feed from up to 16× cameras at the same time, increase replay speed and find events in the video schedule to easily review footage
- H.265+ – Compresses the video size without sacrificing video quality, easing the network load and saving disk space
- ONVIF Ensures Compatibility – Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Auto Initialize for Quick Configuration – Just click “Auto Initialize” to set up basic IPC and hard disk parameters, significantly reducing your configuration time
- 24/7 Continuous Recording – Stores up to 20TB of footage (1,048 storage days) from connected cameras to secure your data for quick, convenient access
- Two-Way Audio – With voice intercom support, scare off any potential thieves or intruders from wherever you are
- Remote Monitoring – The dedicated VIGI App and client enable remote monitoring, providing ease and convenience
Out of stock
TP-Link VIGI NVR2016H-16P | 16-Channel PoE+ Network Video Recorder
Security Never Shuts Down
Simplified Deployment with PoE+
FEATURES:
- 4K HDMI Video Output and 16MP Decoding Capacity - Sharp image definition up to 8MP and 8-Channel @2MP decoding capacity allows you to enjoy more channels live view and playback at the same time
- 90W PoE Budget - 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90W
- 16-Channel Simultaneous Playback - Replay the feed from up to 16× cameras at the same time, increase replay speed and find events in the video schedule to easily review footage
- H.265+ - Compresses the video size without sacrificing video quality, easing the network load and saving disk space
- ONVIF Ensures Compatibility - Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Auto Initialize for Quick Configuration - Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time
- 24/7 Continuous Recording - Stores up to 20TB of footage (1,048 storage days) from connected cameras to secure your data for quick, convenient access
- Two-Way Audio - With voice intercom support, scare off any potential thieves or intruders from wherever you are
- Remote Monitoring - The dedicated VIGI App and client enable remote monitoring, providing ease and convenience
SPECIFICATIONS:
| VIDEO AND AUDIO | |
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| HDMI Output Resolution | 1-Channel, Resolution: 3840 × 2160 @30Hz, 1920 × 1080 @60Hz, 1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1280 × 720 @60Hz |
| VGA Output Resolution | 1-Channel, Resolution: 1920 × 1080 @60Hz, 1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1280 × 720 @60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 25fps: |
| 2-CH @8MP, 4-CH @4MP, 8-CH @2MP | |
| 30fps: | |
| 4-CH @3MP, 2-CH @5MP | |
| RECORD MANAGEMENT | |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full |
| Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off | |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

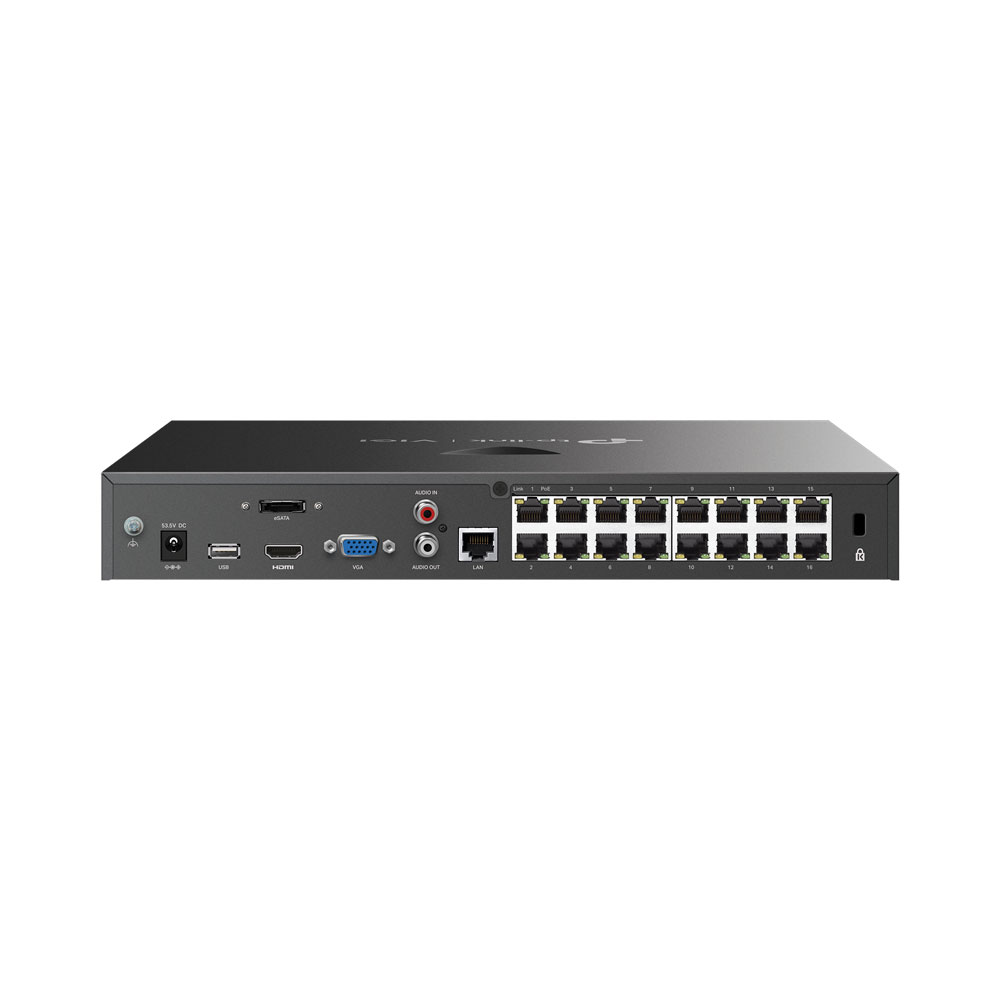

| EXTERNAL INTERFACE | |
| Network Interface | 1× RJ45 10/100/1000Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1× Front USB2.0 Port, 1× Rear USB2.0 Port |
| Audio Interface | 1× Audio In; 1× Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1× |
| Speaker | N/A |
| eSATA | 1× |
| HDMI | 1× |
| VGA | 1× |
| HARD DISK | |
| SATA | 2× SATA Interfaces |
| Capacity | Up to 10TB Capacity for Each HDD |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 16× RJ45 10/100Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 90W Available for All PoE+ Ports, 30W Max. per Port |
| ALARM | |
| General Alarm | Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| GENERAL | |
| Storage Temperature | -40~70°C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | VIGI Network Video Recorder |
| Power Adapter | |
| Power Cables | |
| HDD Power Cables | |
| HDD Data Cables | |
| Mounting Accessories | |
| Mouse | |
| Quick Installation Guide | |
| Working Temperature | NVR: -10~55°C |
| Power Adapter: 0~40°C | |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W × D × H) | 330 × 285 × 45mm |
| Net Weight | 1.9kg |
| Gross Weight | 3.2kg |
| Power Supply | 53.5V DC 2.43A |
| Power Consumption | 6.2W (Without Disk) |
| 40W (With Disk) | |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
