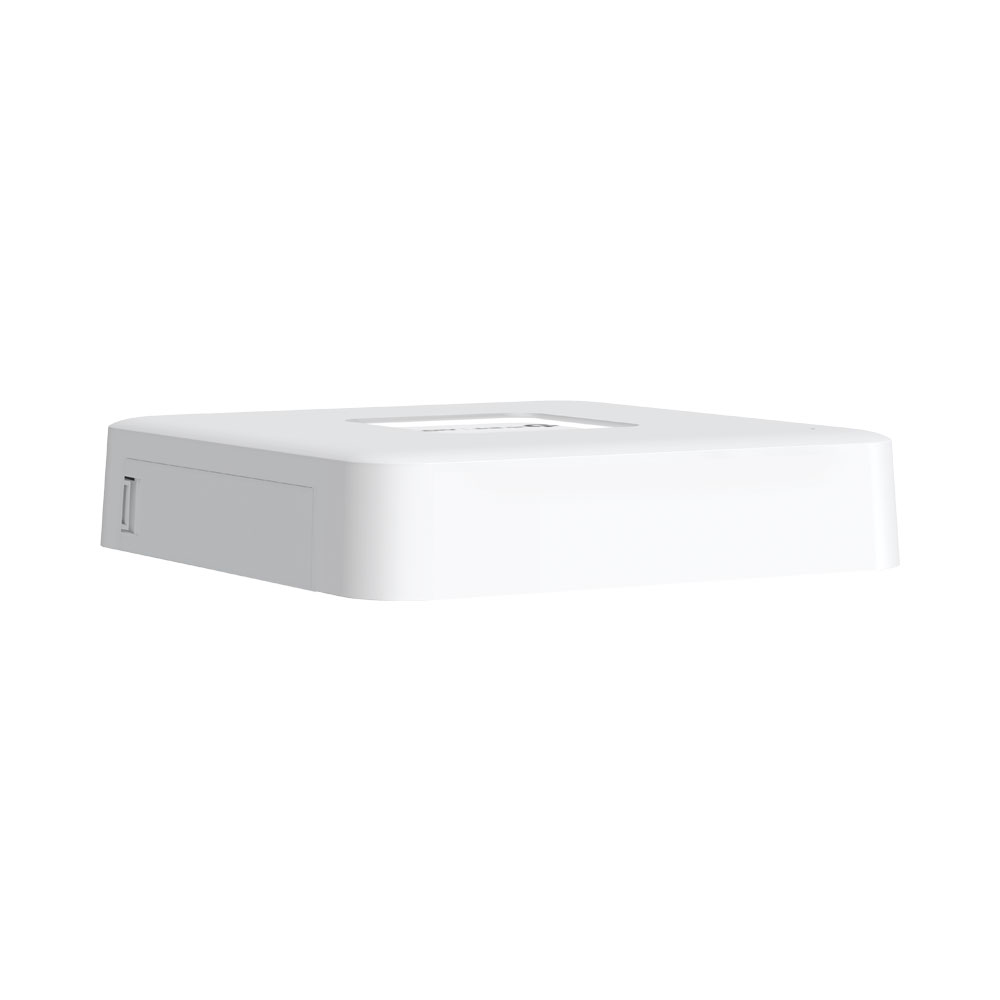

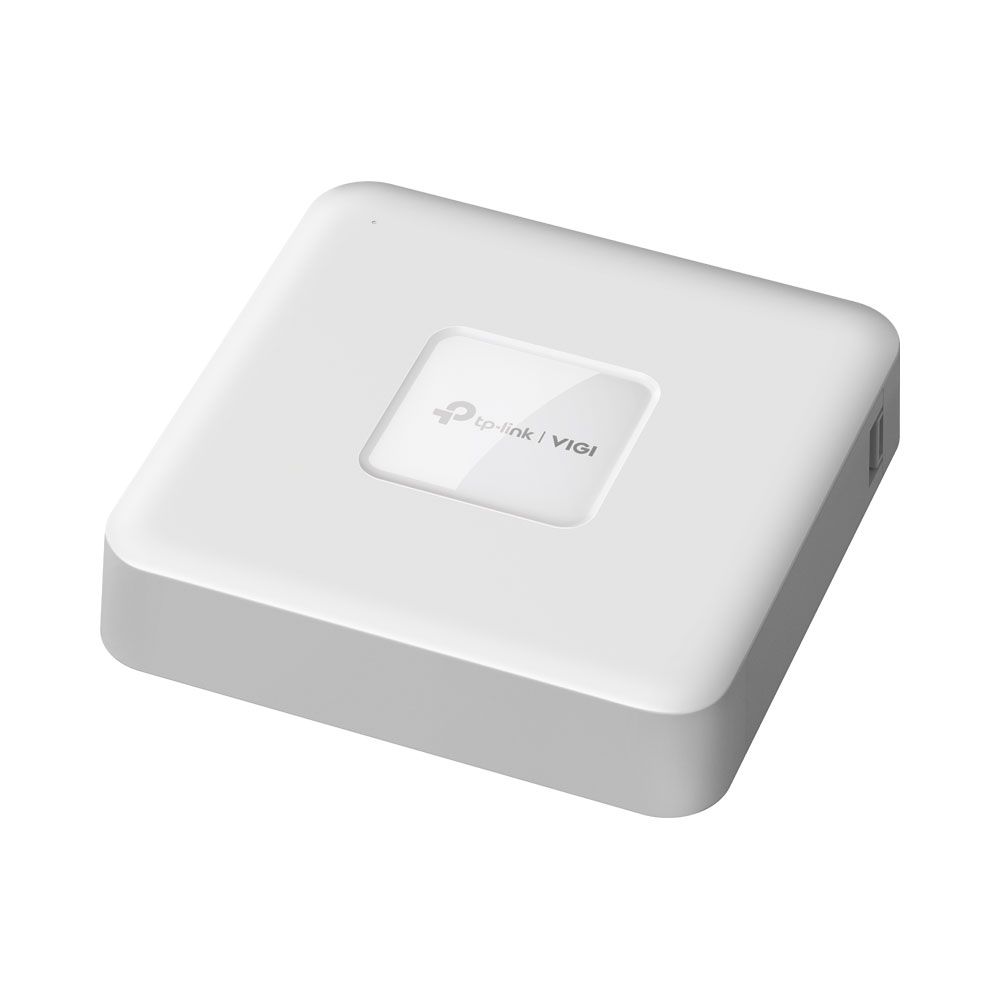

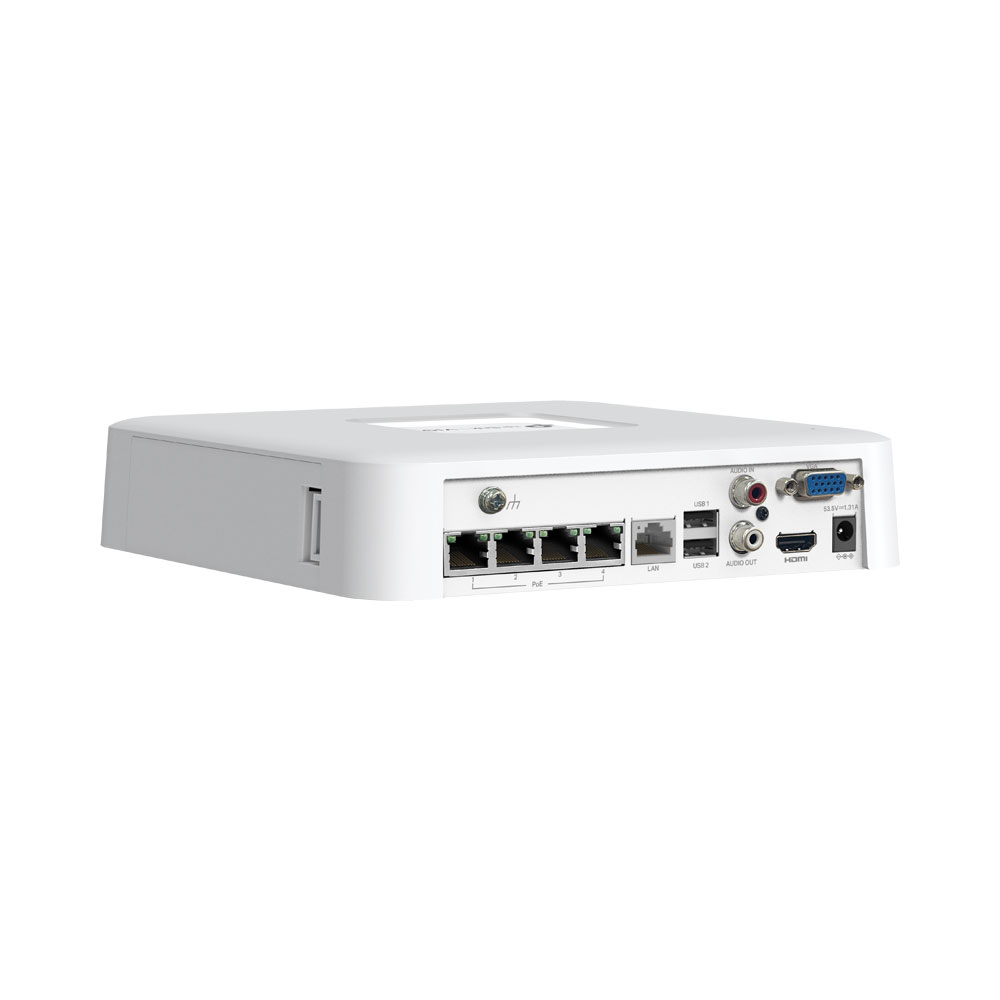

TP-LINK VIGI NVR1104H-4P | 4-CHANNEL POE+ NETWORK VIDEO RECORDER
FEATURES:
- 4K HDMI Video Output and 16MP Decoding Capacity – Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
- Simplified Deployment with PoE+ – Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- Simple HDD Installation – Install and remove the HDD manually with easy side access.
- 4-Channel Simultaneous Playback – Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+ – Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility – Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug and Play – Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording – Stores up to 10TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring – The dedicated VIGI app, web UI and VIGI Security Manager enables remote monitoring, providing ease and convenience.
- Built-In Speaker – Enjoy real-time audio output without needing peripherals for greater convenience.
- Flexible Installation – Choose a suitable installation method by simply mounting your NVR on the wall or placing it on or under a desk.
23 in stock
TP-Link VIGI NVR1104H-4P | 4-Channel PoE+ Network Video Recorder
Every angle all on one screen
FEATURES:
- 4K HDMI Video Output and 16MP Decoding Capacity - Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
- Simplified Deployment with PoE+ - Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- Simple HDD Installation - Install and remove the HDD manually with easy side access.
- 4-Channel Simultaneous Playback - Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+ - Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility - Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug and Play - Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording - Stores up to 10TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring - The dedicated VIGI app, web UI and VIGI Security Manager enables remote monitoring, providing ease and convenience.
- Built-In Speaker - Enjoy real-time audio output without needing peripherals for greater convenience.
- Flexible Installation - Choose a suitable installation method by simply mounting your NVR on the wall or placing it on or under a desk.
SPECIFICATIONS:
| NETWORK | |
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwith | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| INTERFACES | |
| Network Interface | 1× RJ45 10/100Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB2.0 |
| HARD DISK | |
| SATA | 1× SATA Interface |
| Capacity | Up to 10TB |
| VIDEO/IMAGE | |
| Video Input | 4-Channel IP Video Input, up to 8MP Resolution |
| Recording Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| HDMI Output Resolution | 1-Channel, Resolution: 3840 × 2160 @30Hz,1920 × 1080 @60Hz, 1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1024 × 768 @60Hz, 1280 × 720 @60Hz |
| VGA Output Resolution | 1-Channel, Resolution: 1920 × 1080 @60Hz,1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1024 × 768 @60Hz, 1280 × 720 @60Hz |
| DECODING | |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 2-Channel @ 8MP, 4-Channel @ 4MP |
| GENERAL | |
| Operating Temperature | -10–55°C |
| Package Contents | VIGI Network Video Recorder |
| Power Adapter | |
| HDD Screws | |
| Mouse | |
| Quick Installation Guide | |
| Dimensions (W × D × H) | 200.3 × 200.3 × 43mm |
| PoE | Standard: 802.3af/at |
| PoE Ports: Ports 1-4 | |
| PoE Budget: 53W | |
| External Power Supply | 53.5V DC 1.31A |
| Power Consumption | 4.82W (without disk) |
