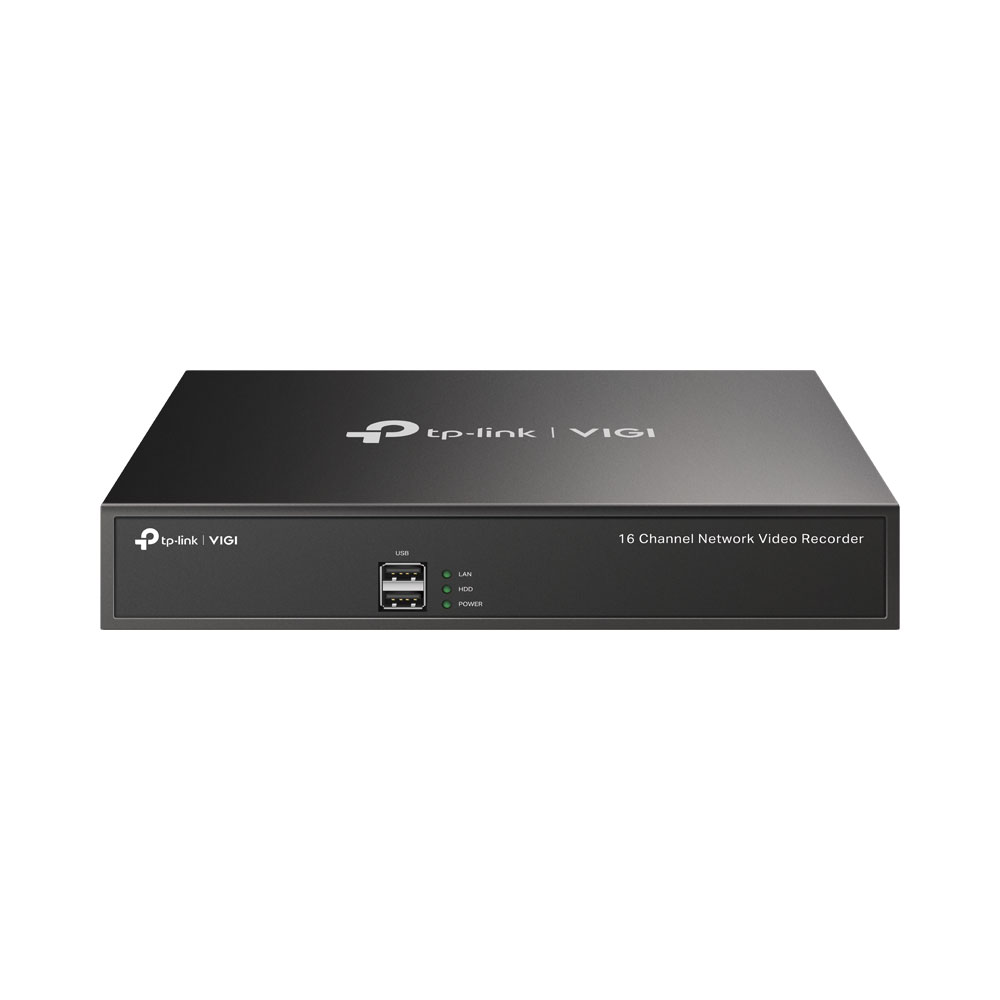

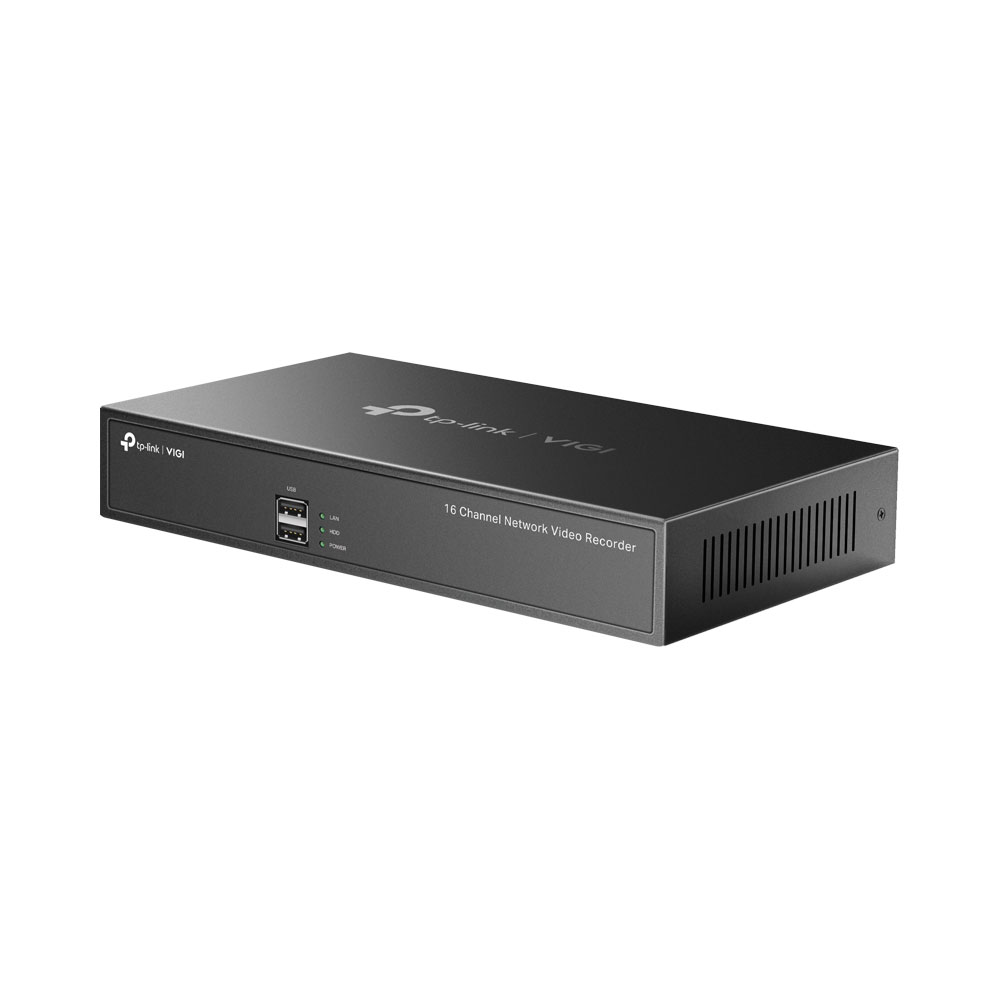

TP-LINK VIGI NVR1016H | 16-CHANNEL NETWORK VIDEO RECORDER
FEATURES:
- 24/7 Continuous Recording – Stores up to 10TB of footage from connected cameras to secure your data for quick and convenient access.
- 16-Channel Real-Time Live View – Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback – Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
- Remote Monitoring – Dedicated VIGI App is developed for remote monitoring, providing ease and convenience.
- H.265+ – Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility – Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1× HDD Interface (up to 10TB) – Stores up to 10TB (720-days of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio – With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
TP-Link VIGI NVR1016H | 16-Channel Network Video Recorder
Security Never Shuts Down
FEATURES:
- 24/7 Continuous Recording - Stores up to 10TB of footage from connected cameras to secure your data for quick and convenient access.
- 16-Channel Real-Time Live View - Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback - Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
- Remote Monitoring - Dedicated VIGI App is developed for remote monitoring, providing ease and convenience.
- H.265+ - Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility - Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1× HDD Interface (up to 10TB) - Stores up to 10TB (720-days of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio - With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
SPECIFICATIONS:
| NETWORK | |
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwith | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| GENERAL | |
| Operating Temperature | -10~55°C |
| Weight | 578.5g |
| Package Contents | VIGI Network Video Recorder |
| Power Adapter | |
| HDD Screws | |
| Mouse | |
| Quick Installation Guide | |
| Dimensions (W × D × H) | 246.2 × 148.2 × 45mm |
| External Power Supply | 12V DC/1.5 A |
| Power Consumption | 4.25W (without disk) |
| 13.10W (with disk) | |

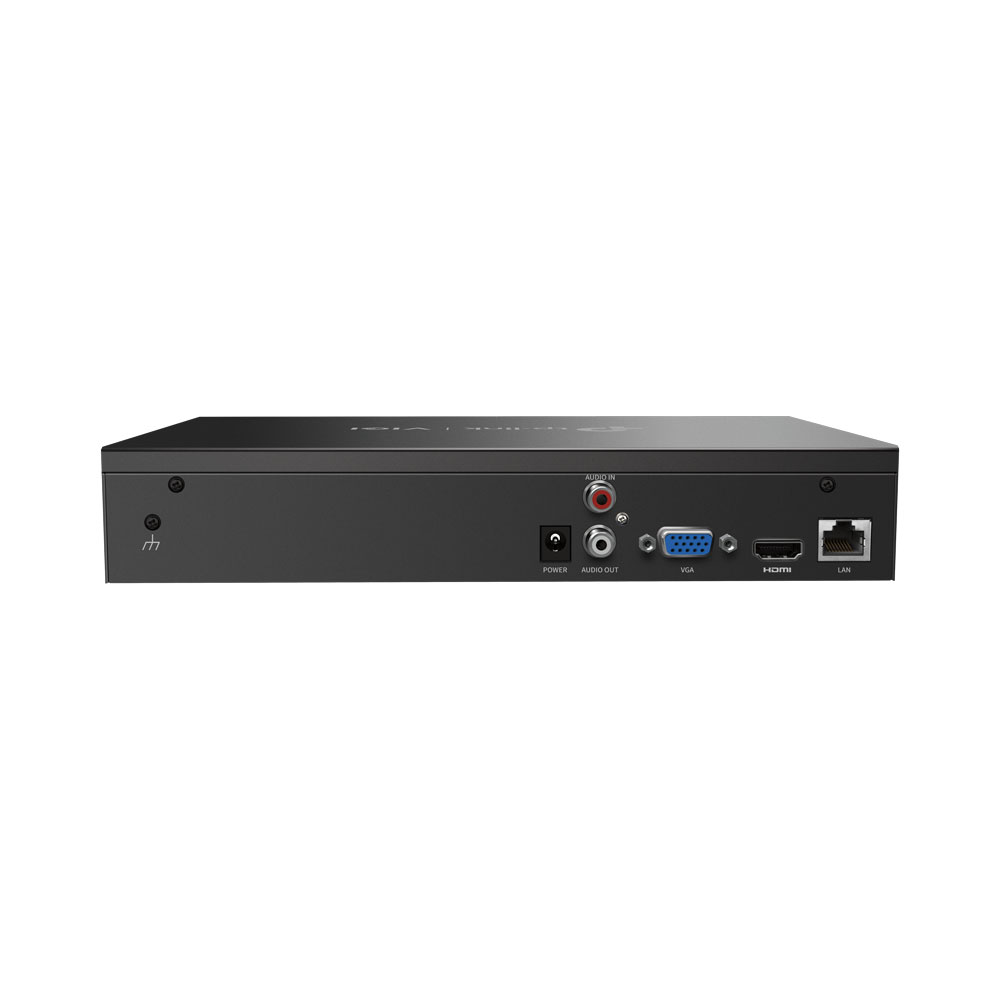

| INTERFACES | |
| Network Interface | 1× RJ45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB2.0 |
| HARD DISK | |
| SATA | 1× SATA Interface |
| Capacity | Up to 10TB |
| VIDEO/IMAGE | |
| Synchronous Playback | 16-Channel |
| Video Input | 16-Channel IP Video Input, up to 8MP Resolution |
| Video Output | Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI/VGA | |
| Output Resolution: 1920 × 1080p @60Hz, 1280 × 1024 @60Hz, 1280 × 720 @60Hz, 1680 × 1050 @60Hz, 1440 × 900 @60Hz | |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1-Channel, Resolution: 3840x2160 @30Hz,1920x1080 @60Hz, 1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1280 × 720 @60Hz |
| VGA Output Resolution | 1-Channel, Resolution: 1920 × 1080 @60Hz,1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1280 × 720 @60Hz |
| DECODING | |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 1-ch @ 8MP, 2-ch @ 4MP, 4-ch @ 2MP |
Additional information
| Weight | 1.12 kg |
|---|---|
| Dimensions | 29.65 × 27.75 × 6.45 cm |
