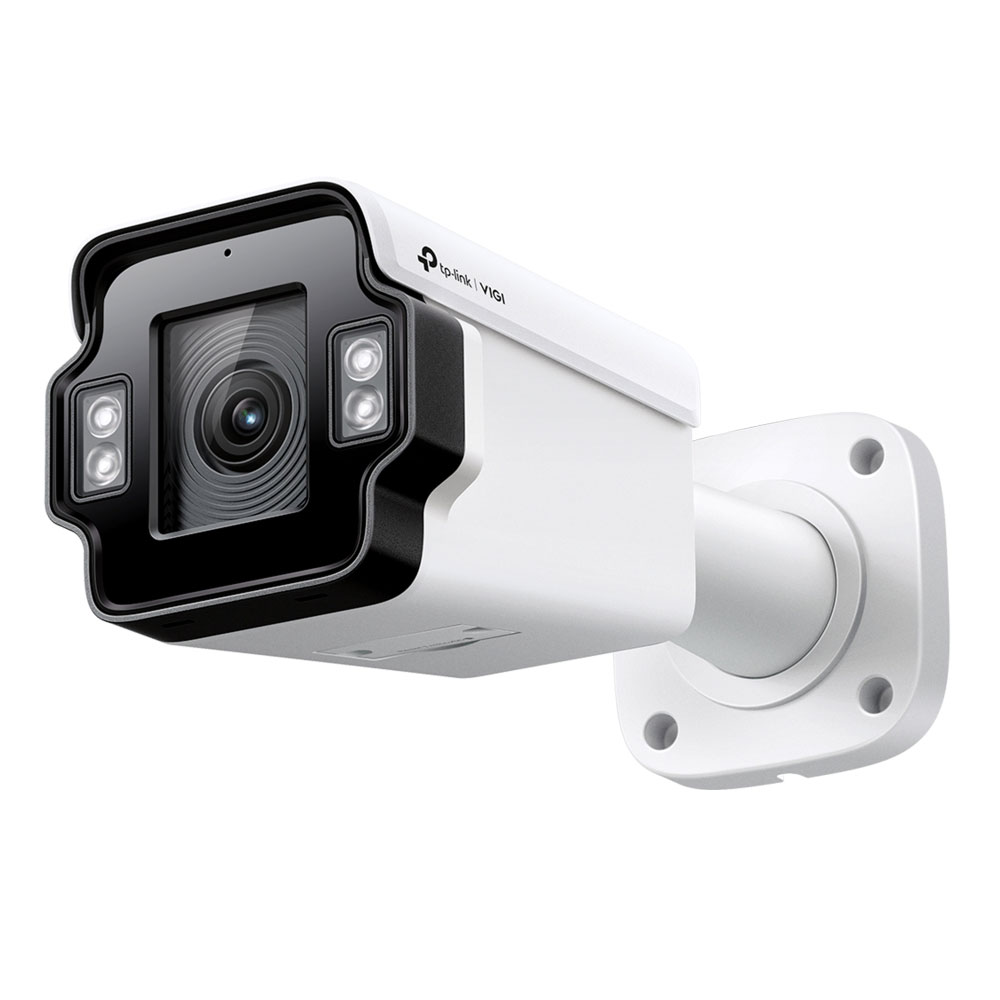

TP-LINK VIGI INSIGHT S345ZI | 4MP OUTDOOR IR MOTORIZED VARIFOCAL BULLET NETWORK CAMERA
FEATURES:
- 5× Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range up to 60m
- Human and Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
TP-Link VIGI InSight S345ZI | 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
See Every Detail Up Close
FEATURES:
- 5× Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range up to 60m
- Human and Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
SPECIFICATIONS:
| CAMERA | |
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000s |
| Slow Shutter | Yes |
| Min. Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| LENS | |
| Type | Motorized Varifocal Lens |
| Focal Length | 2.7~13.5mm (5× Optical Zoom) |
| Aperture | F1.6 |
| FOV | 2.7~13.5mm: |
| Horizontal FOV: 29.6~102.0° | |
| Vertical FOV: 16.8~53.8° | |
| Diagonal FOV: 34.1~122.8° | |
| Lens Mount | ø14 |
| DORI Distance | 2.7~13.5mm: |
| Detect: 66~207m | |
| Observe: 28~86m | |
| Recognize: 13~41m | |
| Identify: 7~21m | |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4× |
| Range: 60m | |
| Wavelength: 850nm | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688×1520 |
| Main Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080 | |
| Note: | |
| If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
| Sub-Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 1280×720, 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 | |
| Note: | |
| If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256Kbps to 6Mbps |
| Sub-Stream: 512Kbps to 1024Kbps | |
| IMAGE | |
| Image Settings | Mirror |
| Brightness | |
| Contrast | |
| Saturation | |
| Sharpness | |
| Exposure | |
| WDR | |
| White Balance | |
| Prevent Overexposure to Infrared Light | |
| HLC Adjustable by Client Software | |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| SNR | ≥ 52dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4× Masks |
| ROI | 1× Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3× Main Streams and 3× Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome 57 and Above |
| Firefox 52 and Above | |
| Safari 11 and Above | |
| Microsoft Edge 91 and Above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Intrusion Detection |
| Line-Crossing Detection | |
| Region Entering Detection | |
| Region Exiting Detection | |
| Object Abandoned Detection | |
| Object Removal Detection | |
| Loitering Detection | |
| People Detection | |
| Vehicle Detection | |
| Abnormal Sound Detection | |
| Scene Change Detection | |
| Basic Event | Motion Detection (Enhanced with Human and Vehicle Classification for More Accurate Alerts) |
| Video Tampering Detection | |
| Exception (Illegal Login) | |
| Alarm Linkage | Memory Card Video Recording |
| Message Push | |
| Audible Warning | |
| Email Alarm | |
| Upload Capture to FTP | |
| Alarm Out Device | |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Email Alarm | |
| Upload Capture to FTP | |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1-Alarm In, 1-Alarm Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-Board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-In Microphone | Yes; Records Anything Going on within a 4.5m Radius of the Camera |
| Built-In Speaker | N/A |
| Audio | 1-Audio In, 1-Audio Out |
| GENERAL | |
| Operating Temperature | -30~60°C |
| Storage Temperature | -40~60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Waterproof Cable Attachments | |
| Mounting Accessories | |
| Material | Metal |
| Net Weight | 1.04kg |
| Power Supply | 12 VDC ± 5%, Max. 10.8W, 5.5mm Coaxial Power Plug |
| PoE: 802.3af/at, Class 0, Max. 12W | |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |

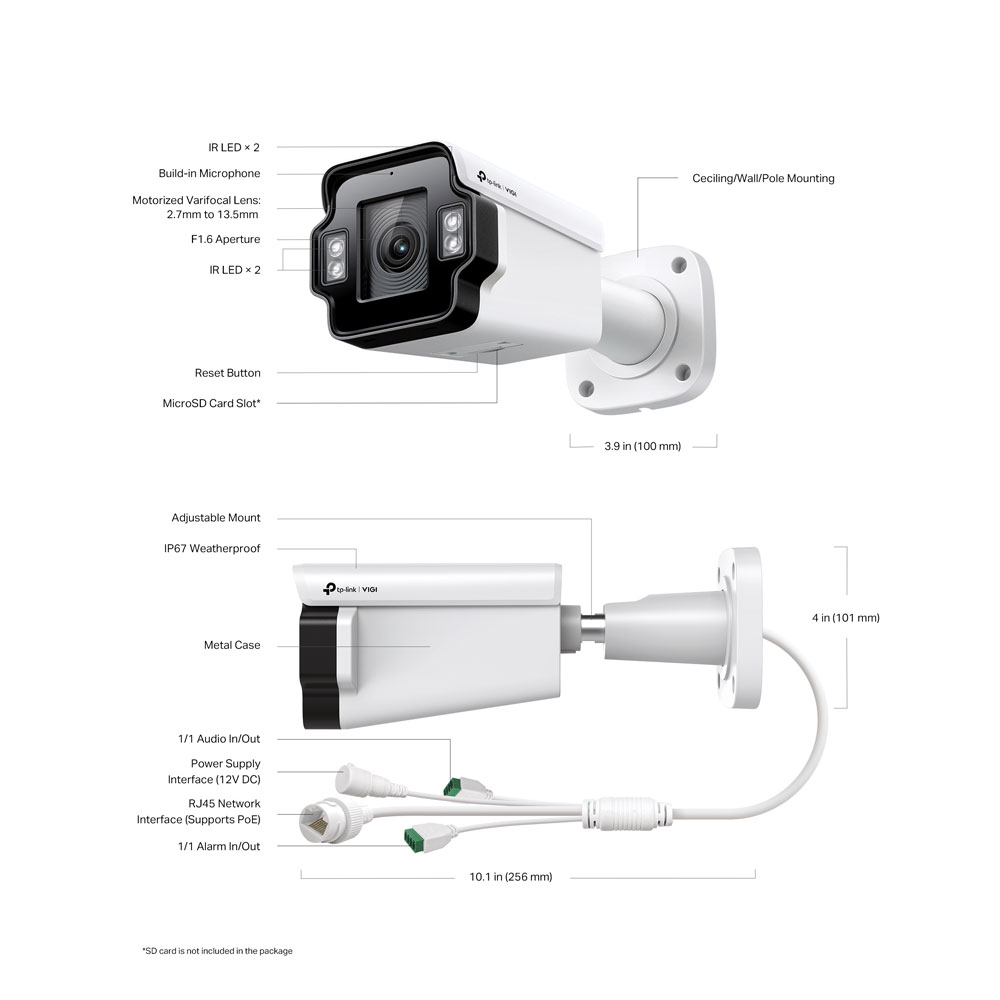

| Product Dimensions (L × W × H) | 256 × 100 × 101mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
