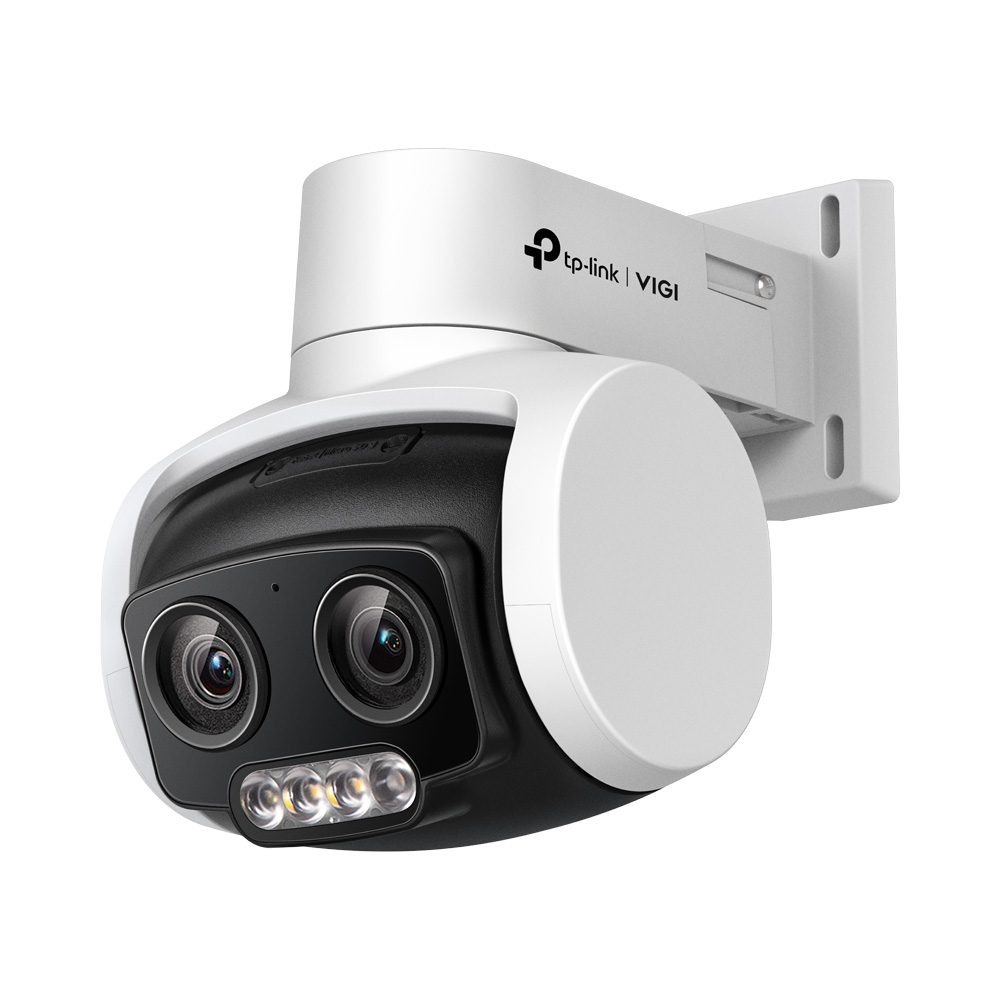

TP-LINK VIGI C540V | 4MP OUTDOOR FULL-COLOUR DUAL-LENS VARIFOCAL PAN TILT NETWORK CAMERA

FEATURES:

4MP Super-High Definition – Offers more than enough pixels to pick up some of the more discreet details
24h Full-Colour – Captures 24 hours of full-colour details, even in pitch-black conditions, thanks to a  large-aperture lens, a high-sensitivity sensor and 4× attached supplemental lights
3× Zoom – Allows for closer viewing of objects in expansive areas
Instant Zoom – Zooming is instant without suffering from delays and image dragging
Human and Vehicle Classification – Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications

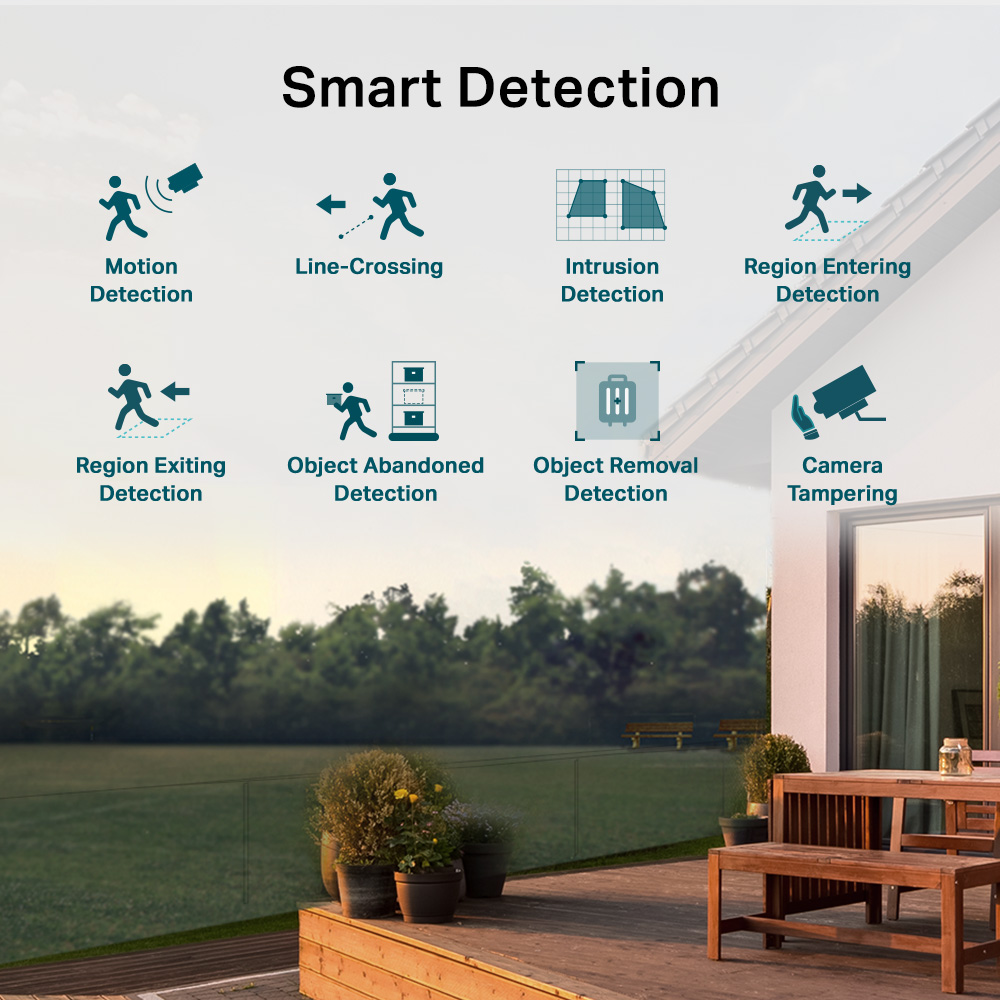

Smart Detection – Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, removes/abandons objects or enters/exits certain regions
Powerful Pan Tilt – Customized patrol routes and auto tracking provides more intelligent options to monitor key areas and improve security within your property
Active Defense – Warn potential intruders instantly with sound and light when abnormal events occur
Two-Way Audio – With voice intercom support, carry two-way conversations while watching your feed from anywhere
H.265+ – Compresses the video size without sacrificing video quality, easing the network load and saving disk space
IP66 Waterproof – Reliable IP66 for stable outdoor performance
Flexible Management and Storage – Take full control over your security via four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manager. Local storage is available for each method as well as onboard storage with an SD card slot (up to 256GB)

10 in stock

TP-Link VIGI C540V | 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera

See More With Less

FEATURES:

4MP Super-High Definition - Offers more than enough pixels to pick up some of the more discreet details
24h Full-Colour - Captures 24 hours of full-colour details, even in pitch-black conditions, thanks to a  large-aperture lens, a high-sensitivity sensor and 4× attached supplemental lights
3× Zoom - Allows for closer viewing of objects in expansive areas
Instant Zoom - Zooming is instant without suffering from delays and image dragging
Human and Vehicle Classification - Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
Smart Detection - Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects or enters/exits certain regions
Powerful Pan Tilt - Customized patrol routes and auto tracking provides more intelligent options to monitor key areas and improve security within your property
Active Defense - Warn potential intruders instantly with sound and light when abnormal events occur
Two-Way Audio - With voice intercom support, carry two-way conversations while watching your feed from anywhere
H.265+ - Compresses the video size without sacrificing video quality, easing the network load and saving disk space
IP66 Waterproof - Reliable IP66 for stable outdoor performance
Flexible Management and Storage - Take full control over your security via four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manager. Local storage is available for each method as well as onboard storage with an SD card slot (up to 256GB)

SPECIFICATIONS:

CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Day/Night Switch Day/Night/Auto/Schedule-Switch
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Zoom 3× Mixed Zoom
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3× Main Streams and 3× Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage NAS (NFS, SMB/ CIFS)
GENERAL
Operating Temperature -30~60°C
Storage Temperature -40~60°C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Plastic
Net Weight 0.43kg
Gross Weight 0.66kg
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 4)
Power Consumption Maximum: 14W
Typical (Day Mode): 2.9W
Typical (Night Mode with IR LED): 5.7W
Typical (Night Mode with White LED): 6.1W
Protection IP66
Product Dimensions (L × W × H) 139 × 136 × 107mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
INTERFACES
Network Interface 1× RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support Micro SD Card, up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 4.5m Radius of the Camera
Built-in Speaker Yes
Audio N/A
ALARM AND EVENT MANAGEMENT
Smart Event Human and Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
LENS
Focal Length 4~12mm (Mixed Zoom)
Aperture F1.6
FOV Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens Mount M12 × P 0.5
PTZ
Pan/Tilt Range Pan: 0° to 332°, Tilt: 0° to 120°
Pan/Tilt Speed Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s
Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8× patrols, up to 8× presets for each patrol
Power-off Memory Yes
Auto restore to previous PTZ and lens status after power failure
Park Action Yes
Preset; Patrol Scan
3D Positioning Yes
ANGLE ADJUSTMENT (MANUAL)
Range Pan: 0° to 332°, Tilt: 0° to 120°
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64Kbps (G.711 alaw)
ILLUMINATOR
IR LED Quantity: 1×
Range: 30m
Wavelength: 850nm
White LED Quantity: 3×
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 × 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640 × 480, 352 × 288, 320 × 240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256Kbps to 4Mbps
Sub-Stream: 64Kbps to 512Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4× Masks
ROI 1× Region
OSD Setting Yes
