TP-Link VIGI C540-4G | 4MP Outdoor Full-Colour Pan Tilt 4G Network Camera
Secure Everywhere with a 4G Network
4MP Outdoor Full-Colour
4G Pan Tilt Network Camera
FEATURES:
- 4MP Super-High Definition - The camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
- 24h Full-Colour - Experience clear, vibrant 24-hour monitoring, even in total darkness
- 4G Mobile Networking - Enjoy hassle-free installation and simple monitoring in places where the internet is not available
- 360° Monitoring - Cover every corner and eliminate blind spots
- Human and Vehicle Classification - Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection - Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly
- Automatic Tracking - Automatically tracks persons or vehicles of interest and provides seamless and longer video
- Active Defense - Warn potential intruders instantly with sound and light when abnormal events occur
- Two-Way Audio - With voice intercom support, carry two-way conversations while watching your feed from anywhere
- H.265+ - Compresses the video size without sacrificing video quality, easing the network load and saving disk space
- IP66 Waterproof - Reliable IP66 for stable outdoor performance
- Remote Management - Take full control over your security anytime and anywhere on the VIGI App or PC client
- Onboard Storage - Supports onboard storage up to 512GB (SD card slot - Sold Separately)
SPECIFICATIONS:
| CAMERA | |
| Image Sensor | 1/3.06” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12*0.5 |
| DORI Distance | Detect: 80m |
| Observe: 33m | |
| Recognize: 16m | |
| Identify: 8m | |
| PTZ | |
| Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 120° |
| Pan/tilt Speed | Pan Speed |
| Configurable from 8° to 44°/s; Preset Speed: 44°/s | |
| Tilt Speed | |
| Configurable from 8° to 44°/s, Preset Speed 44°/s | |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8× patrols, up to 8× presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PT and lens status after power failure |
| Park Action | Yes |
| Preset; Patrol Scan | |
| 3D Positioning | Yes |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 348° |
| Tilt: 0° to 120° | |
| ILLUMINATOR | |
| IR LED | Quantity: 2× |
| Range: 30m | |
| Wavelength: 850nm | |
| White LED | Quantity: 2× |
| Range: 30m | |
| Illuminator On/Off Control | Auto / Scheduled / Always on / Always off |
| VIDEO | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | Frame Rate |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution | |
| 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
| Sub-Stream | Frame Rate |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution | |
| 640 × 480, 352 × 288, 320 × 240 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream: H.265 / H.264 | |
| H.264 Type | Main Profile / High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256Kbps to 3Mbps |
| Sub-Stream: 64Kbps to 512Kbps | |
| IMAGE | |
| Image Settings | Mirror |
| Brightness | |
| Contrast | |
| Saturation | |
| Sharpness | |
| Exposure, WDR | |
| White Balance | |
| Prevent Over Exposure to Infrared Light | |
| HLC Adjustable by Client Software | |
| Rotation (90°/270°) | |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4× Masks |
| ROI | 1× Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 2× Main Streams and 2× Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome 57 and Above |
| Firefox 52 and Above | |
| Safari 11 and Above | |
| Microsoft Edge 91 and Above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| 4G | |
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM |
| Category | 4 |
| Frequency | LTE-FDD: B 1/3/5/7/8/20/28 |
| LTE-TDD: B 38/40/41 | |
| WCDMA: B 1/5/8 | |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Human and Vehicle Classification |
| Intrusion Detection | |
| Line-Crossing Detection | |
| Region Entering Detection | |
| Region Exiting Detection | |
| Object Abandoned Detection | |
| Object Removal Detection | |
| People Detection | |
| Vehicle Detection | |
| Basic Event | Motion Detection |
| Video Tampering Detection | |
| Exception (Illegal Login) | |
| Alarm Linkage | Memory Card Video Recording |
| Message Push | |
| Audible Warning | |
| White Light Flashing | |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
| Network Interface | 1× RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| Onboard Storage | Built-In Memory Card Slot, Supports MicroSD Card, Up to 512 GB |

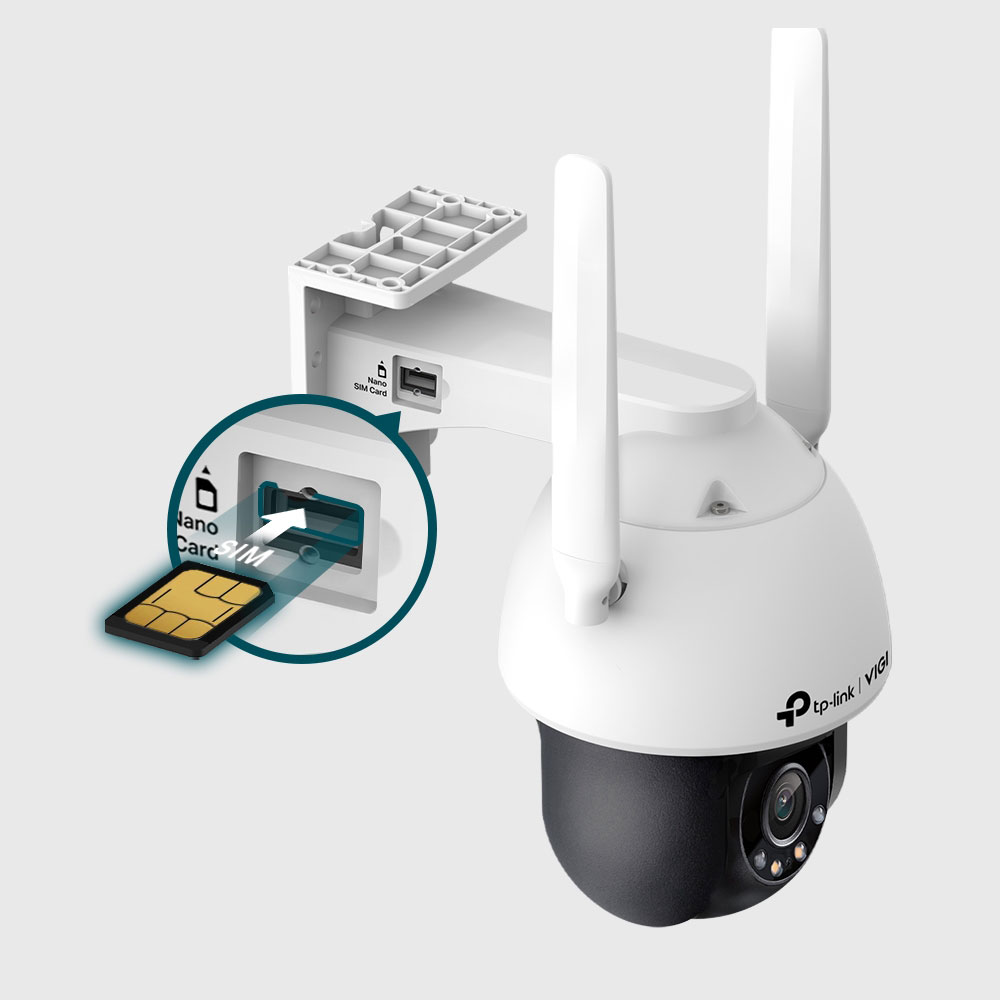

| Built-In Nano-SIM Card Slot | Yes |
| Built-In Microphone | Yes; Records Anything Going on within a 4.5m Radius of the Camera |
| Built-In Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30~60°C |
| Storage Temperature | -40~60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Waterproof Cable Attachments | |
| Mounting Accessories | |
| Power Adapter | |
| Material | Plastic |
| Net Weight | 0.69kg |
| Gross Weight | 1.16kg |
| Power Supply | 12VDC 1A, 5.5mm Coaxial Power Plug |
| Antenna | Quantity: 2× |
| Type | |
| 690~960 and 1710~2690MHz Dipole Omni-Directional Antenna | |
| Gain | |
| Ant1: 0.84dBi @690~960MHz, 2.85dBi @1710~2690MHz | |
| Ant2: 0.74dBi @690~960MHz, 3.06dBi @1710~2690MHz | |
| Protection | IP66 |
| Product Dimensions (L × W × H) | 120 × 182 × 201mm (excluding antennas) |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
