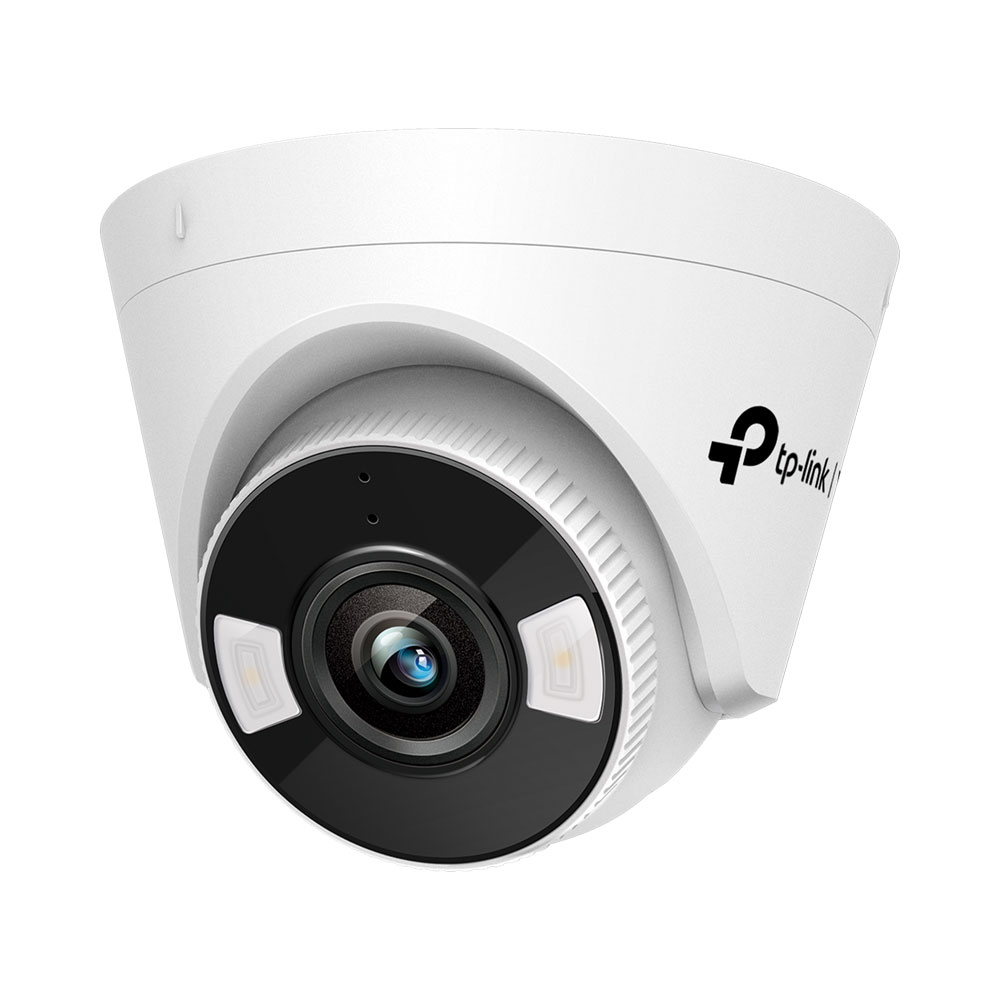

TP-LINK VIGI C440-W | 4MP FULL-COLOUR WI-FI TURRET NETWORK CAMERA
FEATURES:
- 4MP Ultra-High Definition – The VIGI C440-W comes with 4MP – more than enough pixels to pick up some of the more discrete details
- 24h Full-Colour – Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
- Wireless Connection – Simple and quick deployment with Wi-Fi signals
- Smart Detection (motion detection, area intrusion, line-crossing, video tampering) – Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set or obstructs the camera
- H.265+ Smart Coding – Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
- Remote Monitoring – Manage your security from the palm of your hand with the VIGI app
- Flexible Management – Take full control over your security via four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manager
13 in stock
TP-Link VIGI C440-W | 4MP Full-Colour Wi-Fi Turret Network Camera
All The Colours, All The Time
FEATURES:
- 4MP Ultra-High Definition - The VIGI C440-W comes with 4MP - more than enough pixels to pick up some of the more discrete details
- 24h Full-Colour - Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
- Wireless Connection - Simple and quick deployment with Wi-Fi signals
- Smart Detection (motion detection, area intrusion, line-crossing, video tampering) - Receive notifications and check feeds when someone crosses a boundary, enters an area you've set or obstructs the camera
- H.265+ Smart Coding - Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
- Remote Monitoring - Manage your security from the palm of your hand with the VIGI app
- Flexible Management - Take full control over your security via four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manager
SPECIFICATIONS:
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Lens | Fixed focal lens (4mm) |
| Day/Night Switch | Unified / Scheduled / Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| IR Working Distance | 30m |
| Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
| Shutter Speed | 1/3 to 1/10000s |
| Aperture | 4mm: F1.6 |
| Lens Mount | M12 |
| Illumination Distance | 30m (LED) |
| Viewing Angle | (4mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93° |
| Slow Shutter | Yes |
| Minimum Illumination | 0 lux with IR/white Light |
| Day/Night Mechanism | IR Cut Filter |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wireless Rate | 11Mbps (802.11b) |
| 54Mbps (802.11g) | |
| 150Mbps (802.11n) | |
| Wireless Security | WPA/WPA2-PSK |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Web Browser | Google Chrome 57 and above |
| Firefox 52 and above | |
| Safari 11 and above | |
| Microsoft Edge 91 and above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Frequency | 2.4GHz |
| GENERAL | |
| Operating Temperature | -30~60°C |
| Storage Temperature | -40~60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Screws and Anchors | |
| Mounting Template | |
| Dimensions (H × W × D) | 123 × 123 × 84mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| Net Weight | 0.24kg |
| Gross Weight | 0.53kg |
| Power Consumption | 12V DC: Max 7W |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| Antenna | Quantity: 2 |
| Type: 2.4GHz Welded Dipole Omni-Directional Antenna | |
| Gain: 2.0dBi | |
| Protection | N/A |
| Product Dimensions (L × W × H) | 123 × 83 × 123mm |
| Certifications | CE, FCC, RCM, BSMI, VCCI, RoHS |
| INTERFACES | |
| Network Interface | 1× RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| Button | Reset Button |
| Slot | Micro SD card |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB |
| Built-in Microphone | Yes; Records Anything Going on within a 4.5m Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, People Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| WIRELESS | |
| WiFi Channels | 1~13 |
| Frequency | 2.4GHz |
| Wireless Transmit Power | High |
| Auto Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Mornitor | N/A |
| Radio Bandwidth | Auto: N/A |
| 20M: Yes | |
| 40M: Yes | |
| Wireless Rate | 11Mbps (802.11b) |
| 54Mbps (802.11g) | |
| 150/300Mbps (802.11n) | |
| Wireless Security | PWPA/WPA2-PSK |
| Wireless Mode | AP, AP Client |
| VIDEO/IMAGE | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| Frame Rate & Resolutions | Main Stream |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080 | |
| Sub-Stream | |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 640 × 480, 352 × 288, 320 × 240 | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | Main Stream: 256Kbps to 4Mbps |
| Sub-Stream: 64Kbps to 512Kbps | |
| SMART FEATURE-SET | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64Kbps(G.711 alaw) |
| ILLUMINATOR | |
| IR LED | Quantity: 2 |
| Range: 30m | |
| Wavelength: 850nm | |
| White LED | Quantity: 2 |
| Range: 30m | |
| Illuminator On/Off Control | Auto / Scheduled / Always on / Always off |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80m |
| Observe: 33m | |
| Recognize: 16m | |
| Identify: 8m | |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360° |
| Tilt: 0° to 85° | |
| Rotate: 0° to 360° | |
| VIDEO | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080 | |
| Sub-Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 640 × 480, 352 × 288, 320 × 240 | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256Kbps to 3Mbps |
| Sub-Stream: 64Kbps to 512Kbps | |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
