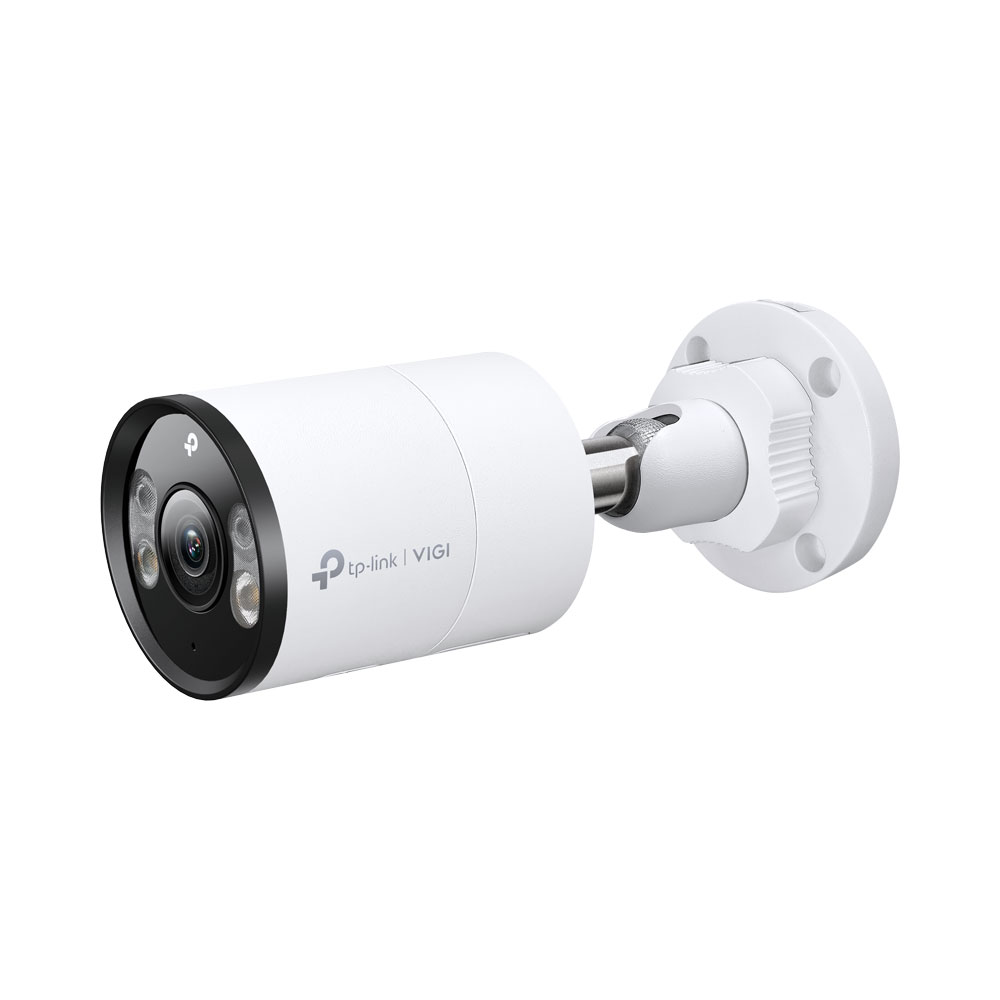

TP-LINK VIGI C345 | 4MP OUTDOOR FULL-COLOUR BULLET NETWORK CAMERA

SKU: N/A Category:

TP-Link VIGI C345 | 4MP Outdoor Full-Colour Bullet Network Camera

Available in 2.8mm, 4mm or 6mm Lens

Sharper Vision, Smarter Protection

FEATURES:

  • 4MP Super-High Definition and 24h Full-Colour
  • People and Vehicle Analytics
  • Human and Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology

SPECIFICATIONS:

CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000s
Slow Shutter Yes
Min. Illumination 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified / Scheduled / Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8 / 4 / 6mm
Aperture F1.6
FOV 2.8mm:
Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
4mm:
Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
6mm:
Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°
Lens Mount M12*P 0.5
DORI Distance 2.8mm:
Detect: 64m
Observe: 27m
Recognize: 13m
Identify: 6m
4mm:
Detect: 80m
Observe: 33m
Recognize: 16m
Identify: 8m
6mm:
Detect: 120m
Observe: 50m
Recognize: 24m
Identify: 12m
ANGLE ADJUSTMENT (MANUAL)
Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED Quantity: 2×
Range: 30m
Wavelength: 850nm
White LED Quantity: 2×
Range: 30m
Illuminator On/Off Control Auto / Scheduled / Always on / Always off
VIDEO
Max. Resolution 2688 x 1520
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2688 × 1520, 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720
Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704 × 576, 640 × 480, 352 × 288, 320 × 240
Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256Kbps to 6Mbps
Sub-Stream: 64Kbps to 512Kbps
Image Settings Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
Image Enhancement BLC / 3D DNR / HLC / SmartIR
Wide Dynamic Range 120dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported
SNR ≥ 52dB
Image Parameters Switch Yes
Privacy Mask Up to 4× Masks
ROI 1× Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64Kbps (G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3× Main Streams and 3× Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser Google Chrome 57 and Above
Firefox 52 and Above
Safari 11 and Above
Microsoft Edge 91 and Above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human and Vehicle Classification
Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned Detection
Object Removal Detection
Loitering Detection
Smart Frame
People Detection
Vehicle Detection
Basic Event Motion Detection
Video Tampering Detection
Exception (Illegal Login)
Scene Change Detection
Alarm Linkage Memory Card Video Recording
Message Push
Audible Warning
White Light Flashing
Linkage Method N/A
Output Notification Message Push
DEEP LEARNING FUNCTION
People and Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier
INTERFACES
Network Interface 1× RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone Yes; Records Anything Going on within a 4.5m Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30~60°C
Storage Temperature -40~60°C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Metal
Net Weight 0.525kg
Power Supply 12VDC ±5%, Max. 9.7W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, Class 0, Max. 10.7W
Protection IP67
Product Dimensions (L × W × H) 74 × 184 × 74mm
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
