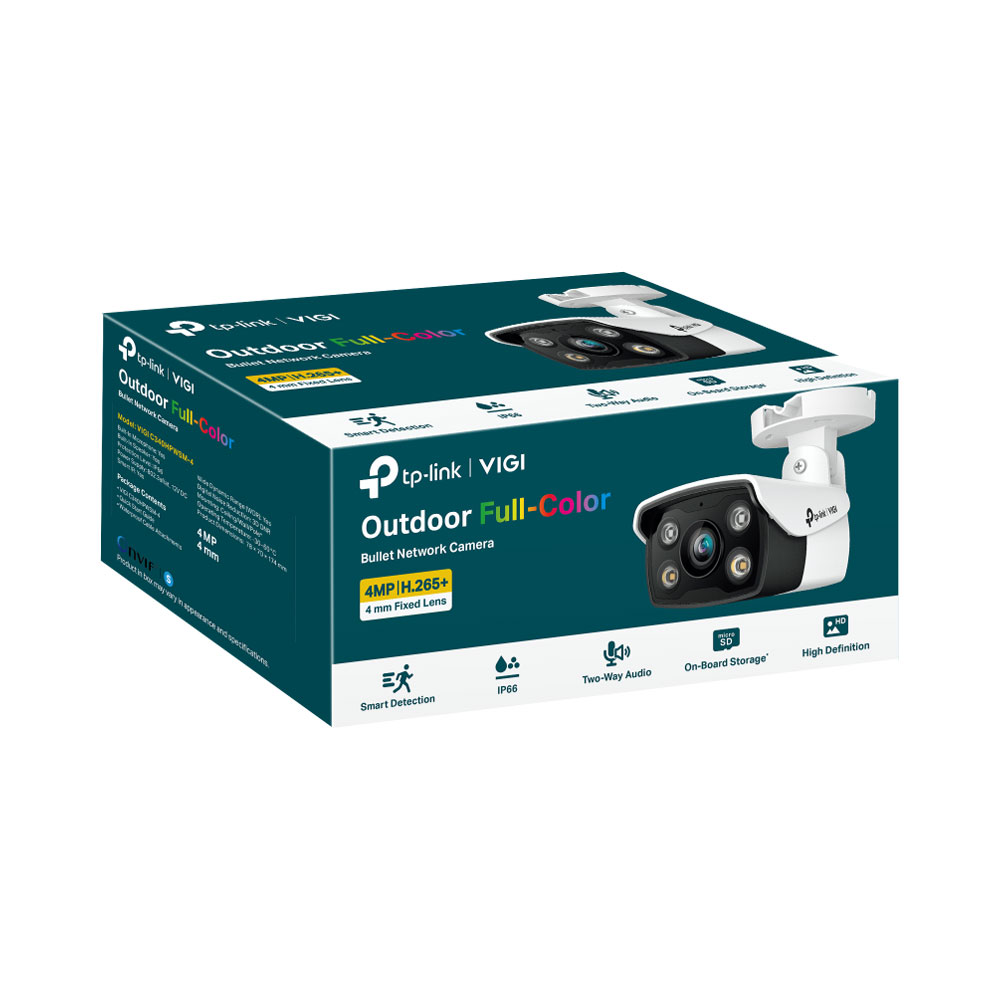

TP-LINK VIGI C340 4MP FULL-COLOUR OUTDOOR BULLET NETWORK CAMERAS

FEATURES:

  • 4MP High Definition: The camera comes with 4MP – more than enough pixels to pick up some of the more discrete details
  • 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
  • Waterproof: Reliable IP66 for stable outdoor performance
  • Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set or obstructs the camera
  • H.265+: Without using any extra bandwidth, your camera transmitS compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy
  • VIGI App: Manage your security from the palm of your hand with the VIGI app
SKU: N/A Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , ,

TP-Link VIGI C340 4MP Full-Colour Outdoor Bullet Network Cameras

All The Colours, All The Time

Available in 2.8mm, 4mm and 6mm fixed focal lenses

FEATURES:

  • 4MP High Definition: The camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
  • 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
  • Waterproof: Reliable IP66 for stable outdoor performance
  • Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set or obstructs the camera
  • H.265+: Without using any extra bandwidth, your camera transmitS compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy
  • VIGI App: Manage your security from the palm of your hand with the VIGI app

SPECIFICATIONS

NETWORK
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
GENERAL
Package Contents VIGI Network Camera
  Quick Start Guide
  Waterproof Cable Attachments
  Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Operating Temperature -30–60 °C
Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Dimensions( H X W X D ) 78 x 70 x 174 mm
Material Plastic
Weight 195g
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug
  PoE (802.3af/at, class 0)
CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Aperture 2.8 mm: F1.6
  4 mm: F1.6
  6 mm: F1.6
Lens Mount M12
Viewing Angle (2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
  (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
  (6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Illumination Distance 30m
Minimum Illumination 0 lux with IR/white Light
Weatherproof Rating IP66
Digital Noise Reduction 3D DNR
WDR DWDR
VIDEO/IMAGE
Video Compression Main stream: H.265+/H.265/H.264+//H.264
  Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
  Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

  Sub-Stream
  Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution: 640x480, 352x288, 320x240
Video Streaming Main Stream
  Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception (illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Button Reset Button
Slot Micro SD card
