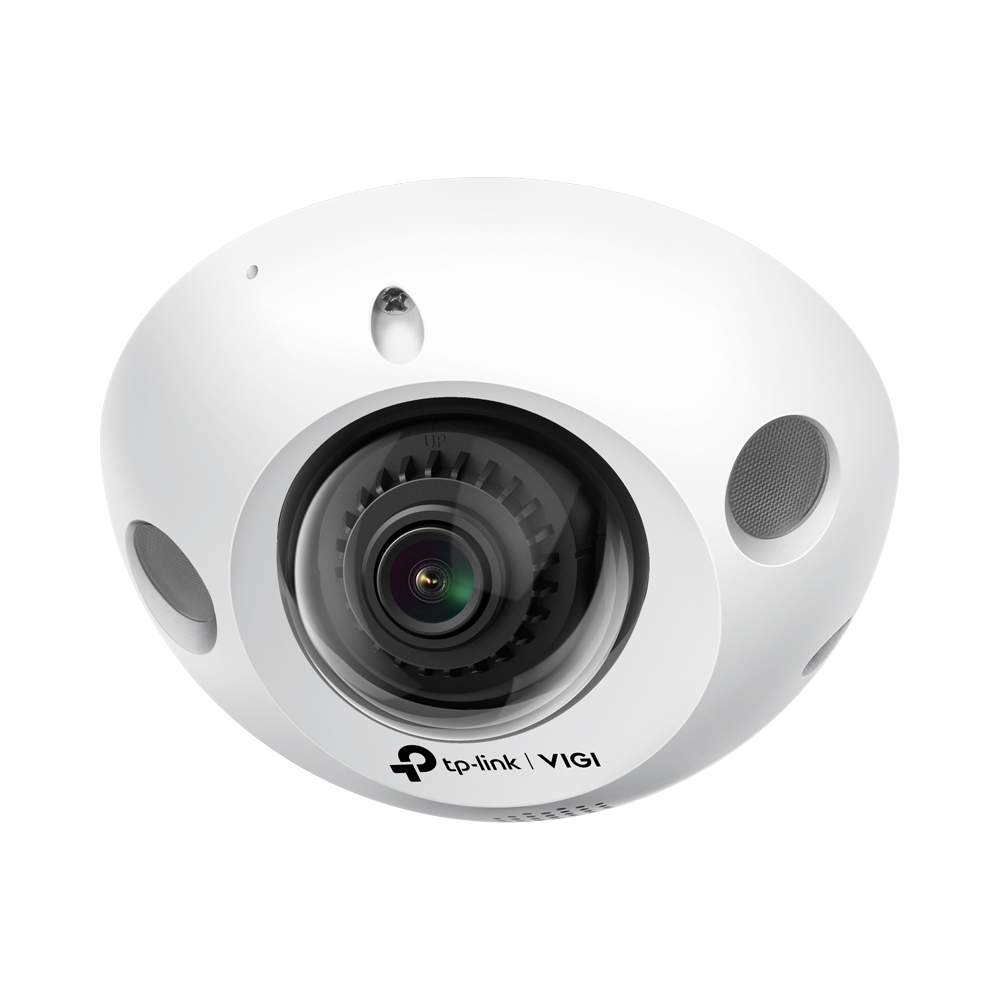

TP-LINK VIGI C230I MINI | 3MP IR MINI DOME POE IP CAMERA, H.265+
FEATURES:
- 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP – more than enough pixels to pick up some of the more discrete details
- Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera or removes/abandons objects
- Small but compact with wide views: With a small, compact form factor and a 2.8mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses and convenience stores, where space is limited and a wide view is required
- IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors and checkout counters
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network load and reduce monitoring costs without sacrificing image quality
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR and Night Vision
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16 and helps to monitor long and narrow areas
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager
25 in stock
TP-Link VIGI C230I Mini | 3MP IR Mini Dome Network Camera
Security Never Shuts Down
FEATURES:
- 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP - more than enough pixels to pick up some of the more discrete details
- Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera or removes/abandons objects
- Small but compact with wide views: With a small, compact form factor and a 2.8mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses and convenience stores, where space is limited and a wide view is required
- IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors and checkout counters
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network load and reduce monitoring costs without sacrificing image quality
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR and Night Vision
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16 and helps to monitor long and narrow areas
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager
SPECIFICATIONS:
CAMERA | |
Image Sensor | 1/2.8” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | Colour: 0.1 Lux; 0 Lux with IR |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Lens | 2.8mm |
Aperture | F1.6 |
Lens Mount | M12 |
Viewing Angle | Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9° |
IR Working Distance | 30m |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 2.8mm |
Aperture | F1.6 |
FOV | 2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9° |
Lens Mount | M12 |
DORI Distance | 2.8mm ; |
Detect: 49m | |
Observe: 20m | |
Recognize: 10m | |
Identify: 5m | |
VIDEO | |
Max. Resolution | 2304 × 1296 |
Main Stream | Frame Rate: |
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: 2304 × 1296, 2048 × 1280, 1920 × 1080,1280 × 720 | |
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: 704 × 576, 640 × 480, 352 × 288, 320 × 240 | |
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
Sub-Stream: H.265/H.264 | |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256Kbps to 4Mbps |
Sub-Stream: 64Kbps to 512Kbps | |
ILLUMINATOR | |
IR LED | Quantity: 2 |
Range: 30m | |
Wavelength: 850nm | |
White LED | N/A |
Illuminator On/Off Control | Auto / Scheduled / Always on / Always off |
Angle Adjustment (Manual) | |
Range | Pan: -30° to 30° |
Tilt: 0° to 85° | |
Rotate: -15° to 15° | |
Image | |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°) |
Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
Wide Dynamic Range | DWDR |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
Web Browser | Open Network Video Interface (Profile S) |
Cloud | Yes |
ONVIF | Yes |
INTERFACES | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
Button | Reset Button |
Video Output | - |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB |
Built-in Microphone | Yes |
Built-in Speaker | Yes |
Audio | N/A |
ALARM AND EVENT MANAGEMENT | |
Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning |
Linkage Method | N/A |
Output Notification | Message Push |
GENERAL | |
Package Contents | VIGI Network Camera |
Quick Start Guide | |
Mounting Accessories | |
Mounting Template | |
Operating Temperature | -30 ~ 60°C |
Storage Temperature | -40 ~ 60°C |
Storage Humidity | 95% or Less (Non-Condensing) |
Operating Humidity | 95% or Less (Non-Condensing) |
Dimensions (H × W × D) | 114 × 114 × 58 mm |
Material | Plastic |
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Net Weight | 0.23kg |
Gross Weight | 0.41kg |
Power Consumption | 12V DC: Max 7.5W |
PoE: Class 0 | |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
PoE (802.3af/at, class 0) | |
Vandal Resistant | IK08 |
Protection | IK08 |
Product Dimensions (L x W x H) | 114 × 58 × 114mm |
Certifications | CE / VCCI / BSMI / KC / ONVIF |
VIDEO/IMAGE | |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
Sub-Stream: H.265/H.264 | |
Frame Rate & Resolutions | Main Stream: |
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 | |
Sub-Stream: | |
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: 704 × 576, 640 × 480, 352 × 288, 320 × 240 | |
Max. Resolution | 3MP (2304 × 1296) |
Video Streaming | 3 Main Streams |
3 Sub-Streams | |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°) |
Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
Video Bit Rate | 64Kbps to 4Mbps |
Day/Night Switch | Day / Night / Auto / Schedule |
SMART FEATURE-SET | |
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
