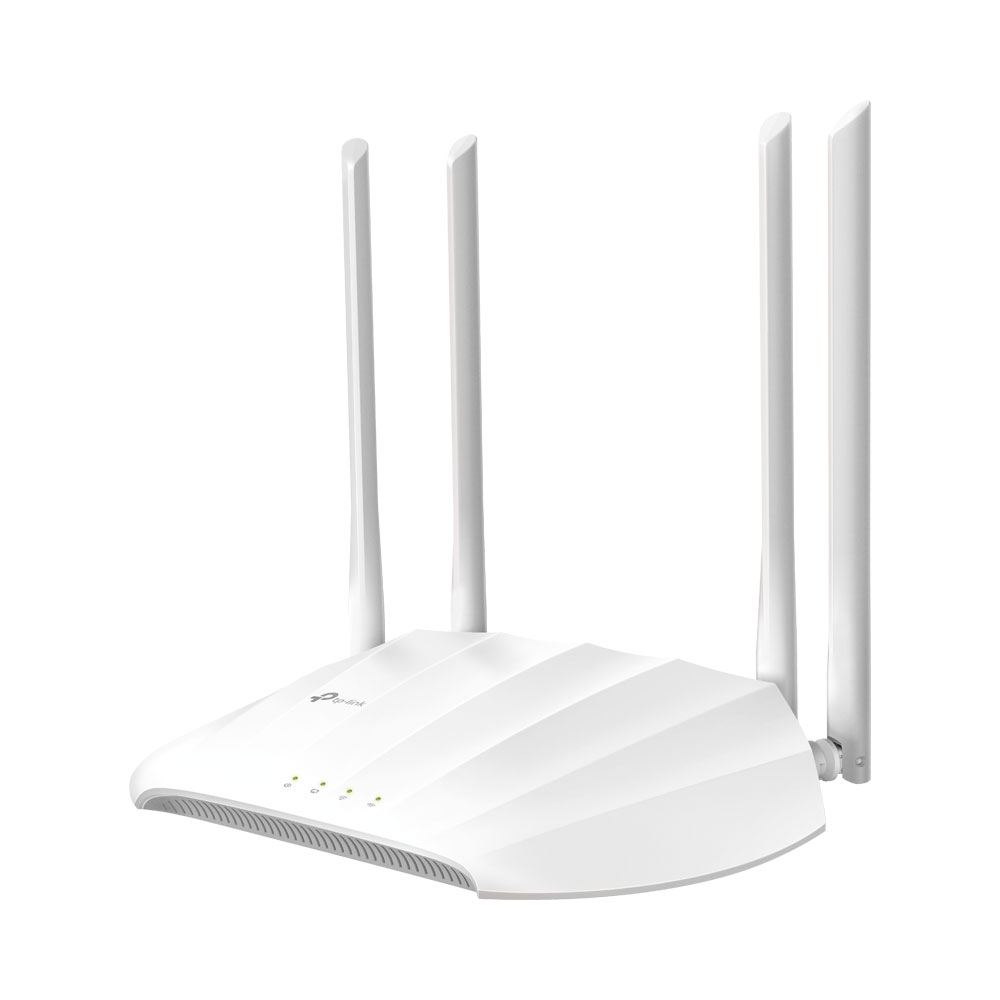

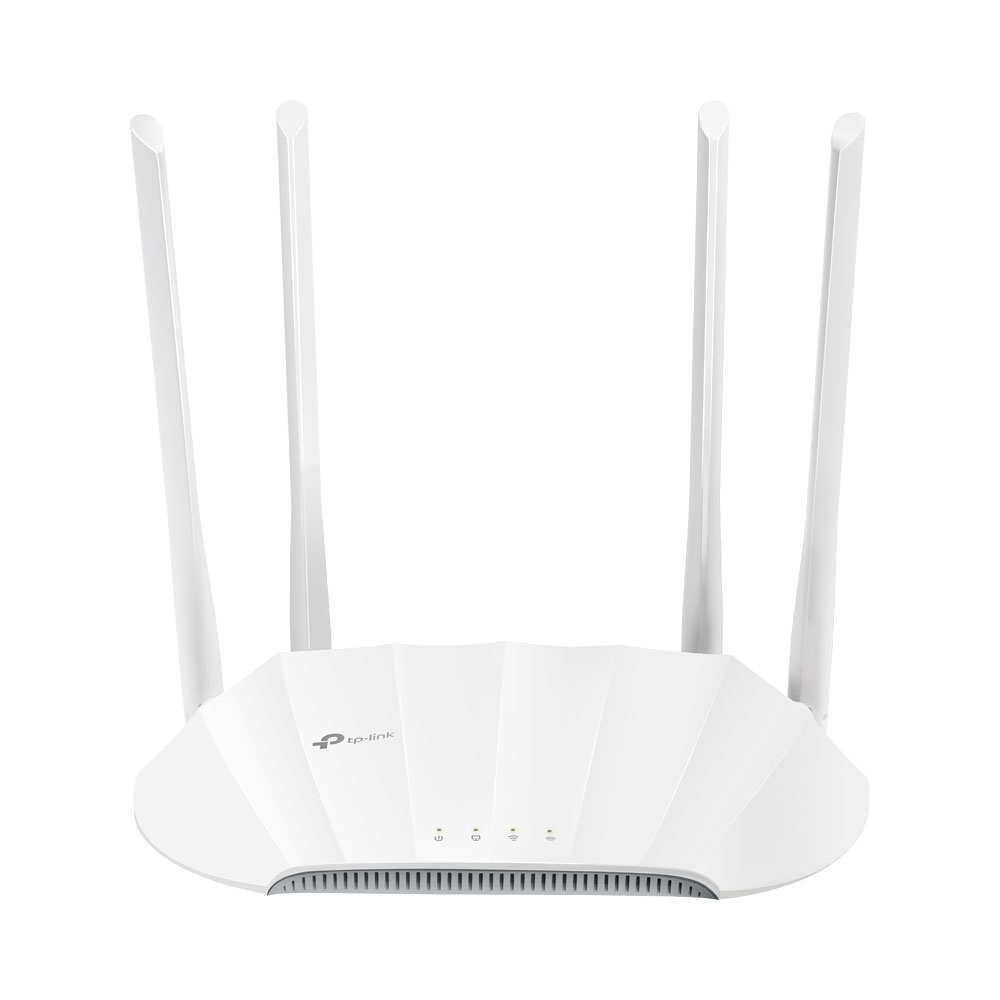

TP-LINK TL-WA1801 | AX1800 GIGABIT WI-FI 6 ACCESS POINT
FEATURES:
- Gigabit Wi-Fi 6 Speed – 1.8Gbps Dual Band Wi-Fi for faster browsing, streaming and downloading – all at the same time
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously

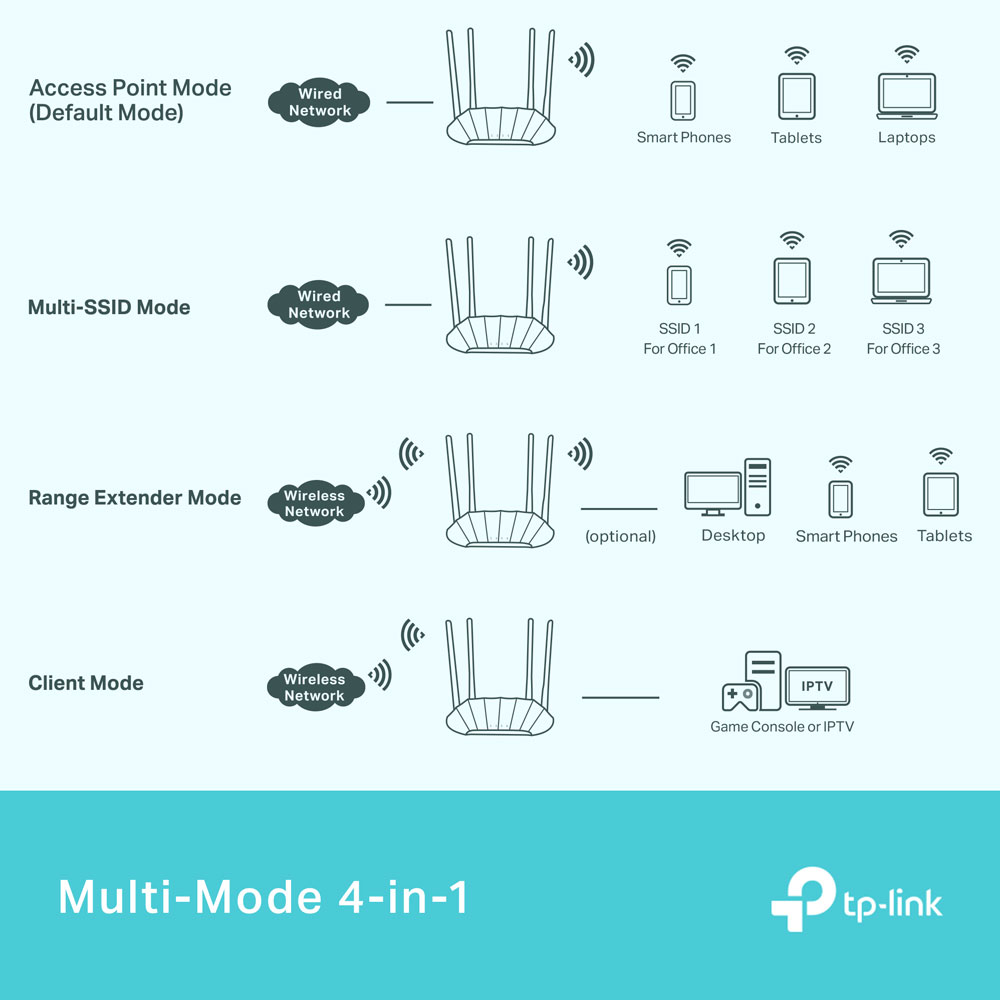

- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID and Client modes to meet any network needs
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology to extend and concentrate the Wi-Fi signals
- Captive Portal – Offers a designed portal page for heightened security and marketing
7 in stock
TP-Link TL-WA1801 | AX1800 Gigabit Wi-Fi 6 Access Point
Advanced Wi-Fi for Better Performance
FEATURES:
- Gigabit Wi-Fi 6 Speed - 1.8Gbps Dual Band Wi-Fi for faster browsing, streaming and downloading - all at the same time
- Flexible Deployment - Supports Passive PoE to carry electrical power and data simultaneously
- Multiple Modes - Supports Access Point, Range Extender, Multi-SSID and Client modes to meet any network needs
- Boosted Coverage - Four fixed antennas equipped with Beamforming technology to extend and concentrate the Wi-Fi signals
- Captive Portal - Offers a designed portal page for heightened security and marketing
SPECIFICATIONS:
| HARDWARE FEATURES | |

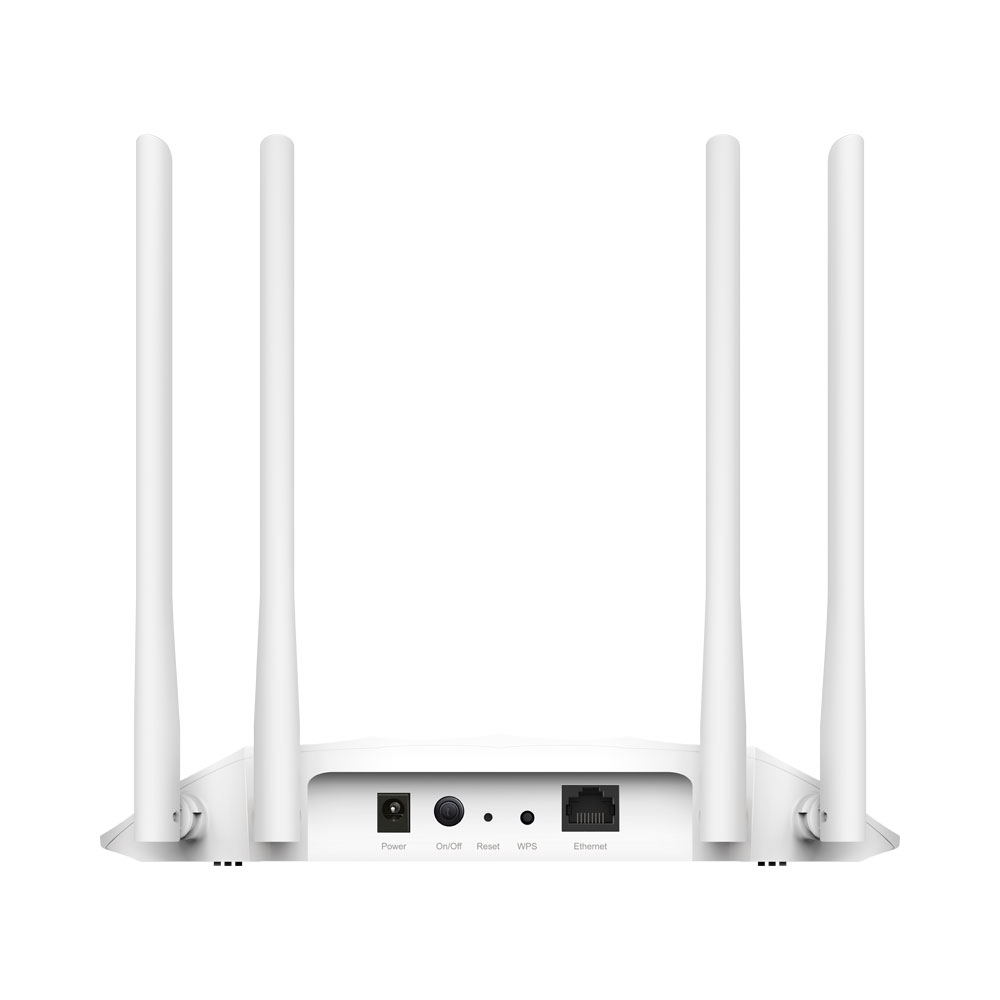

| Interface | 1× Gigabit Port (Supports Passive PoE) |
| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 48V 0.375A |
| Dimensions (W × D × H) | 225 × 145.5 × 37mm |
| Antenna Type | 4× Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE802.11b/g/n/ax 2.4GHz, IEEE 802.11a/n/ac/ax 5.0GHz |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | 1201Mbps at 5.0GHz |
| 574Mbps at 2.4GHz | |
| Reception Sensitivity | 5.0GHz: |
| 11a 6Mbps: -97dbm | |
| 11a 54Mbps:-76dbm | |
| 11ac VHT20_MCS0: -96dbm | |
| 11ac VHT20_MCS8: -72dbm | |
| 11ac VHT40_MCS0: -93dbm | |
| 11ac VHT40_MCS9: -67dbm | |
| 11ac VHT80_MCS0: -90dbm | |
| 11ac VHT40_MCS9: -63dbm | |
| 11ax HE20_MCS0: -96dbm | |
| 11ax HE20_MCS11: -65dbm | |
| 11ax HE40_MCS0: -93dbm | |
| 11ax HE40_MCS11: -61dbm | |
| 11ax HE80_MCS0: -90dbm | |
| 11ax HE80_MCS11:-60dbm | |
| 2.4GHz: | |
| 11g 6Mbps: -96dbm | |
| 11a 54Mbps: -75dbm | |
| 11ac VHT20_MCS0: -95dbm | |
| 11ac VHT20_MCS8: -72dbm | |
| 11ac VHT40_MCS0: -92dbm | |
| 11ac VHT40_MCS9: -67dbm | |
| 11ax HE20_MCS0: -95dbm | |
| 11ax HE20_MCS11: -65dbm | |
| 11ax HE40_MCS0: -92dbm | |
| 11ax HE40_MCS11: -62dbm | |
| Transmit Power | FCC: <30dBm (2.4GHz and 5.15.0GHz~5.825.0GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control |
| Wireless Security | WPA, WPA2, WPA3, WPA/WPA2 Enterprise encryptions |
| SOFTWARE FEATURES | |
| Quality of Service | WMM |
| Operating Modes | Access Point, Range Extender, Client, Multi-SSID |
| System Tools | SNMP, Ping Watchdog |
| DHCP | Server, DHCP Client List |
| Protocols | IPv4, IPv6 |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Wireless Access Point TL-WA1801 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| PoE Power Injector | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser |
| Environment | Operating Temperature: 0°C~40°C |
| Operating Humidity: 10%~90% non-condensing | |
