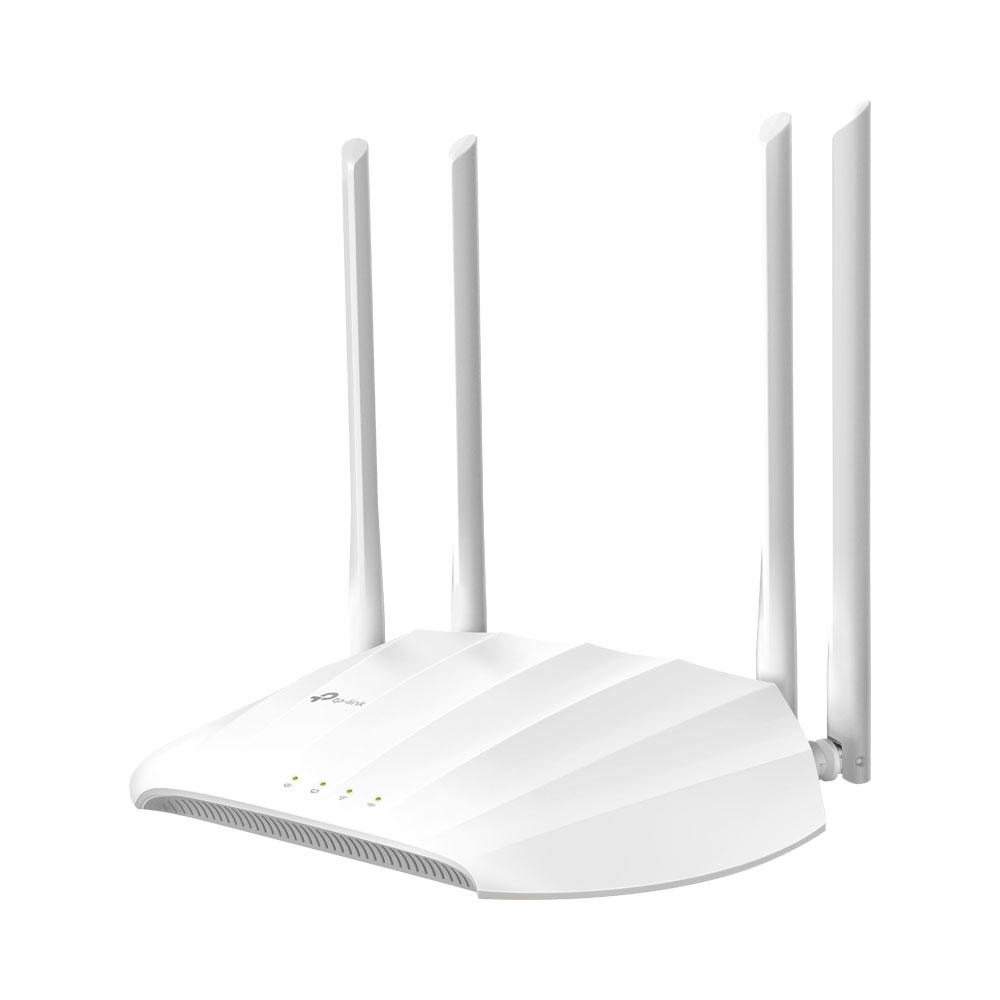

TP-LINK TL-WA1201 | AC1200 WIRELESS ACCESS POINT

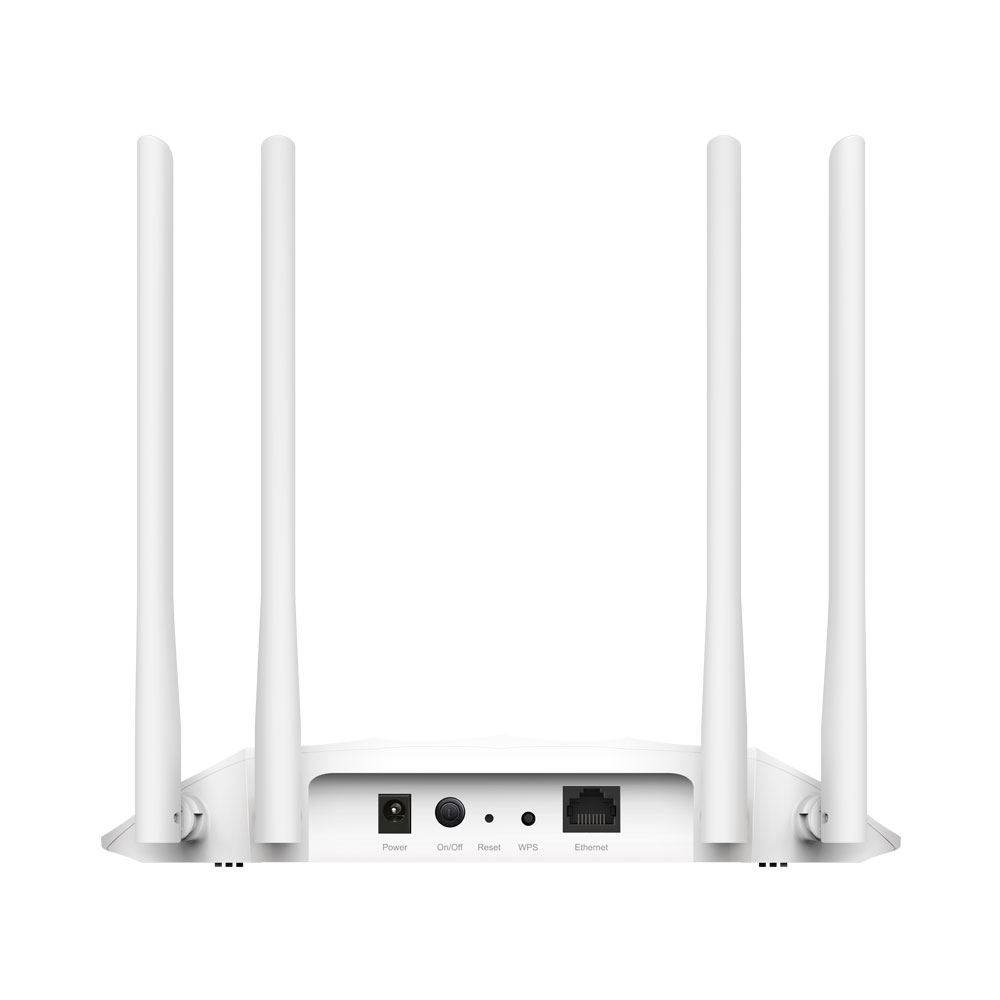

TP-LINK TL-WA1201 | AC1200 WIRELESS ACCESS POINT - Image 2
TP-LINK TL-WA1201 | AC1200 WIRELESS ACCESS POINT - Image 3

TP-LINK TL-WA1201 | AC1200 WIRELESS ACCESS POINT

FEATURES:

  • AC1200 Dual-Band Wi-Fi – 867Mbps at 5.0GHz and 300Mbps at 2.4GHz band
  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID and Client Modes to meet any network needs
  • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
  • Captive Portal – Offers a designed portal page for heightened security and marketing
SKU: NET-TL-WA1201 Categories: , , , Tags: , , , , , , , , , , , , , , , Brand:

TP-Link TL-WA1201 | AC1200 Wireless Access Point

Ideal for Small Business

FEATURES:

  • AC1200 Dual-Band Wi-Fi – 867Mbps at 5.0GHz and 300Mbps at 2.4GHz band
  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID and Client Modes to meet any network needs
  • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
  • Captive Portal – Offers a designed portal page for heightened security and marketing

SPECIFICATIONS:



HARDWARE FEATURES
Interface 1× Gigabit Ethernet Port
Supports Passive PoE
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 12VDC 1.5A
Wireless Standards IEEE802.11 b/g/n 2.4GHz
IEEE802.11 ac/n/a 5.0GHz
Dimensions (W × D × H) 400 × 255 × 72mm
Antenna 4× Fixed High-Performance Antennas
WIRELESS FEATURES
Frequency 2.4GHz and 5.0GHz
Signal Rate 867Mbps at 5.0GHz, 300Mbps at 2.4GHz
Reception Sensitivity 5.0GHz:
11a 6Mbps: -95dBm, 11a 54Mbps: -81dBm
11ac VHT20(MCS0): -94dBm, 11ac VHT20(MCS8): -71dBm
11n HT40(MCS0): -91dBm, 11n HT40(MCS7): -71dBm
11ac VHT80(MCS0): -88dBm, 11ac VHT80(MCS9): -63dBm
2.4GHz:
11g 54Mbps: -78dBm
11n HT20(MCS0): -92dBm, 11n HT20(MCS7): -74dBm
11n HT40(MCS0): -88dBm, 11n HT40(MCS7): -72dBm
Wireless Modes Access Point, Range Extender, Client, Multi-SSID
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 Encryptions
DHCP Server, DHCP Client List
Quality of Service WMM
Advanced Features Captive Portal
Transmission Power CE: <20dBm (2.4GHz), <23dBm (5.15.0~5.25.0GHz)
FCC: <30dBm (2.4GHz and 5.0GHz)
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12, Chrome 20, Safari 4 or Other Java-Enabled Browser
Environment Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% Non-Condensing
Storage Humidity: 5~90% Non-Condensing
Protocol Support IPv4, IPv6

Additional information

Weight 0.88 kg
Dimensions 40 × 25.5 × 6.9 cm
