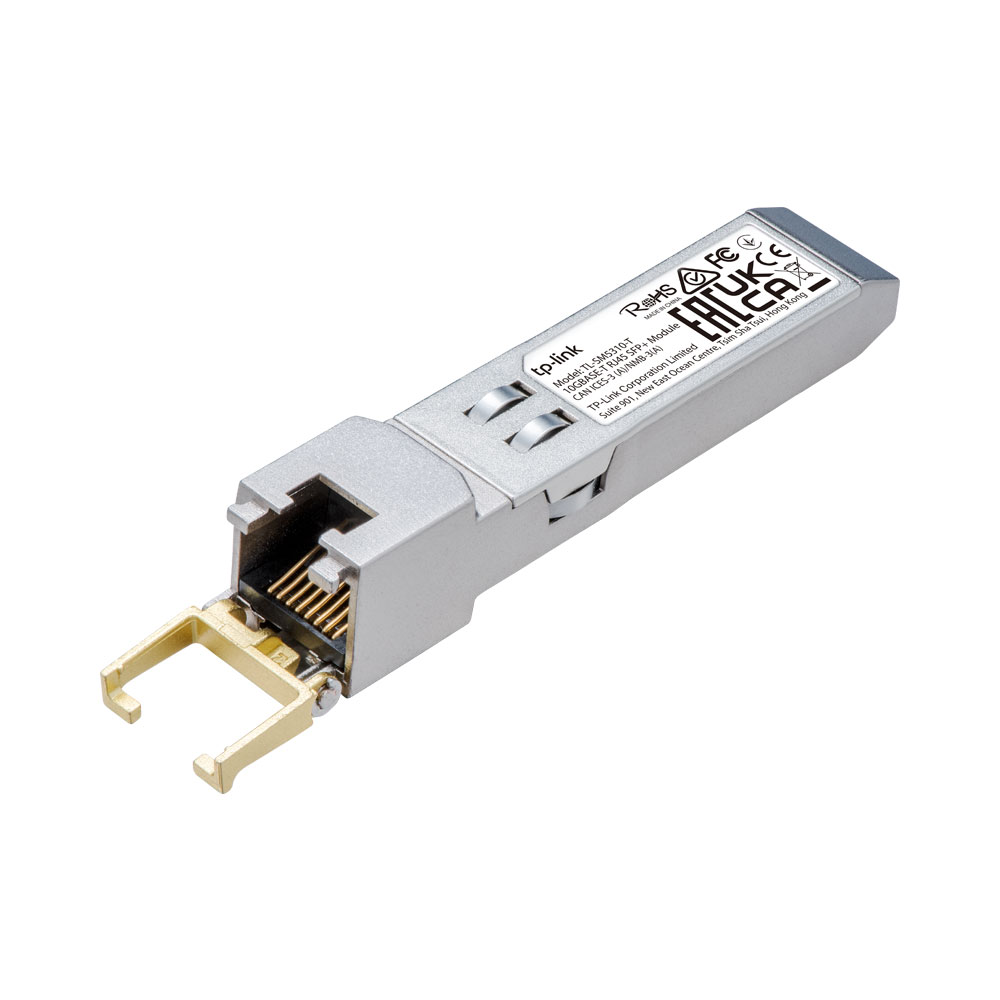

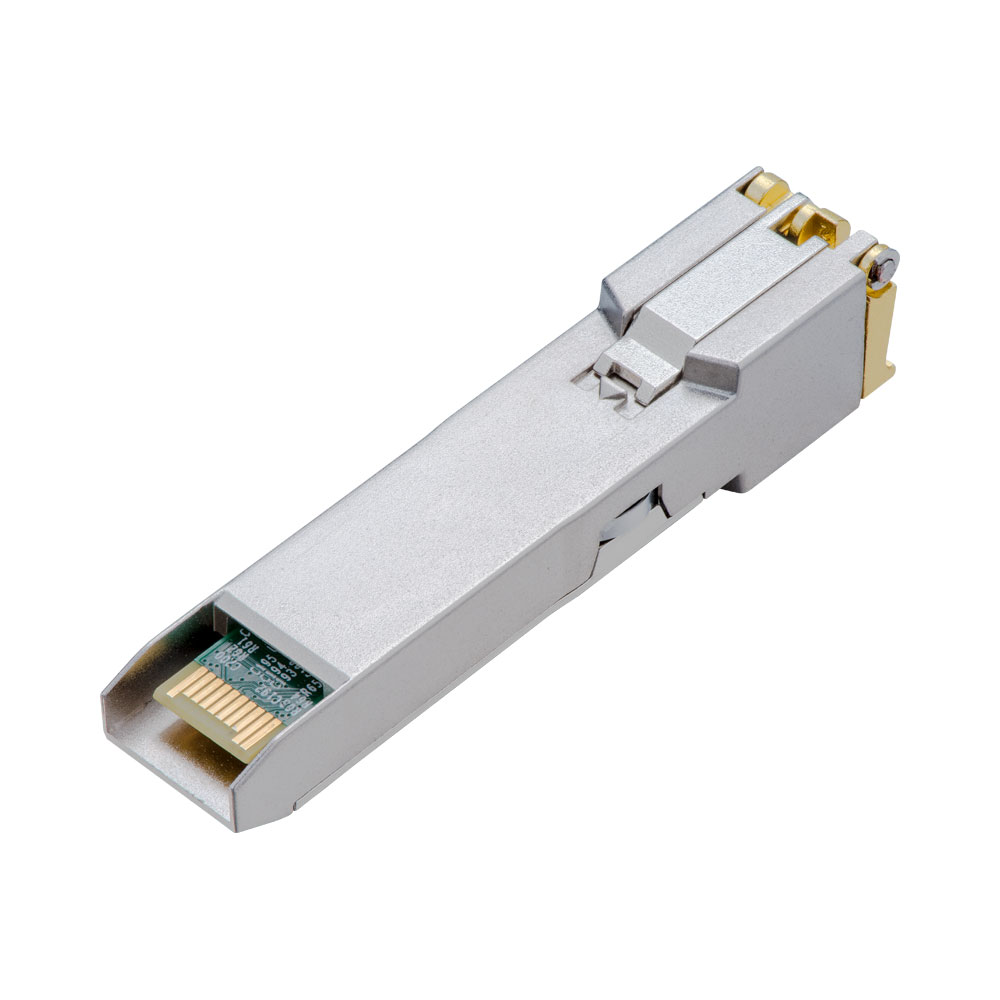

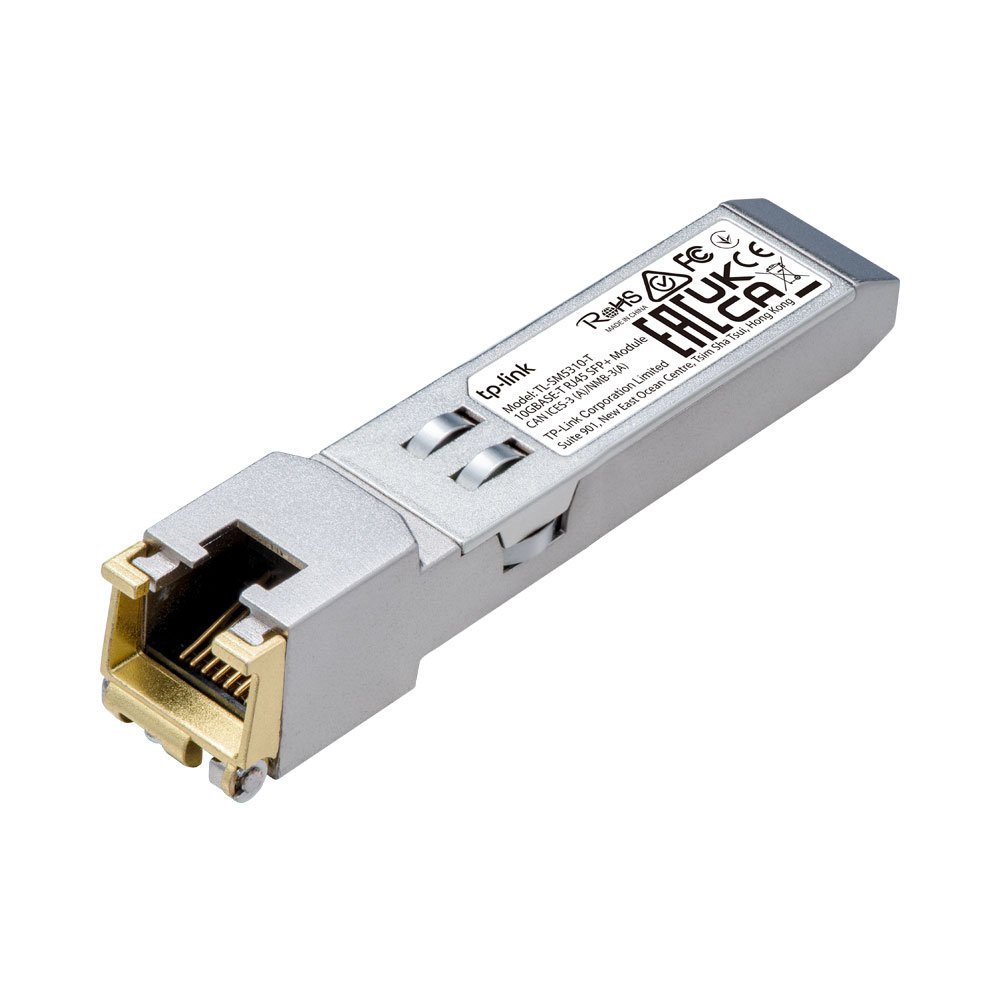

TP-LINK TL-SM5310-T | 10G BASE-T RJ45 SFP+ MODULE
FEATURES:
- Supports 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX
- Transmit data up to 30m at 10Gbps (UTP CAT6a or above)
- Supports DDM (temperature and voltage)
- Hot-pluggable SFP+ footprint features
- Supports TX disable function
- Commercial product operating temperature range: 0~70°C
- Fully metallic enclosure for Low EMI
4 in stock
TP-Link TL-SM5310-T | 10G BASE-T RJ45 SFP+ Module
Direct and Lightning-Fast 10G, from Fibre to RJ45 Port
FEATURES:
- Supports 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX
- Transmit data up to 30m at 10Gbps (UTP CAT6a or above)
- Supports DDM (temperature and voltage)
- Hot-pluggable SFP+ footprint features
- Supports TX disable function
- Commercial product operating temperature range: 0~70°C

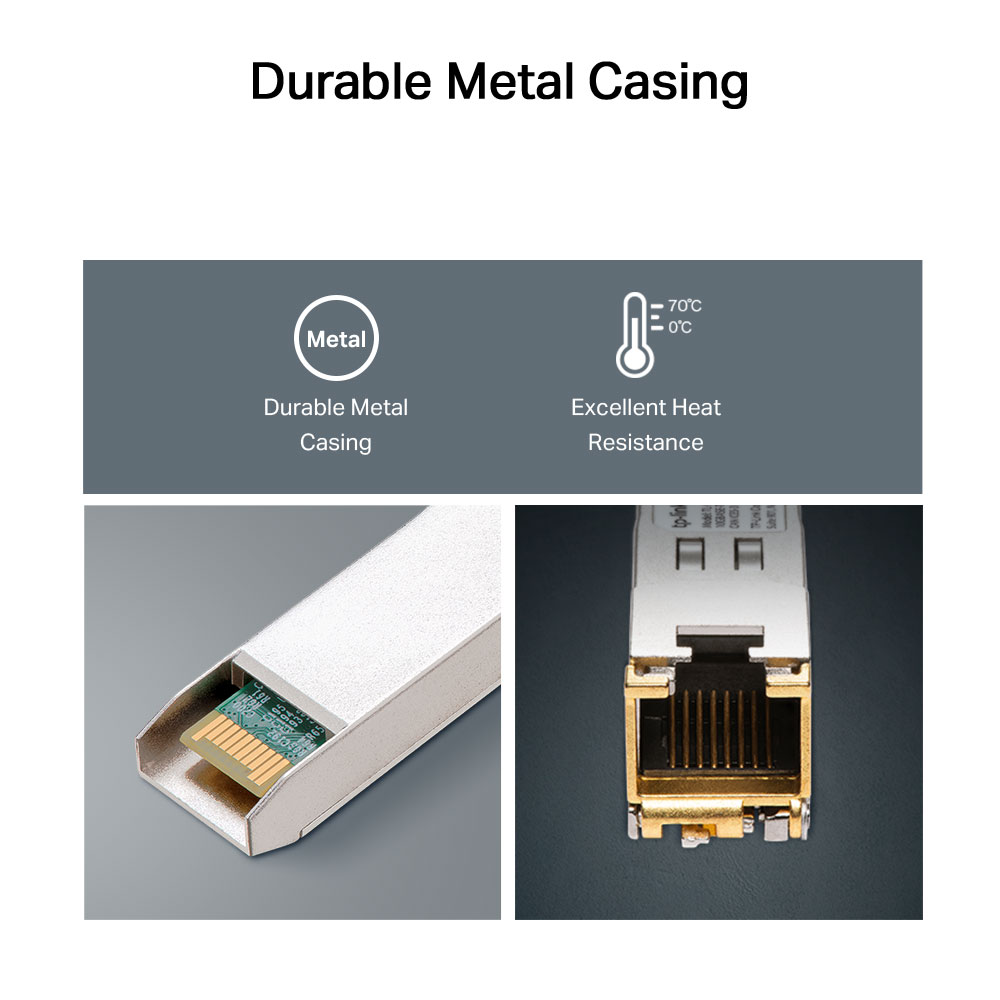

- Fully metallic enclosure for Low EMI
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Hot Swappable | Yes |
| MEDIA CONVERTER AND MODULE | |
| Dimensions (W × D × H) | 67.4 × 13.75 × 13.8mm |
| TRANSCEIVER | |
| Standards and Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an |
| Power Supply | 3.3V |
| Max. Cable Length | 100BASE-TX: UTP CAT5 or above (Max. 100m) |
| 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP CAT5e or above (Max. 100m) | |
| 10GBASE-T: UTP CAT6a or above (Max. 30m) | |
| Data Rate | 10.3Gbps |
| Port Type | 1× 10G RJ45 Port |
| Safety and Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0~70°C |
| Storage Temperature: -40~85°C | |
| PACKAGE CONTENTS | |
| Package Contents | 10G BASE-T RJ45 SFP+ Module TL-SM5310-T |
| Installation Guide | |
