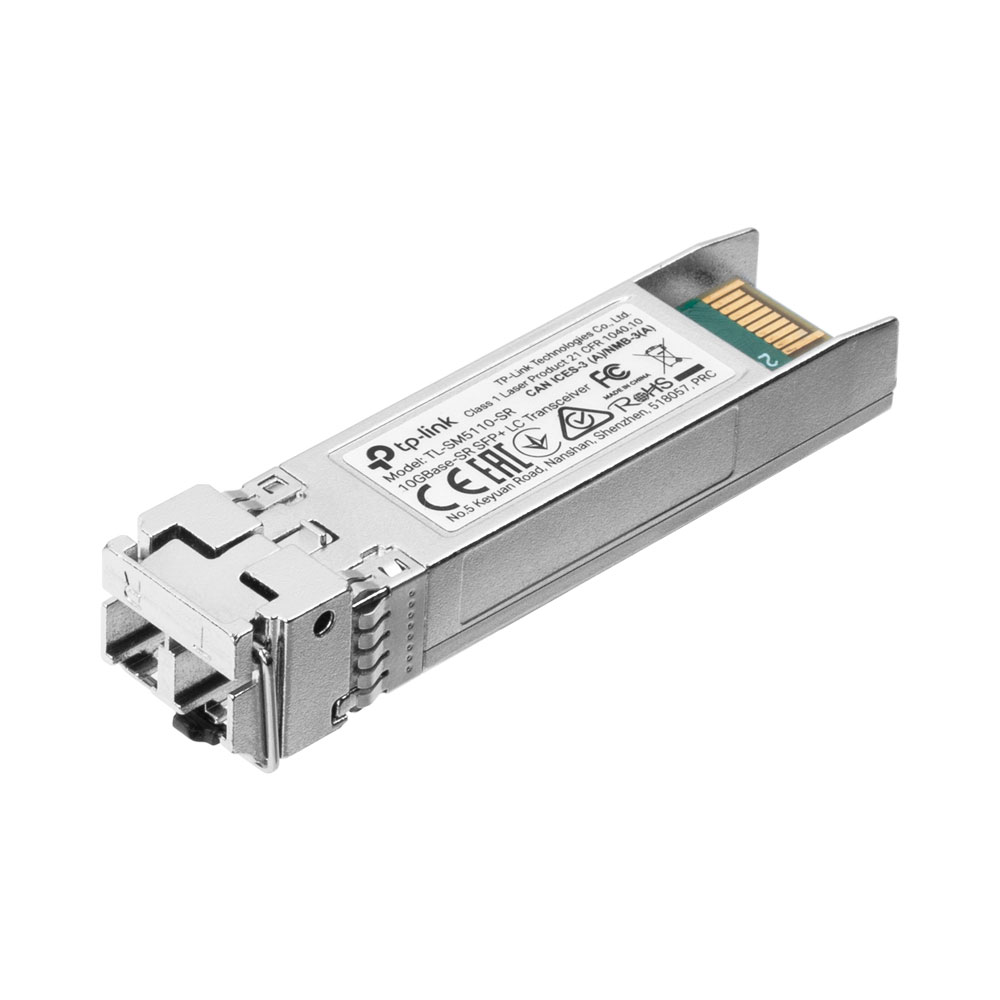

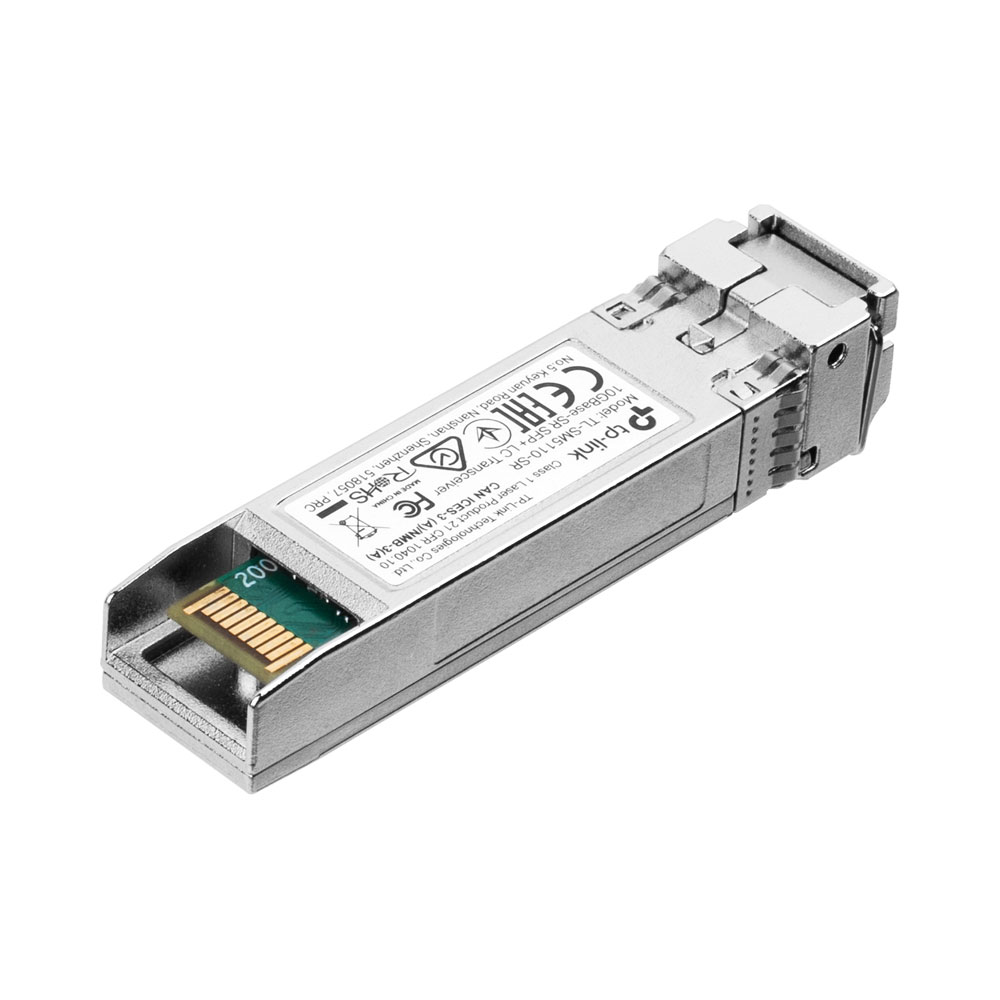

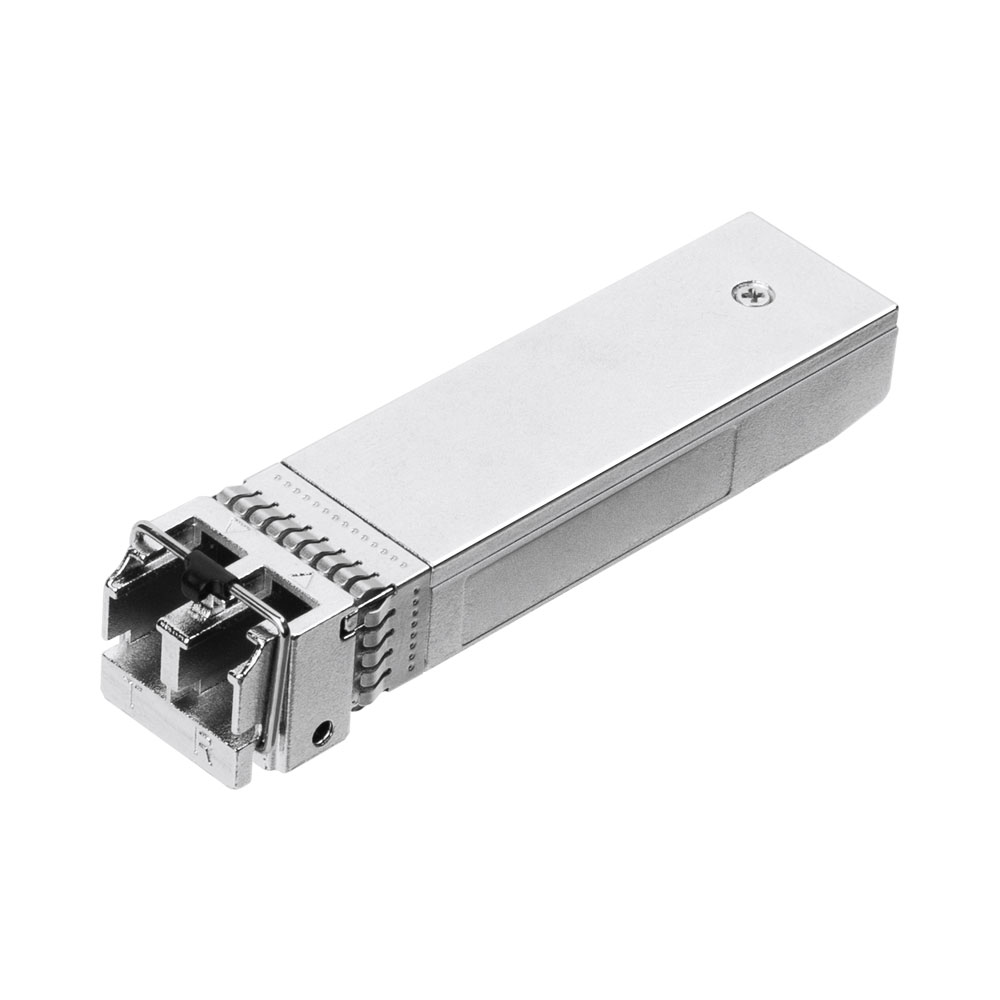

TP-LINK TL-SM5110-SR 10GBASE-SR SFP+ LC MULTI-MODE TRANSCEIVER

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fibre cables respectively.

44 in stock

TP-Link TL-SM5110-SR 10GBase-SR SFP+ LC Multi-Mode Transceiver

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fibre cables respectively.

SPECIFICATIONS:

HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE 802.3ae, TCP/IP, SFF-8472
Wave Length 850nm
Power Supply 3.3V
FibrE Type 50/125um or 62.5/125um Multi-mode
Max. Cable Length 300m (OM3)
Data Rate 10Gbps
Port Type LC/UPC
Safety & Emission FCC, CE
