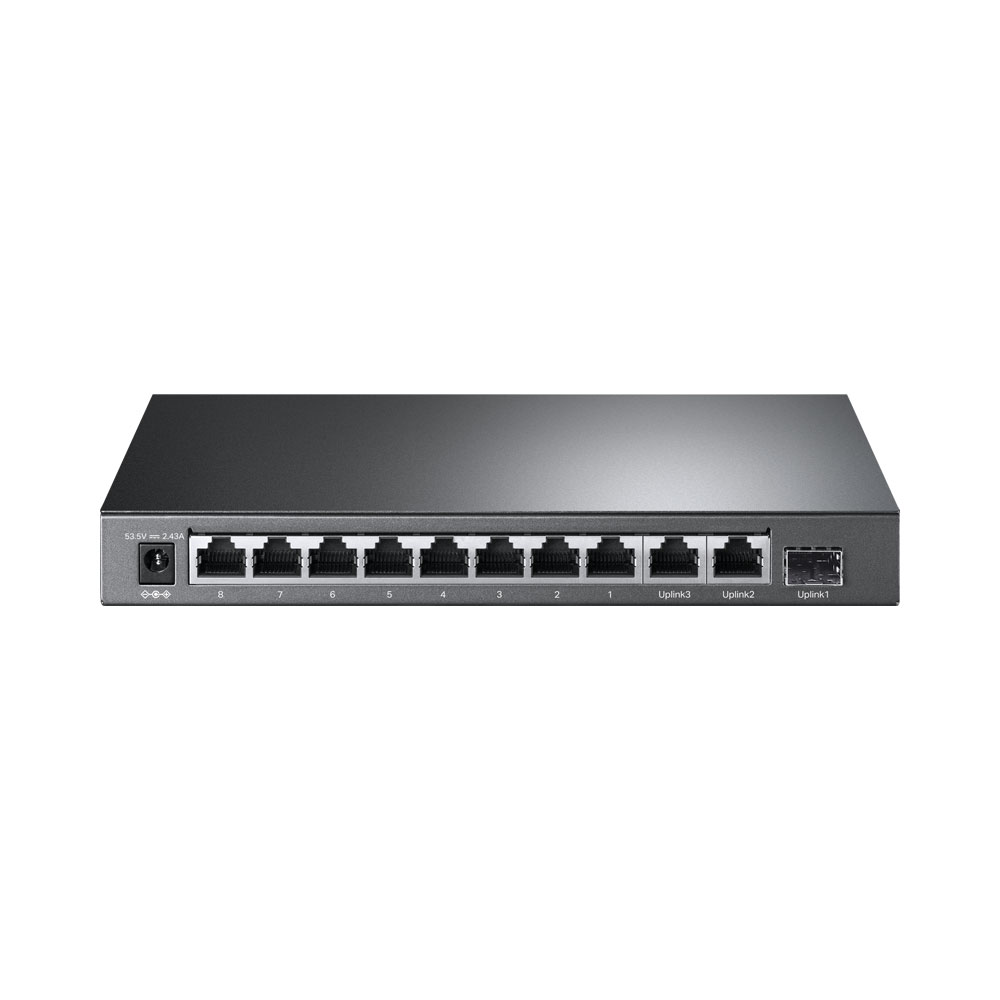

TP-LINK TL-SL1311MP 8-PORT 10/100MBPS + 3-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE+
FEATURES:
- 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30W for each PoE port
- Supports PoE Power up to 124W for 8 PoE ports
- Up to 250m data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
Professional 8-Port 10/100Mbps + 3-Port Gigabit Unmanaged Switch with 8 PoE+ Ports
FEATURES:
- 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30W for each PoE port
- Supports PoE Power up to 124W for 8 PoE ports
- Up to 250m data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port |
| AUTO Negotiation | |
| AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 5.6544Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
| PoE Ports: Ports 1–8 | |
| Power Supply: 124W | |
| Mac Address Table | 2K |
| Jumbo Frame | 16KB |
| Switching Capacity | 7.6Gbps |
| Dimensions (W × D × H) | 209 × 126 × 26mm |
| Max. Power Consumption | 5.95W (220/50 Hz. no PD connected) |
| 140.92W (220/50Hz. with 124W PD connected) | |
| Max. Heat Dissipation | 20.29 BTU/h (no PD connected) |
| 480.54 BTU/h (220/50 Hz. with 124W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs |
| Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) | |
| Isolation Mode Button (Ports 1–8) | |
| PoE Auto Recovery Button (Ports 1–8) | |
| Mac Address Auto-Learning and Auto-Aging | |
| IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode | |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SL1311MP |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0~40°C |
| Storage Temperature: -40~70°C | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
Additional information
| Weight | 1.69 kg |
|---|---|
| Dimensions | 31.5 × 24 × 7 cm |
