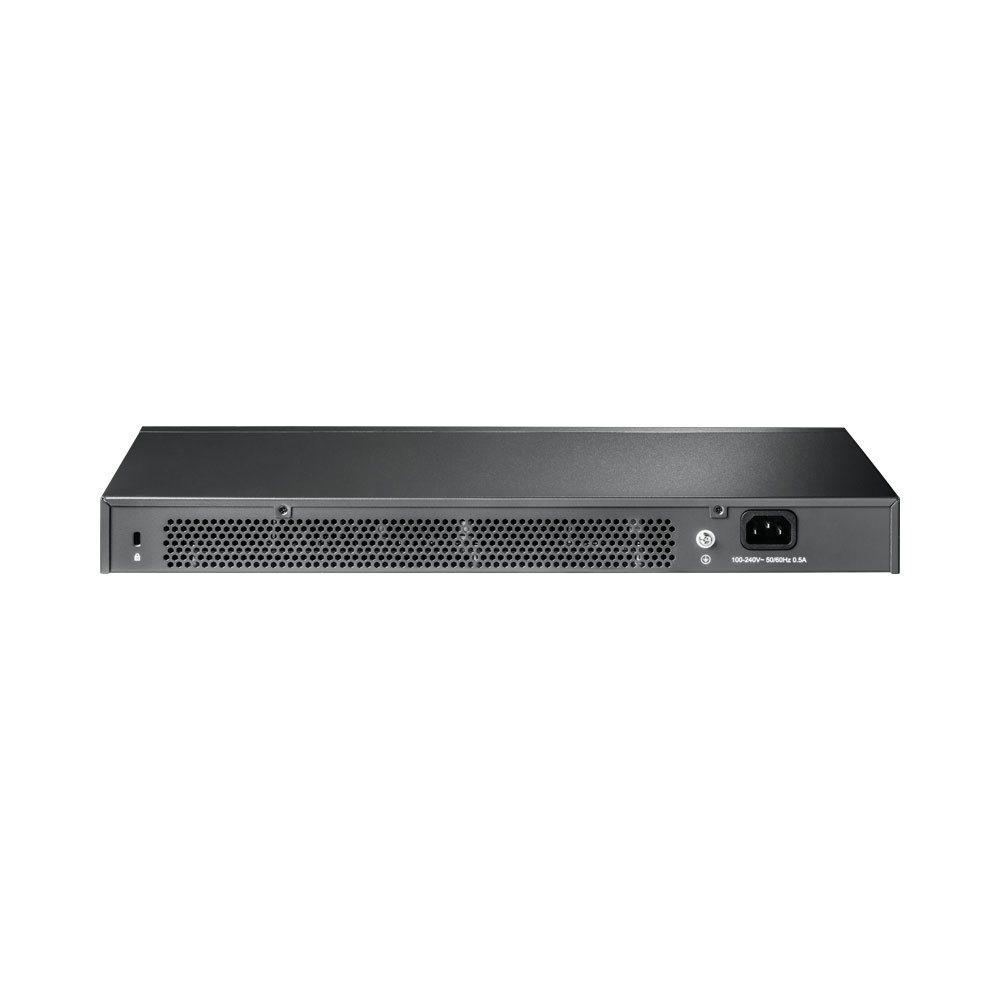

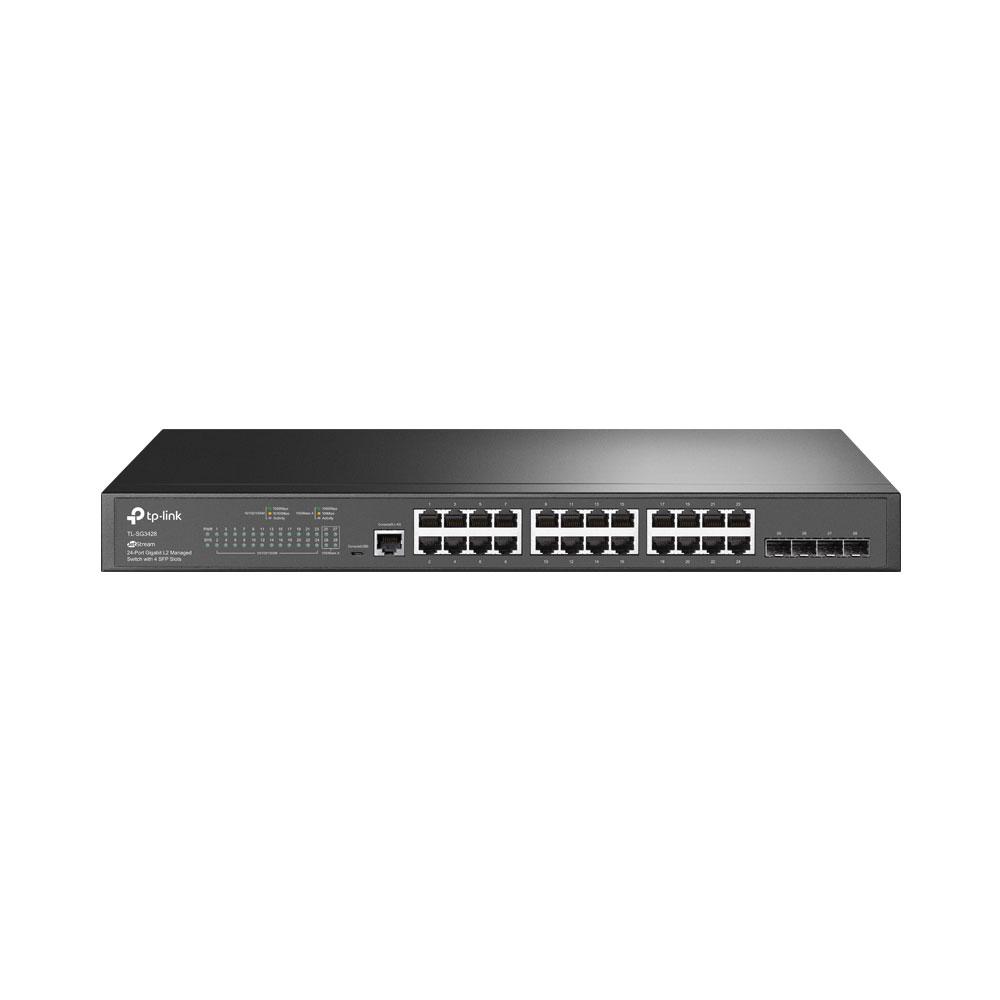

TP-LINK TL-SG3428 JETSTREAM 24-PORT GIGABIT L2 MANAGED SWITCH WITH 4 SFP SLOTS
FEATURES:
- Full Gigabit Ports: 24x gigabit RJ45 ports and 4x gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management and Intelligent Monitoring
- Centralised Management: Cloud access and Omada App for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication and more
- Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Convenient Gigabit Switch for a Complete Omada Network
FEATURES:
- Full Gigabit Ports: 24x gigabit RJ45 ports and 4x gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management and Intelligent Monitoring
- Centralised Management: Cloud access and Omada App for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication and more
- Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 24× 10/100/1000 Mbps RJ45 Ports |
| 4× Gigabit SFP Slots | |
| 1× RJ45 Console Port | |
| 1× Micro-USB Console Port | |
| Fan Quantity | Fanless |
| Power Supply | 100~240V AC 50/60Hz |
| Dimensions (W × D × H ) | 440 × 180 × 44mm |
| Mounting | Rackmountable |
| Max Power Consumption | 19.22W (110V 60Hz) |
| Max Heat Dissipation | 65.58 BTU/h (110V 60Hz) |
| PERFORMANCE | |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.66Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | 8 priority queues |
| 802.1p CoS/DSCP priority | |
| Queue scheduling | |
| SP (Strict Priority) | |
| WRR (Weighted Round Robin) | |
| SP+WRR | |
| Bandwidth Control | |
| Port/Flow based Rating Limiting | |
| Smoother Performance | |
| Action for Flows | |
| Mirror (to supported interface) | |
| Redirect (to supported interface) | |
| Rate Limit | |
| QoS Remark | |
| L2 and L2+ Features | Link Aggregation |
| Static link aggregation | |
| 802.3ad LACP | |
| Up to 8 aggregation groups and up to 8 ports per group | |
| Spanning Tree Protocol | |
| 802.1d STP | |
| 802.1w RSTP | |
| 802.1s MSTP | |
| STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect | |
| Loopback Detection | |
| Port-based | |
| VLAN based | |
| Flow Control | |
| 802.3x Flow Control | |
| HOL Blocking Prevention | |
| Mirroring | |
| Port Mirroring | |
| CPU Mirroring | |
| One-to-One | |
| Many-to-One | |
| Tx/Rx/Both | |
| L2 Multicast | Supports 511 (IPv4, IPv6) IGMP groups |
| IGMP Snooping | |
| IGMP v1/v2/v3 Snooping | |
| Fast Leave | |
| IGMP Snooping Querier | |
| IGMP Authentication | |
| IGMP Authentication | |
| MVR | |
| MLD Snooping | |
| MLD v1/v2 Snooping | |
| Fast Leave | |
| MLD Snooping Querier | |
| Static Group Config | |
| Limited IP Multicast | |
| Multicast Filtering: 256 profiles and 16 entries per profile | |
| VLAN | VLAN Group |
| Max 4K VLAN Groups | |
| 802.1q Tagged VLAN | |
| MAC VLAN: 12 Entries | |
| Protocol VLAN: Protocol Template 16, Protocol VLAN 16 | |
| GVRP | |
| VLAN VPN (QinQ) | |
| Port-Based QinQ | |
| Selective QinQ | |
| Voice VLAN | |
| Access Control List | Time-based ACL |
| MAC ACL | |
| Source MAC | |
| Destination MAC | |
| VLAN ID | |
| User Priority | |
| Ether Type | |
| IP ACL | |
| Source IP | |
| Destination IP | |
| Fragment | |
| IP Protocol | |
| TCP Flag | |
| TCP/UDP Port | |
| DSCP/IP TOS | |
| User Priority | |
| Combined ACL | |
| Packet Content ACL | |
| IPv6 ACL | |
| Policy | |
| Mirroring | |
| Redirect | |
| Rate Limit | |
| QoS Remark | |
| ACL apply to Port/VLAN | |
| Security | IP-MAC-Port Binding |
| DHCP Snooping | |
| ARP Inspection | |
| IPv4 Source Guard | |
| IPv6-MAC-Port Binding | |
| DHCPv6 Snooping | |
| ND Detection | |
| IPv6 Source Guard | |
| DoS Defend | |
| Static/Dynamic Port Security | |
| Up to 64 MAC addresses per port | |
| Broadcast/Multicast/Unicast Storm Control | |
| kbps/ratio/pps control mode | |
| IP/Port/MAC based access control | |
| 802.1X | |
| Port based authentication | |
| Mac based authentication | |
| VLAN Assignment | |
| MAB | |
| Guest VLAN | |
| Support Radius authentication and accountability | |
| AAA (including TACACS+) | |
| Port Isolation | |
| Secure web management through HTTPS with SSLv3/TLS 1.2 | |
| Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
| IPv6 | IPv6 Dual IPv4/IPv6 |
| Multicast Listener Discovery (MLD) Snooping | |
| IPv6 ACL | |
| IPv6 Interface | |
| Static IPv6 Routing | |
| IPv6 neighbor discovery (ND) | |
| Path maximum transmission unit (MTU) discovery | |
| Internet Control Message Protocol (ICMP) version 6 | |
| TCPv6/UDPv6 | |
| IPv6 applications | |
| DHCPv6 Client | |
| Ping6 | |
| Tracert6 | |
| Telnet (v6) | |
| IPv6 SNMP | |
| IPv6 SSH | |
| IPv6 SSL | |
| Http/Https | |
| IPv6 TFTP | |
| L3 Features | 16 IPv4/IPv6 Interfaces |
| Static Routing | |
| 48 static routes | |
| Static ARP | |
| 316 ARP Entries | |
| Proxy ARP | |
| Gratuitous ARP | |
| DHCP Server | |
| DHCP Relay | |
| DHCP L2 Relay | |
| Management | Web-based GUI |
| Command Line Interface (CLI) through console port, telnet | |
| SNMPv1/v2c/v3 | |
| Trap/Inform | |
| RMON (1, 2, 3, 9 groups) | |
| SDM Template | |
| DHCP/BOOTP Client | |
| 802.1ab LLDP/LLDP-MED | |
| DHCP AutoInstall | |
| Dual Image, Dual Configuration | |
| CPU Monitoring | |
| Cable Diagnostics | |
| EEE | |
| Password Recovery | |
| SNTP | |
| System Log | |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller |
| Automatic Device Discovery | |
| Batch Configuration | |
| Batch Firmware Upgrading | |
| Intelligent Network Monitoring | |
| Abnormal Event Warnings | |
| Unified Configuration | |
| Reboot Schedule | |
| ZTP (Zero-Touch Provisioning) | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG3428 Switch |
| Power Cord | |
| Quick Installation Guide | |
| Rackmount Kit | |
| Rubber Feet | |
| Environment | Operating Temperature: 0~45℃ |
| Storage Temperature: -40~70℃ | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
Additional information
| Weight | 2.82 kg |
|---|---|
| Dimensions | 52.8 × 25 × 8 cm |
