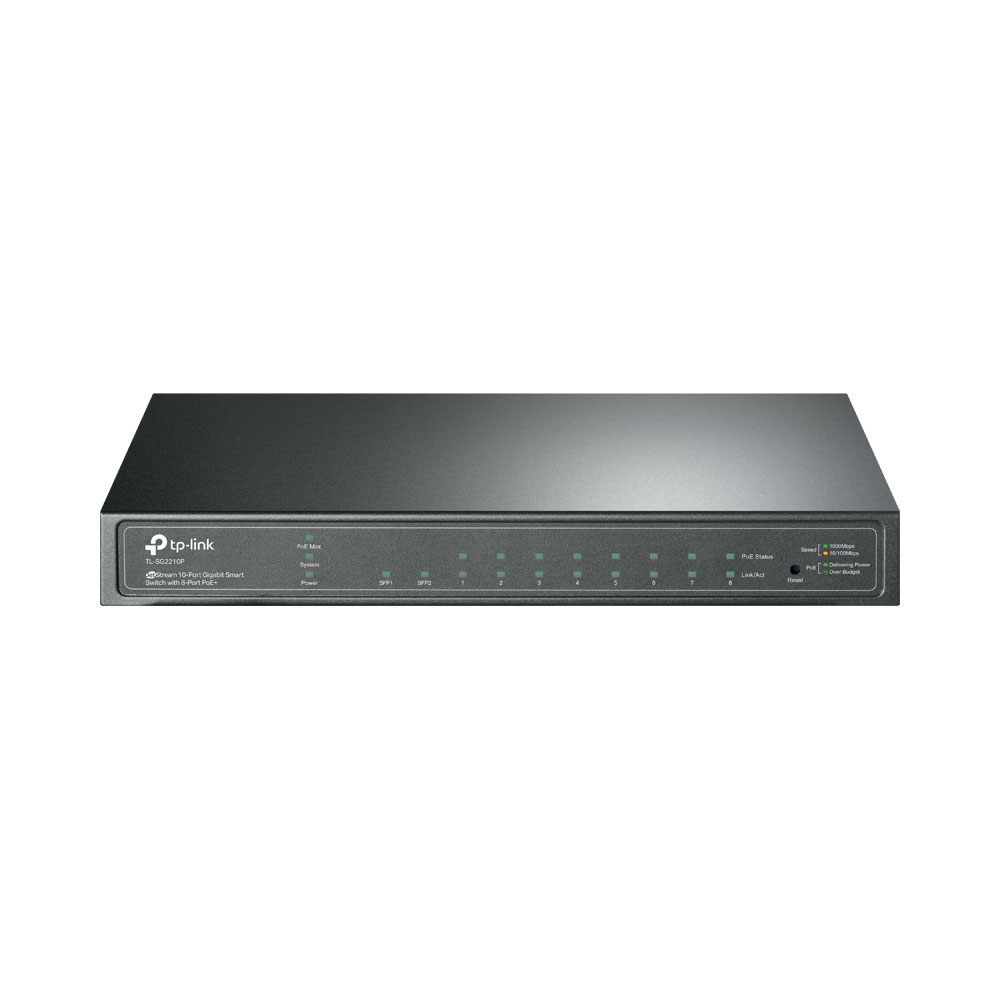

TP-LINK TL-SG2210P JETSTREAM 8-PORT GIGABIT SMART POE+ SWITCH WITH 2-SFP SLOTS
FEATURES:
- Features 8 PoE+ ports, with total PoE power budget of 58W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Innovative energy-efficient technology saves up to 50% of power consumption
32 in stock
TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots
TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W* and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-LINK's Gigabit Smart Switch TL-SG2210P is specially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.
- Features 8 PoE+ ports, with total PoE power budget of 58W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Innovative energy-efficient technology saves up to 50% of power consumption
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, |
| IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, | |
| IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x | |
| Interface | 8 10/100/1000Mbps RJ45 Ports |
| 2 1000Mbps SFP Slots | |
| (Auto-Negotiation/Auto MDI/MDIX) | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) | |
| 1000BASE-X: MMF, SMF | |
| Fan Quantity | Fanless |
| Power Supply | 100~240VAC, 50/60Hz |
| External Power Adapter(Output: 53.5VDC/1.31A) | |
| Power Consumption | Maximum (PoE on): 75.3W (220V/50Hz) |
| Maximum (PoE off): 10.5W (220V/50Hz) | |
| PoE Ports (RJ45) | Standard: 802.3af/at compliant |
| PoE Ports: 8 Ports | |
| Power Supply: 58W* | |
| Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| PERFORMANCE | |
| Bandwidth/Backplane | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 512KB |
| Jumbo Frame | 9216 Bytes |
| SOFTWARE FEATURES | |
| Quality of Service | Support 802.1p CoS/DSCP priority |
| Support 8 priority queues | |
| Queue scheduling: SP, WRR, SP+WRR | |
| Port/Flow- based Rate Limiting | |
| Voice VLAN | |
| VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Access Control List | L2～L4 package filtering based on source and destination |
| MAC address, IP address, TCP/UDP ports, 802.1p, | |
| DSCP, protocol and VLAN ID | |
| Time Range Based | |
| Security | SSH v1/v2 |
| SSL v2/v3/TLSv1 | |
| Port Security | |
| Broadcast/Multicast/Unknown unicast Storm Control | |
| 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend | |
| L2 Switching Features | IGMP Snooping V1/V2/V3 |
| 802.3ad LACP (Up to 6 aggregation groups, | |
| containing 4 ports per group) | |
| Spanning Tree STP/RSTP/MSTP | |
| BPDU Filtering/Guard | |
| TC/Root Protect | |
| Loop back detection | |
| 802.3x Flow Control | |
| LLDP(LLDP-MED) | |
| Management | Web-based GUI and CLI management |
| SNMP v1/v2c/v3, compatible with public MIBs and | |
| TP-LINK private MIBs | |
| RMON (1, 2, 3, 9 groups) | |
| CPU Monitoring | |
| Port Mirroring | |
| Time Setting: SNTP | |
| Firmware Upgrade: TFTP & Web | |
| System Diagnose: VCT | |
| SYSLOG & Public MIBS | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2210P |
| Power Adapter | |
| Installation Guide | |
| Resource CD | |
| Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
