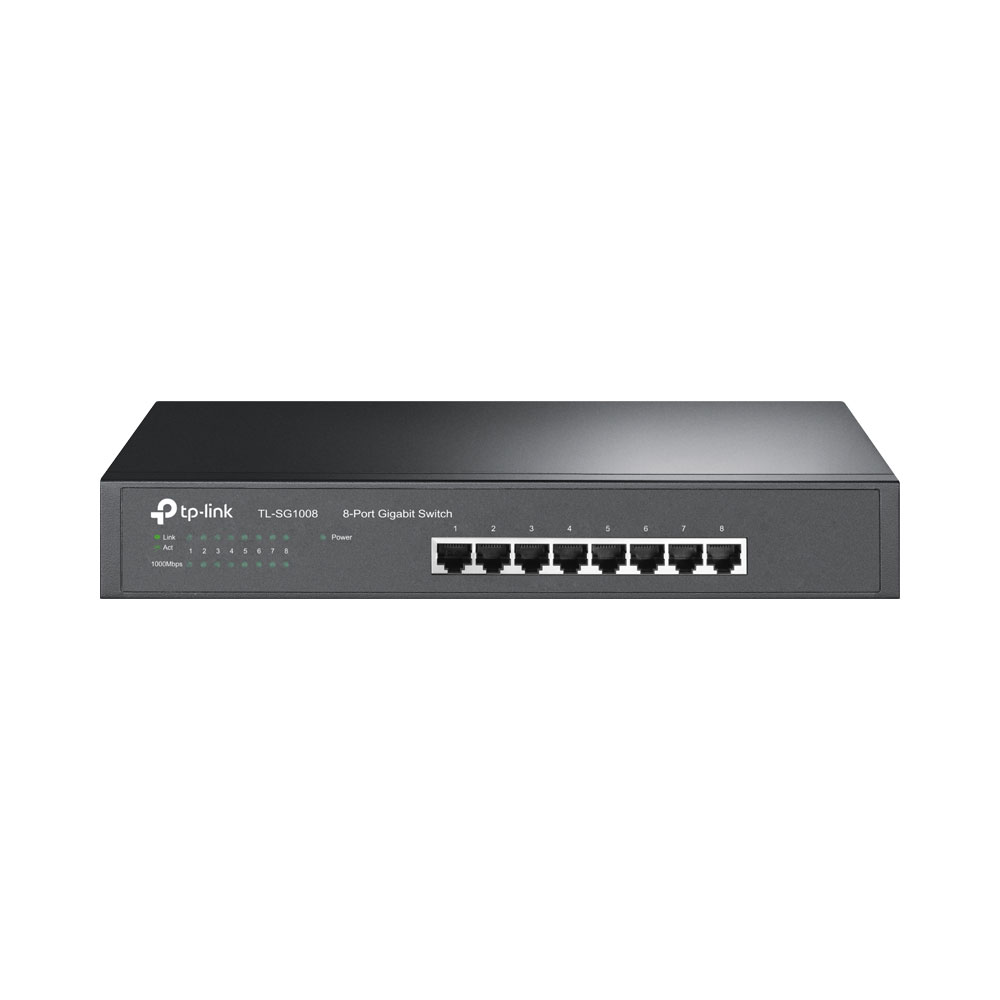

TP-LINK TL-SG1008 | 8-PORT GIGABIT DESKTOP/RACKMOUNT SWITCH
FEATURES:
All 8× ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save power consumption, making it an eco-friendly solution for your business network.
The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. A 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode and back pressure flow control for half-duplex mode alleviating traffic congestion and ensuring reliable data transmission.
TP-Link TL-SG1008 | 8-Port Gigabit Desktop/Rackmount Switch
FEATURES:
All 8× ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save power consumption, making it an eco-friendly solution for your business network.
The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. A 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode and back pressure flow control for half-duplex mode alleviating traffic congestion and ensuring reliable data transmission.
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, 802.1p |
| Interface | 8× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP CAT3, CAT4, CAT5 Cable (Max. 100m) |
| 100BASE-TX/1000BASE-T: UTP CAT5, CAT5e or Above Cable (Max. 100m) | |
| Fan Quantity | Fanless |
| Power Supply | 100~240VAC, 50/60Hz |
| Dimensions (W × D × H) | 294 × 180 × 44mm |
| Mounting | Rackmountable |
| Max. Power Consumption | 4.3W (220V 50Hz) |
| Max. Heat Dissipation | 14.67BTU/h |
| PERFORMANCE | |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16KB |
| Transfer Method | Store-and-Forward |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology |
| 802.3X Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | 8-Port Gigabit Desktop Switch |
| Power Cord | |
| Installation Guide | |
| Rackmount Kit | |
| Rubber Feet | |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 10%~90% Non-Condensing | |
| Storage Humidity: 5%~90% Non-Condensing | |
Additional information
| Weight | 1.7 kg |
|---|---|
| Dimensions | 40 × 25 × 8 cm |
