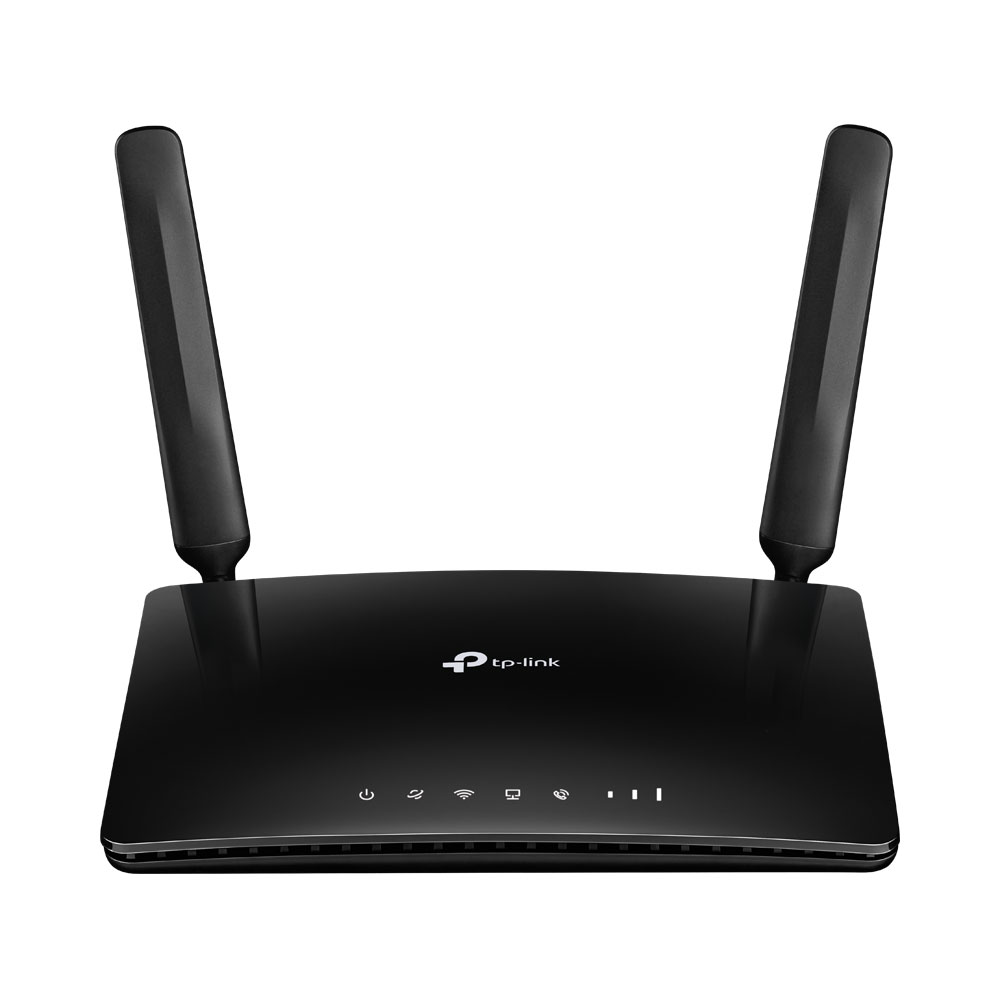

TP-Link TL-MR6500v | 300Mbps 4G LTE Telephony Wi-Fi Router
Enjoy Wi-Fi and Phone Calls
All-in-One 4G Router
FEATURES:
- Cutting-edge 4G network - Share internet access with up to 32× Wi-Fi devices and enjoy download speeds of up to 150Mbps

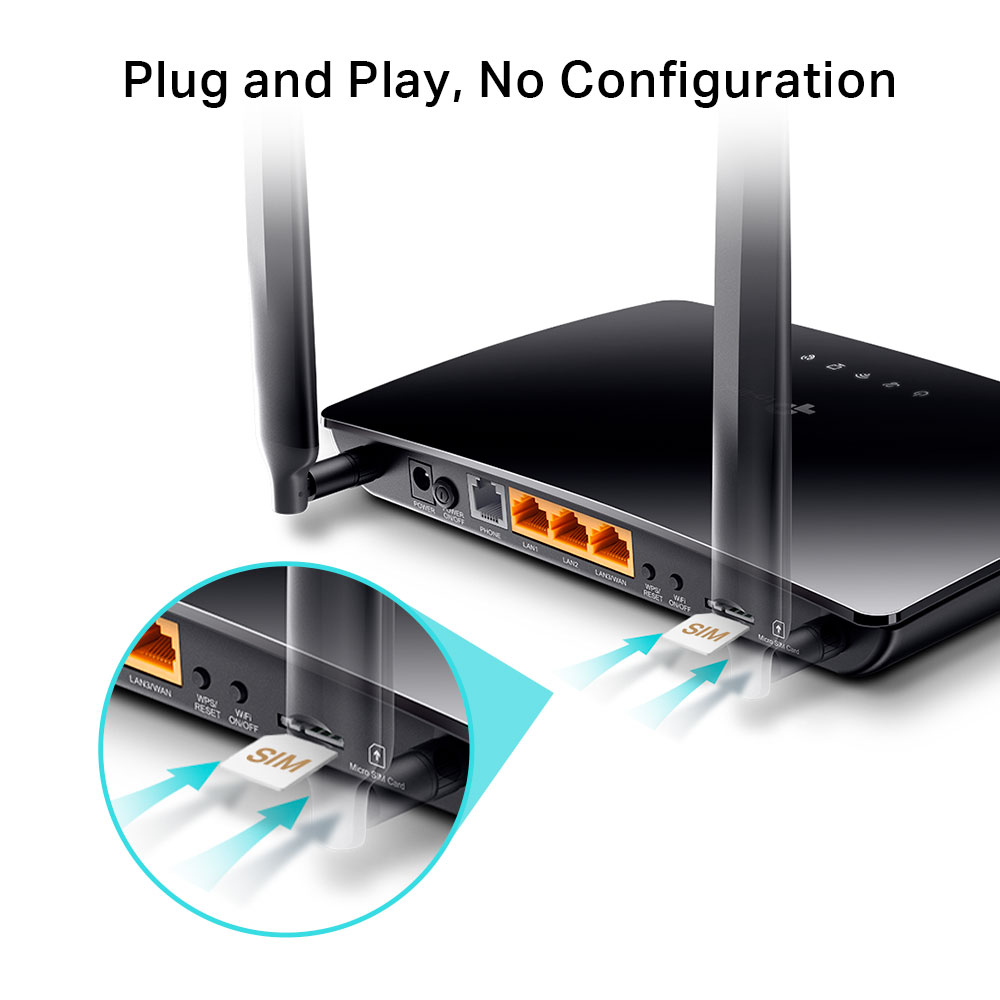

- Plug a SIM Card In and Play - No configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
- Wi-Fi Speeds up to 300Mbps - Enjoy uninterrupted HD movies, rapid file downloads, seamless video chats and more at the same time
- Professional Voice Functions - Supports VoLTE/CSFB/VoIP functions and provides 50MB of internal storage for 100 minutes of voicemail
- Two Detachable Advanced LTE Antennas - Enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
SPECIFICATIONS:
| HARDWARE FEATURES | |

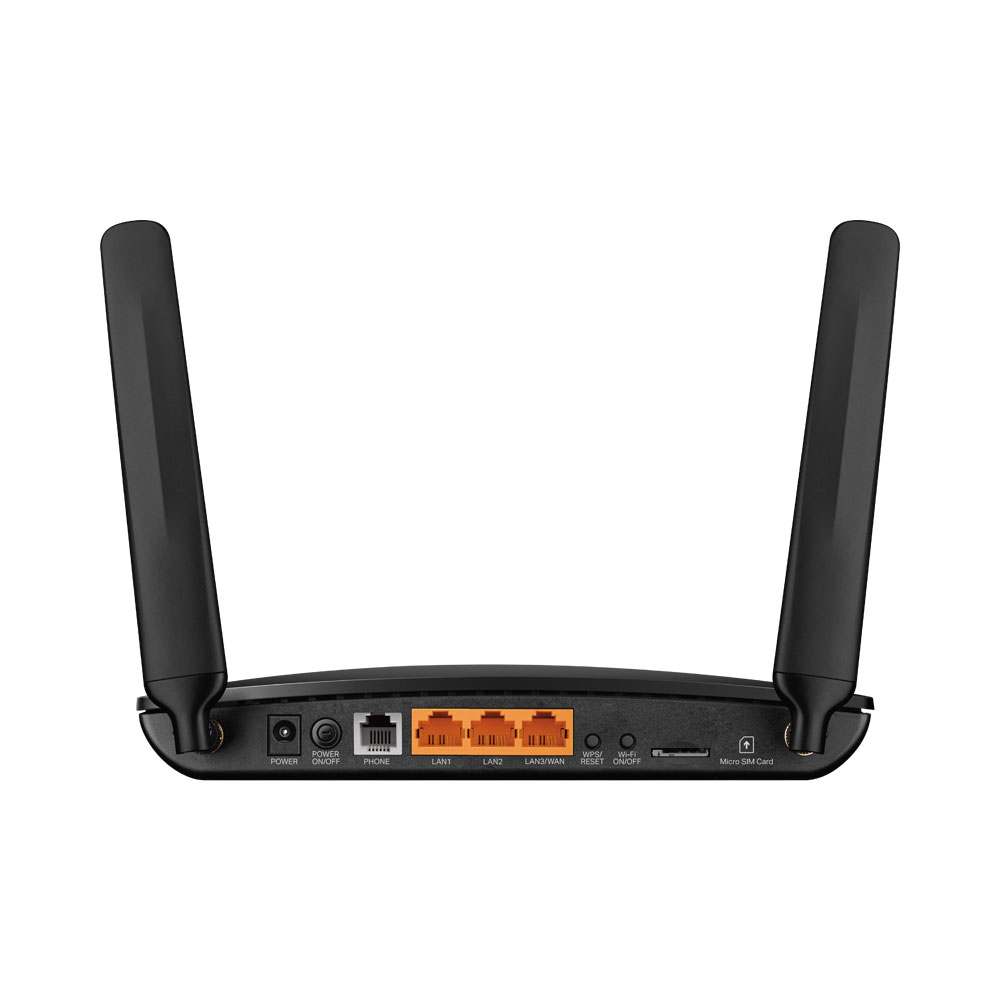

| Interface | 1× 10/100 Mbps LAN/WAN Port, 2× 10/100 Mbps LAN Ports, 1× Phone Port, 1 Micro SIM Card Slot |
| Button | WPS/RESET Button, Wi-Fi ON/OFF Button |
| External Power Supply | 12V 1A |
| Dimensions (W × D × H) | 202 × 141 × 33.6 mm |
| Antenna | 2× Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.4GHz |
| Signal Rate | 300Mbps at 2.4GHz |
| Reception Sensitivity | 11g 54M: -74 dBm |
| 11n HT20: -71 dBm | |
| 11n HT40: -67 dBm | |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) |
| TDD-LTE B38/B40/B41 (2600/2300/2500MHz) | |
| 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) | |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, QoS |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP (Dual Access) |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link DDNS, DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Controls, Local Management Control, Host List, Access Control |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz Guest Network |
| VPN Server | PPTP VPN, OpenVPN |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | TL-MR6500v 300Mbps Wireless N 4G LTE Telephony Router |
| RJ45 Ethernet Cable | |
| Power Adapter | |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers | |
| Micro SIM Card | |
| Environment | Operating Temperature: 0°C~40°C |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TELEPHONY | |
| VoIP Standards | SIP (RFC3261)/RTP (RFC1889/3550), G.711A/u, G.729AB, G.726 |
| Integrated Answering Machine | Stores 100 minutes long voice messages internally on the modem router |
| Advanced Telephone Functions | Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number |
