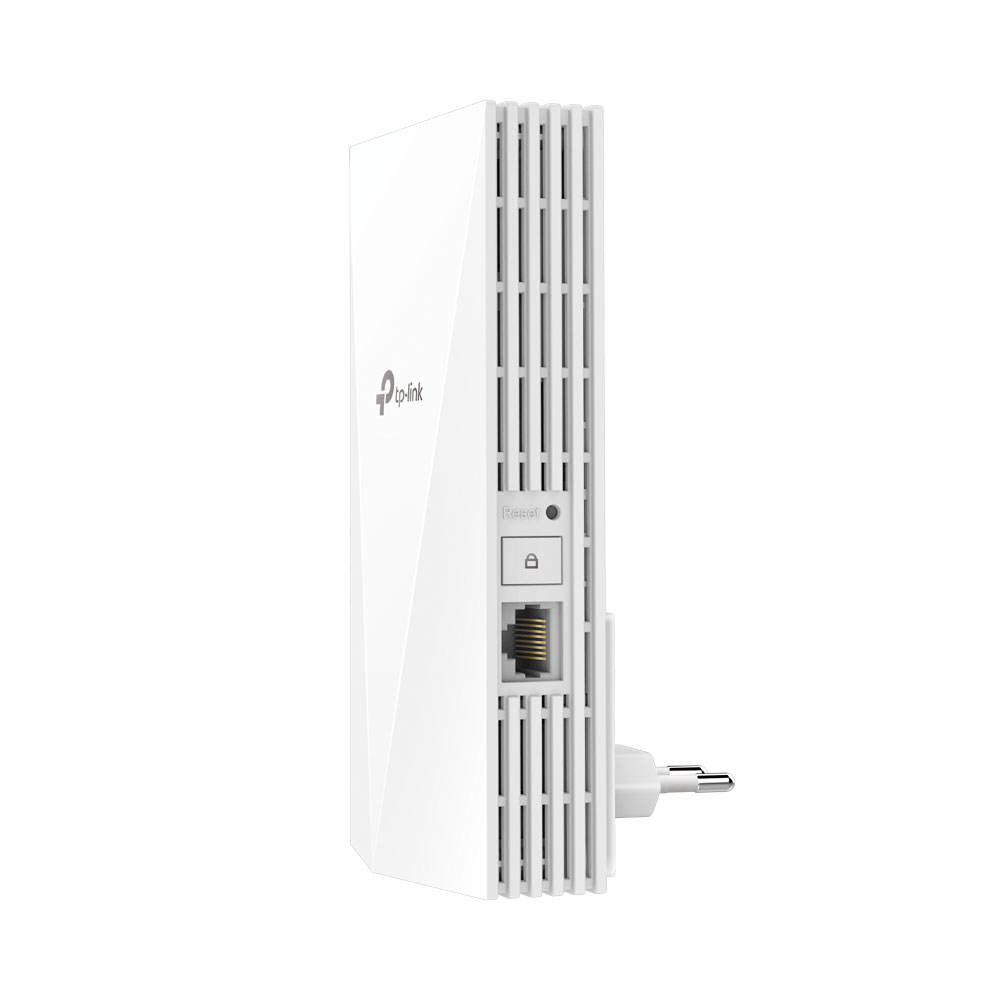

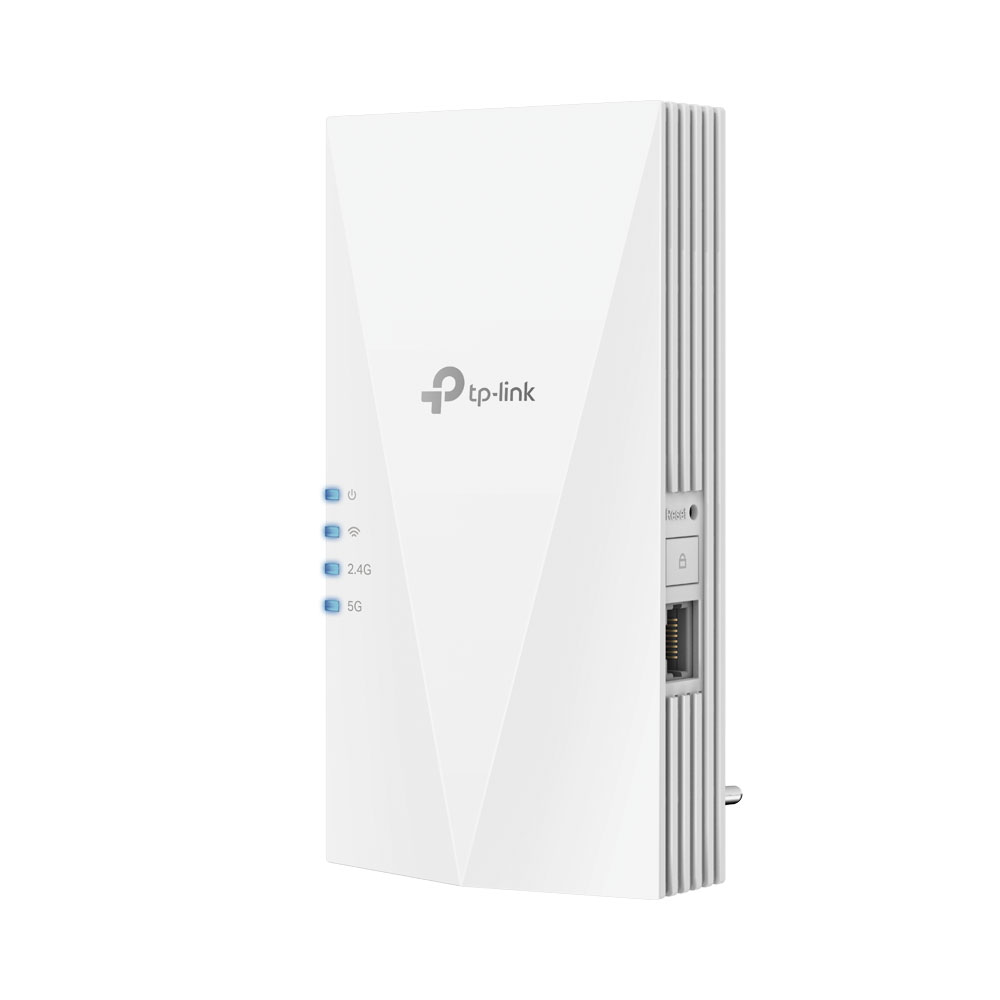

TP-LINK RE500X | AX1500 WI-FI 6 RANGE EXTENDER
FEATURES:
- Creates a Mesh Network – By connecting to a TP-Link OneMesh router for seamless whole-home coverage
- Gigabit Ethernet Port – Provides faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-Link Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extends the range of any Wi-Fi router or wireless access point
Out of stock
TP-Link RE500X | AX1500 Wi-Fi 6 Range Extender
Eliminate Dead Zones with Powerful Wi-Fi
FEATURES:
- Creates a Mesh Network - By connecting to a TP-Link OneMesh router for seamless whole-home coverage
- Gigabit Ethernet Port - Provides faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light - Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode - Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility - Extends the range of any Wi-Fi router or wireless access point
SPECIFICATIONS:
| WIRELESS | |
| Working Modes | Range Extender/Access Point |
| HARDWARE FEATURES | |
| Ports | 1× Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 10W |
| Dimensions (W × D × H) | 78 × 36 × 149mm |
| Antenna | 2× Internal Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5.0GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | 300Mbps at 2.4GHz, 1200Mbps at 5.0GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5.0GHz: |
| 11a 6Mbps: -93dBm | |
| 11a 54Mbps: -75dBm | |
| 11ac HT20 MCS0: -92dBm | |
| 11ac HT20 MCS8: -70dBm | |
| 11ac HT40 MCS0: -90dBm | |
| 11ac HT40 MCS9: -66dBm | |
| 11ac HT80 MCS0: -87dBm | |
| 11ac HT80 MCS9: -62dBm | |
| 2.4GHz: | |
| 11g 54Mbps: -77dBm | |
| 11n HT20 MCS7: -75dBm | |
| 11n HT40 MCS7: -72dBm | |
| Wireless Functions | Enable/Disable Wireless Radio |
| DFS (the latest firmware and hardware version is required) | |
| Access Control | |
| LED Control | |
| Power Schedule | |
| Wi-Fi Coverage | |
| Wireless Security | 64/128-bit WEP, WPA/WPA-PSK2 encryptions |
| Transmission Power | CE: 2.4GHz ≤20dBm, 5.0GHz ≤30dBm |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Wi-Fi Range Extender RE500X |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser | |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
