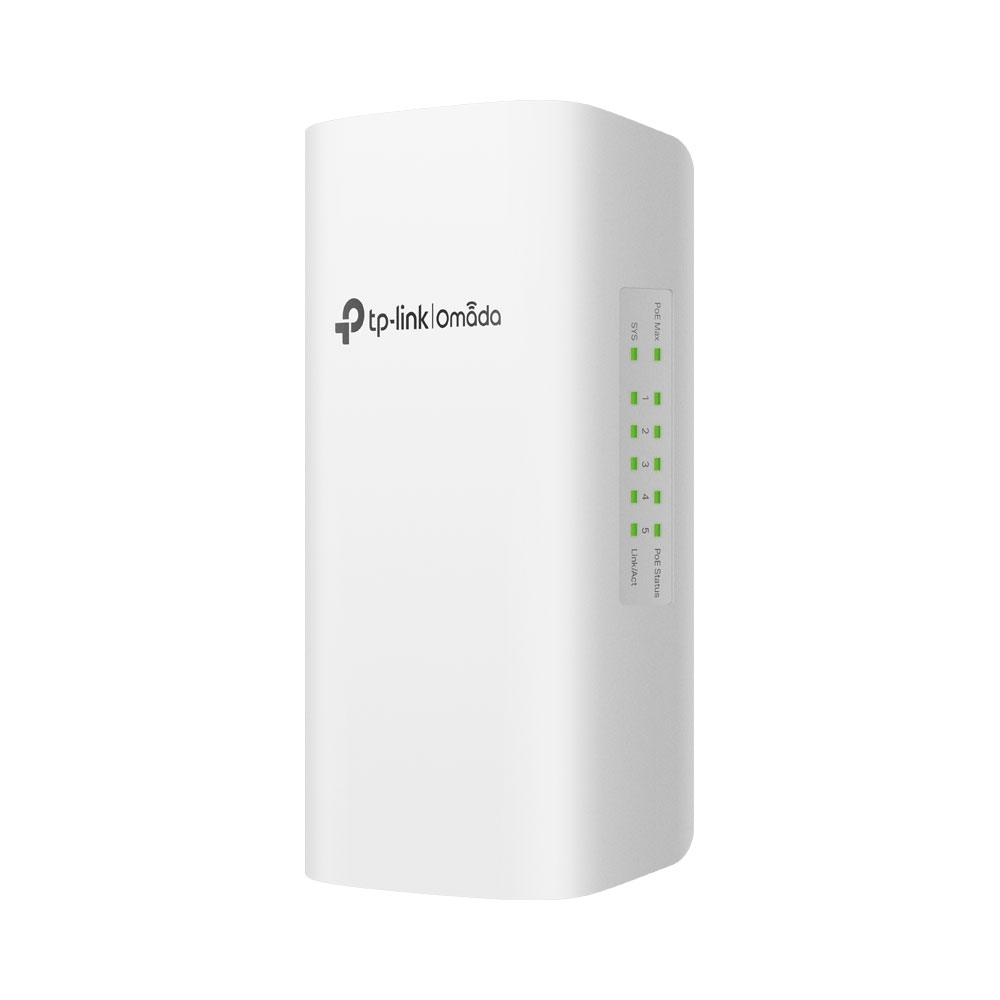

TP-LINK OMADA SG2005P-PD | 5-PORT GIGABIT SMART SWITCH WITH 1-PORT POE++ IN AND 4-PORT POE+ OUT
FEATURES:
- Up to 200m PoE Distance – Standard PoE Passthrough to double PoE source-to-device transmission distance from 100m to 200m without losing gigabit speeds, perfect for long-range surveillance cameras and access points.
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out – Supports up to 64W / 44W / 19W / 6W PoE budget output when powered by 802.3bt Type-4 (90W), 802.3bt Type-3 (60W), 802.3at and 802.3af PoE, respectively.
- Outdoor Weatherproof – IP55 waterproof, dustproof and UV-resistant enclosure. Operation temperatures of -40 to 60°C and 4KV lightning protection further ensure stable operation in harsh outdoor conditions.
- Easy Installation – Easily mount on a wall or pole with the flexible mounting kits provided.
- Centralized Cloud Management – Integrates into Omada SDN for cloud access, remote management and multi-site management.
- Value-Added Features Foster Touchpoint Experiences – Static Routing, Access Control List (ACL), QoS and VLAN.
TP-Link Omada SG2005P-PD | 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
PoE-Powered PoE Switch for Simplified Outdoor Network Deployment
FEATURES:

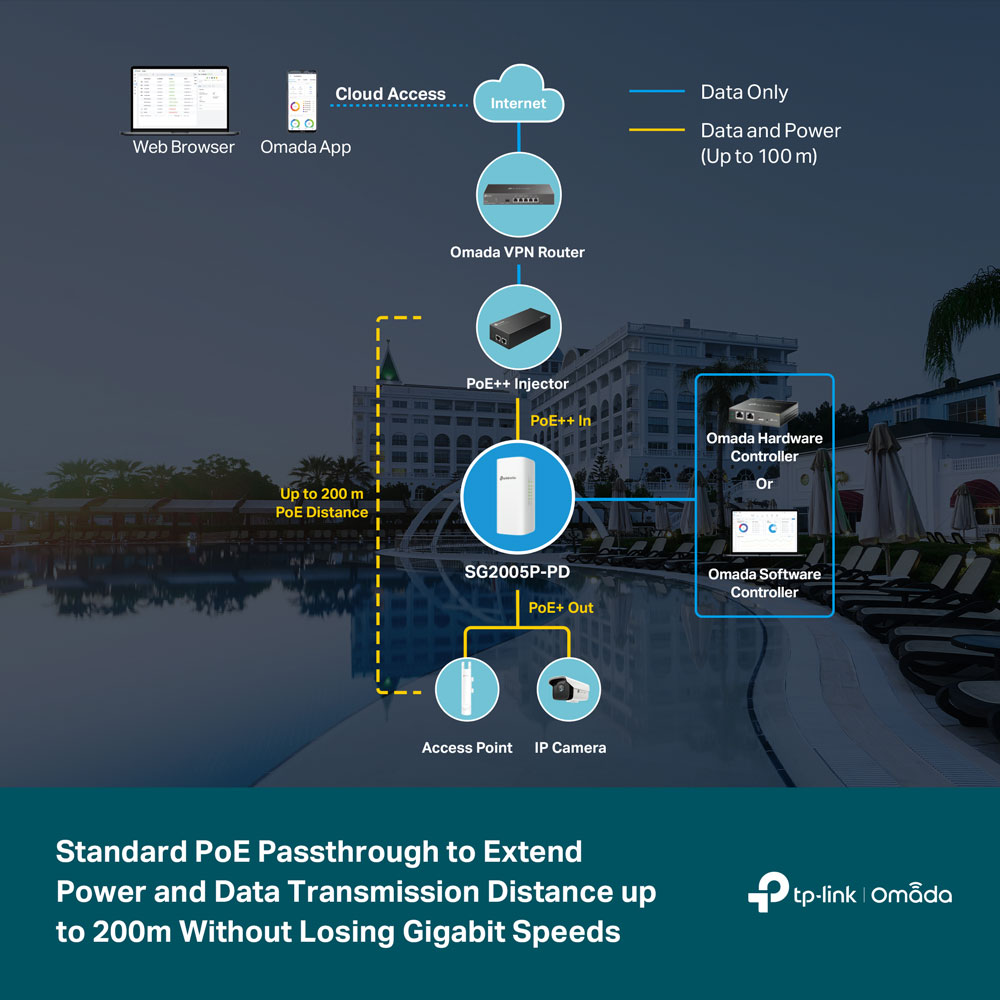

- Up to 200m PoE Distance - Standard PoE Passthrough to double PoE source-to-device transmission distance from 100m to 200m without losing gigabit speeds, perfect for long-range surveillance cameras and access points.

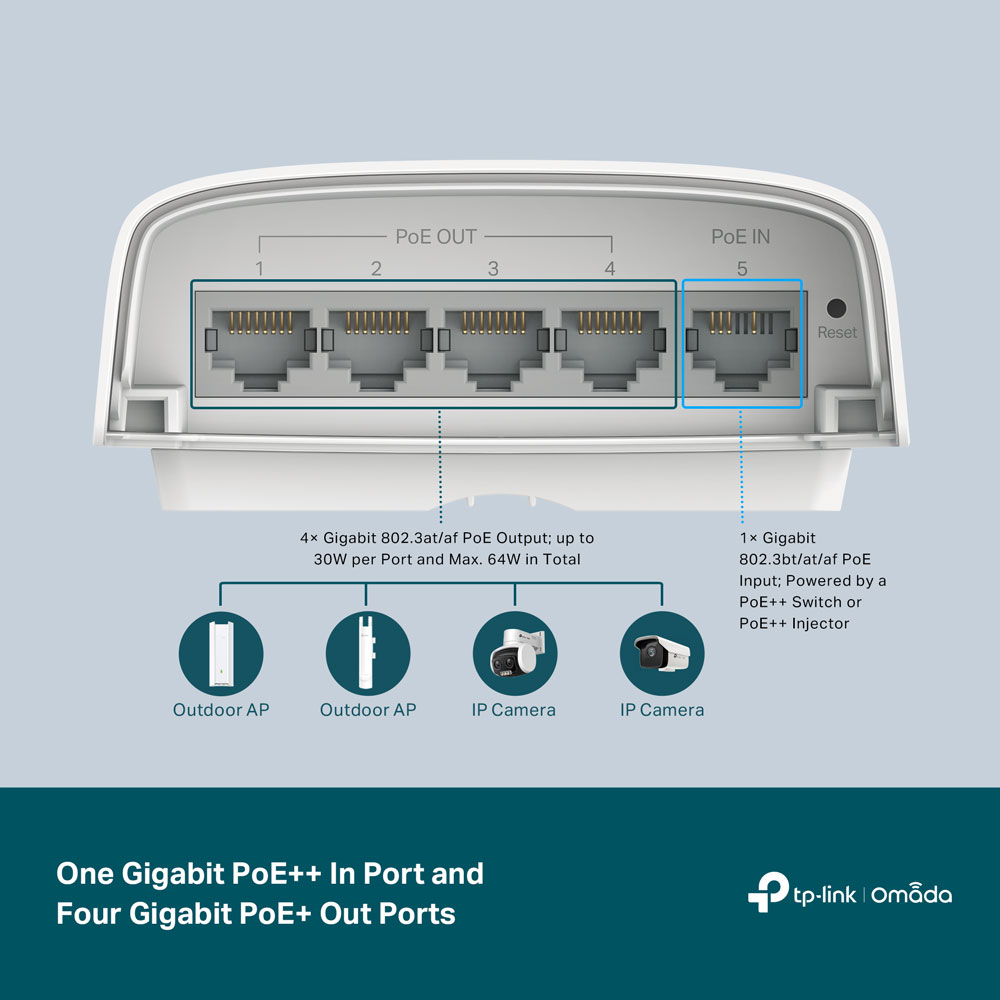

- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out - Supports up to 64W / 44W / 19W / 6W PoE budget output when powered by 802.3bt Type-4 (90W), 802.3bt Type-3 (60W), 802.3at and 802.3af PoE, respectively.
- Outdoor Weatherproof - IP55 waterproof, dustproof and UV-resistant enclosure. Operation temperatures of -40 to 60°C and 4KV lightning protection further ensure stable operation in harsh outdoor conditions.
- Easy Installation - Easily mount on a wall or pole with the flexible mounting kits provided.
- Centralized Cloud Management - Integrates into Omada SDN for cloud access, remote management and multi-site management.
- Value-Added Features Foster Touchpoint Experiences - Static Routing, Access Control List (ACL), QoS and VLAN.
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |

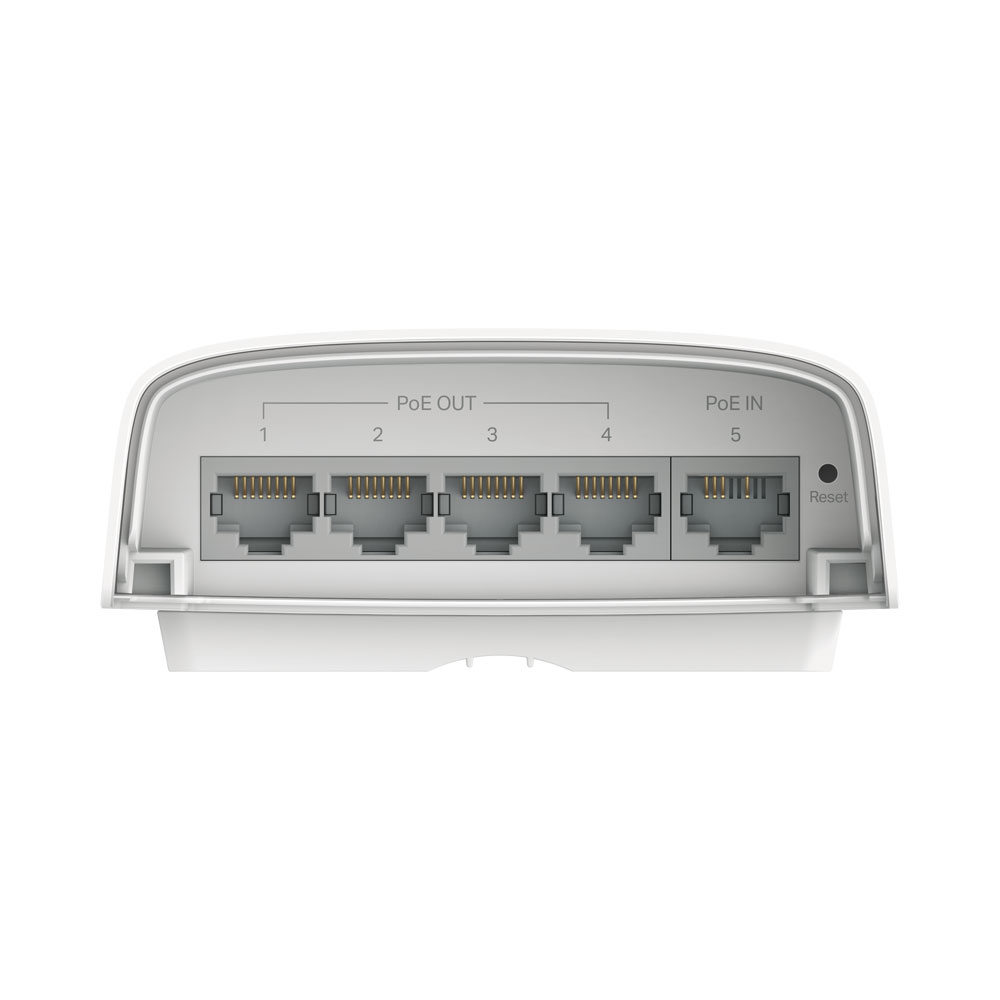

| Interface | 1× 10/100/1000Mbps RJ45 PoE In Port (Compliant with 802.3af/at/bt) |
| 4× 10/100/1000Mbps RJ45 PoE Out Ports (Compliant with 802.3af/at PoE) | |
| Network Media | 10BASE-T: UTP Category 3, 4, 5 Cable (Max. 100m) |
| 100BASE-TX/1000Base-T: UTP Category 5, 5e or Above Cable (Max. 100m) | |
| Fan Quantity | Fanless |
| Power Supply | Obtain Power from 802.3af/at/bt PoE Source |
| PoE Ports (RJ45) | PoE In Port: Port 5, Compliant with 802.3af/at/bt |
| PoE Out Ports: Ports 1-4, Compliant with 802.3af/at PoE | |
| PoE Power Budget: | |
| 64W When Powered by 802.3bt Type-4 (90W) | |
| 44W When Powered by 802.3bt Type-3 (60W) | |
| 19W When Powered by 802.3at | |
| 6W When Powered by 802.3af | |
| Dimensions (W × D × H) | 100 × 38.5 × 170mm |
| Max. Power Consumption | 71.5W When Powered by 802.3bt Type-4 (90W) |
| Max. Heat Dissipation | 243.99 BTU/hr When Powered by 802.3bt Type-4 (90W) |
| PERFORMANCE | |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | 802.1p CoS/DSCP Priority |
| 8× Priority Queues | |
| Priority Schedule Mode | |
| SP (Strict Priority) | |
| WRR (Weighted Round Robin) | |
| Queue Weight Config | |
| Bandwidth Control | |
| Port/Flow-Based Rating Limit | |
| Smoother Performance | |
| Storm Control | |
| Multiple Control Modes (kbps/Ratio) | |
| Broadcast/Multicast/Unknown-Unicast Control | |
| L2 and L2+ Features | 32× IP Interfaces |
| Support IPv4/IPv6 Interface | |
| Static Routing | |
| 32× IPv4/IPv6 Static Routes | |
| DHCP Server | |
| DHCP Relay | |
| DHCP Interface Relay | |
| DHCP VLAN Relay | |
| DHCP L2 Relay | |
| Static ARP | |
| Proxy ARP | |
| Gratuitous ARP | |
| Link Aggregation | |
| Static Link Aggregation | |
| 802.3ad LACP | |
| Up to 8× Aggregation Groups and up to 8× Ports per Group | |
| Spanning Tree Protocol | |
| 802.1D STP | |
| 802.1w RSTP | |
| 802.1s MSTP | |
| STP Security: TC Protect, BPDU Filter/Protect | |
| Root Protect | |
| Loopback Detection | |
| Flow Control | |
| 802.3x Flow Control | |
| Mirroring | |
| Port Mirroring | |
| CPU Mirroring | |
| One-to-One | |
| Many-to-One | |
| Flow-Based | |
| Ingress/Egress/Both | |
| Device Link Detect Protocol (DLDP) | |
| 802.1ab LLDP/ LLDP-MED | |
| L2 Multicast | 511 IPv4, IPv6 Shared Multicast Groups |
| IGMP Snooping | |
| IGMP v1/v2/v3 Snooping | |
| Fast Leave | |
| IGMP Snooping Querier | |
| Static Group Config | |
| Multicast VLAN Registration (MVR) | |
| Multicast Filtering | |
| MLD Snooping | |
| MLD v1/v2 Snooping | |
| Fast Leave | |
| MLD Snooping Querier | |
| Static Group Config | |
| Limited IP Multicast (256× Profiles and 16× Entries per Profile) | |
| Advanced Features | Automatic Device Discovery |
| Batch Configuration | |
| Batch Firmware Upgrading | |
| Intelligent Network Monitoring | |
| Abnormal Event Warnings | |
| Unified Configuration | |
| Reboot Schedule | |
| IPv6 Support | IPv6 Dual IPv4/IPv6 |
| Multicast Listener Discovery (MLD) Snooping | |
| IPv6 Neighbour Discovery (ND) | |
| Path Maximum Transmission Unit (MTU) Discovery | |
| Internet Control Message Protocol (ICMP) Version 6 | |
| TCPv6/UDPv6 | |
| IPv6 Applications | |
| DHCPv6 Client | |
| Ping6 | |
| Tracert6 | |
| Telnet (v6) | |
| IPv6 SNMP | |
| IPv6 SSH | |
| IPv6 SSL | |
| Http/Https | |
| IPv6 TFTP | |
| VLAN | VLAN Group |
| Max. 4K VLAN Groups | |
| 802.1Q tag VLAN | |
| MAC VLAN: 12× Entries | |
| Protocol VLAN | |
| GVRP | |
| Voice VLAN | |
| Access Control List | Supports up to 230× entries |
| Time-Range | |
| Time Slice | |
| Week Time-Range | |
| Absolute Time-Range | |
| Holiday | |
| Time-based ACL | |
| MAC ACL | |
| Source MAC | |
| Destination MAC | |
| VLAN ID | |
| User Priority | |
| Ether Type | |
| IP ACL | |
| Source IP | |
| Destination IP | |
| IP Protocol | |
| TCP Flag | |
| TCP/UDP Source Port | |
| TCP/UDP Destination Port | |
| DSCP/IP TOS | |
| IPv6 ACL | |
| Combined ACL | |
| Rule Operation | |
| Permit/Deny | |
| Policy Action | |
| Mirror | |
| Rate Limit | |
| Redirect | |
| QoS Remark | |
| ACL Rules Binding | |
| Port Binding | |
| VLAN Binding | |
| Actions for Flows | |
| Mirror (to Supported Interface) | |
| Redirect (to supported Interface) | |
| Rate Limit | |
| QoS Remark | |
| Security | AAA |
| 802.1X | |
| Port-Based Authentication | |
| MAC (Host) Based Authentication | |
| Authentication Method Includes PAP/EAP-MD5 | |
| MAB | |
| Guest VLAN | |
| Supports Radius Authentication and Accountability | |
| IP/IPv6-MAC Binding | |
| 512× Binding Entries | |
| DHCP Snooping | |
| DHCPv6 Snooping | |
| ARP Inspection | |
| ND Detection | |
| IP Source Guard | |
| 253× Entries | |
| Source IP + Source MAC | |
| IPv6 Source Guard | |
| 183× Entries | |
| Source IPv6 Address + Source MAC | |
| DoS Defend | |
| Static/Dynamic/Permanent Port Security | |
| Up to 64× MAC Addresses per Port | |
| Broadcast/Multicast/Unicast Storm Control | |
| kbps/Ratio Control Mode | |
| Port Isolation | |
| Secure Web Management through HTTPS with SSLv3/TLS 1.2 | |
| Secure Command Line Interface (CLI) Management with SSHv1/SSHv2 | |
| IP/Port/MAC-Based Access Control | |
| MIBs | MIB II (RFC1213) |
| Bridge MIB (RFC1493) | |
| P/Q-Bridge MIB (RFC2674) | |
| Radius Accounting Client MIB (RFC2620) | |
| Radius Authentication Client MIB (RFC2618) | |
| Remote Ping, Traceroute MIB (RFC2925) | |
| Support TP-Link Private MIBs | |
| RMON MIB (RFC1757, RMON 1,2,3,9) | |
| MANAGEMENT | |
| Omada App | Yes, Through |
| Omada Cloud-Based Controller | |
| Omada Hardware Controller | |
| Omada Software Controller | |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller | |
| Omada Software Controller | |
| Cloud Access | Yes, Through |
| Omada Cloud-Based Controller | |
| Omada Hardware Controller | |
| Omada Software Controller | |
| Zero-Touch Provisioning | Yes. Requiring the Use of Omada Cloud-Based Controller. |
| Management Features | Web-Based GUI |
| Command Line Interface (CLI) Through telnet | |
| SNMP v1/v2c/v3 | |
| SNMP Trap/Inform | |
| RMON (1,2,3,9 Groups) | |
| SDM Template | |
| DHCP/BOOTP Client | |
| Dual Image, Dual Configuration | |
| CPU Monitoring | |
| Cable Diagnostics | |
| EEE | |
| SNTP | |
| System Log | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | SG2005P-PD |
| Mounting Kits | |
| Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: -40 to 60°C |
| Storage Temperature: -40°C to 70°C | |
| Operating Humidity: 10~90% RH Non-Condensing | |
| Storage Humidity: 5~90% RH Non-Condensing | |
Additional information
| Weight | 0.51 kg |
|---|---|
| Dimensions | 21.25 × 20.95 × 7.15 cm |
