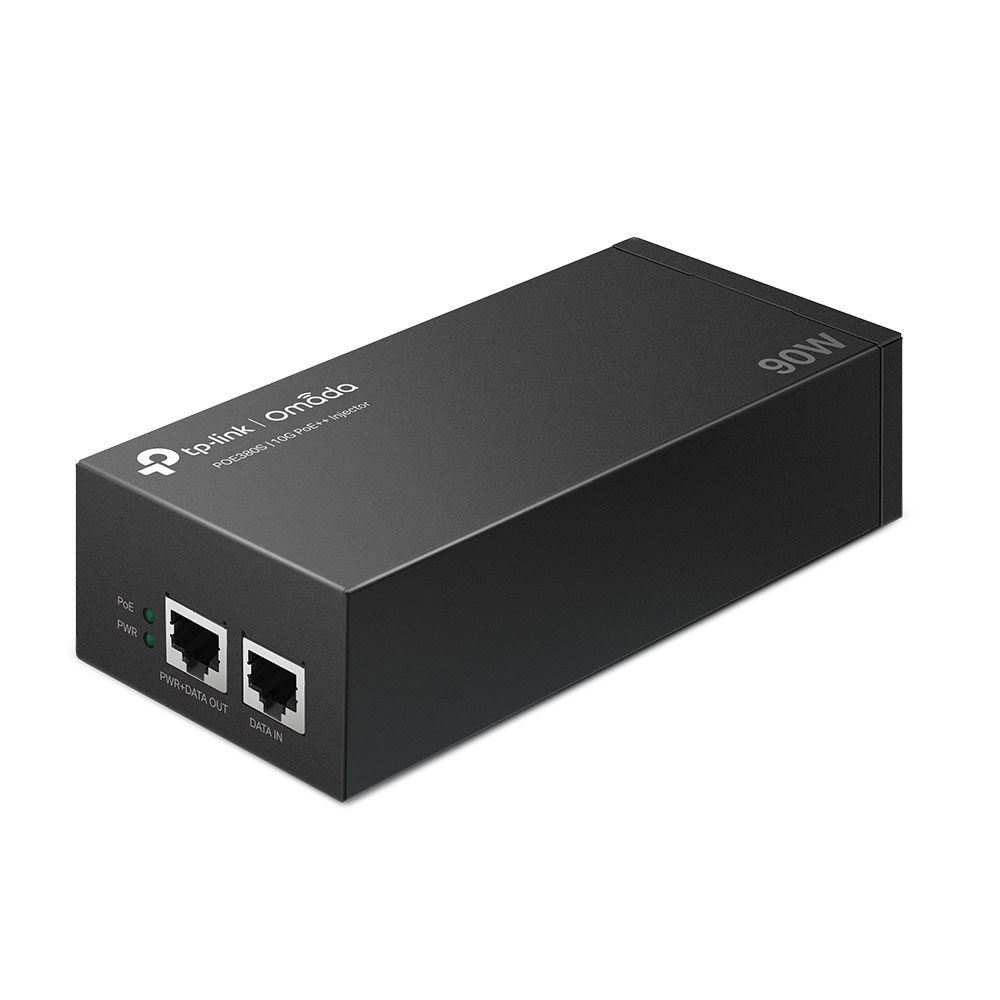

TP-LINK OMADA POE380S | 90W 10GBPS POE++ INJECTOR

FEATURES:

2× 10Gbps RJ45 ports ensure faster transmission
Complies with IEEE802.3af/at/bt standards and supplies up to 90W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device’s needs
Wall-mounting and desktop design accommodates most installation scenarios
Integrated power supply
Durable metal casing

TP-Link Omada POE380S | 90W 10Gbps PoE++ Injector

Unlocks peak performance for your 10G/Multi-Gig bandwidth and devices

FEATURES:

2× 10Gbps RJ45 ports ensure faster transmission
Complies with IEEE802.3af/at/bt standards and supplies up to 90W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's needs
Wall-mounting and desktop design accommodates most installation scenarios
Integrated power supply
Durable metal casing

SPECIFICATIONS:

HARDWARE FEATURES
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
	Note: POE380S is Incompatible with Passive PoE and Other Non-Standard PoE Devices. The Standards Refer to IEEE 802.3af/at/bt.

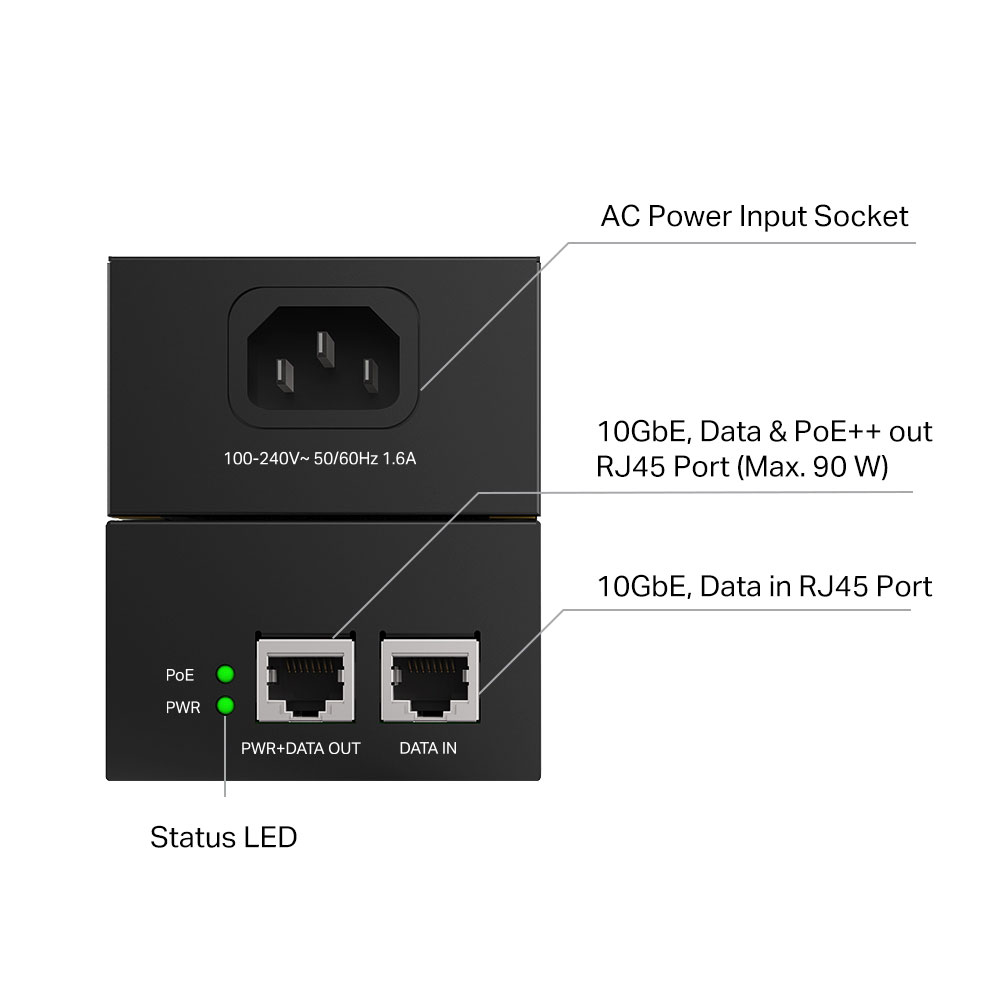

Interface	1× 10Gbps RJ45 Data-In Port
	1× 10Gbps RJ45 Power+Data-Out Port (Max. 90W)
	1× AC Socket
Network Media	10BASE-T: UTP CAT 3, 4, 5 Cable (Max. 100m)
	EIA/TIA-568 100Ω STP (Max. 100m)
	100BASE-TX: UTP CAT 5, 5e Cable (Max. 100m)
	EIA/TIA-568 100Ω STP (Max. 100m)
	1000BASE-T: UTP CAT 5, 5e, 6 Cable (Max. 100m)
Max. Power Consumption	Input: 100~240V, 50/60Hz 1.6A
Max. Power Consumption	Output: Auto-Determine the Necessary Power Requirements (Max. 90W)
Basic Function	Auto-Sensing Algorithm Enables Providing Power with 802.3af/at/bt PD
	Auto-Determine the Necessary Power Requirements
	Wall-Mounting and Desktop Installation
LED	Power / PoE
Dimensions (W × D × H)	155 × 70 × 42mm
OTHERS
Certification	FCC, CE, RoHS
Package Content	POE380S
	Power Cord
	Installation Guide
Environment	Operating Temperature: 0~45°C
	Storage Temperature: -40~70°C
	Operating Humidity: 10~90%RH Non-Condensing
	Storage Humidity: 5~90%RH Non-Condensing

Additional information

Weight	0.87 kg
Dimensions	25 × 19 × 9.5 cm
