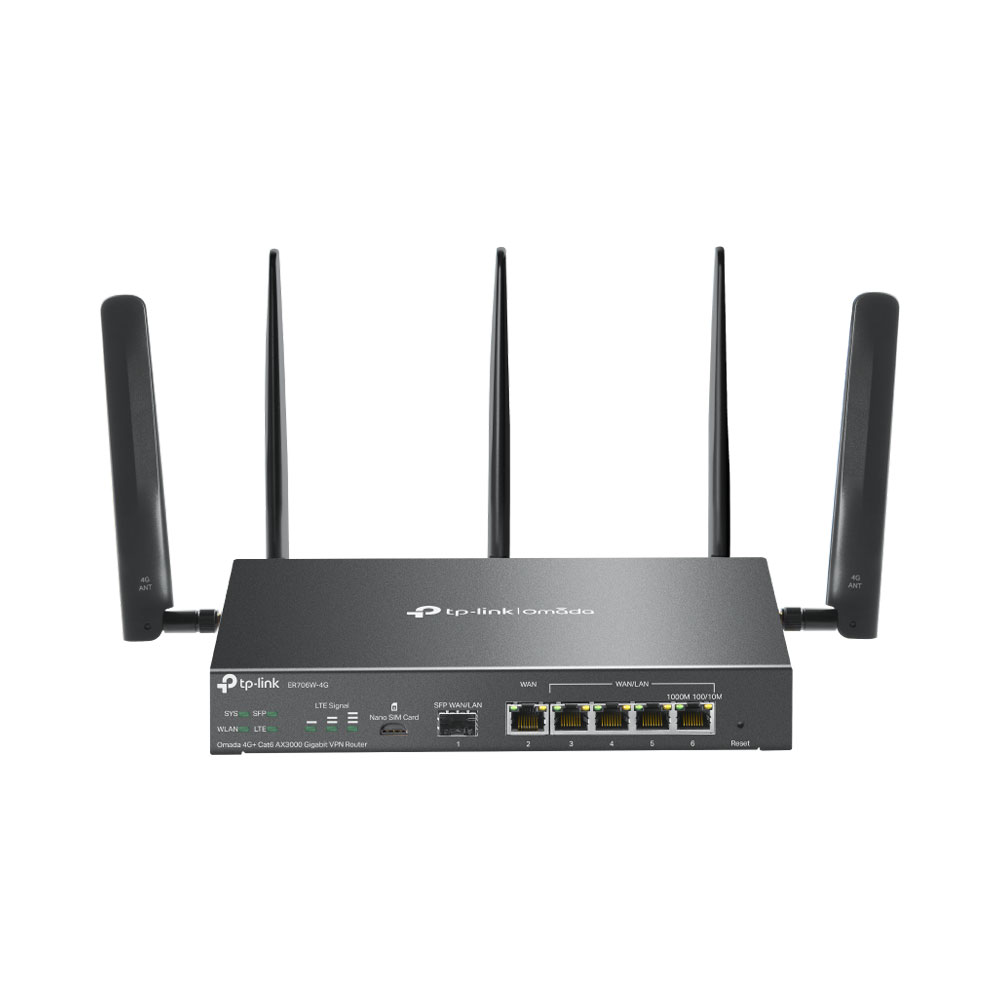

TP-LINK OMADA ER706W-4G | 4G+ CAT6 AX3000 GIGABIT VPN ROUTER

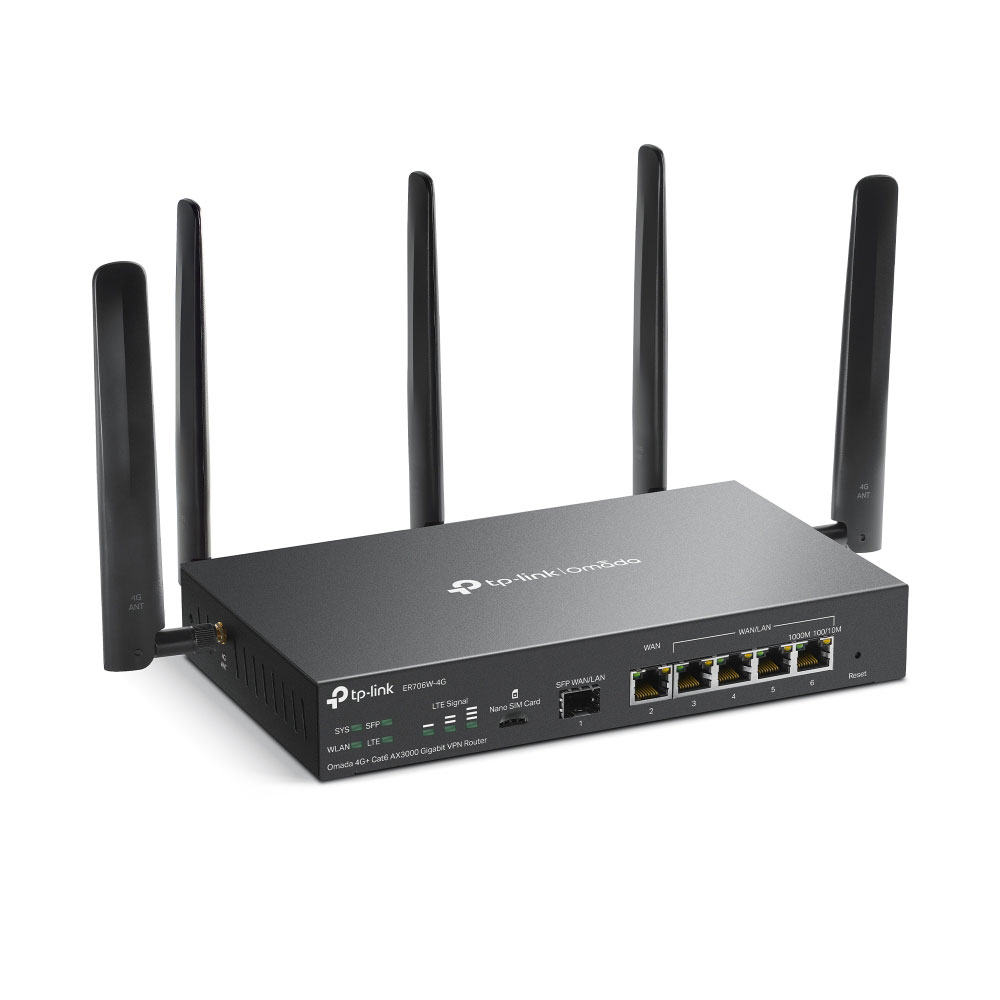

TP-LINK OMADA ER706W-4G | 4G+ CAT6 AX3000 GIGABIT VPN ROUTER - Image 2

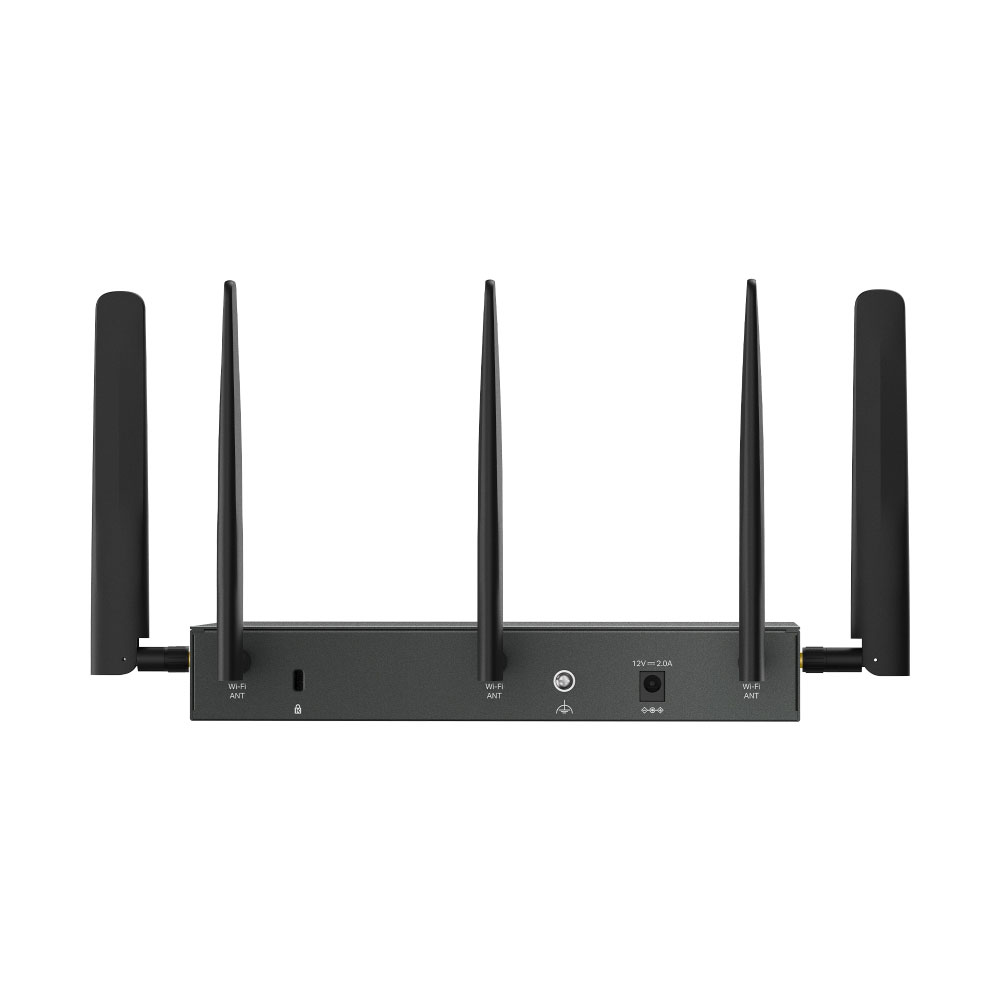

TP-LINK OMADA ER706W-4G | 4G+ CAT6 AX3000 GIGABIT VPN ROUTER - Image 3

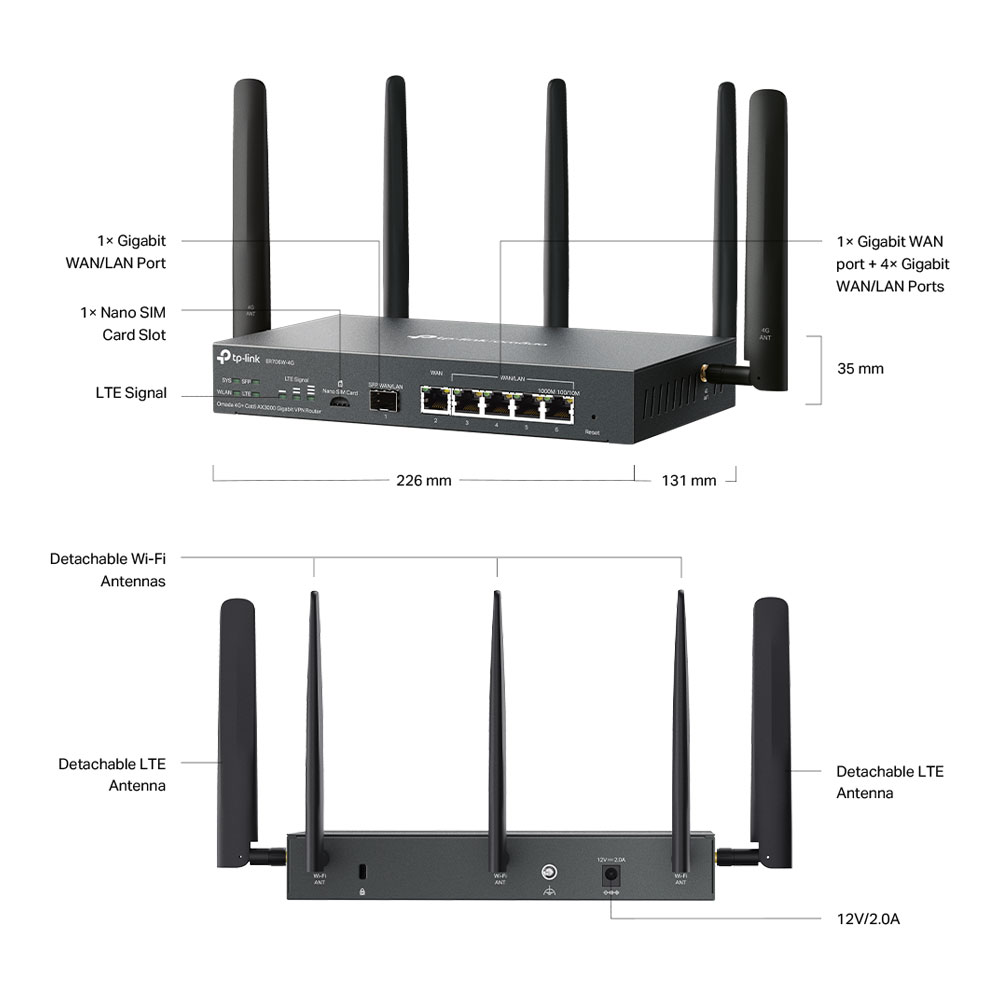

TP-LINK OMADA ER706W-4G | 4G+ CAT6 AX3000 GIGABIT VPN ROUTER - Image 4

TP-LINK OMADA ER706W-4G | 4G+ CAT6 AX3000 GIGABIT VPN ROUTER

FEATURES:



  • Support 4G+ CAT6 – Insert a Nano SIM card to enjoy up to 300Mbps
  • AX3000 Dual-Band Wi-Fi 6 – Supports 2402Mbps on 5.0GHz and 574Mbps on 2.4GHz
  • 6× Gigabit Ethernet Ports – Provide high-speed wired connectivity
  • 5× High-Gain Detachable Antennas – Extend and concentrate the Wi-Fi signals
  • Centralized Management – Cloud access and the Omada App for easy management
  • Omada Mesh – Seamlessly connects to EAPs that support mesh technology
  • High-Security VPN – Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN
SKU: NET-TL-ER706W-4G Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

TP-Link Omada ER706W-4G | 4G+ CAT6 AX3000 Gigabit VPN Router

Access 4G+ Speed
Anywhere, Anytime

FEATURES:

  • Support 4G+ CAT6 - Insert a Nano SIM card to enjoy up to 300Mbps
  • AX3000 Dual-Band Wi-Fi 6 - Supports 2402Mbps on 5.0GHz and 574Mbps on 2.4GHz
  • 6× Gigabit Ethernet Ports - Provide high-speed wired connectivity
  • 5× High-Gain Detachable Antennas - Extend and concentrate the Wi-Fi signals
  • Centralized Management - Cloud access and the Omada App for easy management
  • Omada Mesh - Seamlessly connects to EAPs that support mesh technology
  • High-Security VPN - Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN

SPECIFICATIONS:



4G
Network Type LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900MHz)
Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type 1× Nano SIM Card
Frequency Downlink: 300Mbps
Uplink: 50Mbps
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering Web Group Filtering
URL Filtering
Web Security
ARP Inspection Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
Interface 1× Gigabit SFP WAN/LAN Port
1× Gigabit WAN Port
4× Gigabit LAN/WAN Ports
Network Media 10BASE-T: UTP Category 3, 4, 5 Cable (Max. 100m) EIA/TIA-568 100Ω STP (Max. 100m)
100BASE-TX: UTP Category 5, 5e Cable (Max. 100m) EIA/TIA-568 100Ω STP (Max. 100m)
1000BASE-T: UTP Category 5, 5e, 6 Cable (Max. 100m)
Button Reset Button
Power Supply 12V DC 2A Power Adapter
Wi-Fi Frequency and Signal Rate 2.4GHz: 574Mbps
5.0GHz: 2402Mbps (HE160)
Flash 128MB NAND
DRAM 512MB DDR4
LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions (W × D × H) 226 × 131 × 35mm (Antenna dimensions are not included)
Antenna Wi-Fi: 3× 5.0GHz 5.5dBi and 2.4GHz 4.5dBi Dual-Band Detachable Antennas
LTE: 2× 4.0dBi Omnidirectional Detachable Antennas
Mounting Desktop/Wall-Mounting
Max. Power Consumption 17.3W
PERFORMANCE
GRE Unencrypted: 545.3Mbps
Encrypted: 282.6Mbps
WireGuard VPN 387.7Mbps
Concurrent Session 150,000
New Sessions /Second 5,100
NAT (Static IP) 947.1Mbps / 940.1Mbps
NAT (DHCP) 949.2Mbps / 941.1Mbps
NAT (PPPoE) 942.6Mbps / 941.1Mbps
NAT (L2TP) 875.4Mbps / 892.0Mbps
NAT (PPTP) 881.2Mbps / 895.8Mbps
IPsec VPN Throughput ESP-SHA1-AES256: 652.2Mbps
ESP-SHA256-AES256: 654.4Mbps
ESP-SHA384-AES256: 646.5Mbps
ESP-SHA512-AES256: 670.5 Mbps
OpenVPN 115.5Mbps
L2TP VPN Throughput Unencrypted: 990.0Mbps
Encrypted: 475.0Mbps
PPTP VPN Throughput Unencrypted: 1177.9Mbps
Encrypted: 177.4Mbps
SSL VPN Throughput 122.5Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet Forwarding Rate 81274 pps / 91275 pps
WIRELESS FEATURES
Advanced Functions Seamless Roaming
Mesh (with EAP that Supports Mesh)
OFDMA
Beamforming
MU-MIMO
Rate Limit: Based on SSID/Client
Airtime Fairness
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Multiple SSIDs: 16× in Total (8× per Radio)
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type Static IP
Dynamic IP
PPPoE (Supports MRU Configuration)
PPTP
L2TP
MAC Clone Modify WAN Address
DHCP DHCP Server
DHCPv6 PD Server (Only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
SMS Receive / Send SMS
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing Static Routing
Policy Routing
RIP
OSPF
Bandwidth Control IP-Based Bandwidth Control
Load Balance Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit IP-Based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 50× Tunnels
IPsec VPN 100× IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN PPTP VPN Server
PPTP VPN Client (10)
50× Tunnels
PPTP with MPPE Encryption
L2TP VPN L2TP VPN Server
L2TP VPN Client (10)
50× Tunnels
L2TP over IPSec
OpenVPN OpenVPN Server
OpenVPN Client (5)
55× OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
AUTHENTICATION
Web Authentication No Authentication
Simple Password
Hotspot (Local User / Voucher / SMS / Radius)
External Radius Sever
External Portal Sever
LDAP
MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping and Traceroute)
NTP Synchronize
Port Mirroring
CLI (Only in Standalone Mode)
Syslog Support
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
Management Features Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents ER706W-4G
Power Adapter
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% Non-Condensing
Storage Humidity: 5% to 90% Non-Condensing

Additional information

Weight 1.54 kg
Dimensions 37.4 × 17.9 × 8.2 cm
