TP-LINK OMADA | EAP683 UR AX6000 CEILING MOUNT WI-FI 6 ACCESS POINT
FEATURES:
- Up to 5,952Mbps Wi-Fi 6 Speeds – 1,148Mbps on 2.4GHz plus 4,804Mbps on 5.0GHz
- Ultra-Range Wireless Coverage – By 4×4 MIMO dual-band internal antennas with high transmission power
- Supports Wi-Fi 6 Technologies – Such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN Platform – For centralised management
- Advanced Features – Omada Mesh, seamless roaming and more
- PoE+ Powered – Supports both 802.3at PoE+ and DC (adapter not included)
TP-Link Omada | EAP683 UR AX6000 Ceiling Mount Wi-Fi 6 Access Point
Ultra-Range Wireless Coverage
FEATURES:
- Up to 5,952Mbps Wi-Fi 6 Speeds - 1,148Mbps on 2.4GHz plus 4,804Mbps on 5.0GHz
- Ultra-Range Wireless Coverage - By 4×4 MIMO dual-band internal antennas with high transmission power
- Supports Wi-Fi 6 Technologies - Such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN Platform - For centralised management
- Advanced Features - Omada Mesh, seamless roaming and more
- PoE+ Powered - Supports both 802.3at PoE+ and DC (adapter not included)

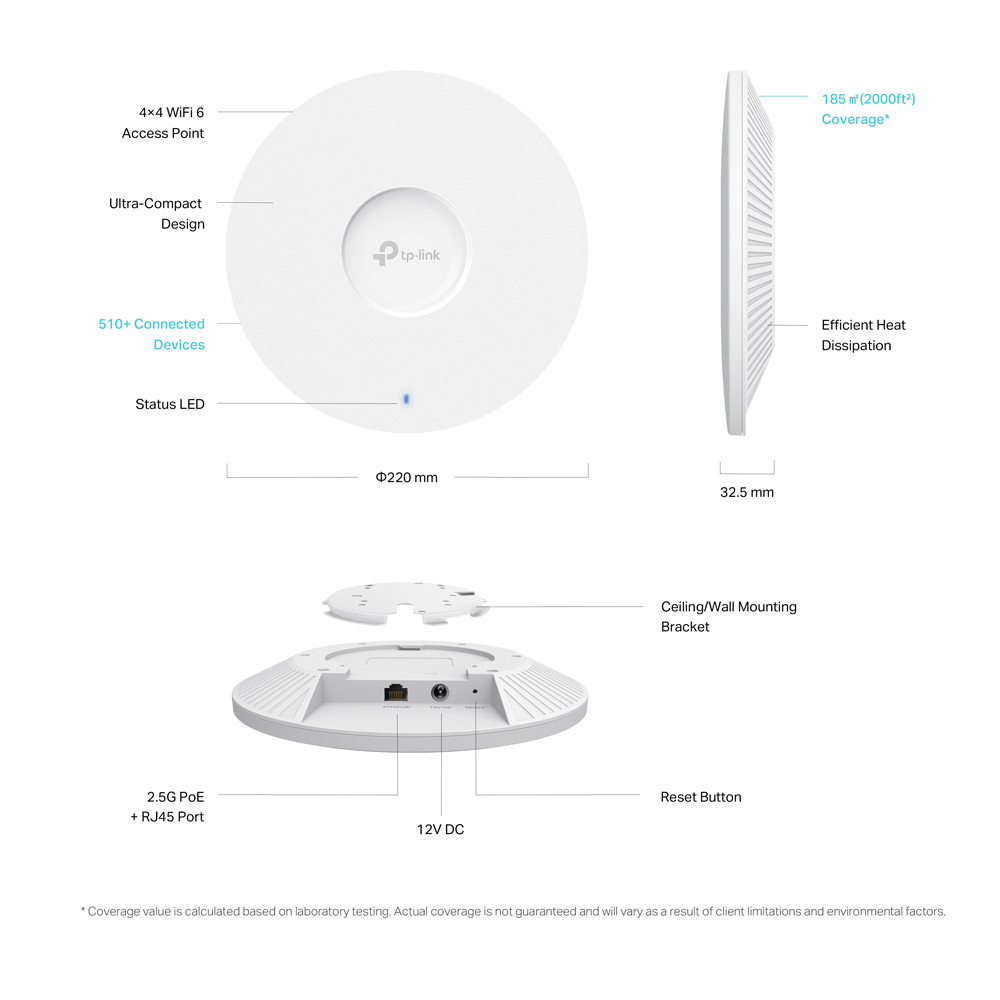

SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 1× 2.5 Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | 802.3at PoE |
| 12VDC 2A | |
| Note：Power adapter is not included | |
| Max. Power Consumption | 20.43W |

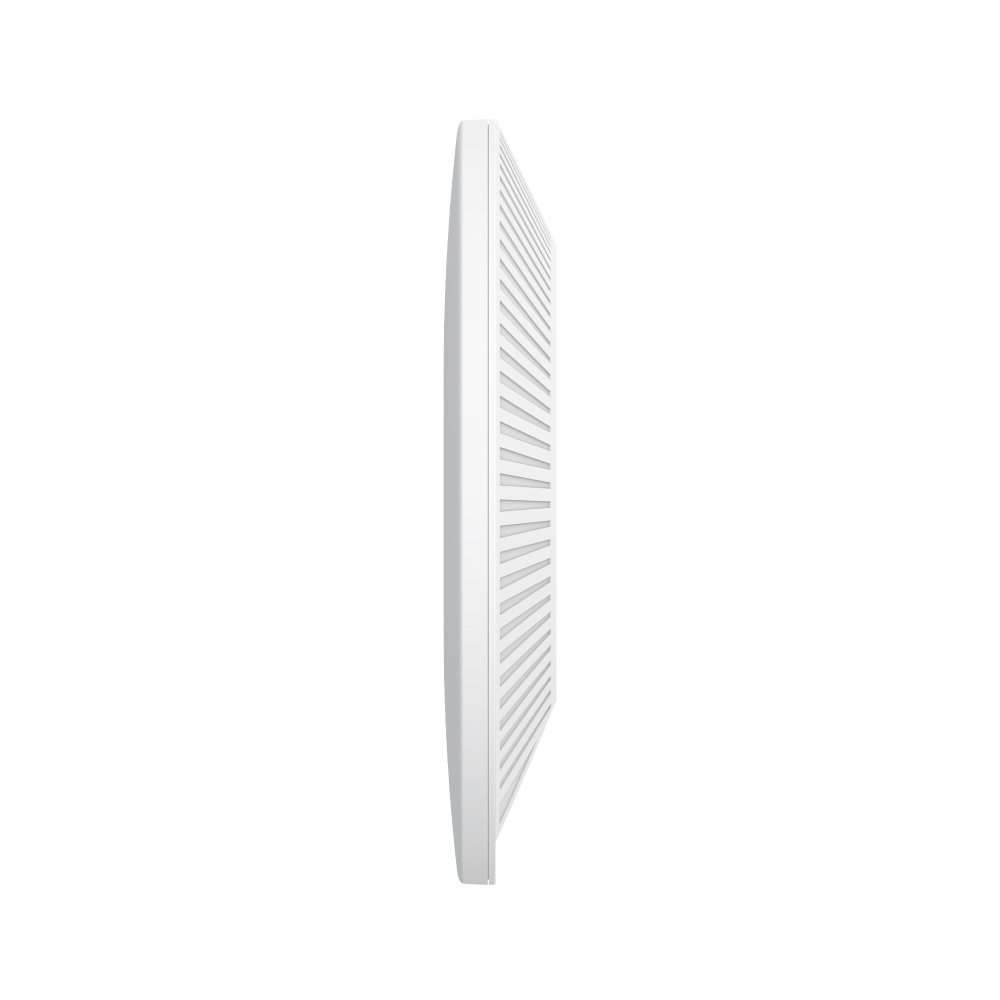

| Dimensions (W × D × H) | 220 × 220 × 32.5 mm |
| Antenna | Internal Omni |
| 2.4GHz: 4× 4dBi | |
| 5.0GHz: 4× 5dBi | |
| Bluetooth | Yes |

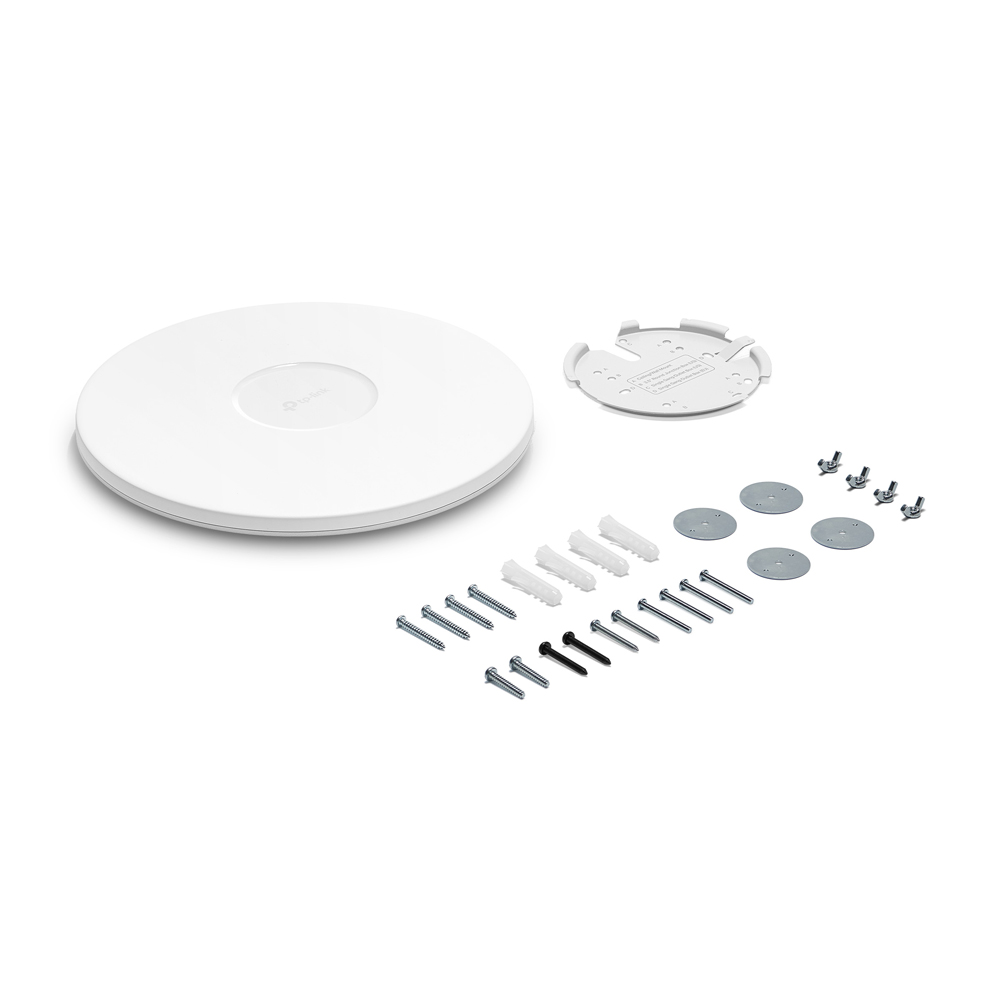

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
| Coverage | 185m² |
| Concurrent Clients | 510+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | 5.0GHz: up to 4,804Mbps |
| 2.4GHz: up to 1,148Mbps | |
| Wireless Functions | 1024-QAM |
| 4× Longer OFDM Symbol | |
| OFDMA | |
| Multiple SSIDs (up to 16× SSIDs, 8× for Each Band) | |
| Enable / Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS (WMM) | |
| MU-MIMO | |
| HE160 (160 MHz Bandwidth) | |
| Seamless Roaming | |
| Omada Mesh | |
| Band Steering | |
| Load Balance | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID / AP / Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | CE: <20dBm (2.4GHz, EIRP) |
| <23dBm (5.0GHz, Band1 & Band2, EIRP) | |
| <28dBm (5.0GHz, Band3, EIRP) | |
| FCC: <26dBm (2.4GHz) | |
| <26dBm (5.0GHz) | |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralised Management | Omada Hardware Controller (OC300) |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Omada Cloud-Based Controller | |
| Cloud Access | Yes. Require the Use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local / Remote Syslog | Local / Remote Syslog |
| SSH | Yes |
| Web-Based Management | HTTP / HTTPS |
| L3 Management | Yes |
| Multi-Site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the Use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP683 UR |
| Ceiling / Wall Mounting Kits | |
| Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0~40°C |
| Storage Temperature: -40~70°C | |
| Operating Humidity: 10~90% RH Non-Condensing | |
| Storage Humidity: 5~90% RH Non-Condensing | |
Additional information
| Weight | 1.3 kg |
|---|---|
| Dimensions | 28 × 25.9 × 9.1 cm |
