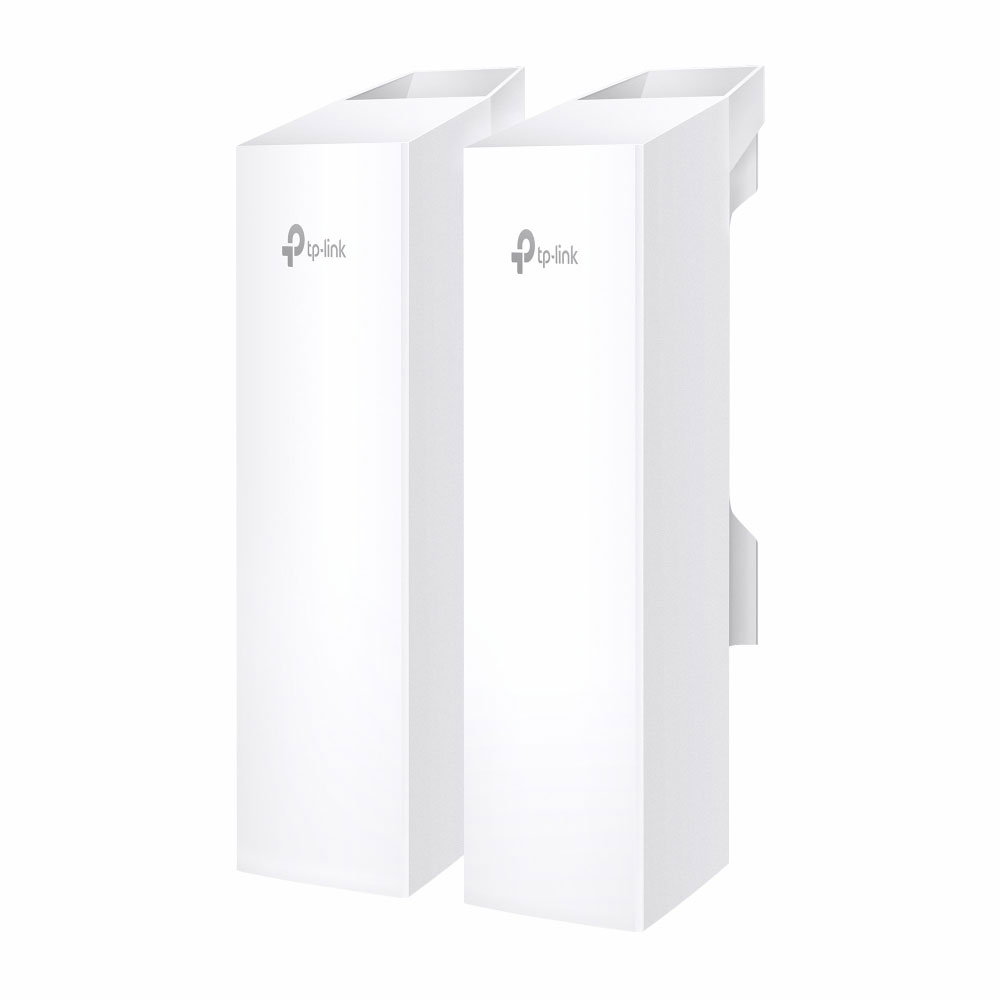

TP-LINK OMADA EAP211-BRIDGE KIT | 5.0GHZ 867MBPS WIRELESS BRIDGE INDOOR/OUTDOOR ACCESS POINT
FEATURES:
- 802.11ac for up to 867Mbps on the 5.0GHz wireless data rate
- Ideal for long-range wireless transmission up to 1km
- Auto-pairing and agile LEDs for efficient deployment
- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
TP-Link Omada EAP211-Bridge KIT | 5.0GHz 867Mbps Wireless Bridge Indoor/Outdoor Access Point
FEATURES:
- 802.11ac for up to 867Mbps on the 5.0GHz wireless data rate
- Ideal for long-range wireless transmission up to 1km
- Auto-pairing and agile LEDs for efficient deployment
- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
SPECIFICATIONS:
| HARDWARE FEATURES | |

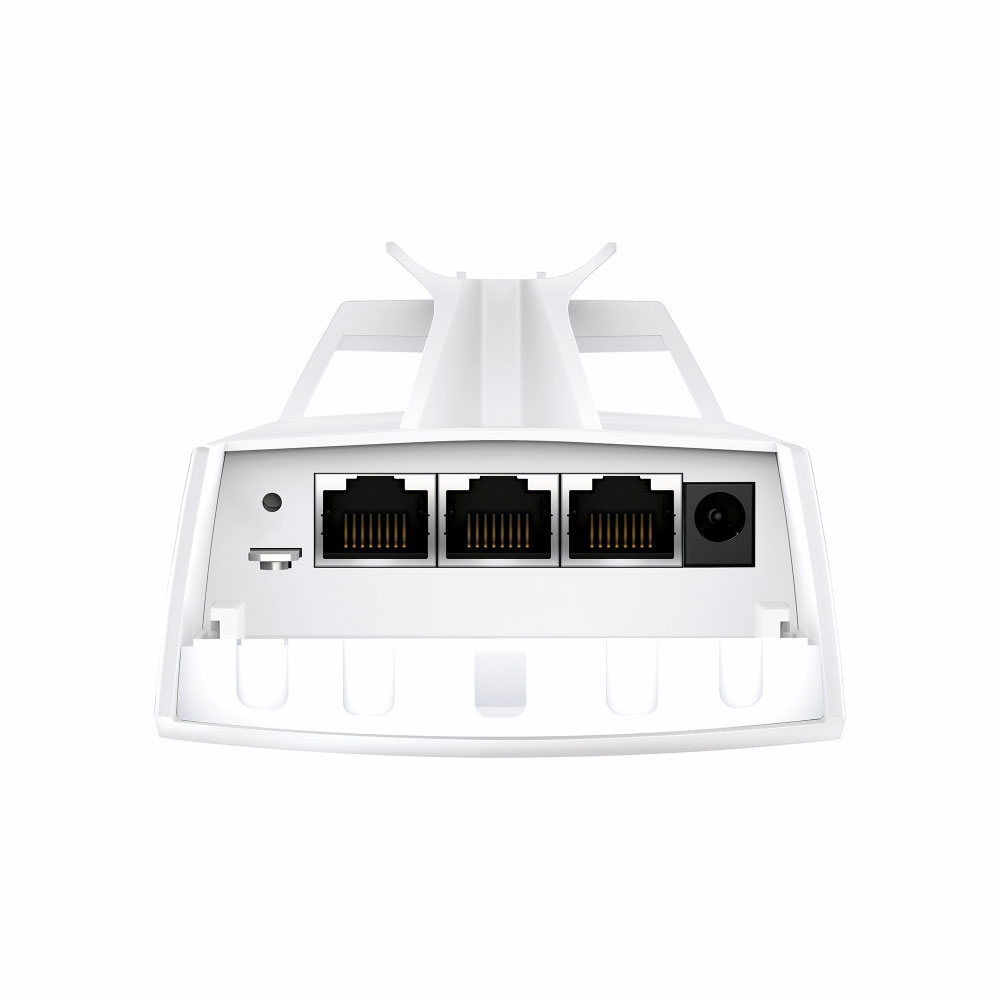

| Interface | 3× Gigabit Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included) |
| Power Consumption | 11.5W |
| Dimensions (W × D × H) | 79 × 60 × 224mm |
| Antenna Type | Internal 2×2 Dual-Polarized Directional MIMO Antennas |
| 5.0GHz: 7dBi | |
| Horizontal: 70°, Vertical: 70° | |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole Mounting (Accessories Included) |
| WIRELESS FEATURES | |
| Coverage | 1000m |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5.0GHz |
| Signal Rate | 5.0GHz up to 867Mbps |
| Wireless Functions | Mesh |
| MU-MIMO: 5G 2x2 MU-MIMO DL | |
| Load Balance | |
| Seamless Roaming (802.11r) | |
| Beamforming | |
| Airtime Fairness | |
| 8× SSIDs | |
| Wireless Statistics | |
| Wireless Schedule | |
| Reboot Schedule | |
| RADIUS Accounting | |
| MAC Authentication | |
| Static IP/Dynamic IP | |
| Wireless Security | VLAN |
| Access Control | |
| Rogue AP Detection | |
| Captive Portal Authentication | |
| Maximum number of MAC Filter: 4,000× | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise | |
| Transmission Power | CE: |
| <23dBm (5.0GHz, Band 1/2, EIRP) | |
| <30dBm (5.0GHz Band3, EIRP) | |
| FCC: | |
| <22dBm (5.0GHz Band 1/4) | |
| MANAGEMENT | |
| Omada App | Yes |
| Restore and Backup | Yes |
| Firmware Update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Hardware Controller (OC300) |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Omada Cloud-Based Controller | |
| Cloud Access | Yes - Requires the Use of OC300, OC200, the Omada Software Controller or Omada Cloud-Based Controller |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-Based Management | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP211-Bridge KIT |
| Passive PoE Adapter | |
| Power Cord | |
| Installation Guide | |
| Mounting Kit | |
| Environment | Operating Temperature: -40°C~70°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 10%~90% Non-Condensing | |
| Storage Humidity: 5%~90% Non-Condensing | |
Additional information
| Weight | 1.32 kg |
|---|---|
| Dimensions | 26.6 × 23.4 × 9.6 cm |
