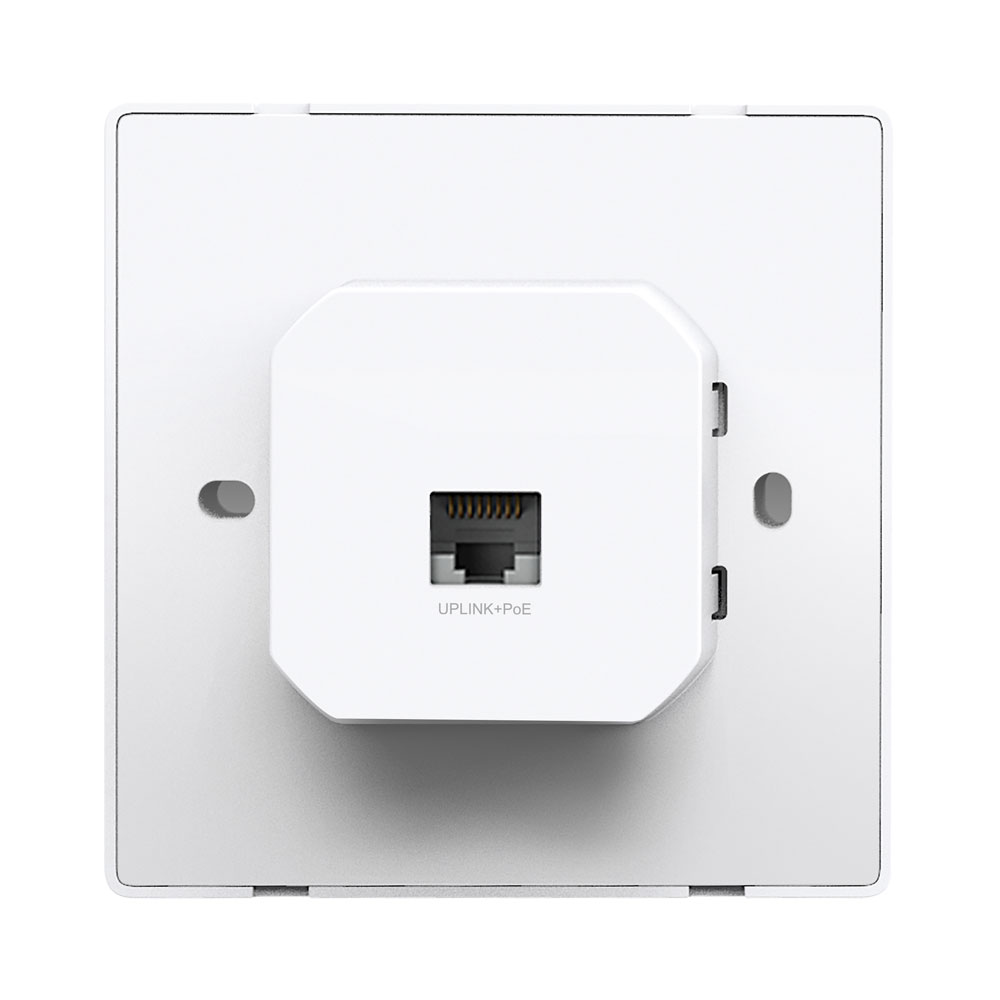

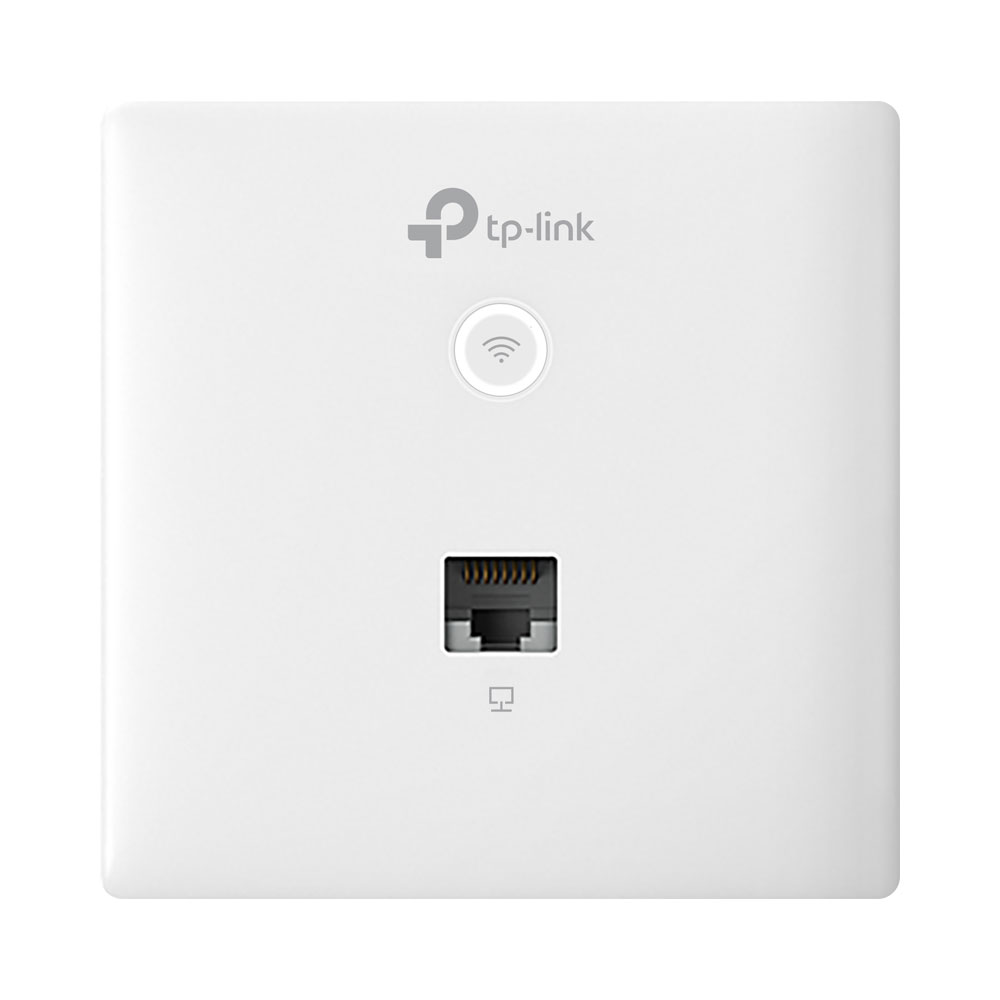

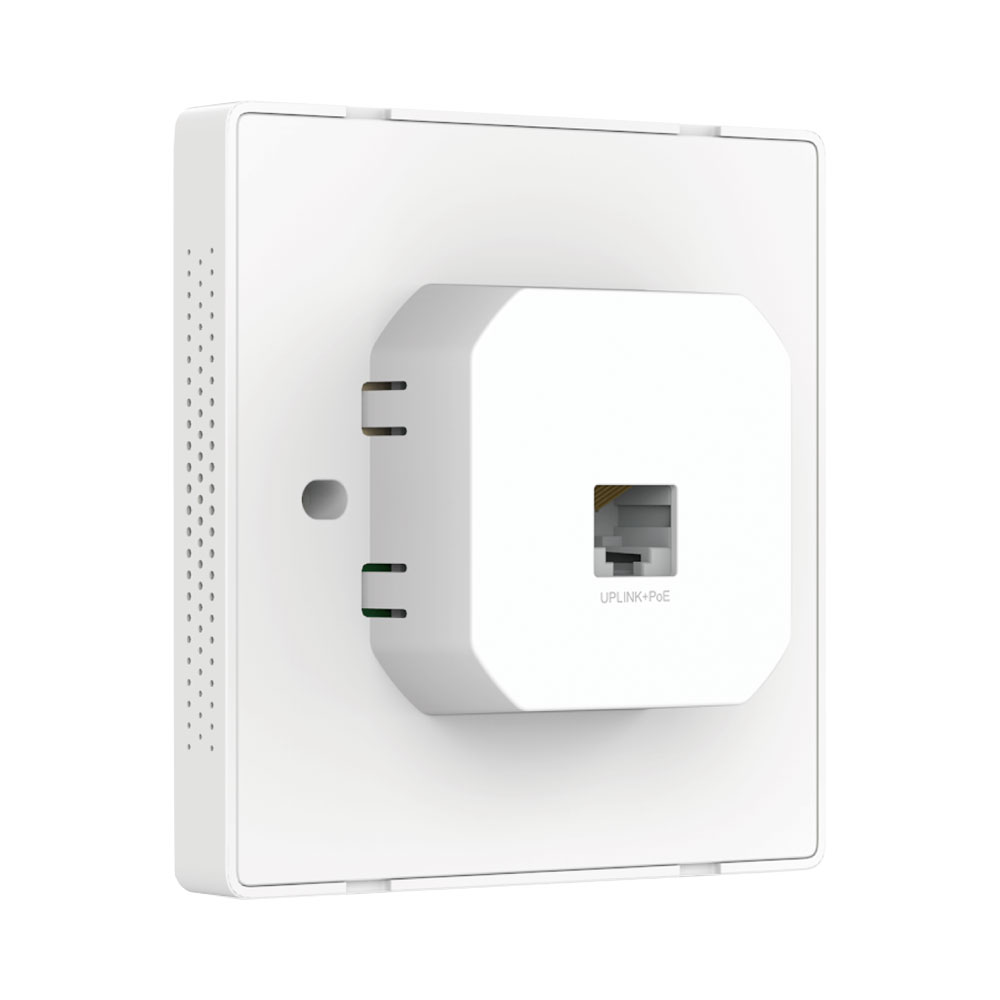

TP-LINK OMADA AC1200 WIRELESS MU-MIMO GIGABIT WALL-PLATE ACCESS POINT (EAP230-WALL)
FEATURES:
- 802.11ac wave 2 technology allows multiple users to access the internet at the same time
- EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices and dormitories
- The same size and shape as a light switch or power outlet faceplate to fit perfectly in any room
- Centralized Cloud Management – Anytime, Anywhere
- Easy Managment with the Omada App
24 in stock
TP-Link EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Unprecedented 11mm Thin Design
FEATURES:
- 802.11ac wave 2 technology allows multiple users to access the internet at the same time
- EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices and dormitories
- The same size and shape as a light switch or power outlet faceplate to fit perfectly in any room
- Centralized Cloud Management - Anytime, Anywhere
- Easy Managment with the Omada App
SPECIFIATIONS:
| HARDWARE FEATURES | |
| Interface | Uplink: 1x 10/100/1000 Mbps Ethernet Port |
| Downlink: 1x 10/100/1000 Mbps Ethernet Port | |
| Physical Security Lock | No |
| Button | LED/Wi-Fi Button, RESET |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 7 W |
| Dimensions (W x D x H) | 86.8 x 86.8 x 30.2mm |
| Antenna | 2 Dual-Band Antennas |
| 2.4GHz: 2x 4dBi | |
| 5GHz: 2x 3.6dBi | |
| Mounting | Wall Plate Mounting |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps |
| 2.4GHz: Up to 300Mbps | |
| Wireless Functions | 16 SSIDs (Up to 8 SSIDs on each band) |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS (WMM) | |
| Load Balance | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| MU-MIMO | |
| Band Steering | |
| Beamforming | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Local LAN port based VLAN | |
| Rogue AP Detection | |
| 802.1X Support | |
| 64/128/152-bit WEP / WPA / WPA2-Enterprise, | |
| WPA-PSK / WPA2-PSK | |
| Transmission Power | CE: |
| â¤20 dBm (2.4 GHz, EIRP) | |
| â¤23 dBm (5 GHz, EIRP) | |
| MANAGEMENT | |
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | ⢠Omada Cloud-Based Controller |
| ⢠Omada Hardware Controller (OC300) | |
| ⢠Omada Hardware Controller (OC200) | |
| ⢠Omada Software Controller | |
| Omada Controller Software | Yes |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point |
| EAP230-Wall | |
| Installation Guide | |
| Mounting Screw |
