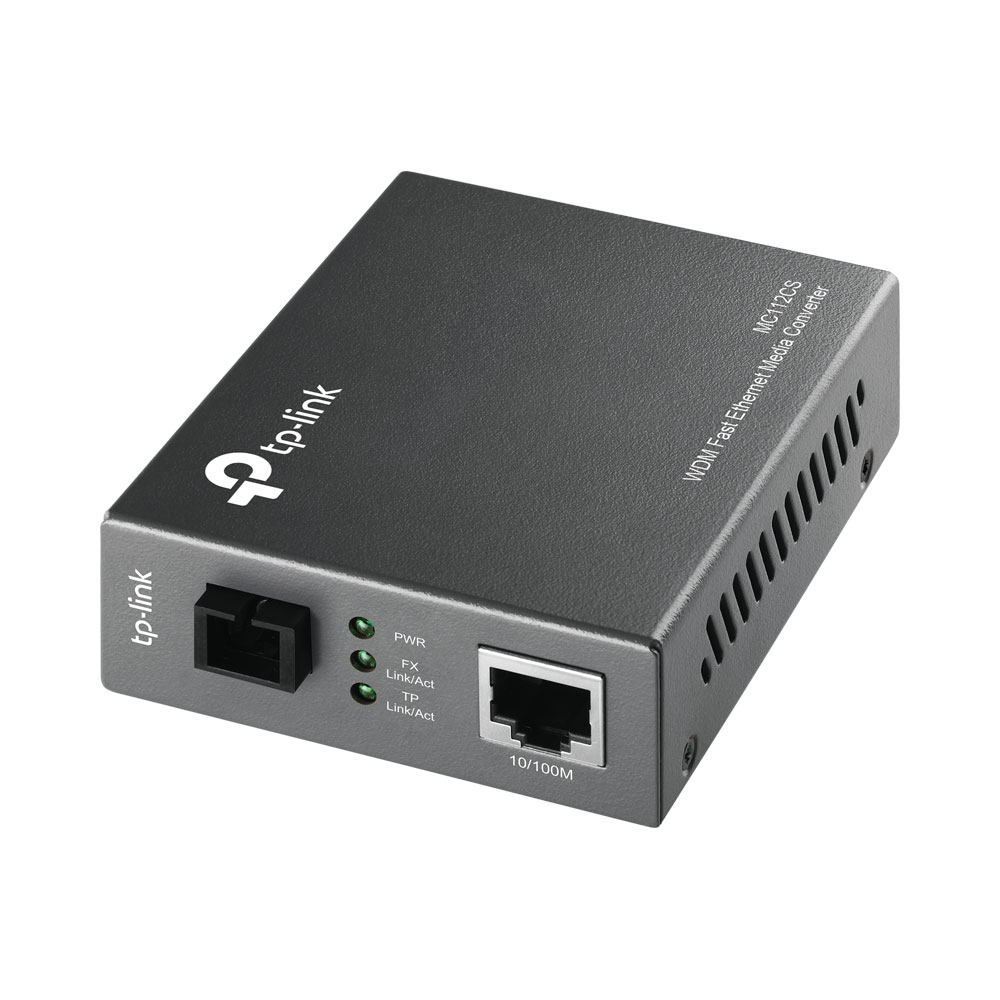

TP-LINK MC112CS | OMADA 10/100MBPS WDM MEDIA CONVERTER
FEATURES:
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data over one single fibre
- Extends fibreĀ distance up to 20km
35 in stock
TP-Link MC112CS | Omada 10/100Mbps WDM Media Converter
The MC112CS is a media converter designed to convert 100BASE-FX fibre to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fibre cable to transmit and receive data, which will save half the cabling cost for you. Created using IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fibre cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm for transferring data and at 1550nm for receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link's MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fibre optic distances utilizing single-mode fibre up to 20km.
FEATURES:
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data over one single fibre
- Extends fibreĀ distance up to 20km
SPECIFICATIONS:
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u |
| Basic Function | Adopts WDM technology |
| Half/Full-Duplex transfer mode for FX port | |
| Extends fibre distance up to 20km | |
| Ports | 1Ć 100M SC/UPC port |
| 1Ć 10/100M RJ45 port (Auto MDI/MDIX) | |
| Wave Length | 1310nm Tx/1550nm Rx |
| WDM TX | 1310nm |
| WDM RX | 1550nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ī© STP (maximum 100m) | |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ī© STP (maximum 100m) | |
| Network Media 100BASE-FX | Single-mode Fibre |
| LED Indicators | PWR, Link/Act |
| Dimensions (W Ć D Ć H) | 94.5 Ć 73.0 Ć 27.0mm |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.18W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | MC112CS |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0Ā°C~40Ā°C |
| Storage Temperature: -40Ā°C~70Ā°C | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing |
