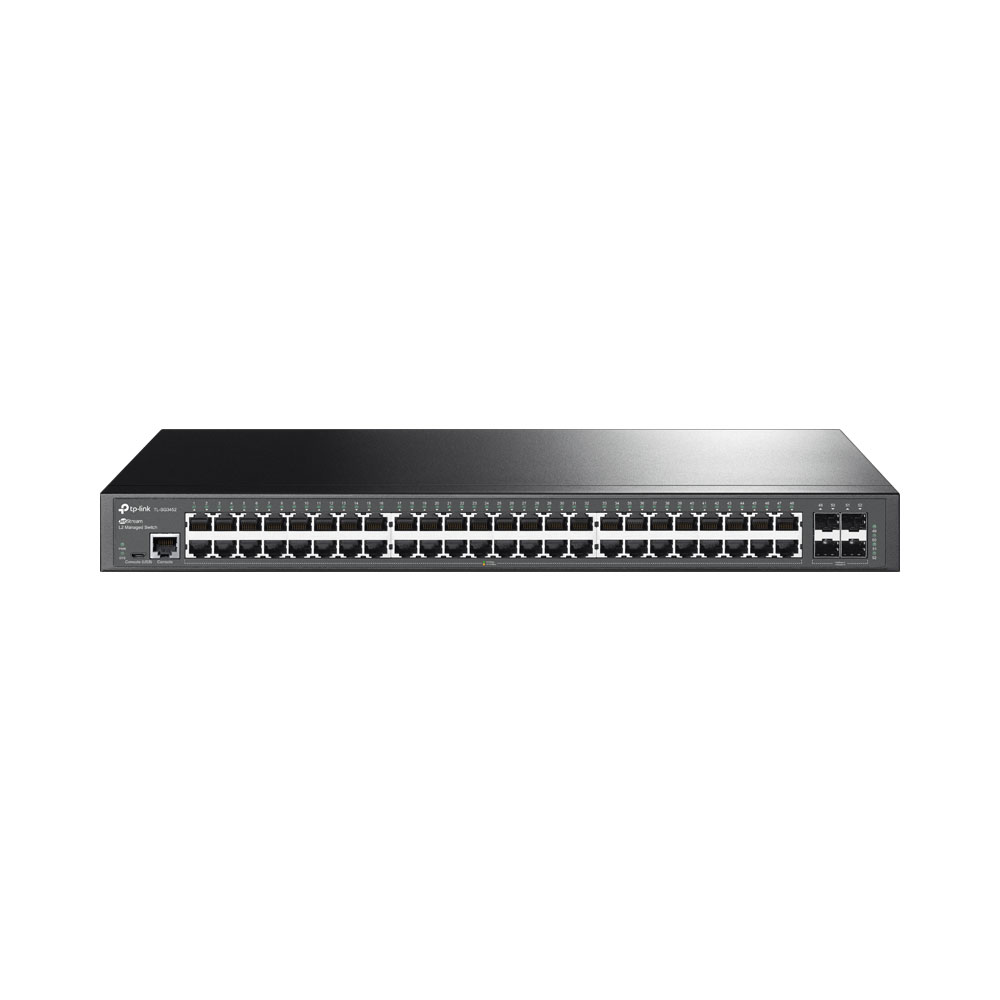

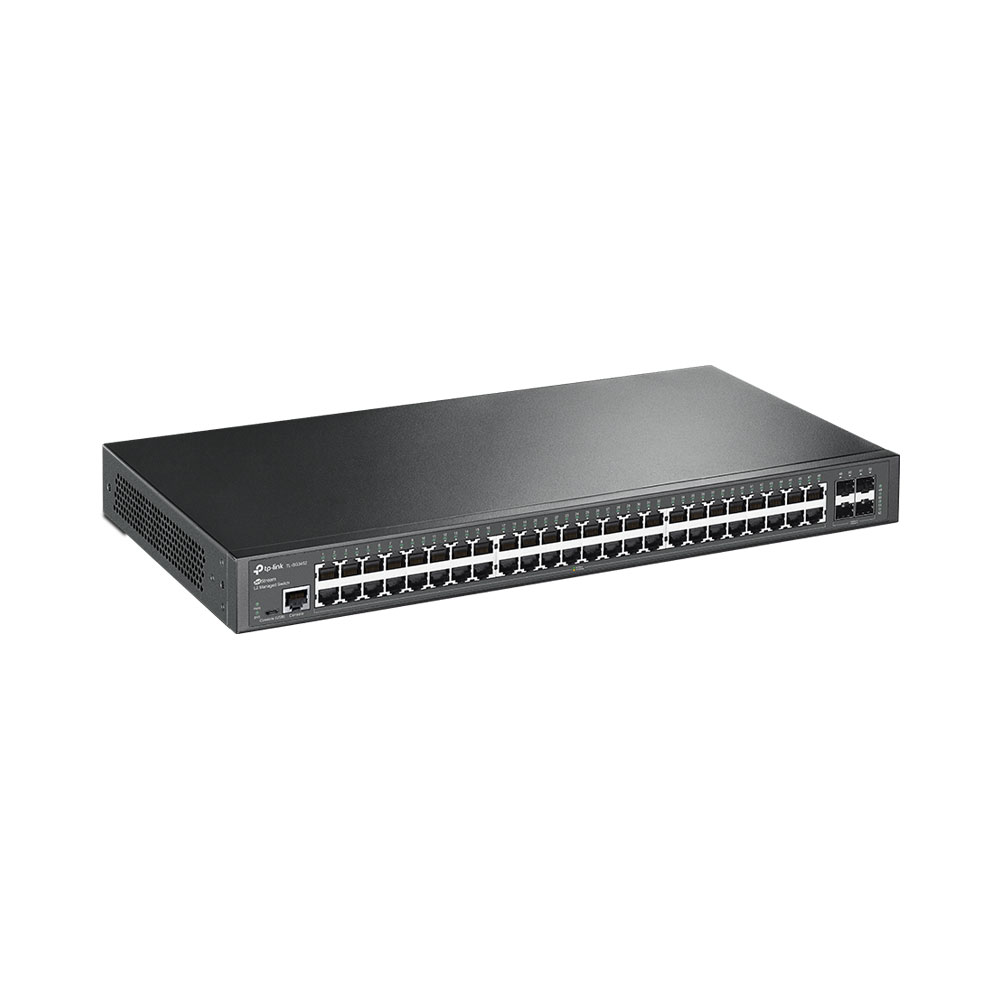

TP-LINK JETSTREAM TL-SG3452 | 48-PORT GIGABIT L2 MANAGED SWITCH WITH 4 SFP SLOTS
FEATURES:
- Full Gigabit Ports – 48× Gigabit RJ45 ports and 4× gigabit SFP slots provide high-speed connections
- Integrated into Omada SDN – Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
- Centralized Management – Cloud access and Omada app for ultra convenience and easy management
- Static Routing – Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies – IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication and more
- Optimize Voice and Video Applications – L2/L3/L4 QoS and IGMP snooping
- Standalone Management – Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring powerful management capabilities
2 in stock
TP-Link JetStream TL-SG3452 | 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
Convenient Gigabit Switch for a Complete Omada Network
FEATURES:
- Full Gigabit Ports - 48× Gigabit RJ45 ports and 4× gigabit SFP slots provide high-speed connections
- Integrated into Omada SDN - Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
- Centralized Management - Cloud access and Omada app for ultra convenience and easy management
- Static Routing - Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies - IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication and more
- Optimize Voice and Video Applications - L2/L3/L4 QoS and IGMP snooping
- Standalone Management - Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring powerful management capabilities
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 48× 10/100/1000 Mbps RJ45 Ports |
| 4× Gigabit SFP Slots | |
| 1× RJ45 Console Port | |
| 1× Micro-USB Console Port | |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions (W × D × H) | 440 × 220 × 44mm |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.8W (220 V/ 50 Hz) |
| Max Heat Dissipation | 111.91 BTU/h (220V / 50Hz) |
| PERFORMANCE | |
| Switching Capacity | 104Gbps |
| Packet Forwarding Rate | 77.4Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12Mbit |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | 8 priority queues |
| 802.1p CoS/DSCP priority | |
| Queue scheduling | |
| - SP (Strict Priority) | |
| - WRR (Weighted Round Robin) | |
| - SP+WRR | |
| Bandwidth Control | |
| - Port/Flow based Rating Limiting | |
| Smoother Performance | |
| Action for Flows | |
| - Mirror (to supported interface) | |
| - Redirect (to supported interface) | |
| - Rate Limit | |
| - QoS Remark | |
| L3 Features | 16 IPv4/IPv6 Interfaces |
| Static Routing | |
| - 48 static routes | |
| Static ARP | |
| 316 ARP Entries | |
| Proxy ARP | |
| Gratuitous ARP | |
| DHCP Server | |
| DHCP Relay | |
| DHCP L2 Relay | |
| L2 and L2+ Features | Link Aggregation |
| - Static link aggregation | |
| - 802.3ad LACP | |
| - Up to 8 aggregation groups and up to 8 ports per group | |
| Spanning Tree Protocol | |
| - 802.1d STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect | |
| Loopback Detection | |
| - Port-based | |
| - VLAN based | |
| Flow Control | |
| - 802.3x Flow Control | |
| - HOL Blocking Prevention | |
| Mirroring | |
| - Port Mirroring | |
| - CPU Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Tx/Rx/Both | |
| L2 Multicast | Supports 511 (IPv4, IPv6) IGMP groups |
| IGMP Snooping | |
| - IGMP v1/v2/v3 Snooping | |
| - Fast Leave | |
| - IGMP Snooping Querier | |
| - IGMP Authentication | |
| IGMP Authentication | |
| MVR | |
| MLD Snooping | |
| - MLD v1/v2 Snooping | |
| - Fast Leave | |
| - MLD Snooping Querier | |
| - Static Group Config | |
| - Limited IP Multicast | |
| Multicast Filtering: 256 profiles and 16 entries per profile | |
| Advanced Features | Automatic Device Discovery |
| Batch Configuration | |
| Batch Firmware Upgrading | |
| Intelligent Network Monitoring | |
| Abnormal Event Warnings | |
| Unified Configuration | |
| Reboot Schedule | |
| VLAN | VLAN Group |
| - Max 4K VLAN Groups | |
| 802.1q Tagged VLAN | |
| MAC VLAN: 48 Entries | |
| Protocol VLAN: Protocol Template 16, Protocol VLAN 16 | |
| GVRP | |
| VLAN VPN (QinQ) | |
| - Port-Based QinQ | |
| - Selective QinQ | |
| Voice VLAN | |
| Access Control List | Time-based ACL |
| MAC ACL | |
| - Source MAC | |
| - Destination MAC | |
| - VLAN ID | |
| - User Priority | |
| - Ether Type | |
| IP ACL | |
| - Source IP | |
| - Destination IP | |
| - Fragment | |
| - IP Protocol | |
| - TCP Flag | |
| - TCP/UDP Port | |
| - DSCP/IP TOS | |
| - User Priority | |
| Combined ACL | |
| Packet Content ACL | |
| IPv6 ACL | |
| Policy | |
| - Mirroring | |
| - Redirect | |
| - Rate Limit | |
| - QoS Remark | |
| ACL apply to Port/VLAN | |
| Security | IP-MAC-Port Binding |
| - DHCP Snooping | |
| - ARP Inspection | |
| - IPv4 Source Guard | |
| IPv6-MAC-Port Binding | |
| - DHCPv6 Snooping | |
| - ND Detection | |
| - IPv6 Source Guard | |
| DoS Defend | |
| Static/Dynamic Port Security | |
| - Up to 64 MAC addresses per port | |
| Broadcast/Multicast/Unicast Storm Control | |
| - kbps/ratio/pps control mode | |
| IP/Port/MAC based access control | |
| 802.1X | |
| - Port based authentication | |
| - Mac based authentication | |
| - VLAN Assignment | |
| - MAB | |
| - Guest VLAN | |
| - Support Radius authentication and | |
| accountability | |
| AAA (including TACACS+) | |
| Port Isolation | |
| Secure web management through HTTPS with SSLv3/TLS 1.2 | |
| Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
| IPv6 | IPv6 Dual IPv4/IPv6 |
| Multicast Listener Discovery (MLD) Snooping | |
| IPv6 ACL | |
| IPv6 Interface | |
| Static IPv6 Routing | |
| IPv6 neighbor discovery (ND) | |
| Path maximum transmission unit (MTU) discovery | |
| Internet Control Message Protocol (ICMP) version 6 | |
| TCPv6/UDPv6 | |
| IPv6 applications | |
| - DHCPv6 Client | |
| - Ping6 | |
| - Tracert6 | |
| - Telnet (v6) | |
| - IPv6 SNMP | |
| - IPv6 SSH | |
| - IPv6 SSL | |
| - Http/Https | |
| - IPv6 TFTP | |
| Management | Web-based GUI |
| Command Line Interface (CLI) through console port, telnet | |
| SNMPv1/v2c/v3 | |
| - Trap/Inform | |
| - RMON (1, 2, 3, 9 groups) | |
| SDM Template | |
| DHCP/BOOTP Client | |
| 802.1ab LLDP/LLDP-MED | |
| DHCP AutoInstall | |
| Dual Image, Dual Configuration | |
| CPU Monitoring | |
| Cable Diagnostics | |
| EEE | |
| Password Recovery | |
| SNTP | |
| System Log | |
| MIBs | MIB II (RFC1213) |
| Bridge MIB (RFC1493) | |
| P/Q-Bridge MIB (RFC2674) | |
| Radius Accounting Client MIB (RFC2620) | |
| Radius Authentication Client MIB (RFC2618) | |
| Remote Ping, Traceroute MIB (RFC2925) | |
| Support TP-Link private MIBs | |
| RMON MIB(RFC1757, rmon 1,2,3,9) | |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Web-based GUI |
| Command Line Interface (CLI) through console port, telnet | |
| SNMPv1/v2c/v3 | |
| - Trap/Inform | |
| - RMON (1, 2, 3, 9 groups) | |
| SDM Template | |
| DHCP/BOOTP Client | |
| 802.1ab LLDP/LLDP-MED | |
| DHCP AutoInstall | |
| Dual Image, Dual Configuration | |
| CPU Monitoring | |
| Cable Diagnostics | |
| EEE | |
| Password Recovery | |
| SNTP | |
| System Log | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG3452 Switch |
| Power Cord | |
| Quick Installation Guide | |
| Rackmount Kit | |
| Rubber Feet | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: 0~40°C |
| Storage Temperature: -40~70°C | |
| Operating Humidity: 10~90% RH non-condensing | |
| Storage Humidity: 5~90% RH non-condensing | |
