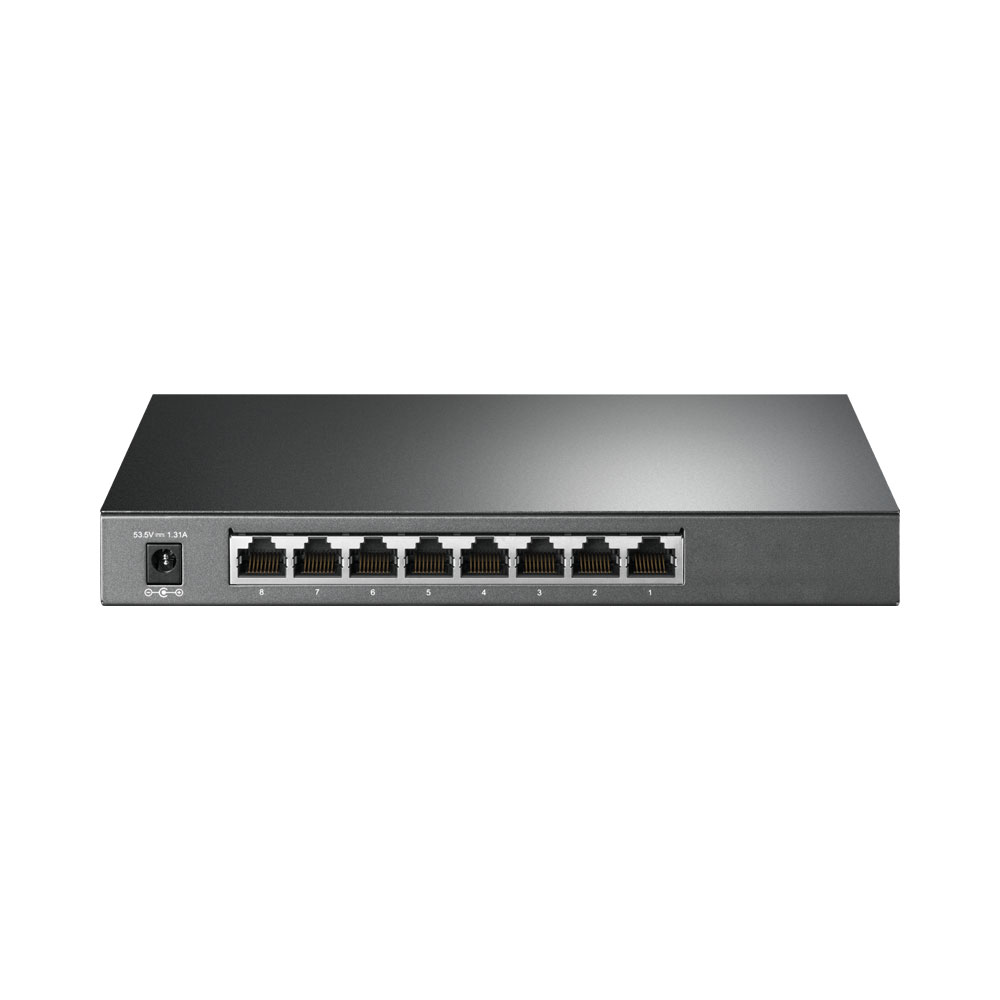

TP-LINK JETSTREAM TL-SG2008P 8-PORT GIGABIT SMART SWITCH WITH 4-PORT POE+
FEATURES:
- 62W PoE Budget: 4x 802.3at/af-compliant PoE+ ports with a total power supply of 62W
- Full Gigabit Ports: 4x Gigabit PoE+ ports and 4x Gigabit non-PoE ports provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
9 in stock
TP-Link JetStream TL-SG2008P 8-Port Gigabit Smart Switch with 4-Port PoE+
Smarter Switching for Smarter Results
FEATURES:
- 62W PoE Budget: 4x 802.3at/af-compliant PoE+ ports with a total power supply of 62W
- Full Gigabit Ports: 4x Gigabit PoE+ ports and 4x Gigabit non-PoE ports provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 8x 10/100/1000Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+) |
| Auto-Negotiation/Auto MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) | |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/ 1.31 A) |
| Power Consumption | 7.9W (220 V/50 Hz) (no PD connected) |
| 79.2W (220 V/50 Hz) (with 62W PD connected) | |
| PoE Ports (RJ45) | Standard: 802.3af/at compliant |
| PoE Ports: 4 Ports | |
| Power Supply: 62W | |
| Dimensions ( W x D x H ) | 209 x 126 x 26mm |
| PERFORMANCE | |
| Bandwidth/Backplane | 16 Gbps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | 802.1p CoS/ DSCP priority |
| 8 priority queues | |
| Priority Schedule Mode | |
| - SP (Strict Priority) | |
| - WRR (Weighted Round Robin) | |
| Queue Weight Config | |
| Bandwidth Control | |
| - Port/Flow based Rating Limit | |
| Smoother Performance | |
| Actions for flows | |
| - Mirror(to supported interface) | |
| - Redirect(to supported interface) | |
| - Rate Limit | |
| - QoS Remark | |
| Storm Control | |
| - Multiple Control Modes(kbps/ratio/pps) | |
| - Broadcast/Multicast/Unknown-Unicast Control | |
| L2 and L2+ Features | DHCP Relay |
| - DHCP VLAN Relay | |
| DHCP L2 Relay | |
| Link Aggregation | |
| - Static link aggregation | |
| - 802.3ad LACP | |
| - Up to 8 aggregation groups and up to 8 ports | |
| per group | |
| Spanning Tree Protocol | |
| - 802.1D STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: TC Protect, BPDU Filter/Protect, | |
| Root Protect | |
| Loopback Detection | |
| Flow Control | |
| - 802.3x Flow Control | |
| Mirroring | |
| - Port Mirroring | |
| - CPU Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Flow-Based | |
| - Ingress/Egress/Both | |
| Device Link Detect Protocol (DLDP) | |
| 802.1ab LLDP/ LLDP-MED | |
| L2 Multicast | 512 IPv4,IPv6 shared multicast groups |
| IGMP Snooping | |
| - IGMP v1/v2/v3 Snooping | |
| - Fast Leave | |
| - IGMP Snooping Querier | |
| - IGMP Authentication | |
| - Static Group Config | |
| MLD Snooping | |
| - MLD v1/v2 Snooping | |
| - Fast Leave | |
| - MLD Snooping Querier | |
| - Static Group Config | |
| Multicast VLAN Registration | |
| Multicast Filtering | |
| IPv6 Support | IPv6 Dual IPv4/IPv6 |
| Multicast Listener Discovery(MLD) Snooping | |
| IPv6 neighbor discovery (ND) | |
| Path maximum transmission unit (MTU) discovery | |
| Internet Control Message Protocol (ICMP) version 6 | |
| TCPv6/UDPv6 | |
| IPv6 applications | |
| - DHCPv6 Client | |
| - Ping6 | |
| - Tracert6 | |
| - Telnet(v6) | |
| - IPv6 SNMP | |
| - IPv6 SSH | |
| - IPv6 SSL | |
| - Http/Https | |
| - IPv6 TFTP | |
| VLAN | VLAN Group |
| - Max. 4K VLAN Groups | |
| 802.1Q tag VLAN | |
| MAC VLAN | |
| Protocol VLAN | |
| GVRP | |
| Voice VLAN | |
| Access Control List | Time-Range |
| - Time Slice | |
| - Week Time-Range | |
| - Absolute Time-Range | |
| - Holiday | |
| Time-based ACL | |
| MAC ACL | |
| - Source MAC | |
| - Destination MAC | |
| - VLAN ID | |
| - User Priority | |
| - Ether Type | |
| IP ACL | |
| - Source IP | |
| - Destination IP | |
| - IP Protocol | |
| - TCP Flag | |
| - TCP/UDP Source Port | |
| - TCP/UDP Destination Port | |
| - DSCP/IP TOS | |
| IPv6 ACL | |
| Combined ACL | |
| Rule Operation | |
| - Permit/Deny | |
| Policy Action | |
| - Mirror | |
| - Rate Limit | |
| - Redirect | |
| - QoS Remark | |
| ACL Rules Binding | |
| - Port Binding | |
| - VLAN Binding | |
| Security | AAA |
| 802.1X | |
| - Port based authentication | |
| - MAC(Host) based authentication | |
| - Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP | |
| - MAB | |
| - Guest VLAN | |
| - Support Radius authentication and accountability | |
| IP/IPv6-MAC Binding | |
| - 512 Binding Entries | |
| - DHCP Snooping | |
| - DHCPv6 Snooping | |
| - ARP Inspection | |
| - ND Detection | |
| IP Source Gurad | |
| - 253 Entries | |
| - Source IP+Source MAC | |
| IPv6 Source Gurad | |
| - 183 Entries | |
| - Source IPv6 Address+Source MAC | |
| DoS Defend | |
| Static/Dynamic/Permanent Port Security | |
| - Up to 64 MAC addresses per port | |
| Broadcast/Multicast/Unicast Storm Control | |
| - kbps/ratio/pps control mode | |
| Port Isolation | |
| Secure web management through HTTPS with SSLv3/TLS1.0 | |
| Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
| IP/Port/MAC based access control | |
| L2 Switching Features | Link Aggregation |
| - static link aggregation | |
| - Up to 8 aggregation groups and up to 8 ports per group | |
| - 802.3ad LACP | |
| Spanning Tree Protocol | |
| - 802.1D STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect | |
| Loopback Detection | |
| Flow Control | |
| - 802.3x Flow Control | |
| Mirroring | |
| - Port Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Flow-Based | |
| - Ingress/Egress/Both | |
| - CPU Mirroring | |
| Device Link Detect Protocol(DLDP) | |
| Management | Web-based GUI and CLI management |
| SNMPv1/v2c/v3 | |
| SNMP Trap/Inform | |
| RMON (1,2,3,9 groups) | |
| SDM Template | |
| DHCP/BOOTP Client | |
| Dual Image, Dual Configuration | |
| CPU Monitoring | |
| Cable Diagnostics | |
| EEE | |
| System Log | |
| 802.1ab LLDP/ LLDP-MED | |
| MIBs | MIB II (RFC1213) |
| Interface MIB (RFC2233) | |
| Ethernet Interface MIB (RFC1643) | |
| Bridge MIB (RFC1493) | |
| P/Q-Bridge MIB (RFC2674) | |
| RMON MIB (RFC2819) | |
| RMON2 MIB (RFC2021) | |
| Radius Accounting Client MIB (RFC2620) | |
| Radius Authentication Client MIB (RFC2618) | |
| Remote Ping, Traceroute MIB (RFC2925) | |
| Support TP-Link private MIBs | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Management Features | Web-based GUI and CLI management |
| SNMPv1/v2c/v3 | |
| SNMP Trap/Inform | |
| RMON (1,2,3,9 groups) | |
| SDM Template | |
| DHCP/BOOTP Client | |
| Dual Image, Dual Configuration | |
| CPU Monitoring | |
| Cable Diagnostics | |
| EEE | |
| System Log | |
| 802.1ab LLDP/ LLDP-MED | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2008P |
| Power Adapter | |
| Installation Guide | |
| Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0–40°C |
| Storage Temperature: -40–70°C | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing |
