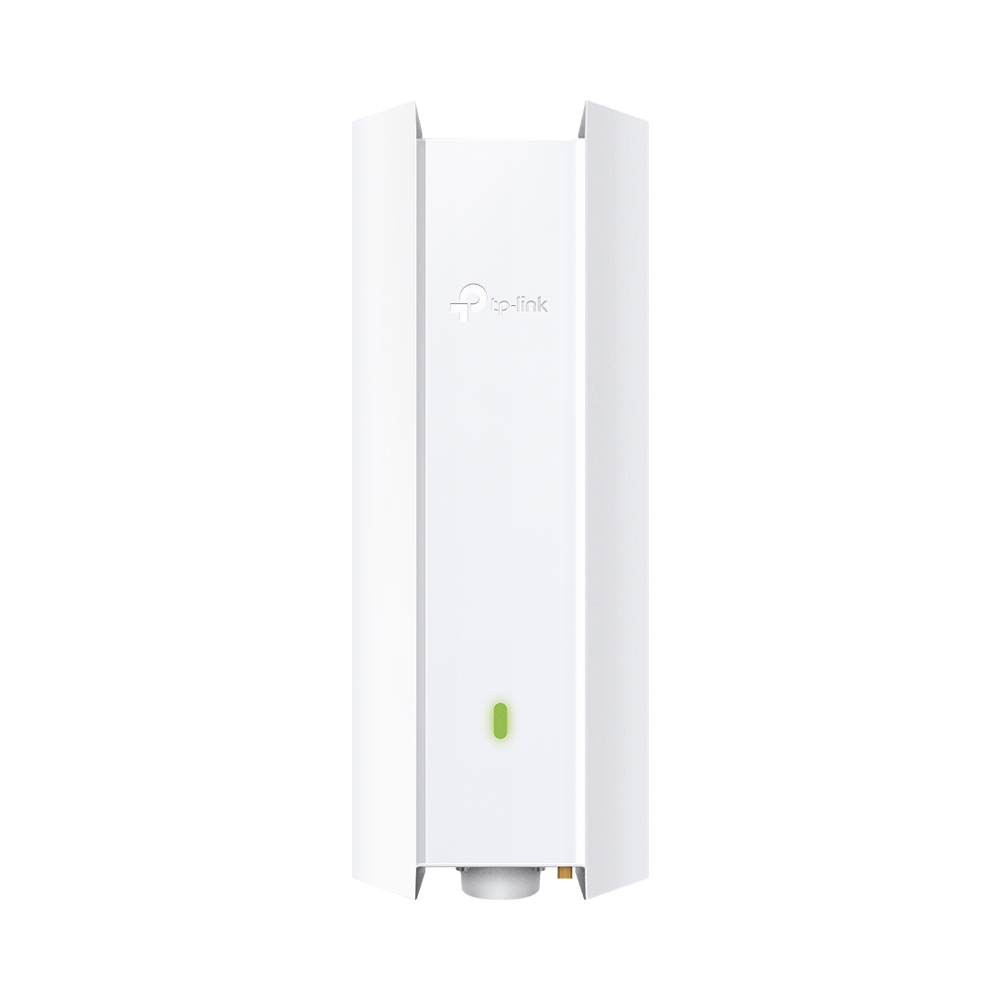

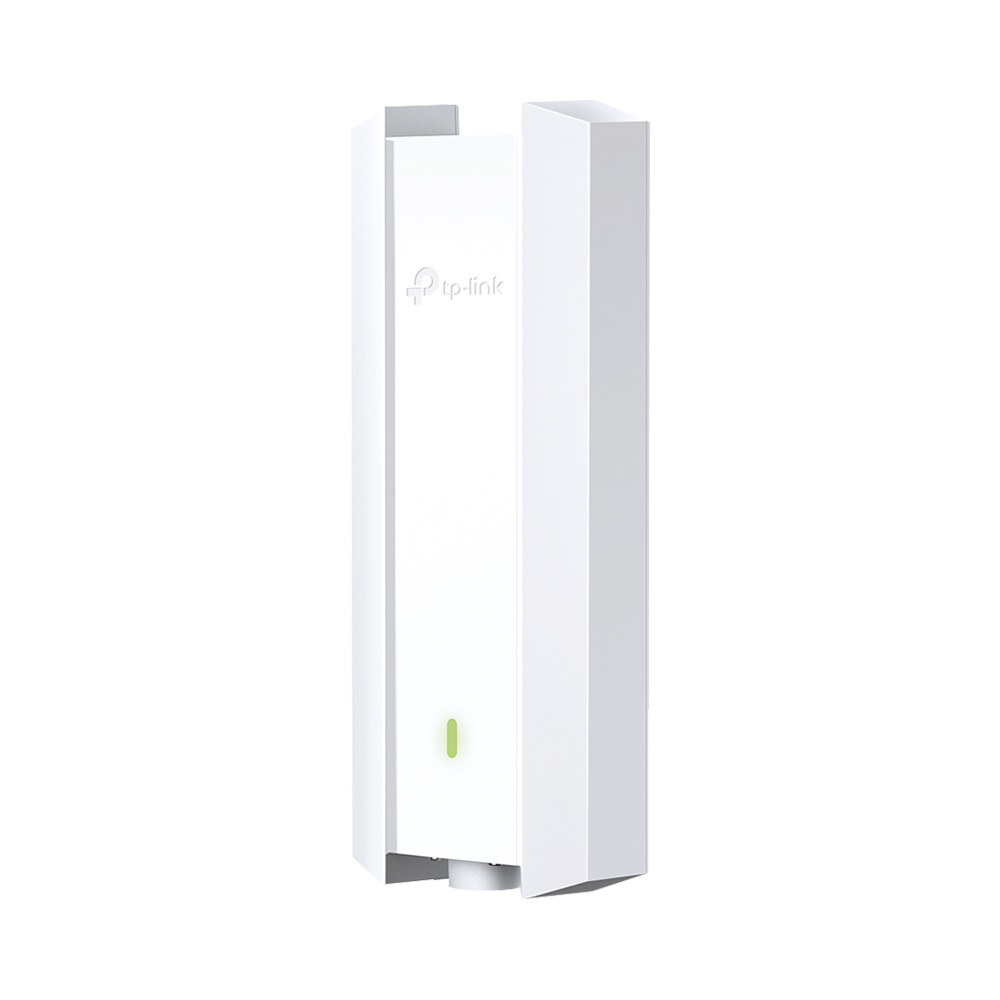

TP-LINK EAP650-OUTDOOR | AX3000 INDOOR / OUTDOOR WI-FI 6 ACCESS POINT
FEATURES:
- Superior Wi-Fi 6 Speeds – Delivers dual-band speeds of up to 3Gbps powered by the latest Wi-Fi 6 technology
- Higher Network Efficiency – Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO
- 160MHz Bandwidth Channel – Double the data at peak transmission times on a single stream with HE160
- Long-Range Coverage – Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure
- Omada Mesh Technology – Enables wireless connectivity between access points for extended range and flexible deployment
- Stay Smooth with Seamless Roaming – Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
- PoE Powered – Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation
- Centralised Cloud Management – Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada App
TP-Link EAP650-Outdoor | AX3000 Indoor / Outdoor Wi-Fi 6 Access Point
Fast and Smooth Outdoor Wi-Fi
FEATURES:
- Superior Wi-Fi 6 Speeds - Delivers dual-band speeds of up to 3Gbps powered by the latest Wi-Fi 6 technology
- Higher Network Efficiency - Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO
- 160MHz Bandwidth Channel - Double the data at peak transmission times on a single stream with HE160
- Long-Range Coverage - Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure
- Omada Mesh Technology - Enables wireless connectivity between access points for extended range and flexible deployment
- Stay Smooth with Seamless Roaming - Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
- PoE Powered - Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation
- Centralised Cloud Management - Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada App
SPECIFICATIONS:
| HARDWARE FEATURES | |

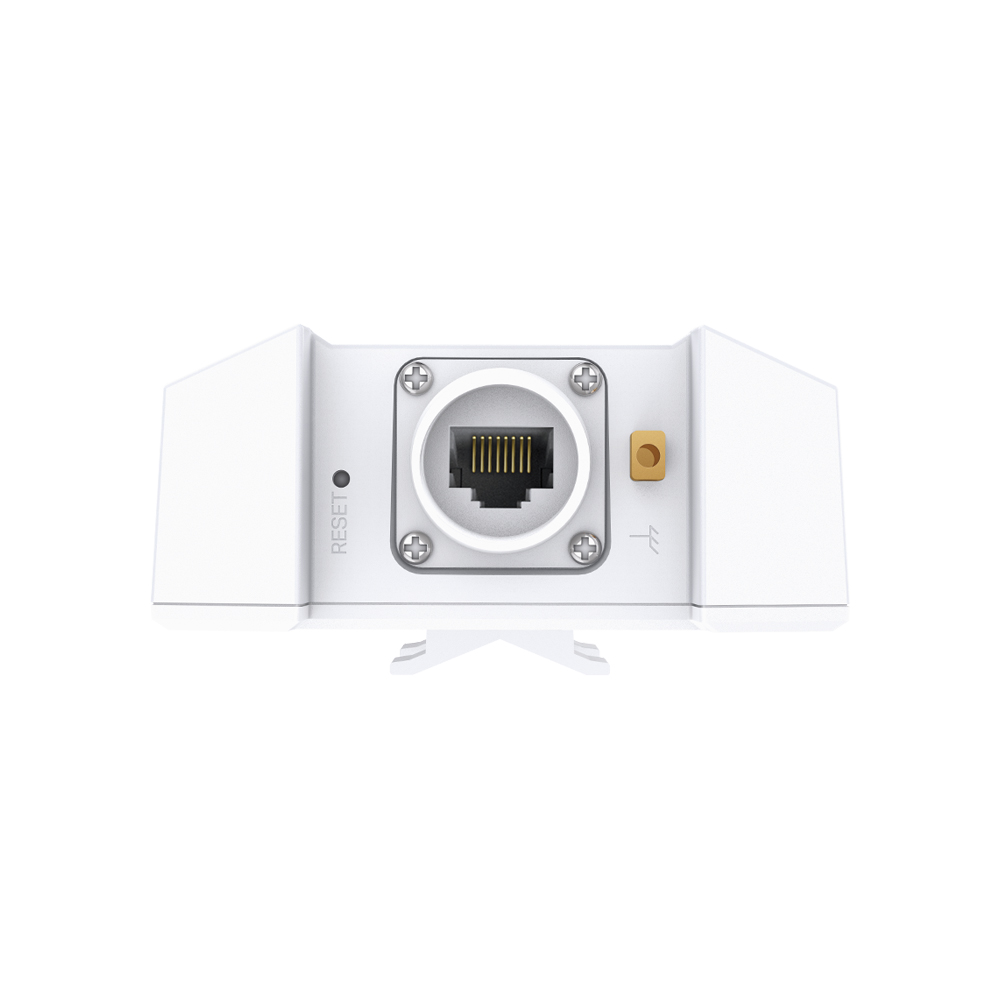

| Interface | 1× Gigabit Ethernet (RJ45) Port (Support 802.3at PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| 48V Passive PoE (PoE Adapter Included) | |
| Max. Power Consumption | EU: 12.5W (802.3at PoE or Passive PoE) |
| Dimensions (W × D × H) | 280.4 × 106.5 × 56.8mm (without Antenna and Mounting Kit) |
| Antenna | 2.4GHz: 2× 4dBi |
| 5.0GHz: 2× 5dBi | |

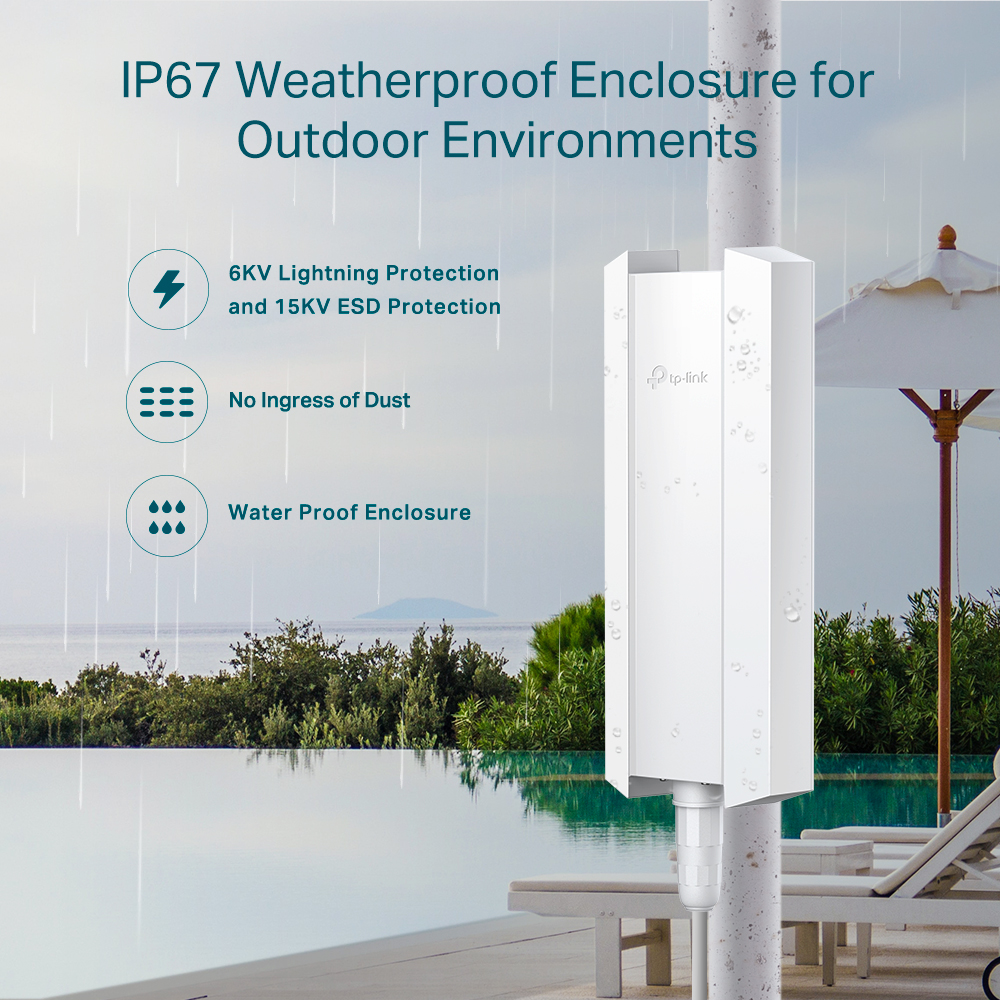

| Weatherproof Enclosure | IP67 |

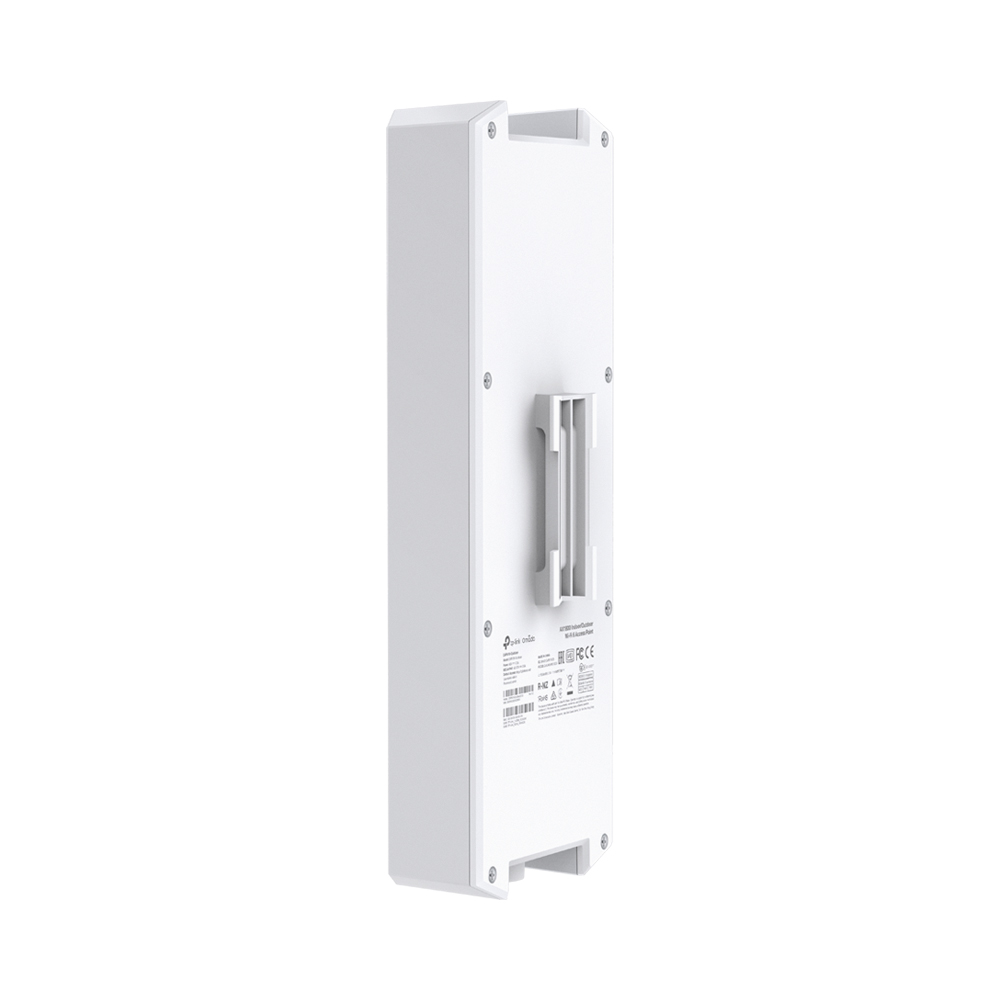

| Mounting | Pole/Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz, 5.0GHz |
| Signal Rate | 802.11ax: 8Mbps to 1201Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) |
| 802.11ac: 6.5Mbps to 1083.3Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) | |
| 802.11n: 6.5Mbps to 300Mbps (MCS0-MCS15, HT20/40) | |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps | |
| 802.11b: 1, 2, 5.5, 11Mbps | |
| 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps | |
| Wireless Functions | 1024-QAM |
| 4× Longer OFDM Symbol | |
| OFDMA | |
| Multiple SSIDs (Up to 16× SSIDs, 8× for Each Band) | |
| Enable / Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS (WMM) | |
| MU-MIMO | |
| Omada Mesh | |
| Seamless Roaming | |
| Band Steering | |
| Load Balance | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID / AP / Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1x Support | |
| WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | CE: <20dBm (2.4GHz, EIRP), <30dBm(5.0GHz, EIRP) |
| FCC: <25 dBm (2.4GHz), <25dBm(5.0GHz) | |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralised Management | Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes, Through |
| Omada Cloud-Based Controller | |
| OC300 | |
| OC200 | |
| Omada Software Controller | |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local / Remote Syslog | Yes |
| SSH | Yes |
| Web-Based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the Use of Omada Cloud-Based Controller |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Access Point EAP650-Outdoor |
| Passive PoE Adapter | |
| Power Cord | |
| Mounting Kits | |
| Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30~70°C |
| Storage Temperature: -40~70°C | |
| Operating Humidity: 10~90% RH Non-Condensing | |
| Storage Humidity: 5~90% RH Non-Condensing | |
Additional information
| Weight | 1.46 kg |
|---|---|
| Dimensions | 32.5 × 24.1 × 6.7 cm |
