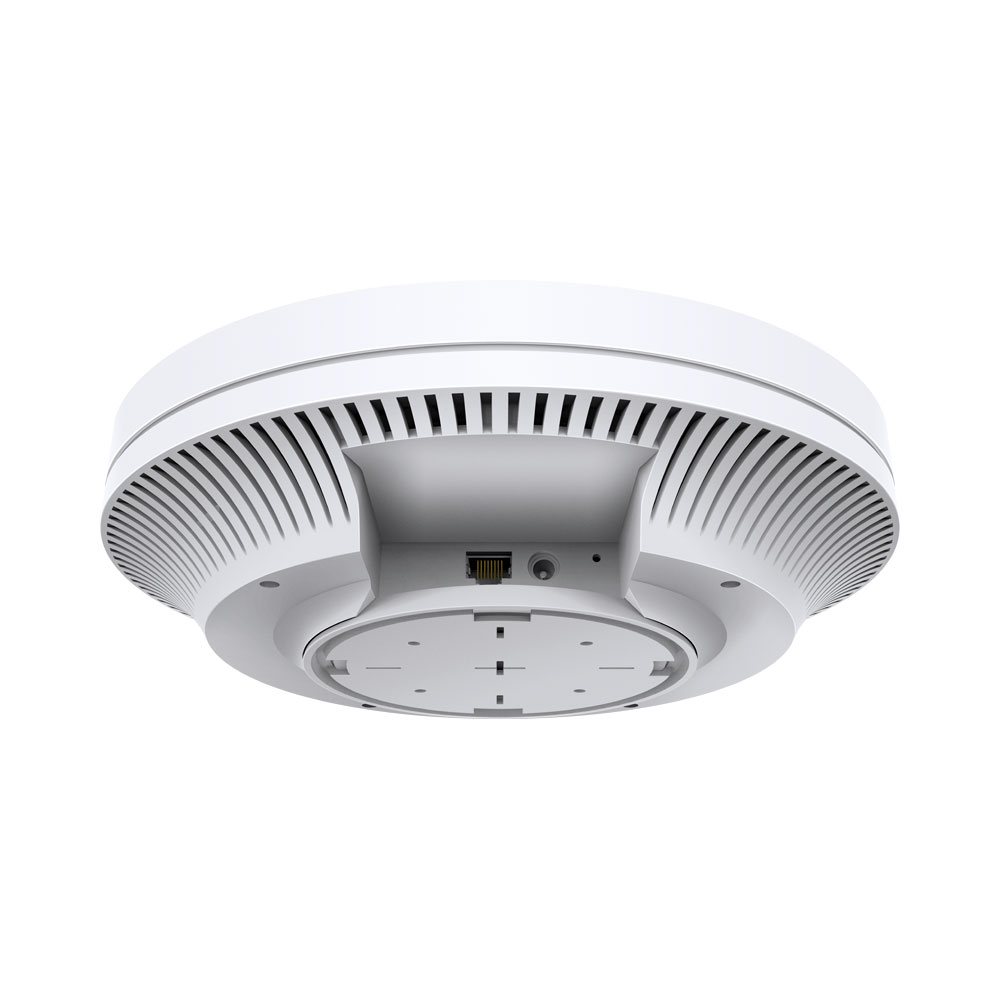

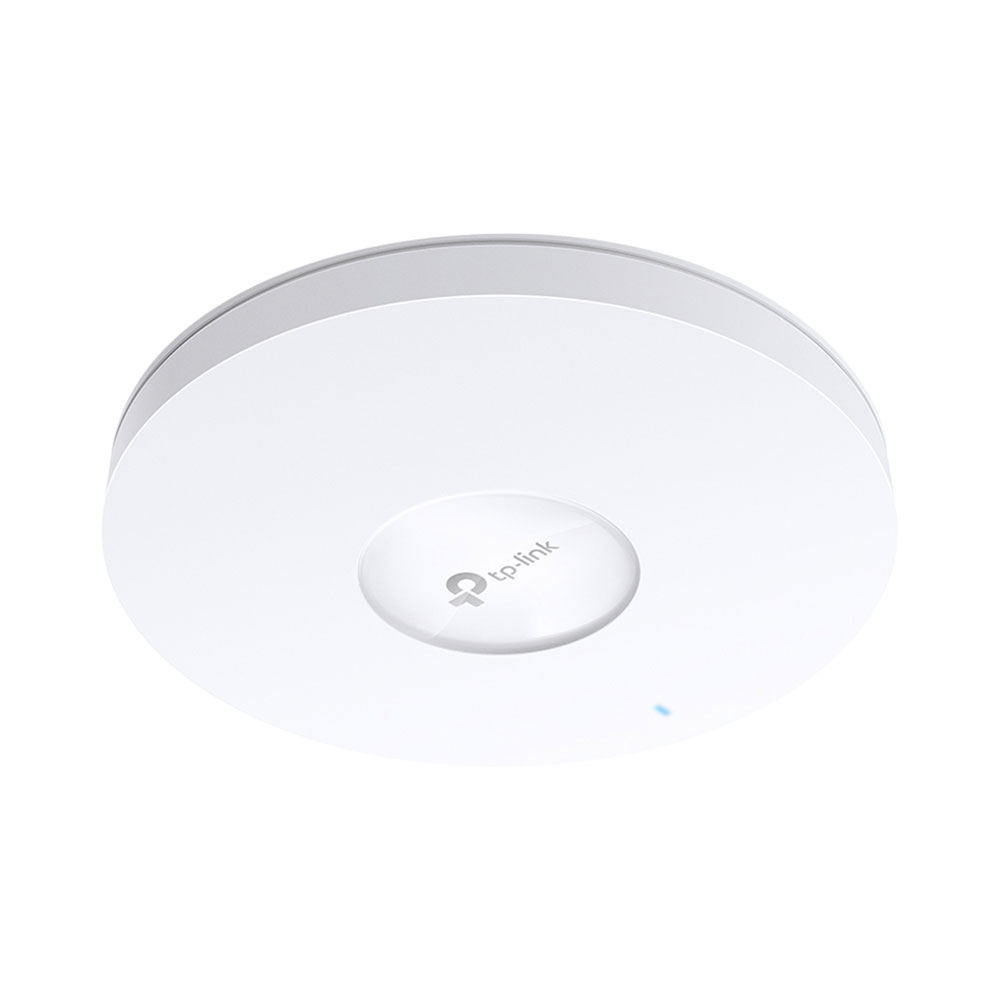

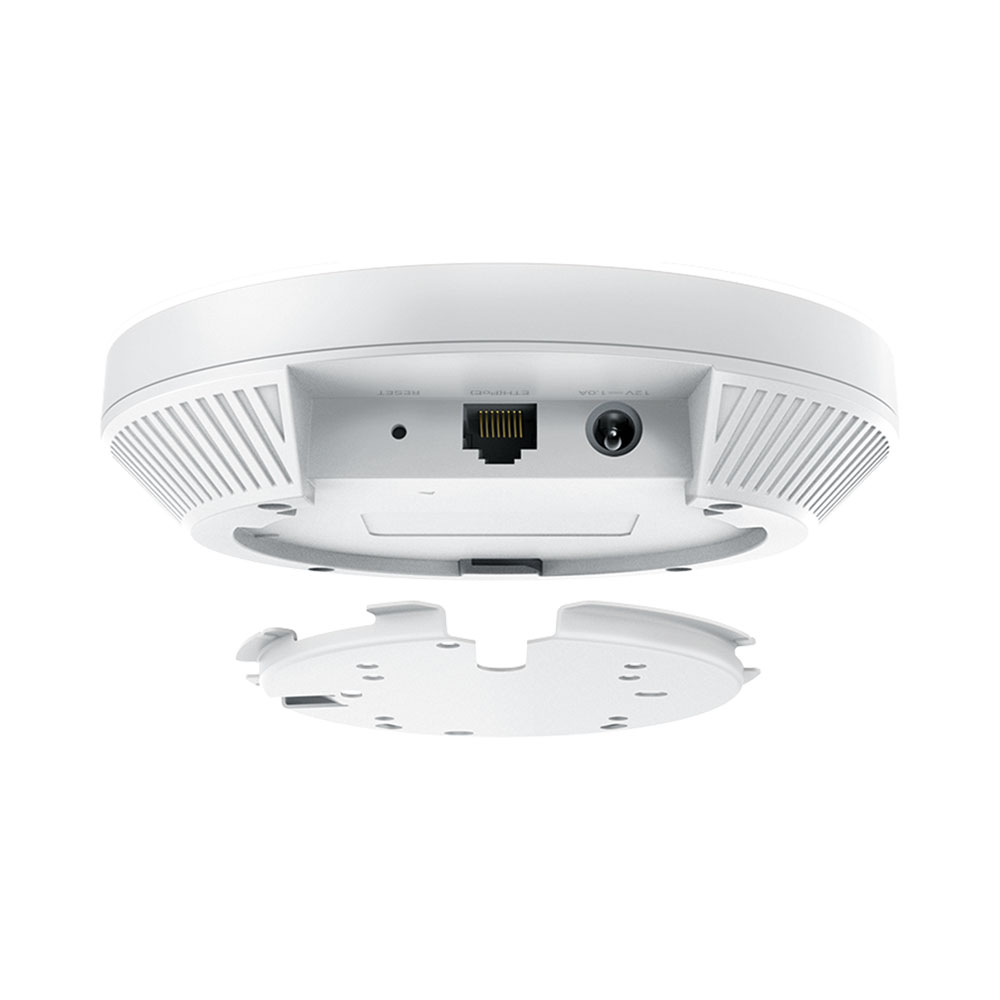

TP-LINK EAP613 | AX1800 CEILING MOUNT WI-FI 6 ACCESS POINT
FEATURES:
Ultra-Fast Wi-Fi 6 Speeds – Simultaneous 574Mbps on 2.4GHz and 1201Mbps on 5.0GHz totals 1775Mbps Wi-Fi speeds
High-Efficiency Wi-Fi 6 – More connected devices can enjoy faster speeds
Centralized Cloud Management – Manage the whole network locally or from the cloud via web UI or Omada app
Seamless Roaming – Even video streams and voice calls are unaffected as users move between locations
Omada Mesh – Enables wireless connectivity between access points for extended range and flexible deployment
PoE+ Powered– Supports DC (adapter is not included), 802.3at PoE+ and Passive PoE for flexible installations
Ultra-Slim Design – Φ160 × 33.6mm Elegant design brings more agility
Secure Guest Network – Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
69 in stock
TP-Link EAP613 | AX1800 Ceiling Mount Wi-Fi 6 Access Point
Easily Upgrade to Business Wi-Fi 6 Network
FEATURES:
Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 574Mbps on 2.4GHz and 1201Mbps on 5.0GHz totals 1775Mbps Wi-Fi speeds
High-Efficiency Wi-Fi 6 - More connected devices can enjoy faster speeds
Centralized Cloud Management - Manage the whole network locally or from the cloud via web UI or Omada app
Seamless Roaming - Even video streams and voice calls are unaffected as users move between locations
Omada Mesh - Enables wireless connectivity between access points for extended range and flexible deployment
PoE+ Powered- Supports DC (adapter is not included), 802.3at PoE+ and Passive PoE for flexible installations
Ultra-Slim Design - Φ160 × 33.6mm Elegant design brings more agility
Secure Guest Network - Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ45) Port |
| Button | Reset |
| Power Supply | 802.3at PoE |
| 48V Passive PoE | |
| 12V 1A DC (Power Adapter is NOT Included) | |
| Power Consumption | 11.0W (For PoE) |
| 9.9W (For DC) | |
| Dimensions (W × D × H) | V2 and above: 160 × 160 × 33.6mm |
| Antenna Type | Internal Omni Antenna |
| 2.4GHz: 2×4 dBi | |
| 5.0GHz: 2×5 dBi | |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Junction Box Mounting | |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | 5.0GHz: Up to 1201Mbps |
| 2.4GHz: Up to 574Mbps | |
| Wireless Functions | 1024-QAM |
| 4× Longer OFDM Symbol | |
| OFDMA | |
| Multiple SSIDs (Up to 16× SSIDs, 8× for each band) | |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS (WMM) | |
| MU-MIMO | |
| Seamless Roaming | |
| Omada Mesh | |
| Band Steering | |
| Load Balance | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | CE: |
| <20 dBm (2.4GHz, EIRP) | |
| <23 dBm (5.0GHz band1/2, EIRP) <25 dBm (5.0GHz band3) | |
| FCC: | |
| <25 dBm (2.4GHz) | |
| <25 dBm (5.0GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller OC300 | |
| Omada Hardware Controller OC200 | |
| Omada Software Controller | |
| Cloud Access | Yes, through |
| OC300 | |
| OC200 | |
| Omada Software Controller | |
| Omada Cloud-Based Controller | |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP613 |
| Ceiling/ Wall Mounting Kits | |
| Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0~40°C |
| Storage Temperature: -40~70°C | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
