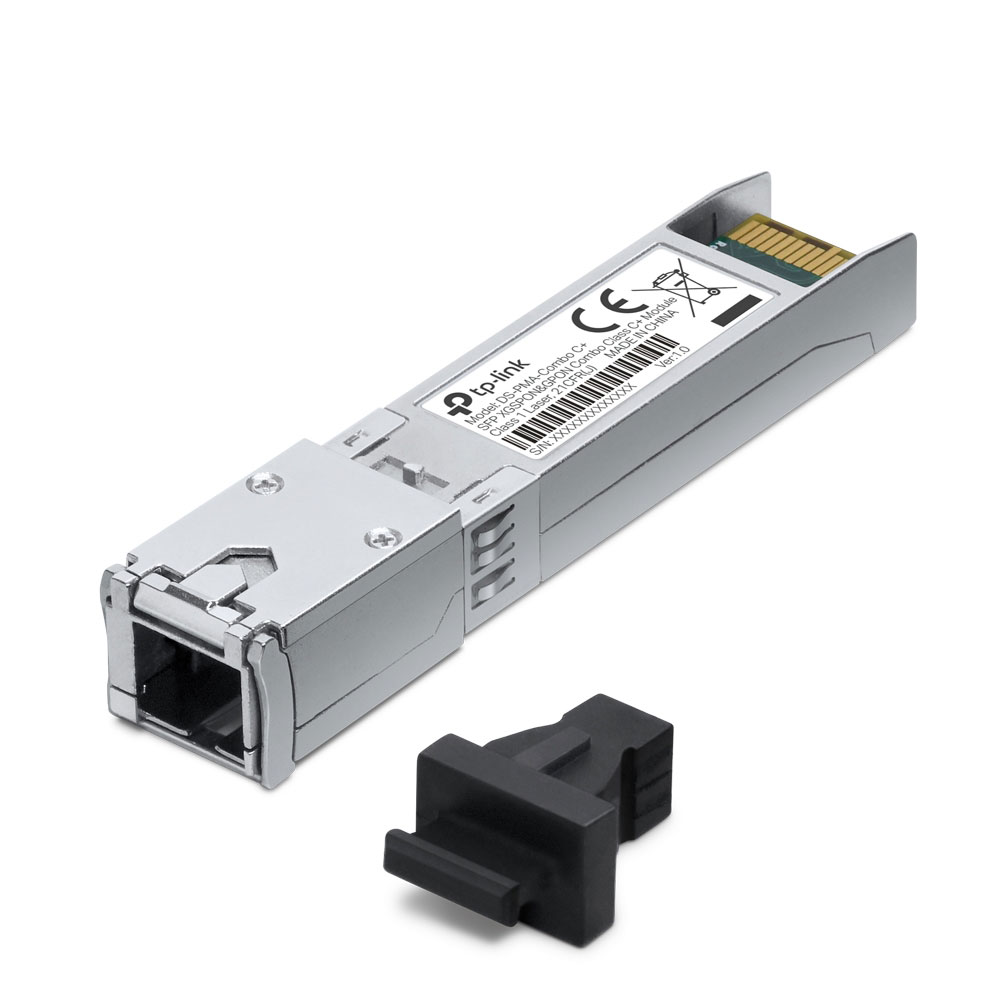

TP-LINK DS-PMA-COMBO C+ | SFP XGS-PON AND GPON COMBO CLASS C+ MODULE
FEATURES:
- Enables multi-gig fibre internet connections up to symmetrical 10Gbps transmission
- Supports XGS-PON/XG-PON and GPON for flexible deployment and internet access
- Supports hot swapping for quick and easy installation and application
- Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring
TP-Link DS-PMA-Combo C+ | SFP XGS-PON and GPON Combo Class C+ Module
FEATURES:
- Enables multi-gig fibre internet connections up to symmetrical 10Gbps transmission
- Supports XGS-PON/XG-PON and GPON for flexible deployment and internet access
- Supports hot swapping for quick and easy installation and application
- Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring
SPECIFICATIONS:
| Wavelength | XGS-PON: |
| TX: 1577nm | |
| RX: 1270nm | |
| XG-PON: | |
| TX: 1577nm | |
| RX: 1270nm | |
| GPON: | |
| TX: 1490nm | |
| RX: 1310nm | |
| Connector | Device: XGS-PON/XG-PON/GPON SFP+ |
| Fibre: SC/UPC | |
| Fibre Type | Single Fibre (9/125um) |
| Data Rate | XGS-PON: |
| Downstream Data Rate: 9.953Gbps | |
| Upstream Data Rate: 9.953Gbps | |
| XG-PON: | |
| Downstream Data Rate: 9.953Gbps | |
| Upstream Data Rate: 2.488Gbps | |
| GPON: | |
| Downstream Data Rate: 2.488Gbps | |
| Upstream Data Rate: 1.244Gbps | |
| Power Level | XGS-PON: |
| TX Optical Power: +3~+8dBm | |
| RX Sensitivity ≤-29dBm | |
| RX Saturation Optical Power >-8dBm | |
| XG-PON: | |
| TX Optical Power: +3~+8dBm | |
| RX Sensitivity ≤-30.5dBm | |
| RX Saturation Optical Power >-10dBm | |
| GPON: | |
| TX Optical Power: +3~+7dBm | |
| RX Sensitivity ≤-32dBm | |
| RX Saturation Optical Power >-12dBm | |
| Extinction Ratio | >8.2dB |
| RX Optical Power Tolerance | >5dBm |
| Transmission Distance | Max. 20km |
| Hot Swap | Yes |
| Nominal Voltage | 3.3V (< ± 5%) |
| Diagnostic Function | Monitors Parameters such as Voltage, Transceiver Power and Temperature |
| Electrical Level | XGS-PON/XG-PON: |
| Data Interface: CML | |
| GPON: | |
| Data Interface: LVPECL | |
| Control Interface: LVTTL | |
| Package | SFP Module DS-PMA-Combo C+ |
| Quick Installation Guide |
Additional information
| Weight | 0.069 kg |
|---|---|
| Dimensions | 12.25 × 8.15 × 3.85 cm |
