TP-LINK DECO BE85 | BE19000 TRI-BAND WHOLE HOME MESH WI-FI 7 MULTI-GIGABIT SYSTEM
FEATURES:
12-Stream 19Gbps Tri-Band Wi-Fi – 11520Mbps (6.0GHz) + 5760Mbps (5.0GHz) + 1376Mbps (2.4GHz)
Unprecedented 10Gbps Network – 1× 10Gbps Ethernet/Fibre Combo WAN/LAN port + 1× 10Gbps WAN/LAN port + 2× 2.5Gbps ports ensure max. flexibility and boosted throughput
Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency
Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency and improve reliability
320MHz Channels Double the Bandwidth – Enabling many more simultaneous transmissions at the fastest possible speeds
Works on the 6.0GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections
TP-Link HomeShield – Provides comprehensive network protection, robust parental controls and real-time IoT security
TP-Link Deco BE85 | BE19000 Tri-Band Whole Home Mesh Wi-Fi 7 Multi-Gigabit System
Available in 1 or 2-Pack
Wi-Fi 7, Wi-Fi Like Never Before
FEATURES:
12-Stream 19Gbps Tri-Band Wi-Fi - 11520Mbps (6.0GHz) + 5760Mbps (5.0GHz) + 1376Mbps (2.4GHz)
Unprecedented 10Gbps Network - 1× 10Gbps Ethernet/Fibre Combo WAN/LAN port + 1× 10Gbps WAN/LAN port + 2× 2.5Gbps ports ensure max. flexibility and boosted throughput
Wireless and Wired Combined Backhaul - Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency
Multi-Link Operation (MLO) - Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency and improve reliability
320MHz Channels Double the Bandwidth - Enabling many more simultaneous transmissions at the fastest possible speeds
Works on the 6.0GHz Band - Minimizes congestion with greenfield spectrum, delivering robust high-speed connections
TP-Link HomeShield - Provides comprehensive network protection, robust parental controls and real-time IoT security
SPECIFICATIONS:
WIRELESS | |
Standards | Wi-Fi 7 |
IEEE 802.11be/ax 6.0GHz | |
IEEE 802.11be/ax/ac/n/a 5.0GHz | |
IEEE 802.11be/ax/n/b/g 2.4GHz | |
Wi-Fi Speeds | BE19000 |
6.0GHz: 11520Mbps (802.11be) | |
5.0GHz: 5760Mbps (802.11be) | |
2.4GHz: 1376Mbps (802.11be) | |
Wi-Fi Range | Broader Whole Home Coverage |
TP-Link Mesh Technology | |
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage | |
AI-Driven Mesh | |
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home | |

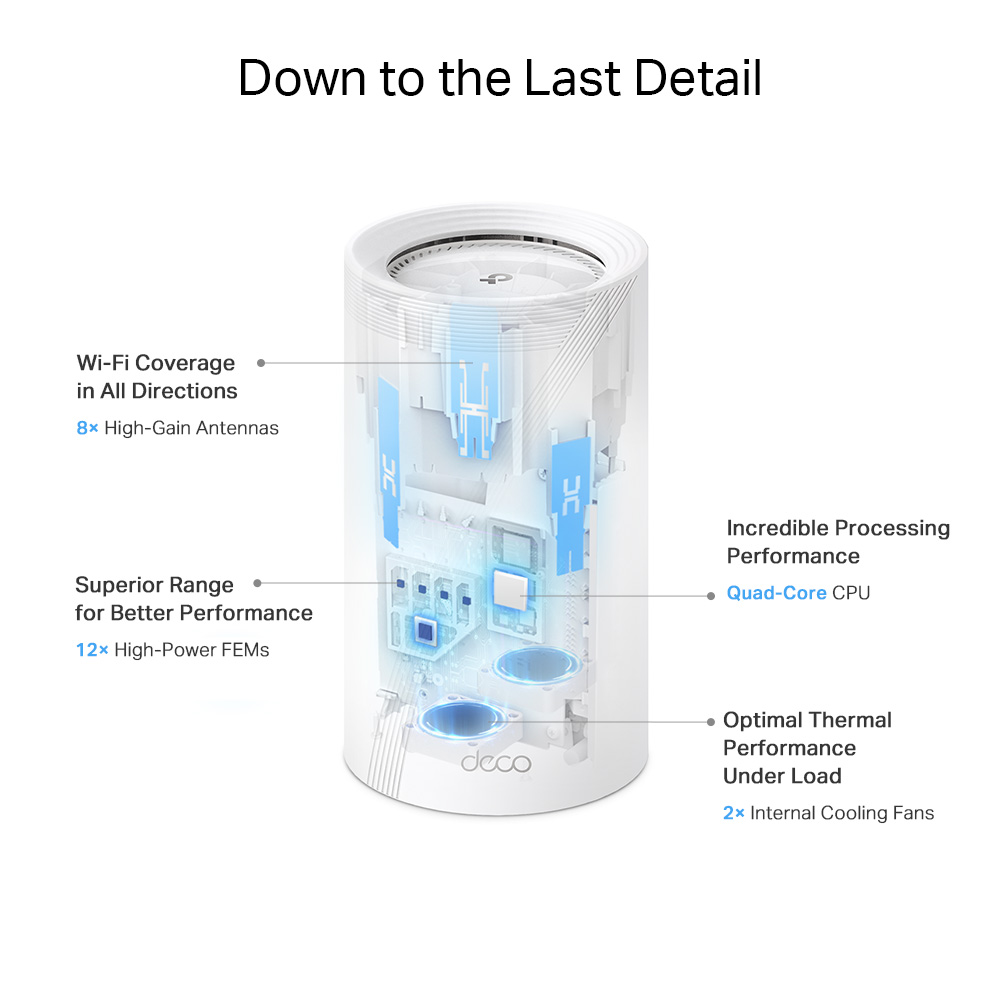

8× High-Gain Antennas (Internal) | |
Multiple antennas form a signal-boosting array to cover more directions and large areas | |
Tri-Band | |
The greenfield 6.0GHz band brings more bandwidth and faster speeds | |
Wi-Fi Capacity | Tri-Band |
Distribute devices to different bands for optimal performance | |
4×4 MU-MIMO | |
Simultaneously communicates with multiple MU-MIMO clients | |
OFDMA | |
Simultaneously communicates with multiple Wi-Fi 7 clients | |
12-Streams | |
More than enough bandwidth for connected devices | |
Working Modes | Router Mode |
Access Point Mode | |
Advanced Functions | Multi-Link Operation (MLO) |
320MHz Channel | |
4K-QAM | |
Multi-RUs | |
Works with Alexa and Google Assistant | |
SECURITY | |
Network Security | SPI Firewall |
Access Control | |
HomeShield Security | |
Real-Time IoT Protection | |
Malicious Site Blocker | |
Intrusion Prevention System | |
DDoS Attack Prevention | |
Home Network Scanner | |
Guest Network | 1× 6.0GHz Guest Network |
1× 5.0GHz Guest Network | |
1× 2.4GHz Guest Network | |
Effective Time | |
Bandwidth Control | |
VPN Server | OpenVPN Server |
PPTP VPN Server | |
L2TP/IPSec VPN Server | |
VPN Client | OpenVPN Client |
PPTP VPN Client | |
L2TP/IPSec VPN Client | |
Wi-Fi Encryption | WPA-Personal |
WPA2-Personal | |
WPA3-Personal | |
HARDWARE | |

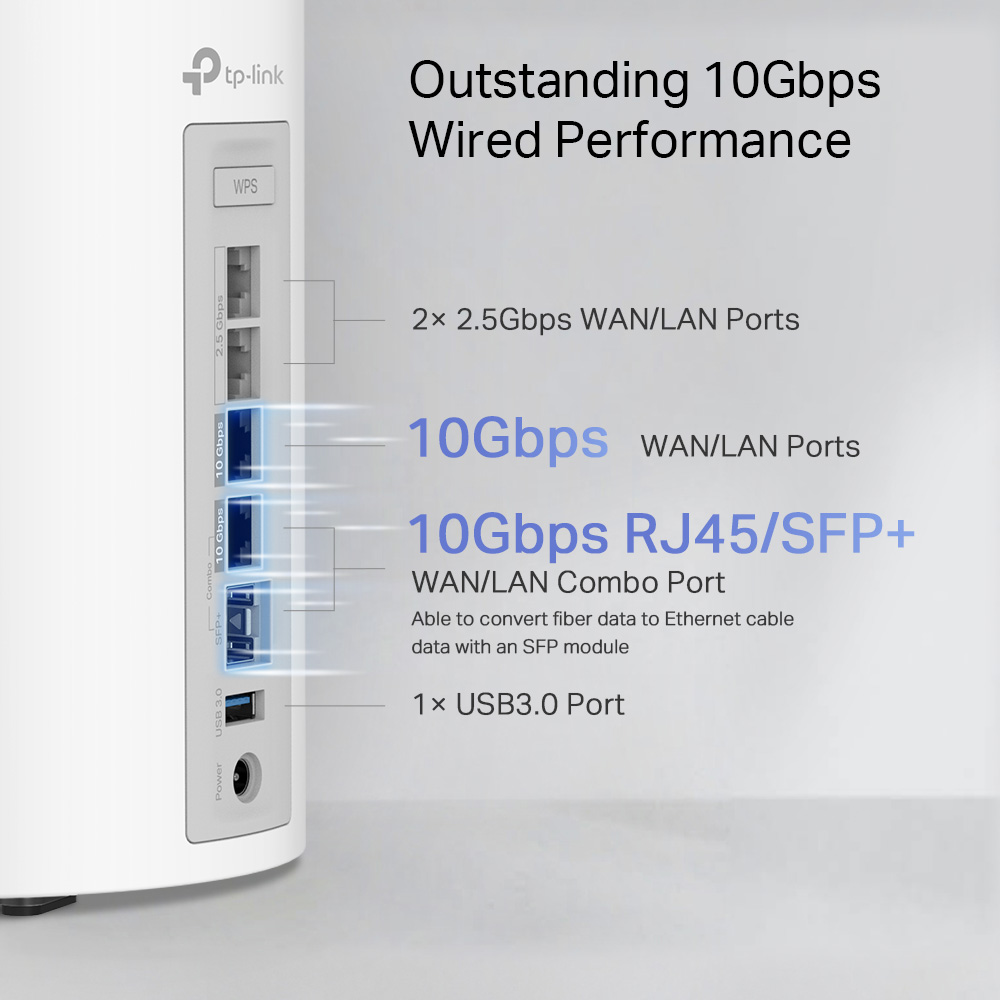

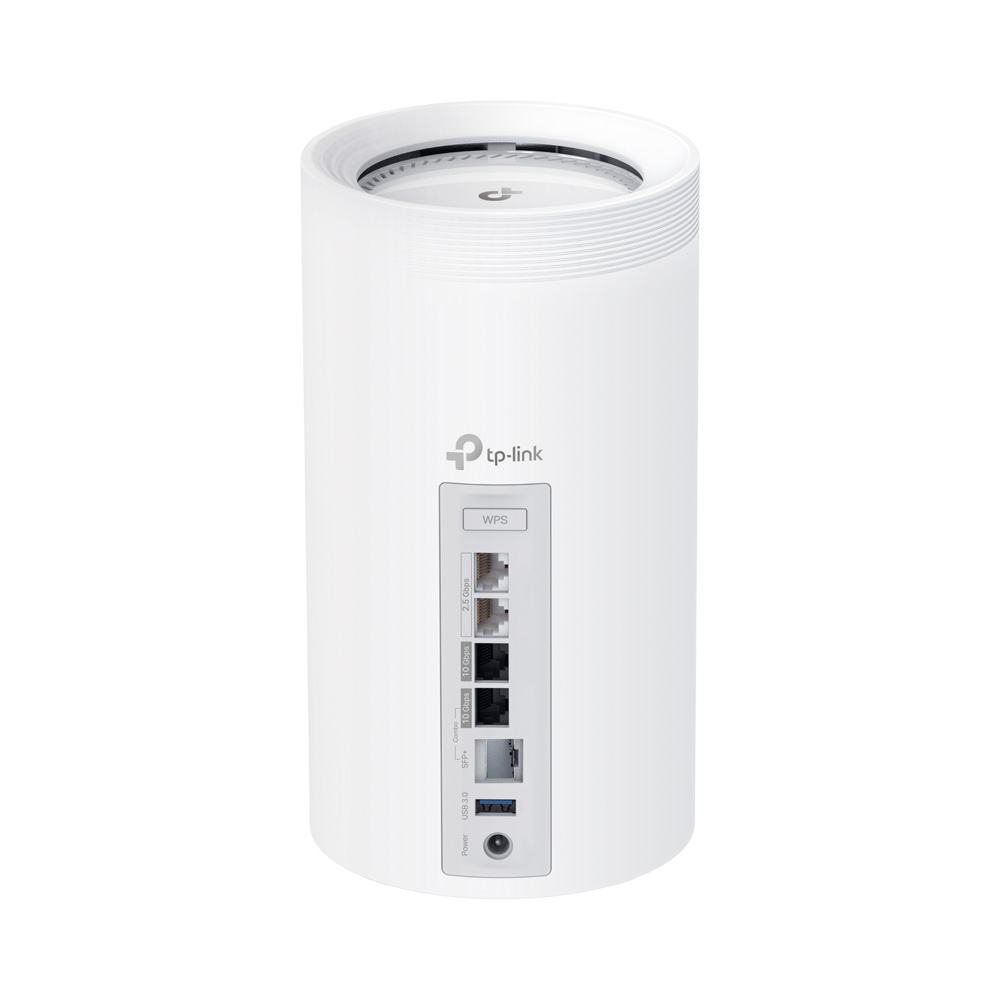

Ethernet Ports | 1× 10Gbps |
1× 10Gbps SFP+/RJ45 Combo | |
2× 2.5Gbps | |
Per Deco Unit | |
Supports WAN/LAN auto-sensing | |
USB Support | 1× USB3.0 Port |
FTP Server | |
Media Server | |
Apple Time Machine | |
Samba Server | |
Buttons | 1× Reset Button |
1× WPS | |
SOFTWARE | |
Advanced Features | Reboot Schedule |
Tapo/Kasa Onboarding | |
IoT network & Device Isolation | |
Static Route Function | |
Node/Band Connection Preference | |
Protocols | IPv4 |
IPv6 | |
Service Kits | HomeShield |
Parental Controls | HomeShield Parental Controls |
Youtube Restriction | |
SafeSearch | |
Custom Profiles | |
Professional Content Filter Library | |
Family Time | |
Bedtime | |
Off Time | |
Time Rewards | |
Family Online Time Ranking | |
Pause the Internet | |
Weekly and Monthly Reports | |
WAN Types | Dynamic IP |
Static IP | |
PPPoE | |
PPTP | |
L2TP | |
Quality of Service | HomeShield QoS |
QoS by Device | |
Cloud Service | OTA Firmware Upgrade |
TP-Link ID | |
DDNS | |
NAT Forwarding | Port Forwarding |
UPnP | |
IPTV | IGMP Proxy |
IGMP Snooping | |
Bridge | |
Tag VLAN | |
DHCP | Address Reservation |
DHCP Client List | |
Server | |
DDNS | TP-Link |
Management | Deco App |
PHYSICAL | |
Dimensions (W × D × H) | 128 × 128 × 236mm |
Package Contents | Deco BE85 (2-pack) |
2× Deco BE85 units | |
1× RJ45 Ethernet cable | |
2× Power adapters | |
1× Quick Installation Guide | |
Deco BE85 (1-pack) | |
1× Deco BE85 unit | |
1× RJ45 Ethernet cable | |
1× Power adapter | |
1× Quick Installation Guide | |
OTHERS | |
Certifications | CE, FCC, RoHS |
Environment | Operating Temperature: 0°C~40°C |
Storage Temperature: -40°C~60°C | |
Operating Humidity: 10%~90% RH | |
Storage Humidity: 5%~90% RH |
