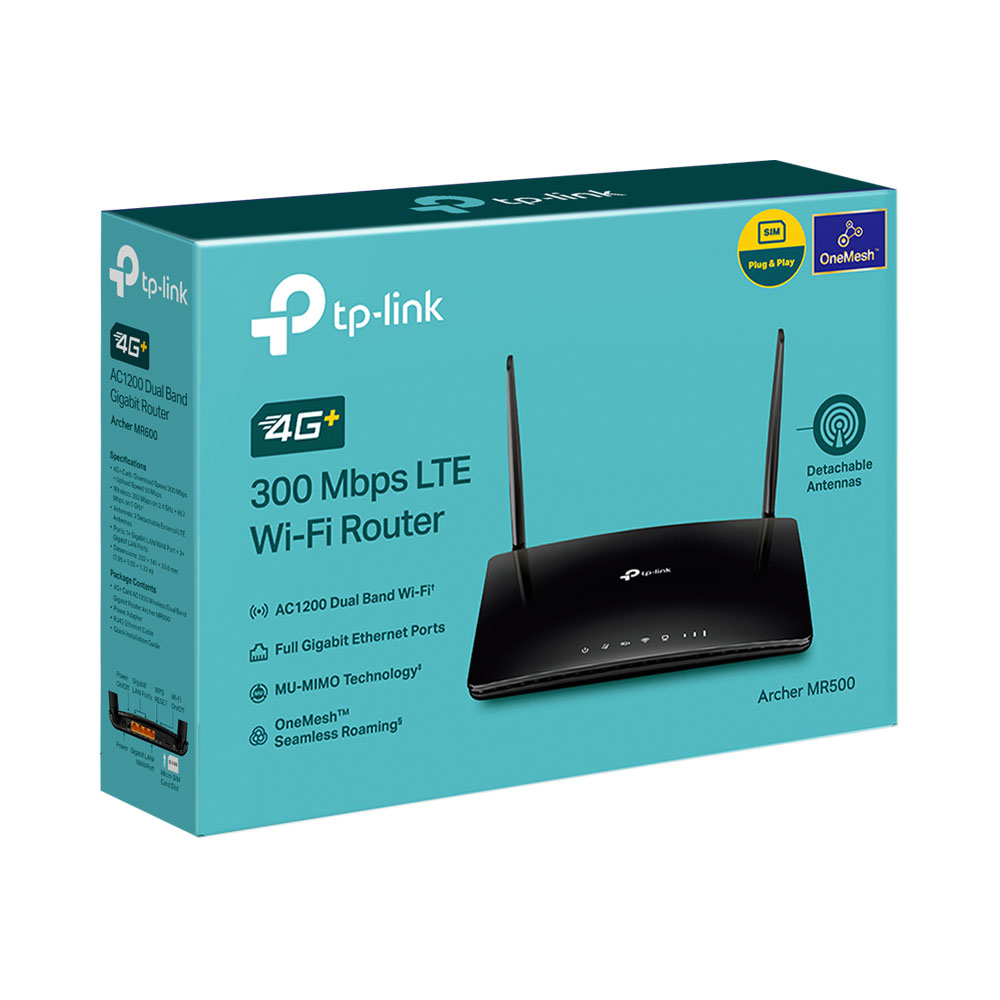

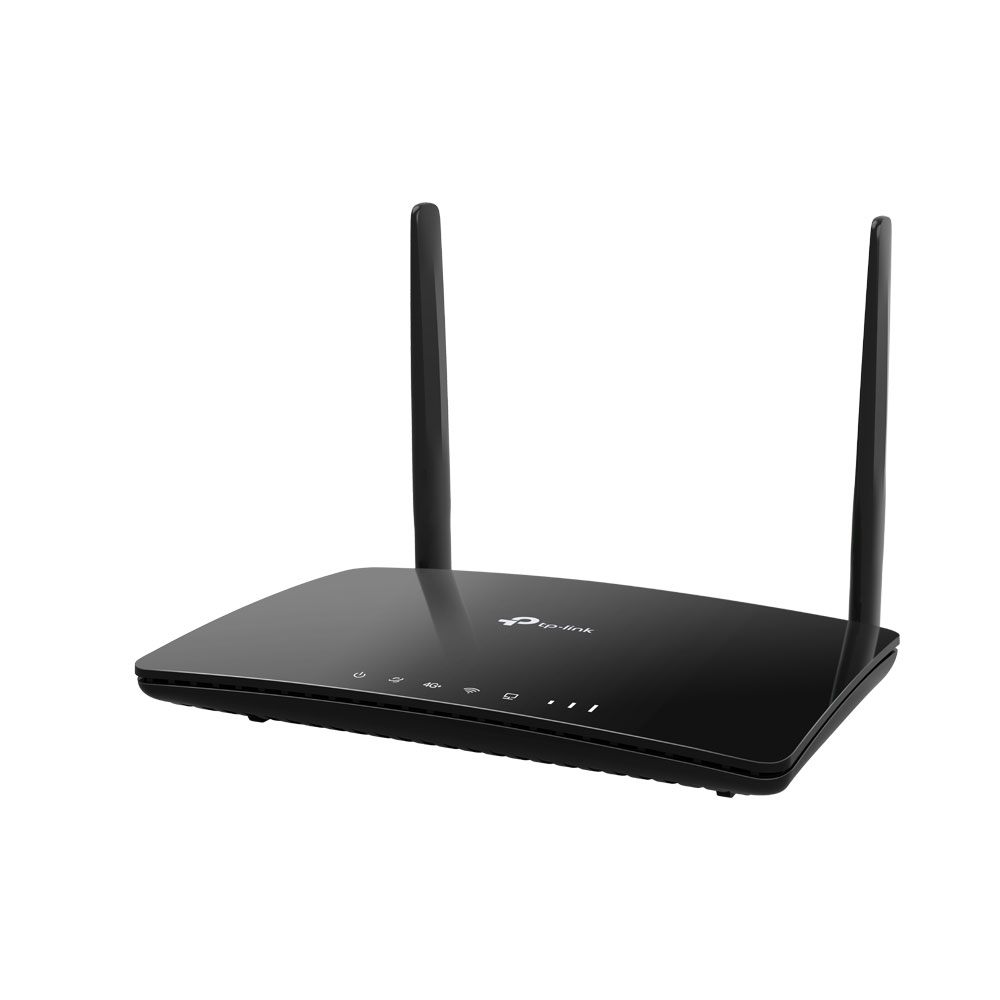

TP-LINK ARCHER MR500 | 4G+ CAT6 AC1200 WIRELESS DUAL-BAND GIGABIT ROUTER
FEATURES:
- Advanced 4G+ Router – Supports 4G+ Cat6 to boost data speeds of up to 300Mbps
- Plug a SIM Card In and Play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- MU-MIMO Supported – Simultaneous data streams increase WiFi throughput and network efficiency
- Supports TP-Link OneMesh – Co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
- Better Signal for Connections Everywhere – Enjoy stable and efficient connections to every device thanks to the two external detachable LTE antennas
- Full Gigabit Ports – Provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
- Wi-Fi Router Mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection
- Easy Setup and Management – All via the Tether App
TP-Link Archer MR500 | 4G+ Cat6 AC1200 Wireless Dual-Band Gigabit Router
Fast Wi-Fi Where You Need It
FEATURES:
- Advanced 4G+ Router - Supports 4G+ Cat6 to boost data speeds of up to 300Mbps
- Plug a SIM Card In and Play - No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- MU-MIMO Supported - Simultaneous data streams increase WiFi throughput and network efficiency
- Supports TP-Link OneMesh - Co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
- Better Signal for Connections Everywhere - Enjoy stable and efficient connections to every device thanks to the two external detachable LTE antennas
- Full Gigabit Ports - Provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
- Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
- Easy Setup and Management - All via the Tether App
SPECIFICATIONS:
| HARDWARE FEATURES | |

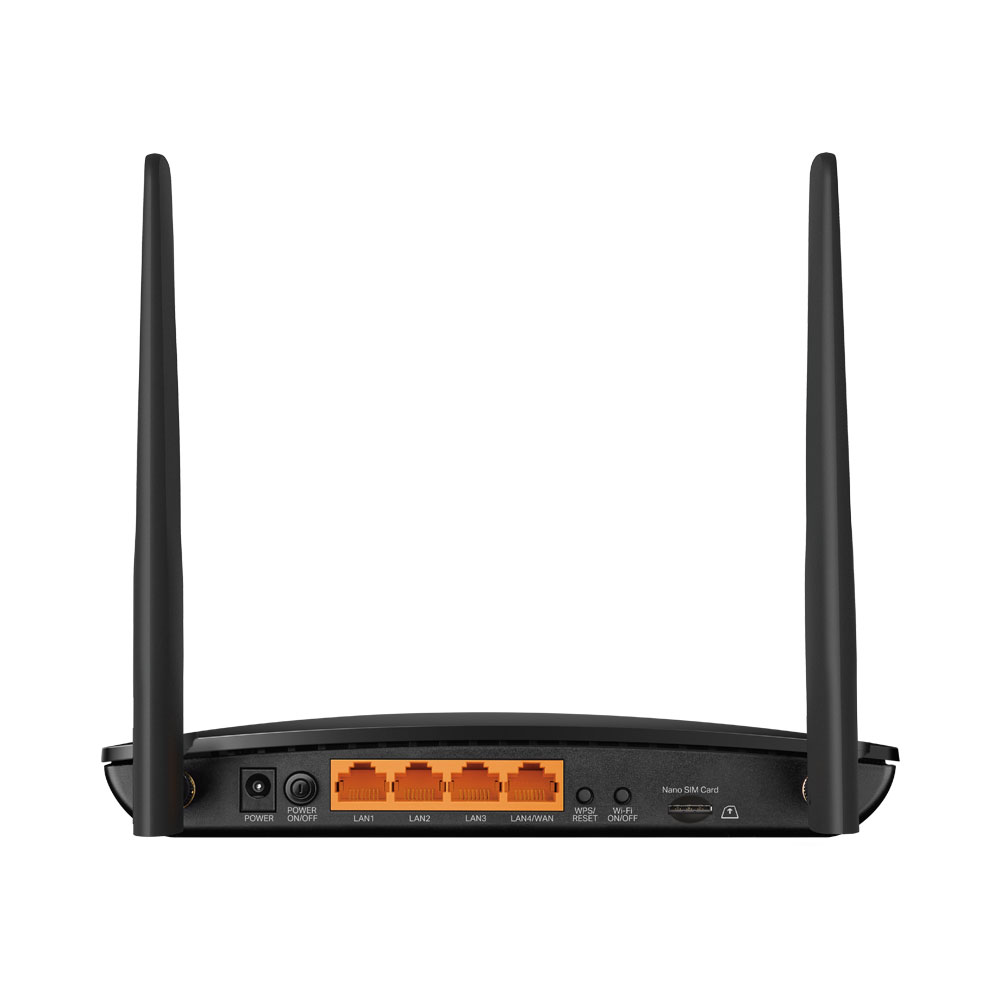

| Interface | 1× 10/100/1000Mbps LAN/WAN Port |
| 3× 10/100/1000Mbps LAN Ports | |
| 1× Nano SIM Card Slot | |
| Power Supply | 12V 1.5A |
| Dimensions (W × D × H) | 202 × 141 × 33.6mm |
| Antenna | 2× Detachable External LTE Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac 5.0GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | 300 Mbps at 2.4GHz, 867 Mbps at 5.0GHz |
| Reception Sensitivity | 5.0GHz: 11a 54M: -77dBm |
| 11ac HT20: -73dBm | |
| 11ac HT40: -68dBm | |
| 11ac HT80: -64dBm | |
| 11n HT20: -77dBm | |
| 11n HT40: -73dBm | |
| 2.4GHz: 11g 54M: -74dBm | |
| 11n HT20: -72dBm | |
| 11n HT40: -69dBm | |
| Transmit Power | < 20dBm (2.4GHz), < 23dBm (5.0GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Network Type | Compatible With the Majority of Mobile Operators and Supports 4G/3G: |
| FDD-LTE: B1/B3/B5/B7/B8/B20/B28 | |
| (2100/1800/850/2600/900/800/700MHz) | |
| TDD-LTE: B38/B40/B41 | |
| (2600/2300/2500MHz) | |
| DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 | |
| (2100/850/900MHz) | |
| SOFTWARE FEATURES | |
| Quality of Service | Prioritizes Network Traffic by Device |
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
| Management | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | VPN Server: PPTP VPN, OpenVPN |
| Parental Controls | URL Filtering, Time Controls |
| Protocols | IPv4, IPv6 |
| Guest Network | 1× 2.4GHz Guest Network, 1× 5.0GHz Guest Network |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | Archer MR500 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual-Band Gigabit Router |
| 1.5m Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| Environment | Operating Temperature: 0°C~40°C |
| Operating Humidity: 10%~90% Non-Condensing | |
| Storage Humidity: 5%~90% Non-Condensing | |
Additional information
| Weight | 0.783 kg |
|---|---|
| Dimensions | 30.7 × 22.3 × 7 cm |
