TP-Link Archer AX72 AX5400 Dual-Band Gigabit Wi-Fi 6 Router
High-End Wi-Fi 6 for Everyone
FEATURES:
- Gigabit Wi-Fi for 8K Streaming - 5400Mbps Wi-Fi for faster browsing, streamings and downloading - all at the same time
- Fully Featured Wi-Fi 6 - Equiped with the top structure of 4T4R and HE160 on the 5.0GHz band to enable a 4.8Gbps ultra-fast connection
- Connect 100+ Devices - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
- Extensive Coverage - 6× antennas and Beamforming ensure broad coverage
- HomeShield - TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection
- More Vents, Less Heat - Improved vents area unleashes the full power of the whole machine
- USB Sharing - 1× USB3.0 port enables easy media sharing and private cloud building
- Easy Setup - Set up the router in minutes with the Tether app
SPECIFICATIONS:
WIRELESS | |
---|---|
Standards | Wi-Fi 6 |
IEEE 802.11ax/ac/n/a 5.0Ghz | |
IEEE 802.11ax/n/b/g 2.4Ghz | |
Wi-Fi Speeds | AX5400 |
5.0Ghz: 4804 Mbps (802.11ax, HE160) | |
2.4Ghz: 574 Mbps (802.11ax) | |
Wi-Fi Range | 3 Bedroom Houses |
6× Fixed High-Performance Antennas | |
Multiple antennas form a signal-boosting array to cover more directions and large areas | |
Beamforming | |
Concentrates wireless signal strength towards clients to expand Wi-Fi range | |
High-Power FEM | |
Improves transmission power to strengthen signal coverage | |
4T4R | |
Multiple streams in the same band strengthen the fault tolerance in transmission | |
Wi-Fi Capacity | High |
Dual-Band | |
Allocate devices to different bands for optimal performance | |
4×4 MU-MIMO | |
Simultaneously communicates with multiple MU-MIMO clients | |
OFDMA | |
Simultaneously communicates with multiple Wi-Fi 6 clients | |
Airtime Fairness | |
Improves network efficiency by limiting excessive occupation | |
DFS | |
Access an extra band to reduce congestion | |
6 Streams | |
Connect your devices to more bandwidth | |
Working Modes | Router Mode |
Access Point Mode | |
HARDWARE | |
Processor | 1 GHz Dual-Core CPU |

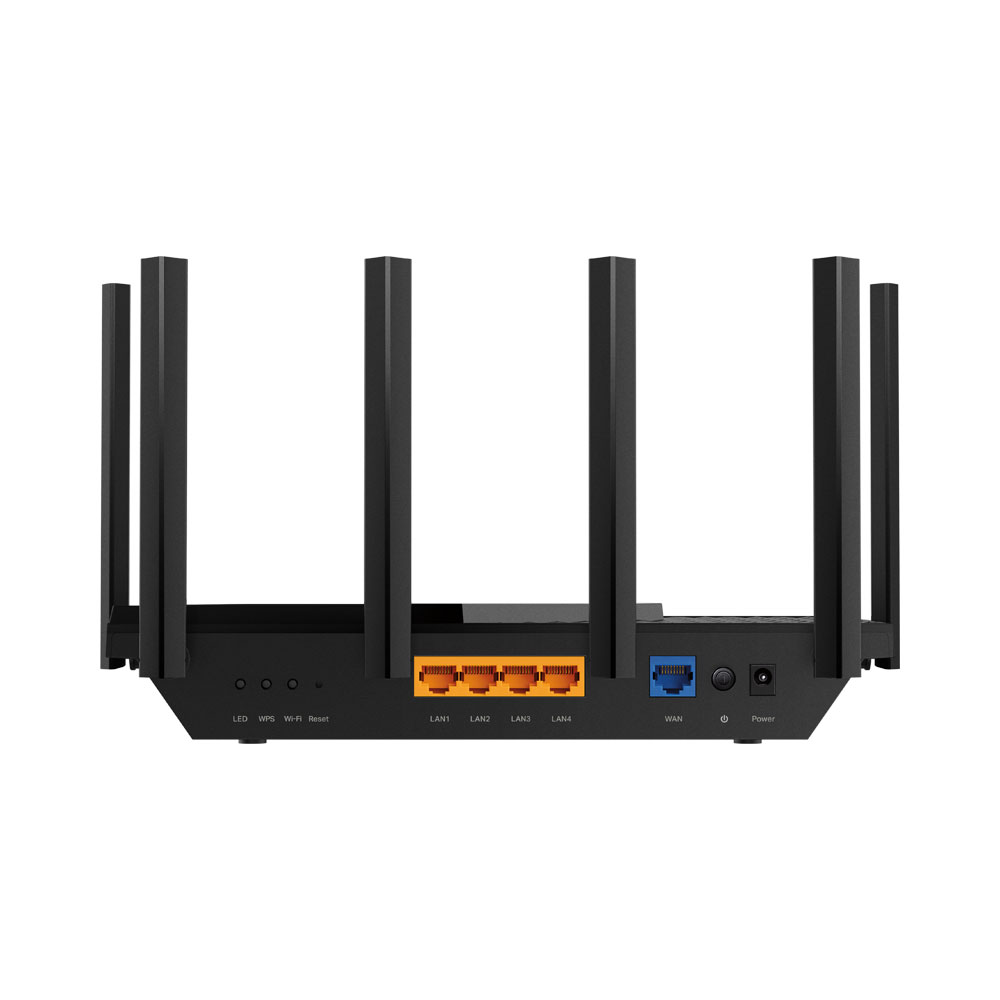

Ethernet Ports | 1× Gigabit WAN Port |
4× Gigabit LAN Ports | |
USB Support | 1× USB3.0 Port |
Supported Partition Formats: | |
NTFS, exFAT, HFS+, FAT32 | |
Supported Functions: | |
Apple Time Machine | |
FTP Server | |
Media Server | |
Samba Server | |
Buttons | Wi-Fi On/Off Button |
Power On/Off Button | |
LED On/Off Button | |
WPS Button | |
Reset Button | |
Power | 12V ⎓ 2.5A |
SECURITY | |
Wi-Fi Encryption | WPA |
WPA2 | |
WPA3 | |
WPA/WPA2-Enterprise (802.1x) | |
Network Security | SPI Firewall |
Access Control | |
IP & MAC Binding | |
Application Layer Gateway | |
HomeShield Security | |
Real-Time IoT Protection | |
Malicious Site Blocker | |
Intrusion Prevention System | |
DDoS Attack Prevention | |
Home Network Scanner | |
Guest Network | 1× 5.0Ghz Guest Network |
1× 2.4Ghz Guest Network | |
VPN Server | OpenVPN |
PPTP | |
VPN Client | • Open VPN Client |
• PPTP VPN Client | |
• L2TP VPN Client | |
SOFTWARE | |
Protocols | IPv4 |
IPv6 | |
Service Kits | HomeShield |
OneMesh™ | OneMesh™ Supported |
Without replacing your existing devices or buying a whole new Wi-Fi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. | |
Parental Controls | HomeShield Parental Controls |
Custom Profiles | |
Professional Content Filter Library | |
Family Time | |
Bedtime | |
Off Time | |
Time Rewards | |
Family Online Time Ranking | |
Pause the Internet | |
Weekly and Monthly Reports | |
WAN Types | Dynamic IP |
Static IP | |
PPPoE | |
PPTP | |
L2TP | |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade |
TP-Link ID | |
DDNS | |
NAT Forwarding | Port Forwarding |
Port Triggering | |
DMZ | |
UPnP | |
Virtual Server | |
IPTV | IGMP Proxy |
IGMP Snooping | |
Bridge | |
Tag VLAN | |
DHCP | Address Reservation |
DHCP Client List | |
Server | |
DDNS | TP-Link |
NO-IP | |
DynDNS | |
Management | Tether App |
OTHER | |
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
Cable or DSL Modem (if needed) | |
Subscription with an internet service provider (for internet access) | |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0°C~40°C |
Storage Temperature: -40°C~70°C | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing | |
TEST DATA | |
Wi-Fi Transmission Power | CE: |
<20dBm{2.4GHz} | |
<23dBm{5.15GHz~5.35GHz} | |
<30dBm{5.47GHz~5.725GHz} | |
FCC: | |
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } | |
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } | |
Wi-Fi Reception Sensitivity | 2.4GHz: |
11ac VHT20 MCS0:-94.5dBm | |
11ac VHT20 MCS8:-72.5dBm | |
11ac VHT40 MCS0:-92.5dBm | |
11ac VHT40 MCS9:-69.5dBm | |
11ax HE20 MCS0:-95dBm | |
11ax HE20 MCS11:-64.5dBm | |
11ax HE40 MCS0:-92.5dBm | |
11ax HE40 MCS11:-62dBm | |
5GHz: | |
11ac VHT20 MCS0:-97dBm | |
11ac VHT20 MCS8:-74dBm | |
11ac VHT40 MCS0:-95dBm | |
11ac VHT40 MCS9:-70dBm | |
11ac VHT80 MCS0:-91.5dBm | |
11ac VHT80 MCS9:-66dBm | |
11ac VHT160 MCS0:-86dBm | |
11ac VHT160 MCS9:-61dBm | |
11ax HE20 MCS0:-95dBm | |
11ax HE20 MCS11:-64dBm | |
11ax HE40 MCS0:-91.5dBm | |
11ax HE40 MCS11:-62dBm | |
11ax HE80 MCS0:-88dBm | |
11ax HE80 MCS11:-58dBm | |
11ax HE160 MCS0:-85.5dBm | |
11ax HE160 MCS11:-55dBm | |
PHYSICAL | |
Dimensions (W×D×H) | 272.5 × 147.2 × 49.2mm |

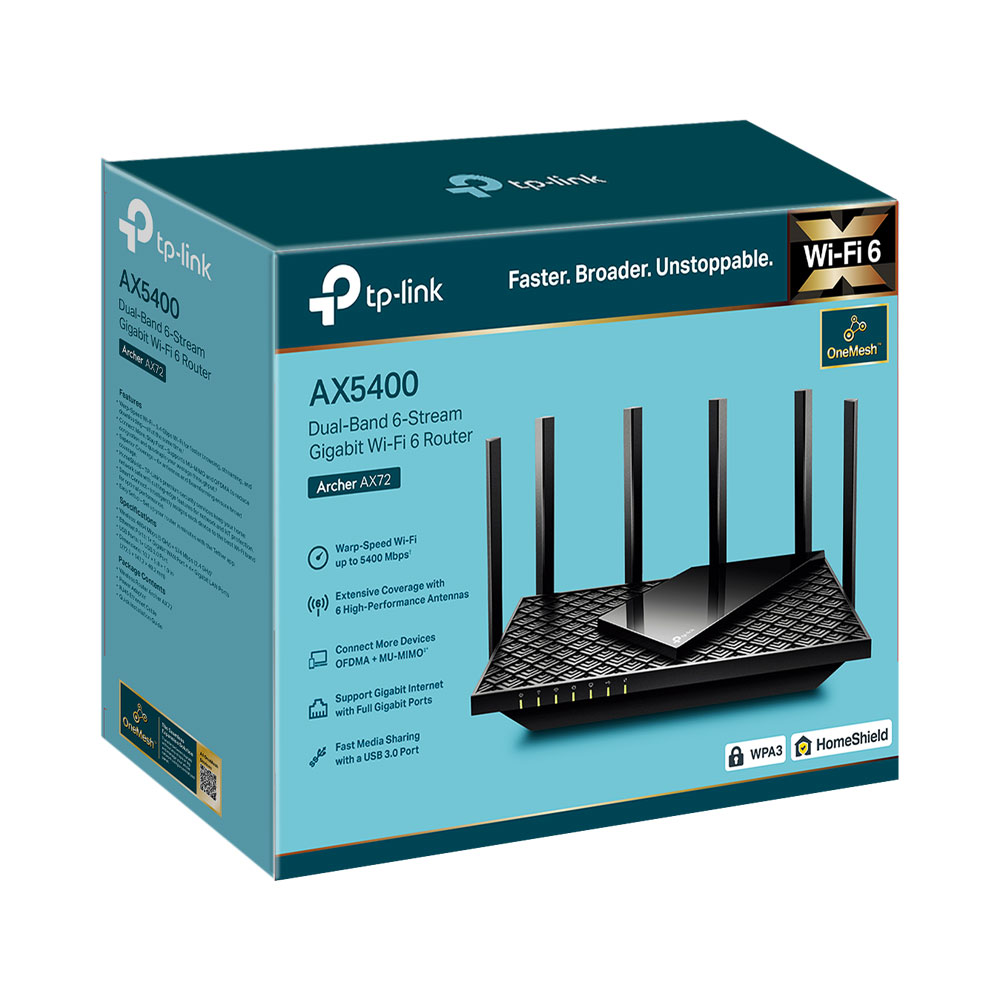

Package Contents | Wi-Fi Router Archer AX72 |
Power Adapter | |
RJ45 Ethernet Cable | |
Quick Installation Guide |
