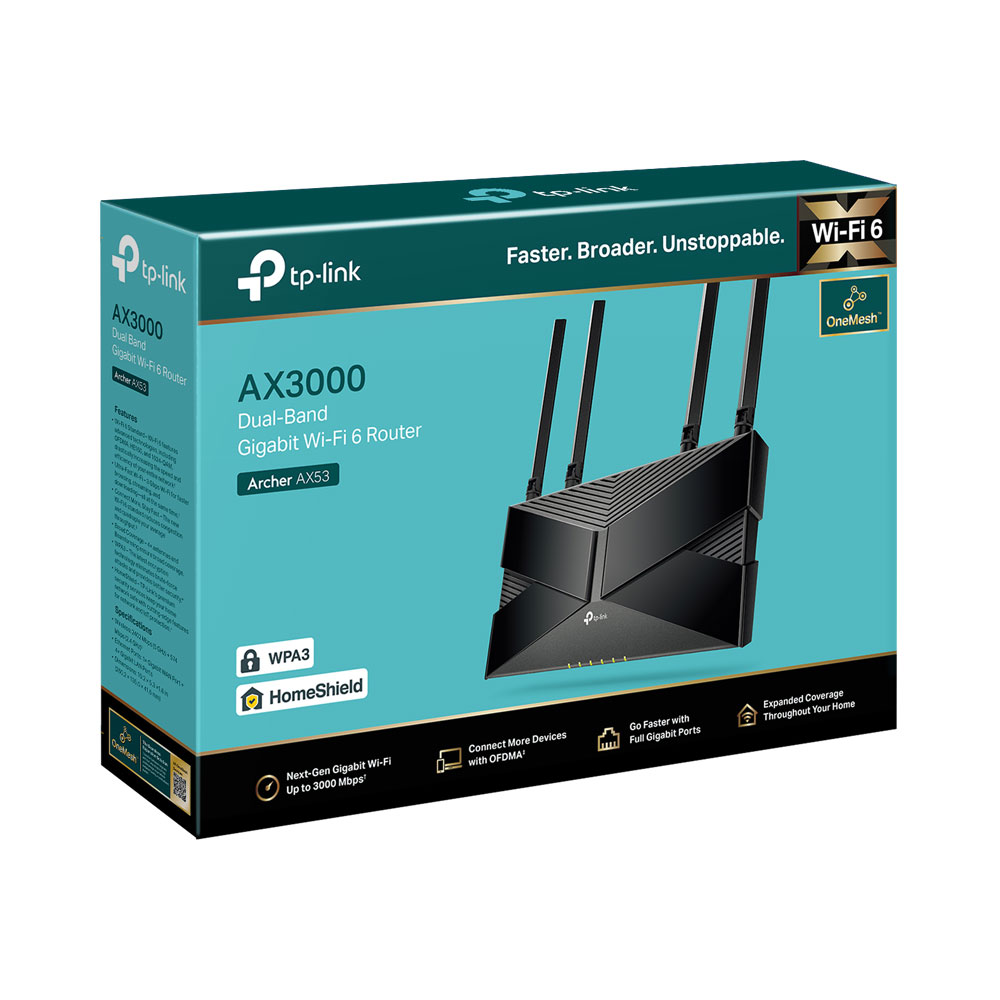

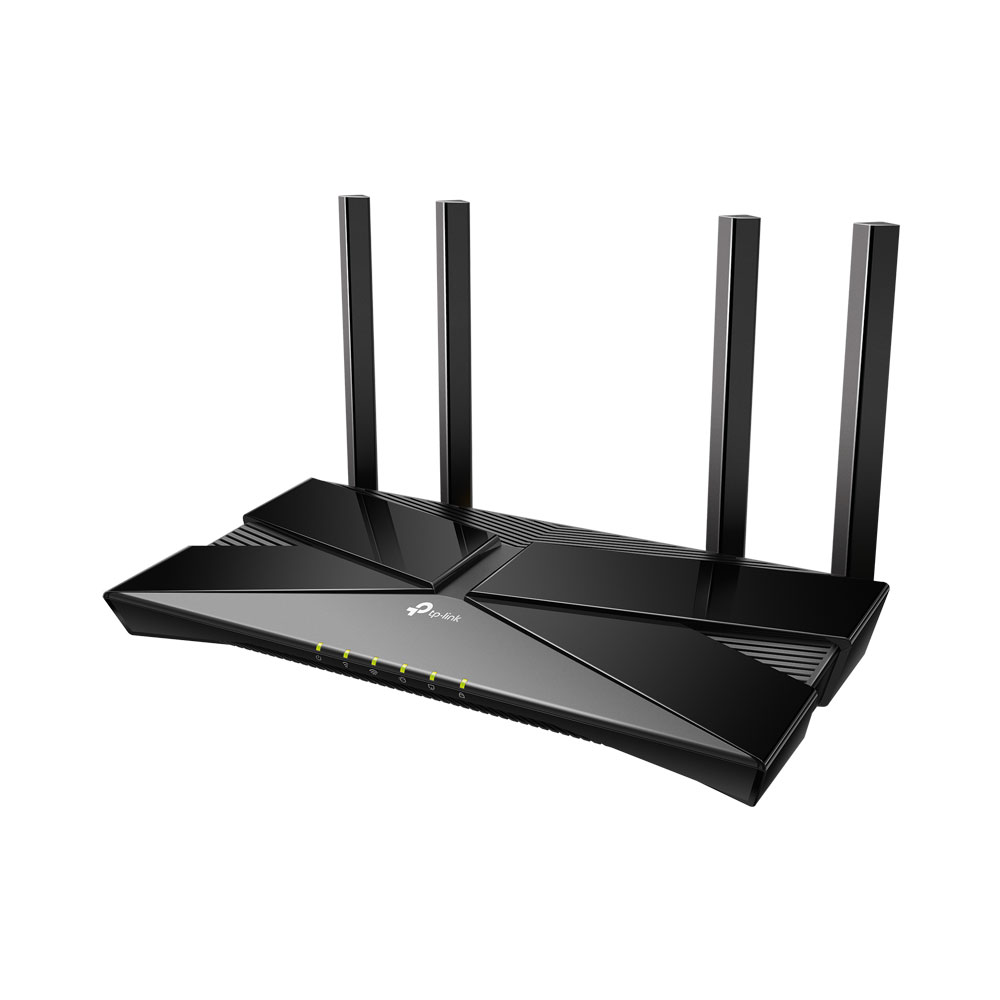

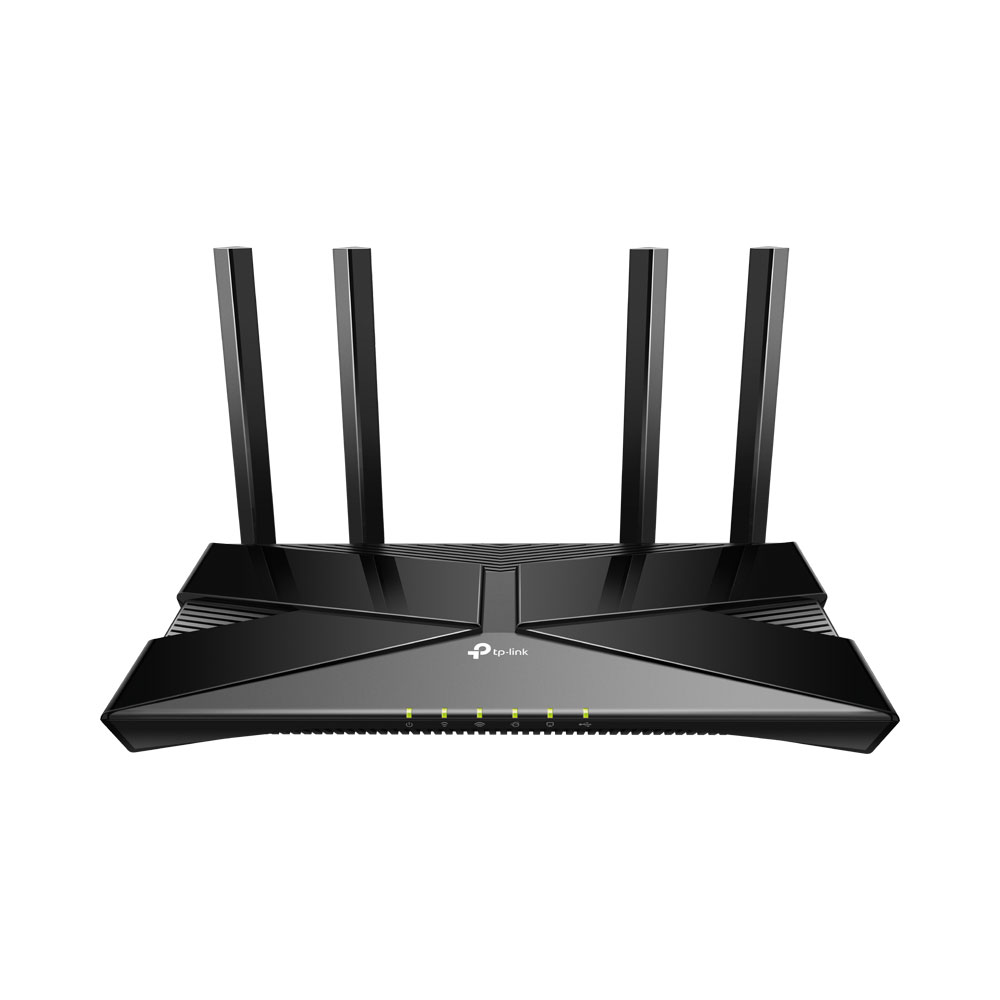

TP-Link Archer AX53 AX3000 Dual Band Gigabit Wi-Fi 6 Router
The Next Wave of Home Connectivity
FEATURES:
- Next-Gen Gigabit Wi-Fi 6 Speed - 2402Mbps on 5.0GHz and 574Mbps on 2.4GHz band ensure smoother streaming and faster downloads
- Connect More Devices - OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices
- Ultra-Low Latency - Enables more responsive gaming and video chatting
- Expanded Wi-Fi Coverage - Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats
- Improved Battery Life - Target Wake Time helps your devices to communicate more while consuming less power
- Compatible with Alexa - Control your router via voice commands and make your life smarter and easier with Amazon Alexa
SPECIFICATIONS:
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5.0GHz | |
| IEEE 802.11ax/n/b/g 2.4GHz | |
| WiFi Speeds | AX3000 |
| 5.0Ghz: 2402Mbps (802.11ax, HE160) | |
| 2.4Ghz: 574Mbps (802.11ax) | |
| WiFi Range | 2-3 Bedroom Houses |
| 4× Fixed High-Performance Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| High-Power FEM | |
| Improves transmission power to strengthen signal coverage | |
| Wi-onemFi Capacity | High |
| Dual-Band | |
| Allocate devices to different bands for optimal performance | |
| OFDMA | |
| Simultaneously communicates with multiple Wi-Fi 6 clients | |
| Airtime Fairness | |
| Improves network efficiency by limiting excessive occupation | |
| DFS | |
| Access an extra band to reduce congestion | |
| 4 Streams | |
| Connect your devices to more bandwidth | |
| Working Modes | Router Mode |
| Access Point Mode | |
| HARDWARE | |
| Processor | Dual-Core CPU |
| Ethernet Ports | 1× Gigabit WAN Port |
| 4× Gigabit LAN Ports | |
| Buttons | Wi-Fi/WPS Button |
| Power On/Off Button | |
| Reset Button | |
| Power | 12V ⎓ 2A |
| SECURITY | |
| WiFi Encryption | WPA |
| WPA2 | |
| WPA3 | |
| WPA/WPA2-Enterprise | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| HomeShield Security | |
| Real-Time IoT Protection | |
| Malicious Site Blocker | |
| Intrusion Prevention System | |
| DDoS Attack Prevention | |
| Home Network Scanner | |
| Guest Network | 1× 5.0Ghz Guest Network |
| 1× 2.4Ghz Guest Network | |
| VPN Server | OpenVPN |
| PPTP VPN | |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Service Kits | HomeShield |
| OneMesh™ | OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. | |
| Parental Controls | HomeShield Parental Controls |
| Custom Profiles | |
| Professional Content Filter Library | |
| Family Time | |
| Bedtime | |
| Off Time | |
| Time Rewards | |
| Family Online Time Ranking | |
| Pause the Internet | |
| Weekly and Monthly Reports | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade |
| OTA Firmware Upgrade | |
| TP-Link ID | |
| DDNS | |
| NAT Forwarding | Port Forwarding |
| Port Triggering | |
| DMZ | |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | TP-Link |
| NO-IP | |
| DynDNS | |
| Management | Tether App |
| Webpage | |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | CE, RoHS |
| Environment | Operating Temperature: 0°C~40°C |
| Operating Humidity: 10%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) | |
| WiFi Reception Sensitivity | 2.4GHz: |
| 11ac VHT20_MCS0:-96dBm | |
| 11ac VHT20_MCS8:-74dB | |
| 11ac VHT40_MCS0:-94dBm | |
| 11ac VHT40_MCS9:-70dB | |
| 11ax HE20_MCS0:-96dBm | |
| 11ax HE20_MCS11:-66dBm | |
| 11ax HE40_MCS0:-93dBm | |
| 11ax HE40_MCS11:-63dBm | |
| 5GHz: | |
| 11ac VHT20_MCS0:-97dBm | |
| 11ac VHT20_MCS8:-75dBm | |
| 11ac VHT40_MCS0:-94dBm | |
| 11ac VHT40_MCS9:-70dBm | |
| 11ac VHT80_MCS0:-91dBm | |
| 11ac VHT80_MCS9:-67dBm | |
| 11ac VHT160_MCS0:-88dBm | |
| 11ac VHT160_MCS9:-63dBm | |
| 11ax HE20_MCS0:-97dBm | |
| 11ax HE20_MCS11:-66dBm | |
| 11ax HE40_MCS0:-94dBm | |
| 11ax HE40_MCS11:-63dBm | |
| 11ax HE80_MCS0:-91dBm | |
| 11ax HE80_MCS11:-61dBm | |
| 11ax HE160_MCS0:-87dBm | |
| 11ax HE160_MCS11:-58dBm | |
| PHYSICAL | |
| Dimensions (W×D×H) | 260.2 × 135 × 41.6 mm |
| Package Contents | Wireless Router Archer AX53 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide |
