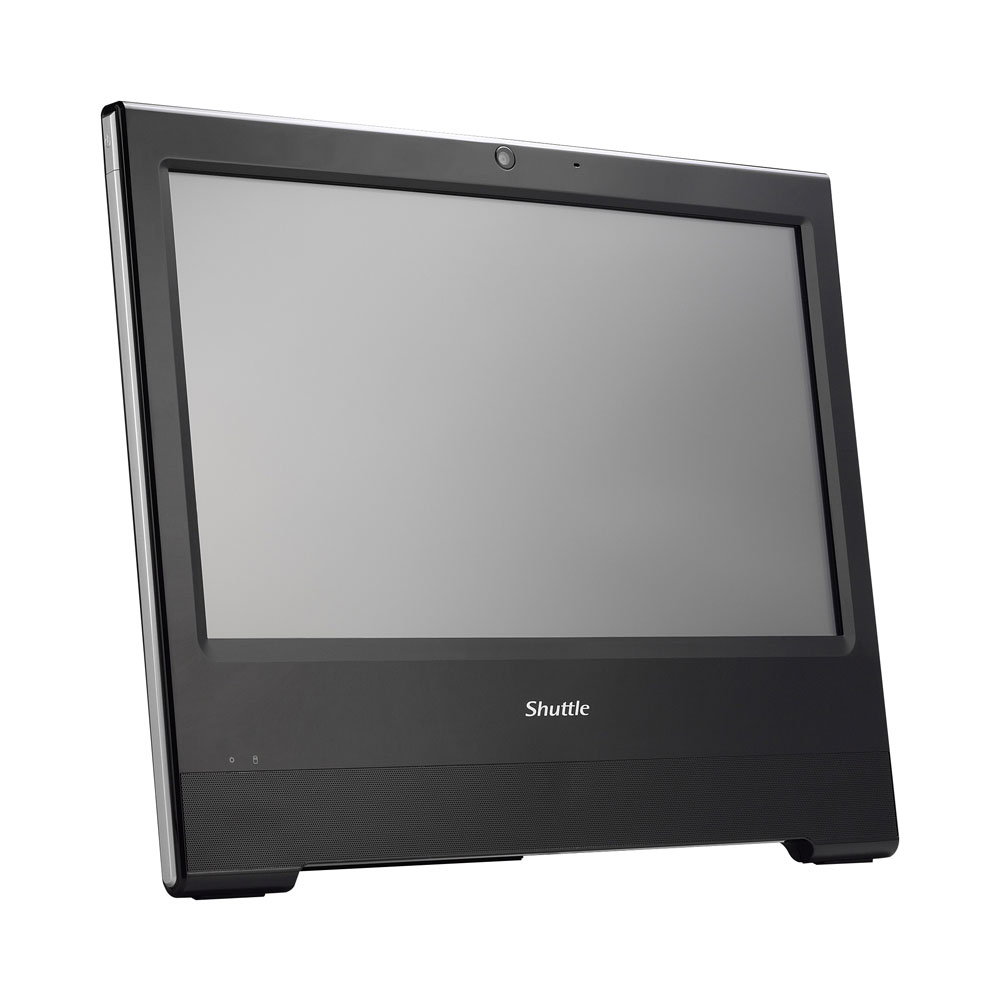

SHUTTLE XPC X50V8 | ALL-IN-ONE BAREBONE PC WITH INTEL CELERON 5205U CPU FOR POS, POI, KIOSK APPLICATIONS
FEATURES:
- Intel Celeron 5205U processor
- Resistive 15.6″ (39.6 cm) touch screen (1366×768)
- IP54 Compliant Front Panel
- Up to 64GB of DDR4 memory
- HDMI 1.4b and VGA for two external displays
- Space for 2.5″ drive and M.2 SSD (NVMe)
- Internal USB socket for add-ons (dongle, 4G module)
- Gigabit Ethernet, WLAN (ac) and Bluetooth
- 6× USB external, 1× USB internal, COM/LPT/DIO ports (optional)
- Integrated speaker, 2MP camera and microphone
- Fanless Passive Heatpipe Cooling
- SD Card Reader
- Flexible stand and VESA mounting option
Shuttle XPC X50V8 | All-in-One Barebone PC with Intel Celeron 5205U CPU for POS, POI, Kiosk Applications
The Shuttle XPC all-in-one X50V8 is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 non-stop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
FEATURES:
- Intel Celeron 5205U processor
- Resistive 15.6" (39.6 cm) touch screen (1366×768)
- IP54 Compliant Front Panel
- Up to 64GB of DDR4 memory
- HDMI 1.4b and VGA for two external displays
- Space for 2.5" drive and M.2 SSD (NVMe)
- Internal USB socket for add-ons (dongle, 4G module)
- Gigabit Ethernet, WLAN (ac) and Bluetooth
- 6× USB external, 1× USB internal, COM/LPT/DIO ports (optional)
- Integrated speaker, 2MP camera and microphone
- Fanless Passive Heatpipe Cooling
- SD Card Reader
- Flexible stand and VESA mounting option
SPECIFICATIONS:
| DIMENSIONS | 391 × 327 × 42mm |
| WEIGHT | 4.2kg |
| CPU | Intel 5205U Celeron |
| RAM | Up to 2× DDR4. Max. 64GB |
| STORAGE | 1× 2.5” Hard Drive Bay, 1× M.2-2280 M-Key |
| GPU | Intel UHD Graphics |
| VIDEO PORTS | Triple Display via 1× HDMI 1.4b, 1× VGA and Integrated Display Simultaneously |
| LAN/WIRELESS | Gigabit LAN and Wireless 802.11ac |
| USB PORTS | 4× USB3.2 and 2× USB2.0 |
| IO | BT4.2 |
| AUDIO | 2× 2W Speakers, Line-Out and Mic-In |
| KENSINGTON | Yes |
| POWER | 19V 3.42A, 65W AC Adapter |
Additional information
| Weight | 4.93 kg |
|---|---|
| Dimensions | 45.7 × 42 × 12.9 cm |
