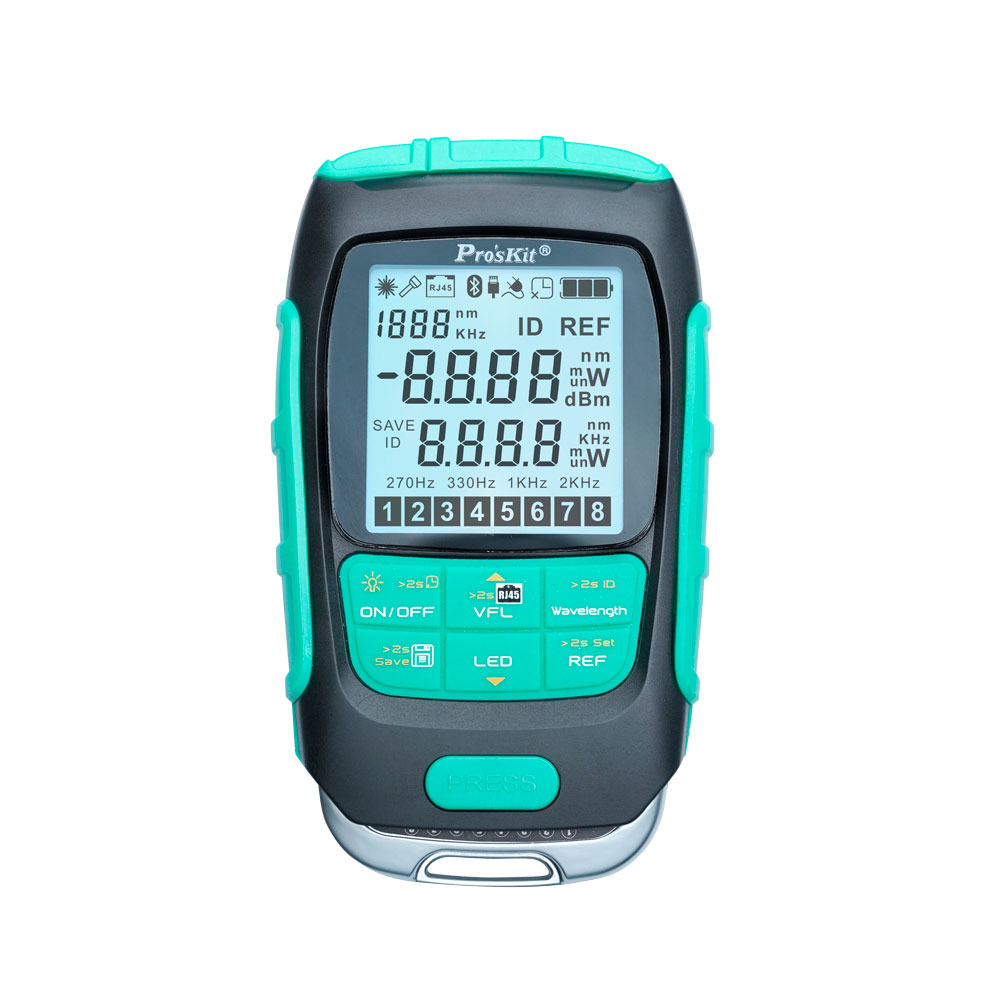

PROSKIT MT-7616 | 4-IN-1 FIBRE OPTICAL POWER MULTIMETER, INCLUDING POWER METER, LAN CABLE TESTER, VISUAL FAULT LOCATOR AND LED FLASHLIGHT
FEATURES:
- 4-in-1, 30mW Output
- Self Calibration
- Rechargeable Li-ion Battery
- 500× Data Storage Groups
- Cable Tester
ProsKit MT-7616 | 4-in-1 Fibre Optical Power Multimeter, including Power Meter, LAN Cable Tester, Visual Fault Locator and LED Flashlight
FEATURES:
- 4-in-1, 30mW Output
- Self Calibration
- Rechargeable Li-ion Battery
- 500× Data Storage Groups
- Cable Tester
| Power Meter | Supports 10× wavelengths: 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 /1650nm |
| Measurement units: dB, dBm, nW, mW and uW | |
| Other Functions: Wave ID Function, Wavelength Memory, Self-Calibration and REF Value Setting | |
| LAN Cable Tester | Pin-to-Pin Cable Map Indicator |
| 600m Max. Measuring Length | |
| Visual Fault Locator | Easy to Locate the Breakpoint and Bad Connections in Fibre Optic Cables |
| Both Continuous and Flashing Modes Available | |
| LED Flashlight | Supports Extra Illumination in Dark Working Conditions |
| Other Functions | 15mW Power Output |
| Equipped with a 3.7V 450mAh Li-Ion Battery, Working Hours >50 Hours (OPM Only) | |
| Micro USB Recharging | |
| Supports 500× Data Storage Groups |
SPECIFICATIONS:
| Detector Type | InGaAs |
| Wavelength Response Range | 700~1700nm |
| OPM Connector | 2.5mm Universal Connector |
| Measurement Wavelengths | 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm |
| Measurement Range | -70~+10dB |
| Resolution | 0.01dB |
| Accuracy | 1550, 1310nm 0.2dB |
| 1490nm, 1625nm, 1650nm 0.3dB | |
| 850nm, 980nm, 1300nm 0.4dB | |
| Unit | dB, dBm, mW, uW, nW |
| Modulation Detection | 270 / 1k / 2kHz |
| Data Storage | 500× Groups |
| Wavelength Memory | Yes |
| WAVE ID | Yes (Only for ProsKit Light Source Products) |
| User Self-Calibration | Yes |
| REF | Yes |
| Back Light | Yes |
| Output Power | 30mW |
| Testing Distance | 14~16km @SM |
| VFL Connector | 2.5mm Universal Connector |
| Wavelength | 650 ±20nm |
| Operation Mode | CW / 2Hz Glint |
| Network Application | UTP Network Cable |
| Interface | RJ45 (UTP 8P8C) |
| Testing Type | Network Sequence |
| Testing Distance | 600m |
| Illumination | LED |
| Auto Power-Off | Yes (No Operation for 10-Minutes) |
| Low Battery Indicator | Yes |
| Charging Socket | Micro USB |
| Working Time | >50 hours (OPM Only) |
| Power Source | 3.7V 450mAh |
| Li-Ion | |
| Operation Temperature | -10~50°C |
| <90% RH | |
| Dimensions (L × W × H) | 98 × 59 × 27mm |
| Weight | 100g |
