PROSKIT MT-7615 | 4-IN-1 FIBRE OPTICAL POWER MULTIMETER

FEATURES:

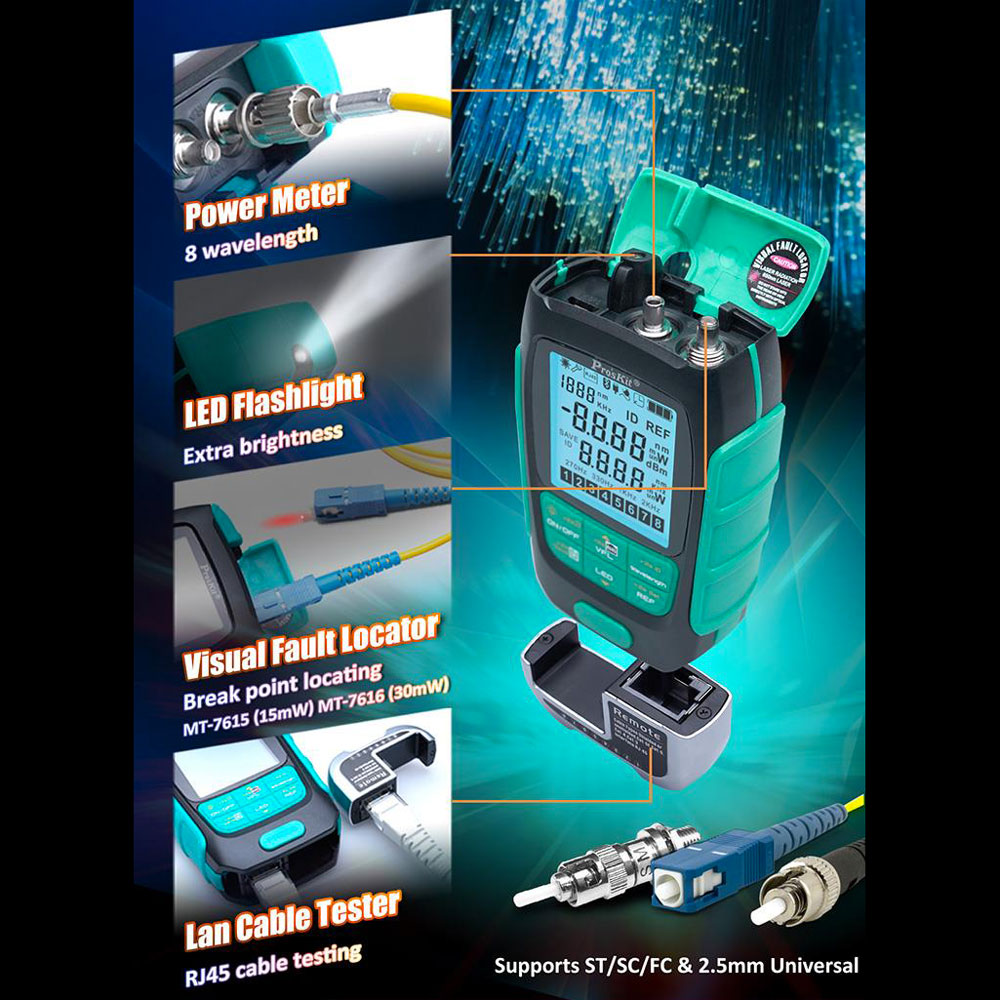

  • 4-in-1: Power Meter, Visual Fault Finder, LAN Cable Tester and LED Flashlight
  • 15mW Output
  • Self Calibration
  • Rechargeable Li-ion Battery
  • 500 Data Storage
SKU: NET-MT-7615 Category: Tags: , , , , , Brand:

ProsKit MT-7615 | 4-in-1 Fibre Optical Power Multimeter

FEATURES:

  • 4-in-1: Power Meter, Visual Fault Finder, LAN Cable Tester and LED Flashlight
  • 15mW Output
  • Self Calibration
  • Rechargeable Li-ion Battery
  • 500 Data Storage

SPECIFICATIONS:

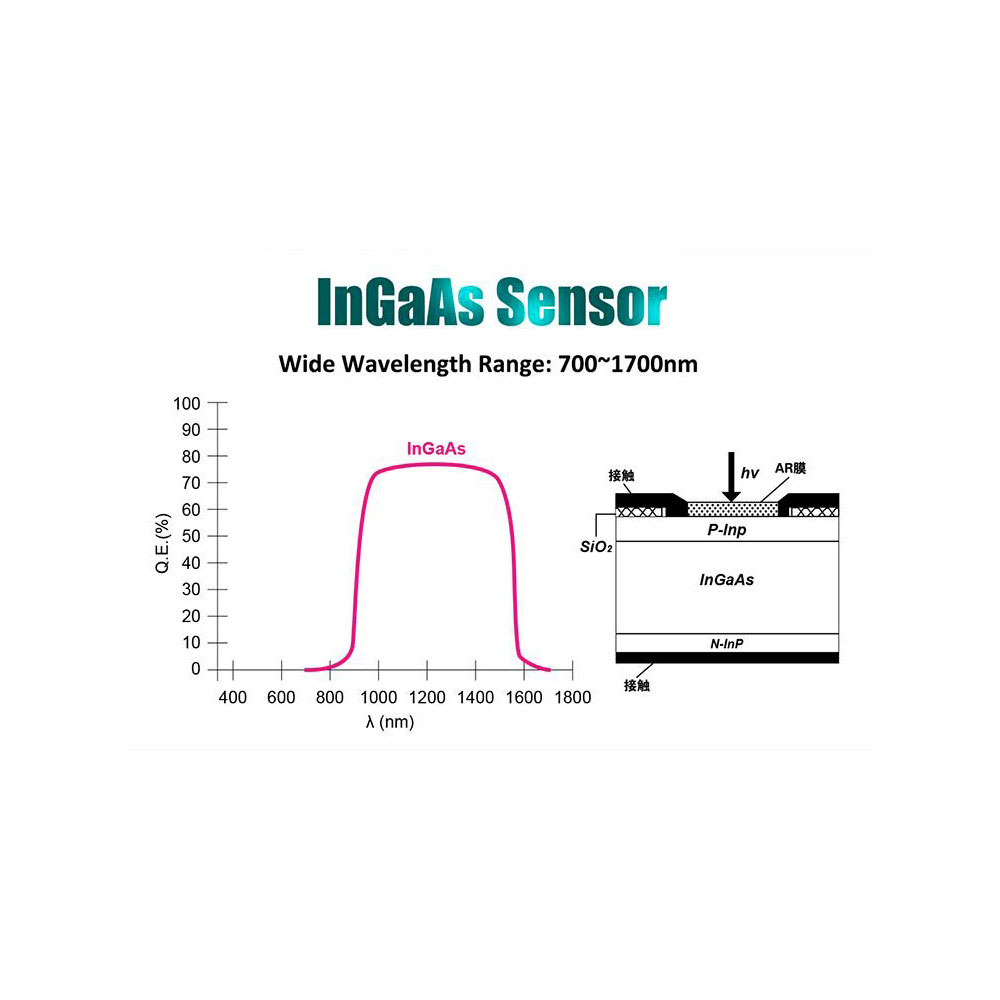

Detector Type InGaAs
Wavelength Response Range 700-1700nm
Optical Connector 2.5mm Universal
Measurement Wavelengths 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm
Measurement Range -70~+10dB
Resolution 0.01dB
Accuracy ±0.2dB (1310/1550nm)
±0.3dB (850/980/1300/1490/1625/1650nm)
±1dB (1270/1577nm)
Power Display Units dB, dBm, mW, uW, nW
Modulation Detection 270/1k/2kHz
Data Storage 500 Groups
Wavelength Memory Yes
Wavelength ID Yes (Only for ProsKit Light Source Products)
User Self-Calibration Yes
REF Value Yes
Back Light Yes
Output Power 15mW
VFL Testing Distance 10~12km @Single Mode
VFL Wavelength 650 ±20nm
Operation Mode CW/2Hz Glint

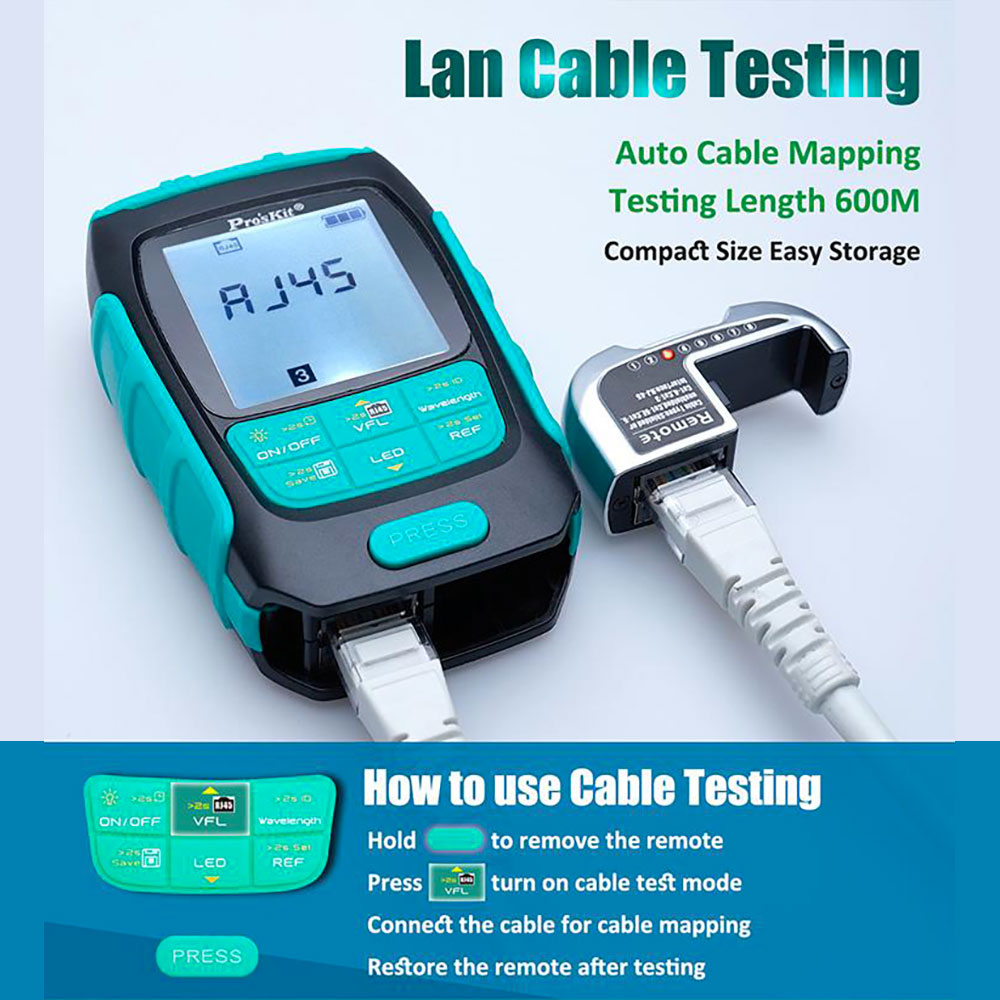

LAN Cable UTP Network Cable
Interface RJ45 (UTP/8P8C)
Cable Mapping Yes
Testing Type Network Sequence
Testing Distance 600m

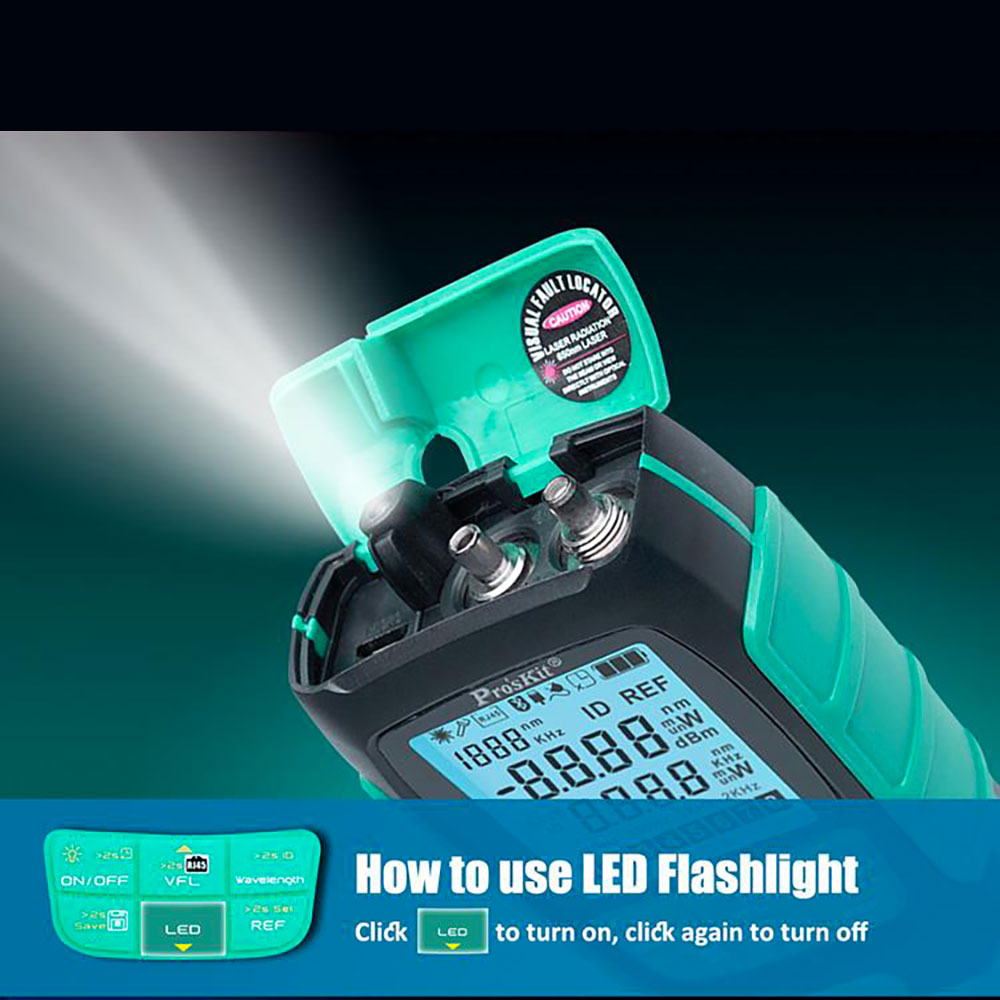

Illumination LED
Auto Power-Off Yes (No Operation for 10 Minutes)
Low Battery Indication Yes
Charging Port Micro USB
Working Hours >50 hours (Only OPM)
Power Source 3.7V 450mAh Li-ion
Working Environment -10~50°C <90% RH

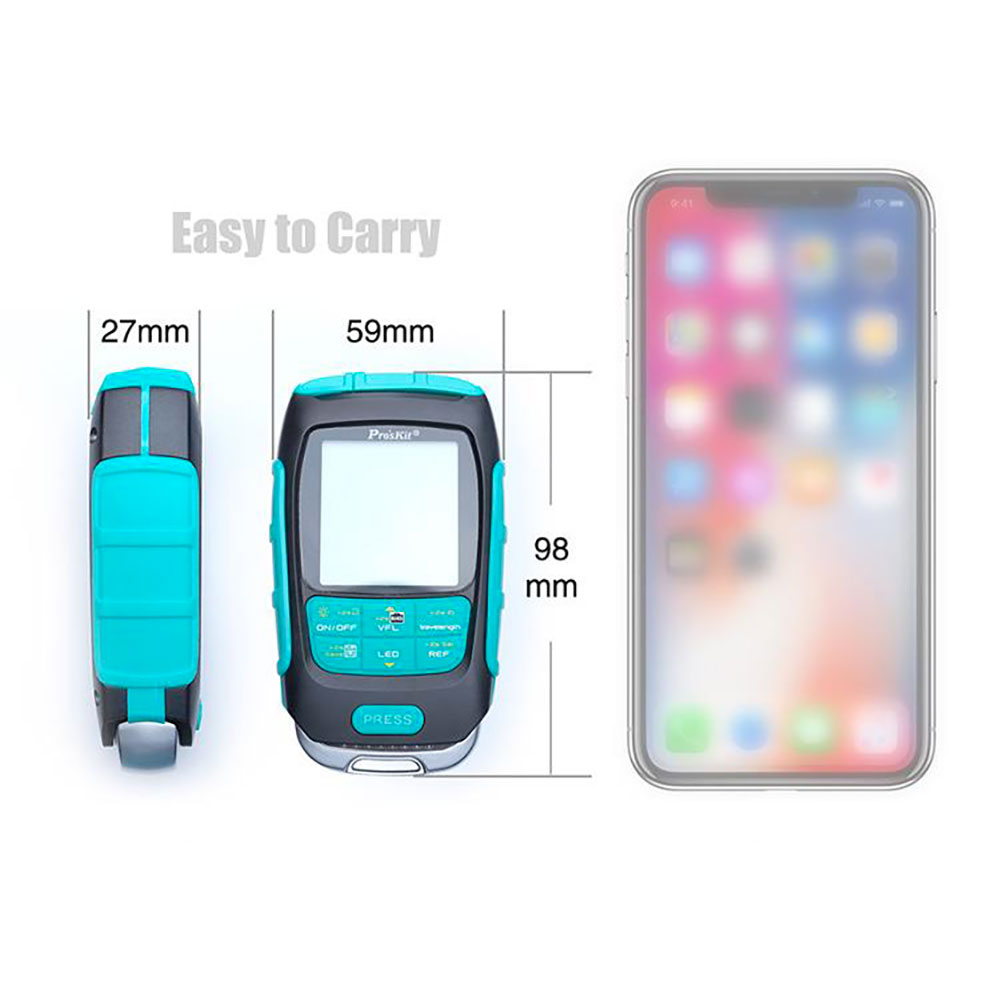

Dimensions 98 × 59 × 27mm
Weight 100g

Additional information

Weight 0.14 kg
Dimensions 10.3 × 8.9 × 3.2 cm
