PROSKIT POE (UP TO DC 48V) NOISE-FILTERING TONE AND PROBE KIT
FEATURES:
- Strong Anti-Noise Capability
- PoE Switches & STP Wire Tracing
- Port Locator with Flashing Signal
- Single-way Plug Crimping Quality Test
- Cable Mapping and Status Indication 300m
ProsKit MT-7029N | Noise-Filtering Network PoE (UP TO DC 60V) Toner and Probe Kit
FEATURES:
- Strong Anti-Noise Capability
- PoE Switches & STP Wire Tracing
- Port Locator with Flashing Signal
- Single-way Plug Crimping Quality Test
- Cable Mapping and Status Indication 300m

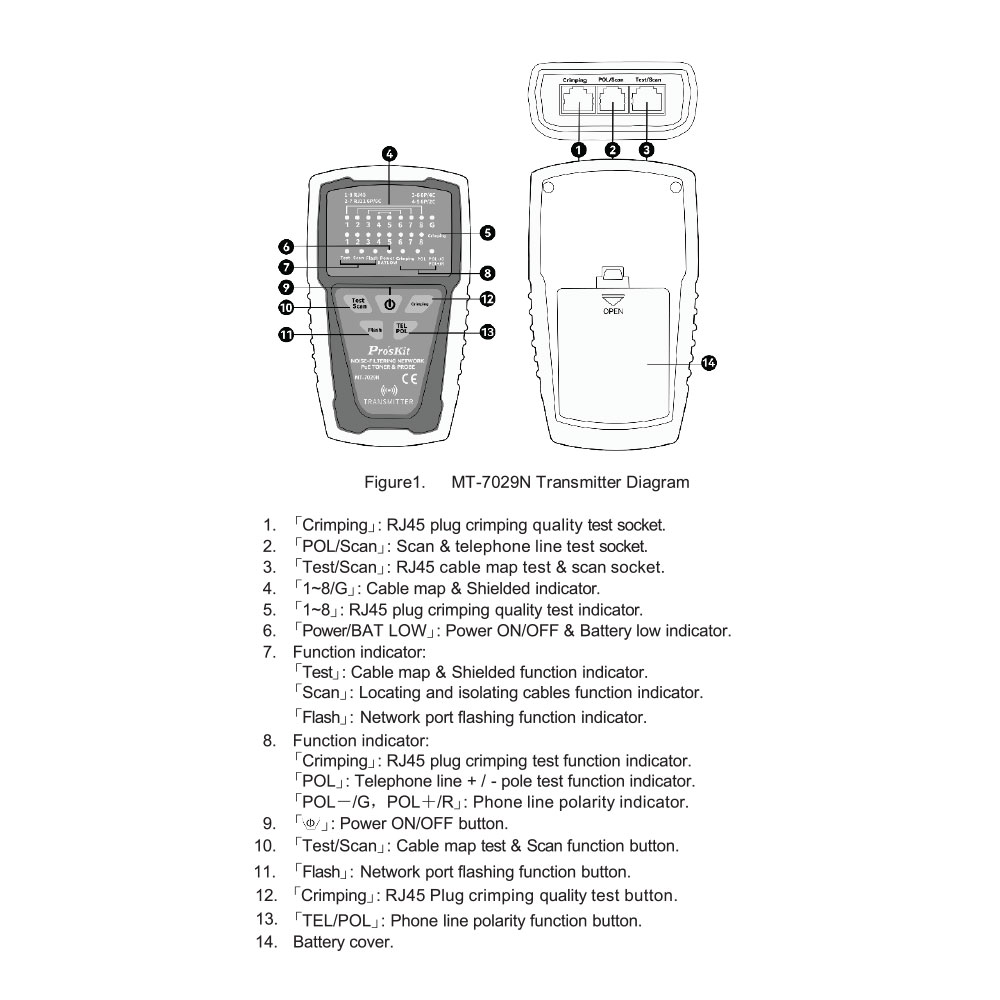

SPECIFICATIONS:
| MT-7029N Transmitter Specifications | |
| Wire Tracing | RJ45 Lan Cable Cat5, 5e, 6, 7 (UTP/STP), RJ11/12 Telephone Cable |
| Voltage 8Vp-p | |
| Frequency 455KHz | |
| Tracing Distance 600m | |
| Cable Mapping | RJ45 Test/Scan Socket for RJ45, RJ11/RJ12 Locating Individual Wire Pairs |
| 8+1 LED Indicators | |
| Test Distance max. 300m | |
| Crimping Test | For RJ45, RJ11/RJ12 Plug |
| 8× LED Indicators | |
| Port Flash | 1× LED Indicator |
| Telephone Line POL +/- | 1× Dual Colour LED: POL-CGreen/ POL+CRed |
| Auto Power Off | 1-Hour |
| Low Battery Indication | About 7V, Power Indicator will Flash |
| Voltage Protection | DC 60V |
| Battery | 1× 9V |
| Working Current | Tracing/Cable Map/Crimping <35mA, Port Flash <110mA |

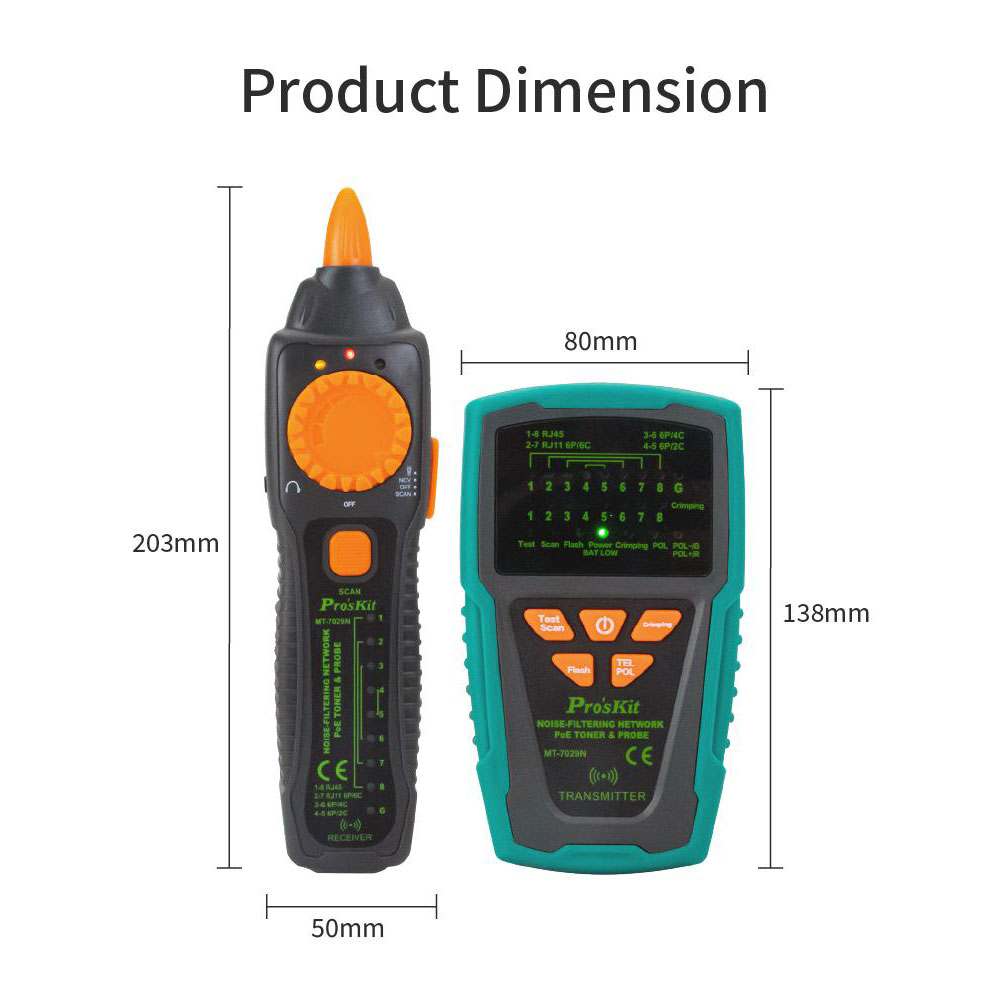

| Dimensions (L × W × H) | 138 × 80 × 35mm |
| Weight | 142g |
| MT-7029N Receiver Specifications | |
| Frequency | 455KHz |
| Tracing Indication | 1× LED Indicator and Speaker |
| Cable Mapping | RJ45 Socket |
| Cable Map Indication | 8+1 LED Indicators |
| NCV | 1× LED Indicator and Speaker (AC 90-1000V) |
| Earphone | 3.5mm Socket |
| Lighting | 1× LED |
| Low Battery Indication | About 7V, Power Indicator will Flash |
| Battery | 1× 9V |
| Working Current | Tracing <200mA, Lighting <50mA |
| Dimensions (L × W × H) | 203 × 50 × 32mm |
| Weight | 95g |

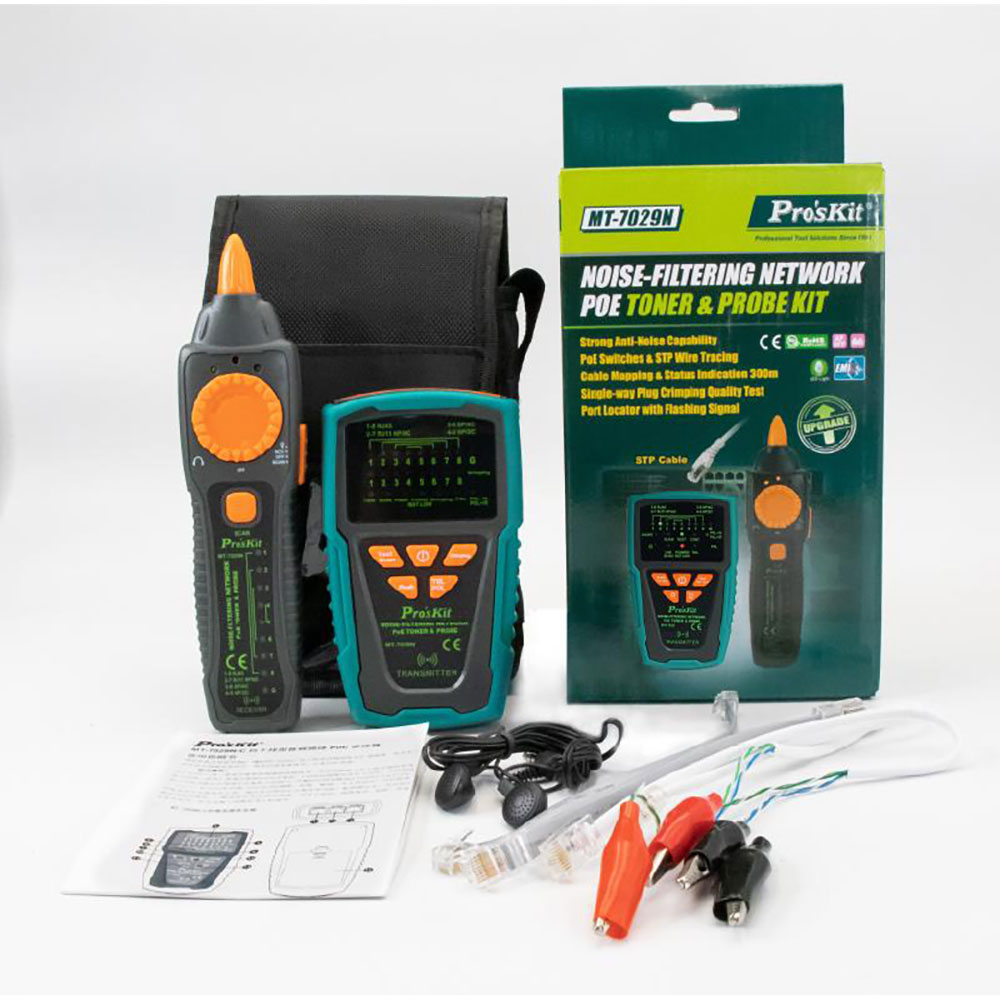

| Accessories | 2× RJ45 Cable Patch Cords, 2× RJ11 Cable Patch Cords, 1× RJ11 to Alligator Clips Patch Cord, 1× Earphone, Storage Bag, User Manual |
Additional information
| Weight | 0.47 kg |
|---|---|
| Dimensions | 26.5 × 13 × 8 cm |
