MERCUSYS MS105GP/MS108GP | GIGABIT DESKTOP SWITCH WITH 4/7-PORT POE+

Available in a 5-Port and 8-Port

FEATURES:



  • Full Gigabit Ports:  5/8× 10/100/1000Mbps RJ45 ports (Model Dependant)
  • Two Cables in One:  With four/seven PoE+ ports, transfers data and power on one single cable
  • High Power PoE+:  Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
  • Long-Range up to 250m:  Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps)

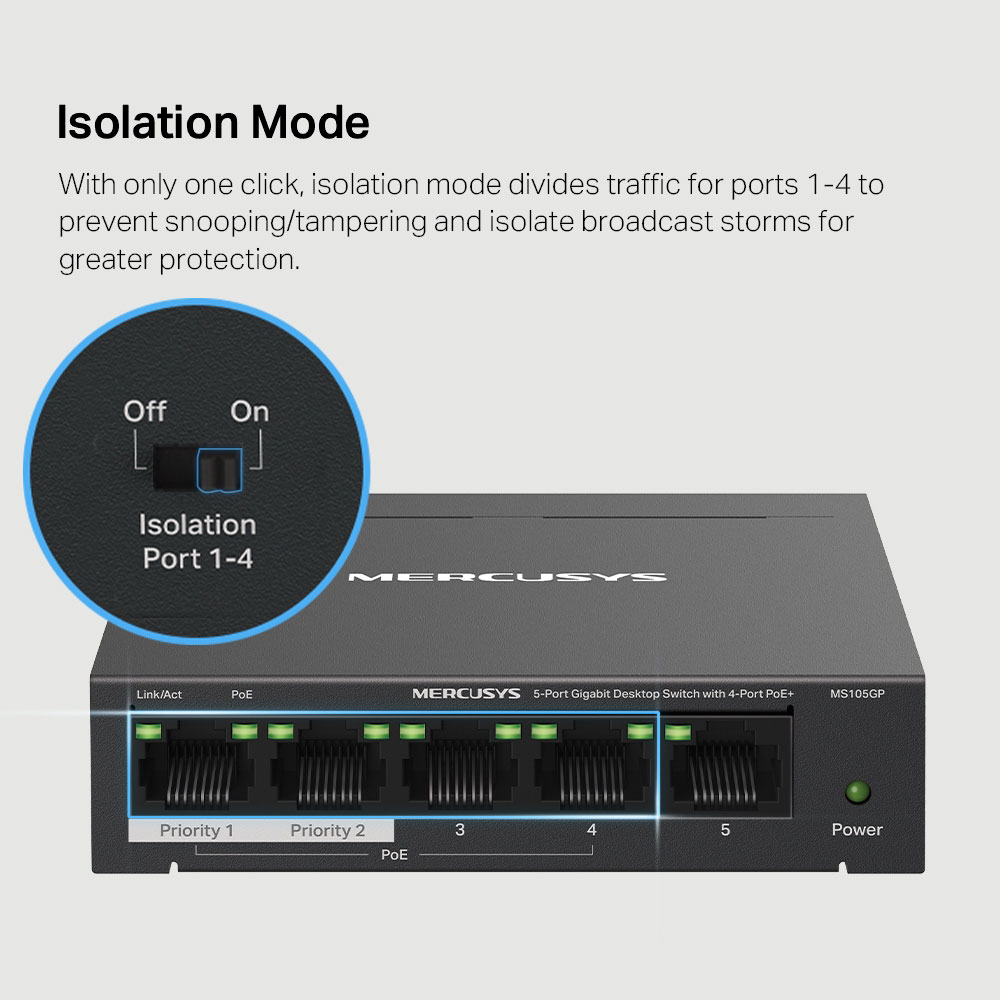

  • Isolation Mode:  One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices:  Works with IEEE 802.3af/at compliant PDs
  • Durable Metal Casing:  Allows for efficient heat dissipation and long network life
  • Plug and Play:  Simple to use and saves time and effort
SKU: N/A Categories: , , , Tags: , , , , , , , , , , , , , ,

MERCUSYS MS105GP/MS108GP | Gigabit Desktop Switch with 4/7-Port PoE+

Available in a 5-Port and 8-Port

Long-Range up to 250m | Silent Operation | 65W PoE Budget

FEATURES:

  • Full Gigabit Ports:  5/8× 10/100/1000Mbps RJ45 ports (Model Dependent)
  • Two Cables in One:  With four/seven PoE+ ports, transfers data and power on one single cable
  • High Power PoE+:  Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
  • Long-Range up to 250m:  Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps)
  • Isolation Mode:  One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices:  Works with IEEE 802.3af/at compliant PDs
  • Durable Metal Casing:  Allows for efficient heat dissipation and long network life
  • Plug and Play:  Simple to use and saves time and effort

SPECIFICATIONS:



MS105GP MS108GP
5-Port Gigabit Desktop Switch with 4-Port PoE+ 8-Port Gigabit Desktop Switch with 7-Port PoE+
Dimensions (W × D × H)
99.8 × 98 × 25mm
171 × 98 × 27mm
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4 PoE Ports: Port 1- Port 7
PoE Power Budget: 65W
External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Installation
Desktop
Wall Mount
Standards and Protocols
IEEE 802.3x Flow Control
Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex
Jumbo Frame
9KB
 15KB
Mac Address Table
2K
8K
Max Power Consumption
3.13W (220V / 50Hz, no PD connected)
5.07W (220V / 50Hz, no PD connected)
75.15W (220V / 50 Hz, with 65W PD connected) 77.33W (220V / 50 Hz, with 65W PD connected)
Max Heat Dissipation
10.64 BTH/h (no PD connected)
17.238 BTH/h (no PD connected)
255.51 BTH/h (with 65W PD connected) 262.922 BTH/h (with 65W PD connected)
Package Contents
5-Port Gigabit Desktop Switch with 4-Port PoE+
8-Port Gigabit Desktop Switch with 7-Port PoE+
Power Adapter
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
