MERCUSYS HALO H60X | AX1500 WHOLE HOME MESH WI-FI 6 SYSTEM
FEATURES:
- Dual-Band Wi-Fi 6 Speeds up to 1500Mbps – 1201Mbps on 5.0GHz and 300Mbps on 2.4GHz
- Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified Wi-Fi name and password
- Connect over 100 Devices – Provide fast and stable connections to over 100 devices
- Easily Manage Your Home Network – Use the Mercusys App to quickly set up and manage your Wi-Fi. You can also manage your kids’ online time and contents
- Full Gigabit Ports – Gigabit ports for lightning-fast wired connections
- Whole Home Coverage – With high-speed Wi-Fi, eliminating Wi-Fi dead zones at your home
- 2-Pack Blanket up to 350m²
- 3-Pack Blanket up to 550m²
* Please note that the Halo H series and S series cannot work together
Mercusys Halo H60X | AX1500 Whole Home Mesh Wi-Fi 6 System

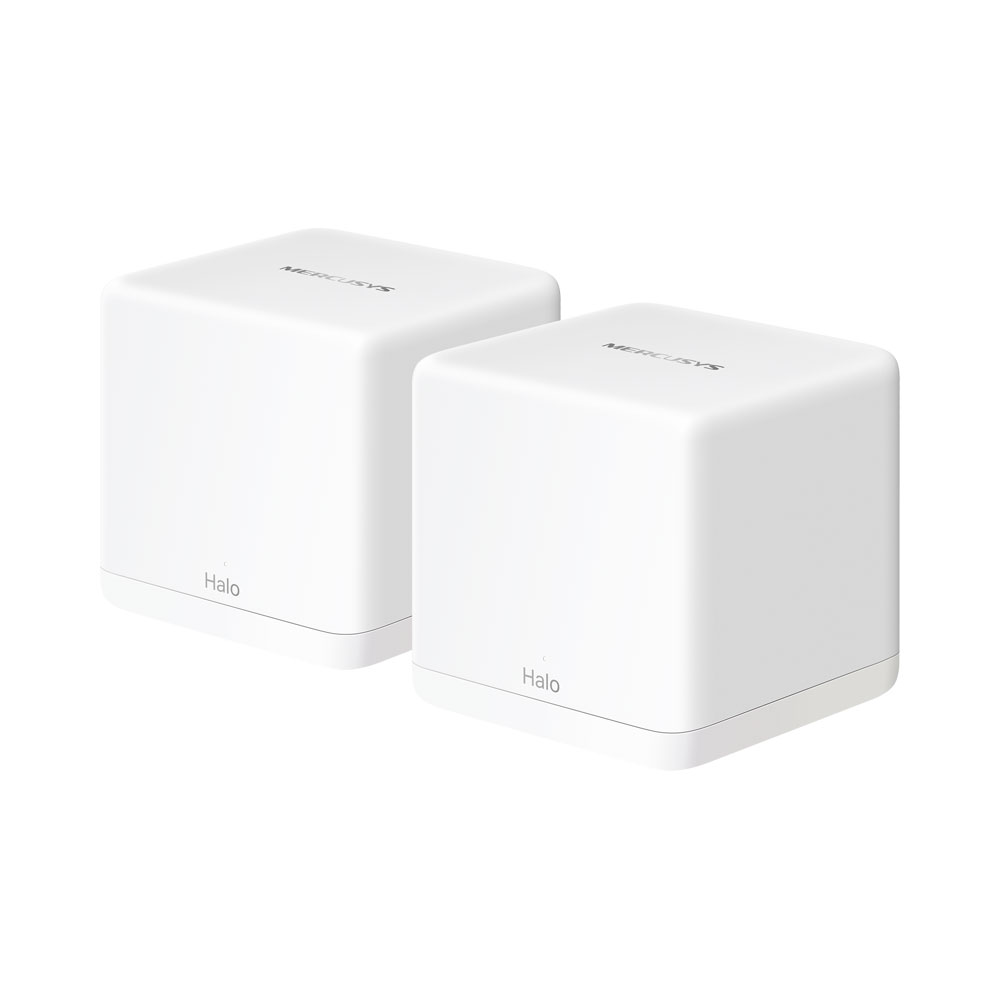

Available in a 2 or 3-Pack
Fill Your Home with Fast Mesh Wi-Fi
FEATURES:
- Dual-Band Wi-Fi 6 Speeds up to 1500Mbps - 1201Mbps on 5.0GHz and 300Mbps on 2.4GHz
- Seamless Roaming with One Unified Network - Halo units work together to automatically switch between Halos as you move around your home with a single unified Wi-Fi name and password
- Connect over 100 Devices - Provide fast and stable connections to over 100 devices
- Easily Manage Your Home Network - Use the Mercusys App to quickly set up and manage your Wi-Fi. You can also manage your kids’ online time and contents
- Full Gigabit Ports - Gigabit ports for lightning-fast wired connections
- Whole Home Coverage - With high-speed Wi-Fi, eliminating Wi-Fi dead zones at your home
- 2-Pack Blanket up to 350m²
- 3-Pack Blanket up to 550m²
* Please note that the Halo H series and S series cannot work together
SPECIFICATIONS:
WIRELESS | |
Wireless Standards | Wi-Fi 6 |
IEEE 802.11ax/ac/n/a 5.0GHz | |
IEEE 802.11n/b/g 2.4GHz | |
Wi-Fi Speeds | 1201Mbps on 5.0GHz, 300Mbps on 2.4GHz |
Reception Sensitivity | 2.4GHz: |
11g 6Mbps: -96.5dBm | |
11g 54Mbps: -78dBm | |
5.0GHz: | |
11a 6Mbps: -96dBm | |
11a 54Mbps: -78dBm | |
11ac VHT20 MCS8: -74.5dBm | |
11ac VHT40 MCS9: -70.5dBm | |
11ac VHT80 MCS9: -66.5dBm | |
11ax HE20 MCS11: -66dBm | |
11ax HE40 MCS11: -63dBm | |
11ax HE80 MCS11: -61dBm | |
Transmission Power | 2.4GHz < 20dBm (EIRP) |
5.0GHz < 23dBm (EIRP) | |
Wireless Security | WPA-PSK/WPA2-PSK/WPA3 |
Mesh protocol | 802.11k/v/r |
HARDWARE | |
Dimensions | 88 × 88 × 88mm |

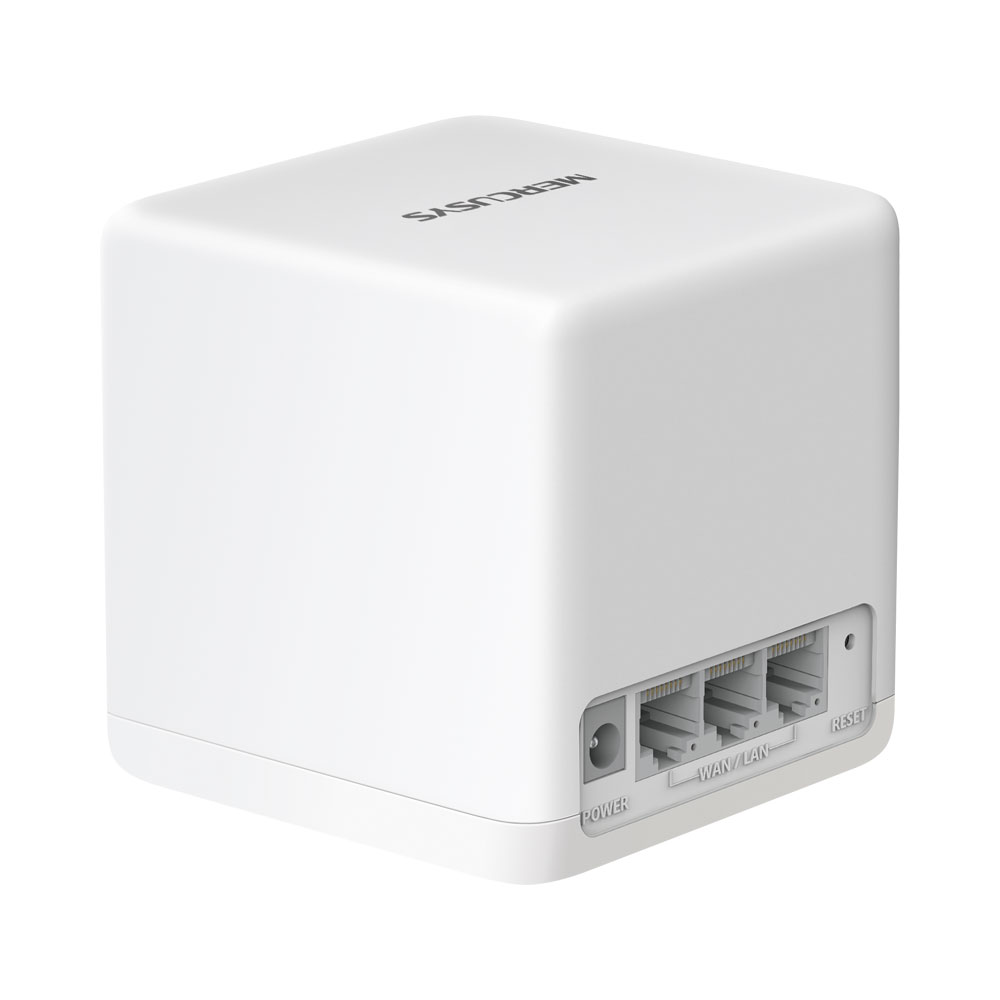

Interfaces | Halo H60XR: 3× Gigabit WAN/LAN Ports |

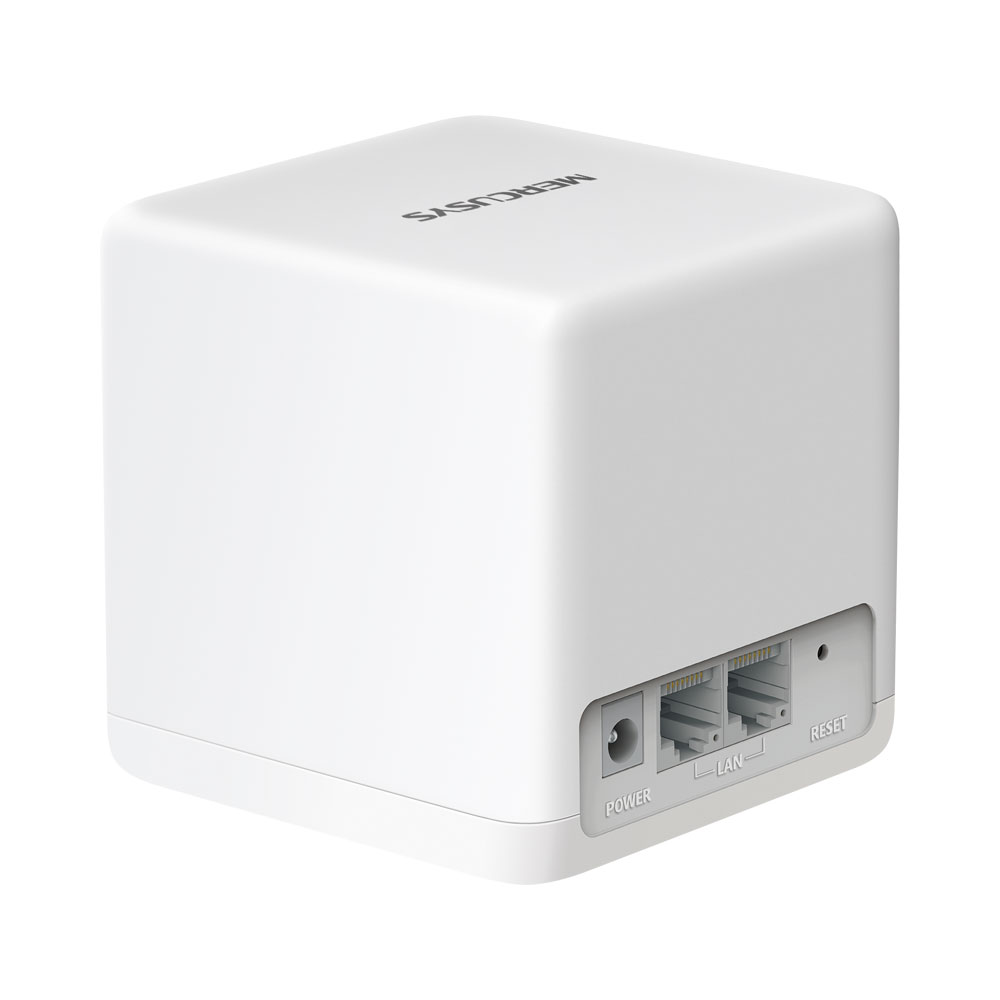

Halo H60XS: 2× Gigabit LAN Ports | |
Button | Reset button |
SOFTWARE | |
Operation Modes | Router, Access Point |
Quality of Service | WMM |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management | Local Management, Remote Management, Multi-Managers |
DHCP | Server, Client |
Firewall Security | SPI Firewall |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4GHz Guest Network |
5.0GHz Guest Network | |
OTHERS | |
Package Contents | 2-Pack |
1× Halo H60XR Unit plus 1× Halo H60XS Unit | |
1× RJ45 Ethernet Cable | |
2× Power Adapters | |
Quick Installation Guide | |
3-Pack | |
1× Halo H60XR Unit plus 2× Halo H60XS Units | |
1× RJ45 Ethernet Cable | |
3× Power Adapters | |
Quick Installation Guide | |
Environment | Operating Temperature: 0°C~40°C |
Operating Humidity: 10%~90% Non-Condensing | |
Storage Humidity: 5%~90% Non-Condensing |
