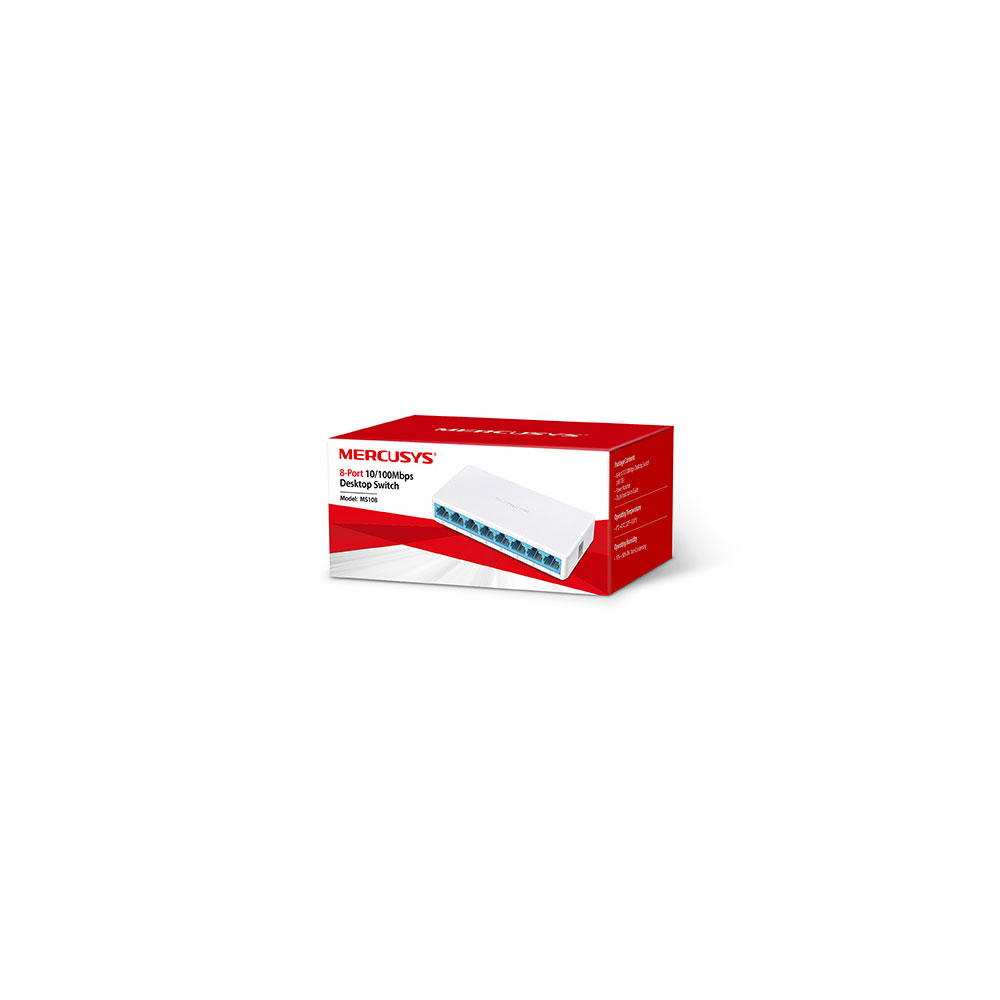

Mercusys 8-Port 10/100Mbps Desktop Switch (MS108)
- Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
Dimensions (W X D X H) | 127 x 60.3 x 22 mm |
External Power Supply | External power adapter |
(Output: 5.0VDC / 0.6A) | |
Interfaces | 8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX |
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
CSMA/CD | |
Fan Quantity | Fanless |
Data Rates | 10/100Mbps at half duplex |
20/200Mbps at full duplex | |
Buffer Capacity | 768Kb |
Jumbo Frame | 2KB |
Switching Capacity | 1.6Gbps |
LED | Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power |
Transfer Method | Store and forward |
Certifications | CE, RoHS |
Package Contents | 8-Port 10/100Mbps Desktop Switch |
MS108 | |
Power adapter | |
Quick installation guide |
