LINKQNET LPA63-466C | 32-70″ FULL-MOTION CORNER MOUNT BRACKET
FEATURES:
- Free-Tilting Design – makes easy forward or backward adjustments for better viewing and reduced glare
- Swiveling Arms – offer maximum viewing flexibility (makes every seat the best seat)
- Leveling Adjustments – allows the TV to be perfectly positioned after hanging

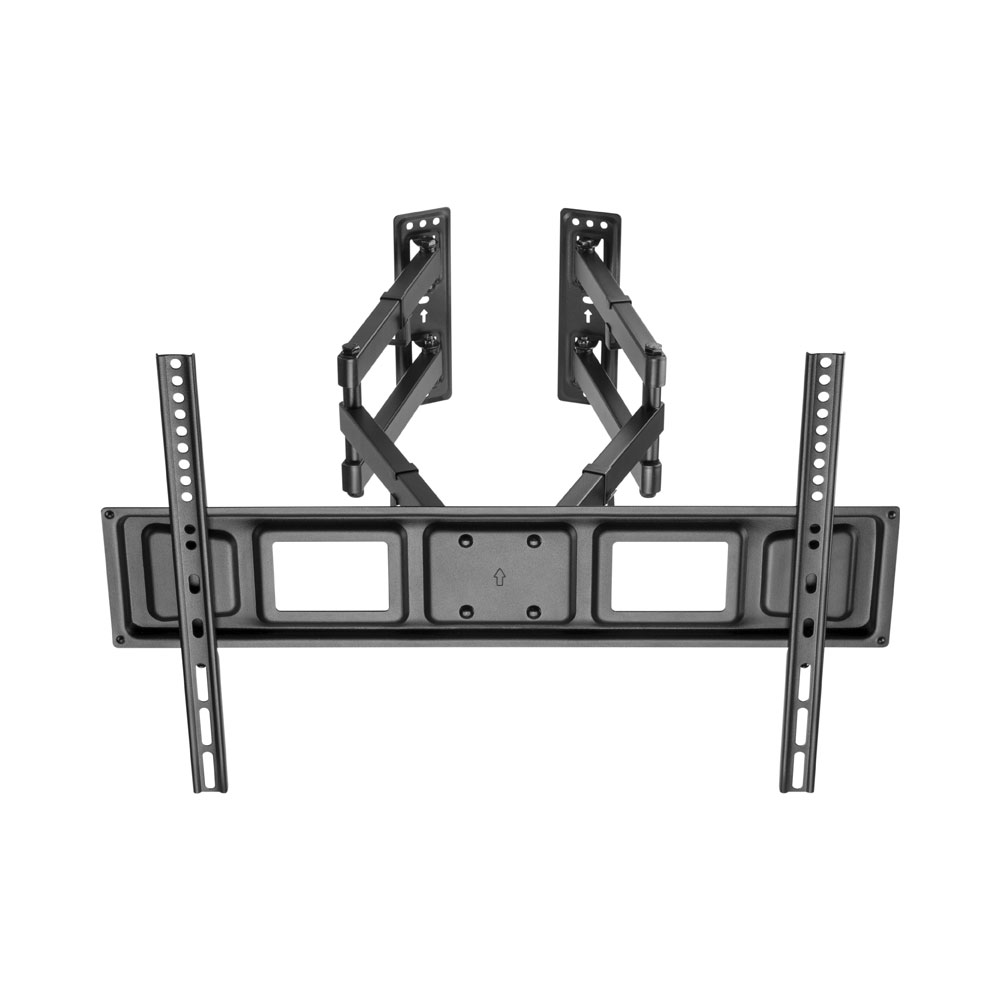

- Split Wall Plate – works on different angled corner walls and saves space (can also be installed on a flat wall)
- Cable Management – keeps everything organized
158 in stock
LinkQnet LPA63-466C | 32-70" Full-Motion Corner Mount Bracket

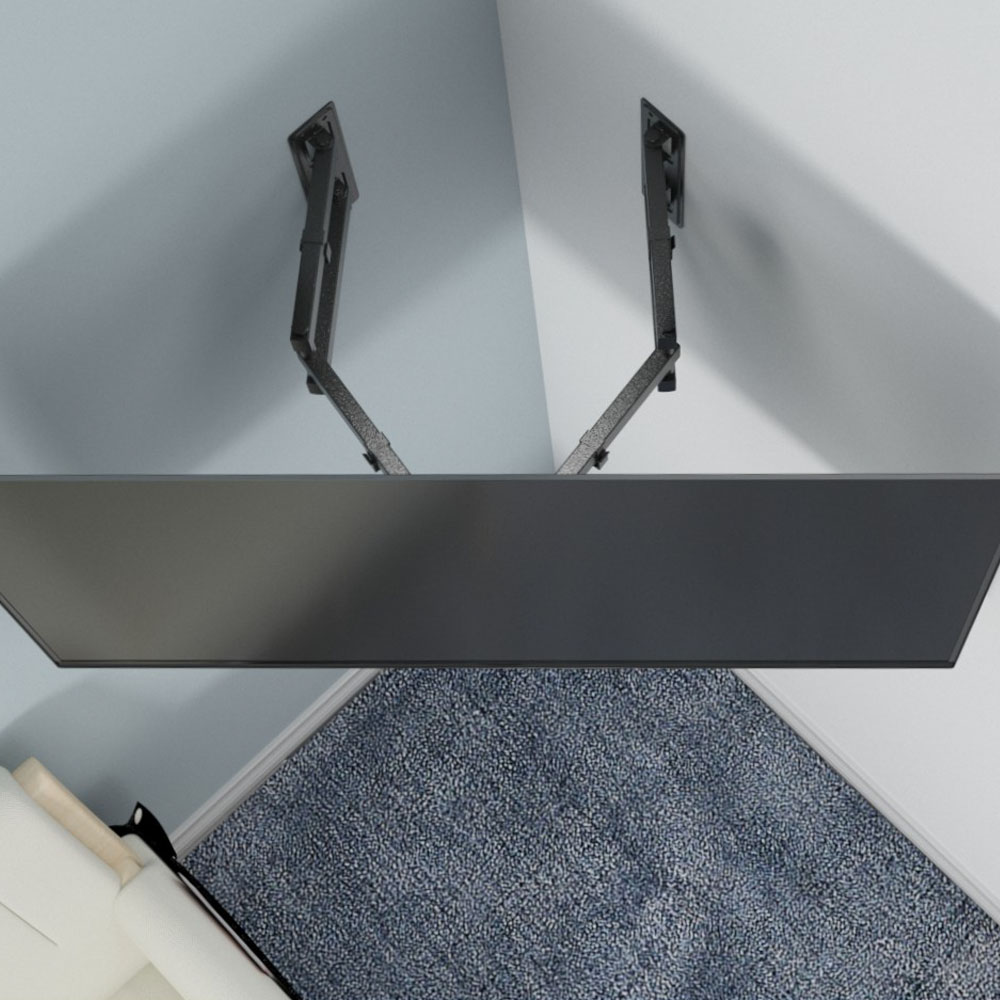

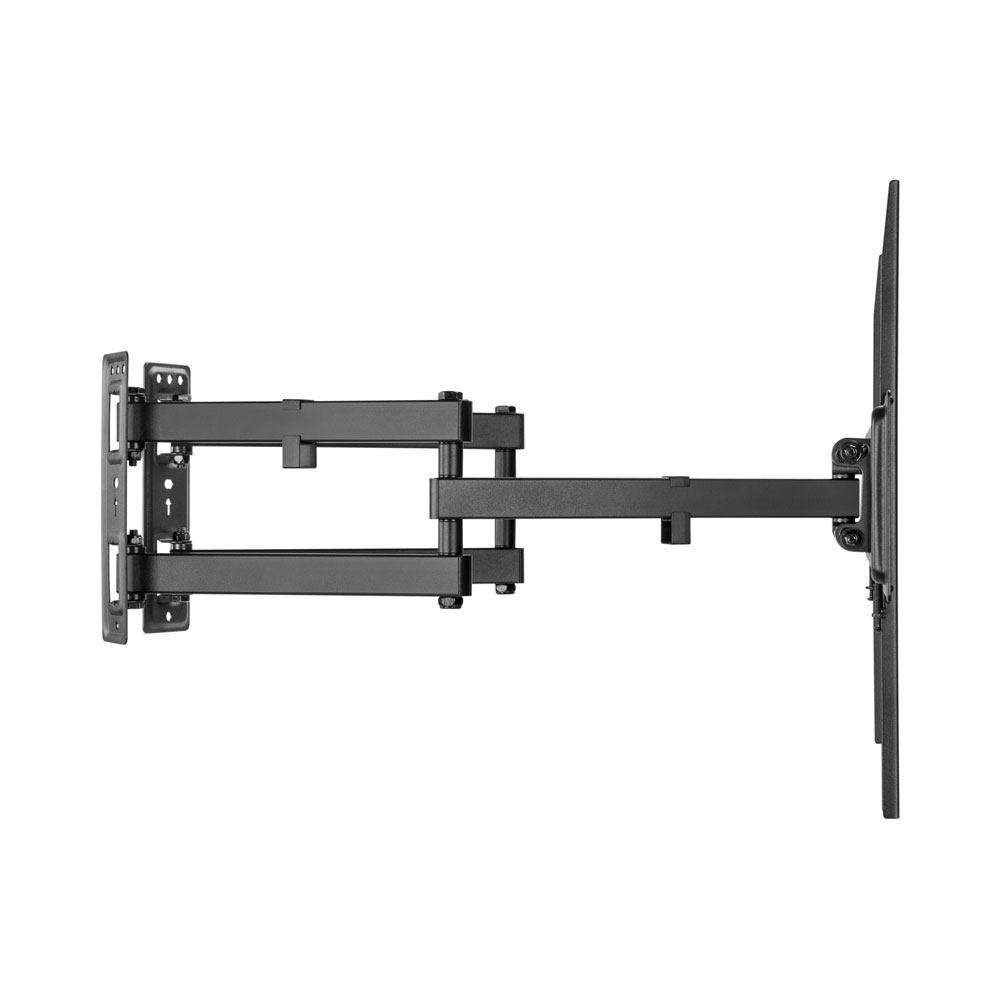

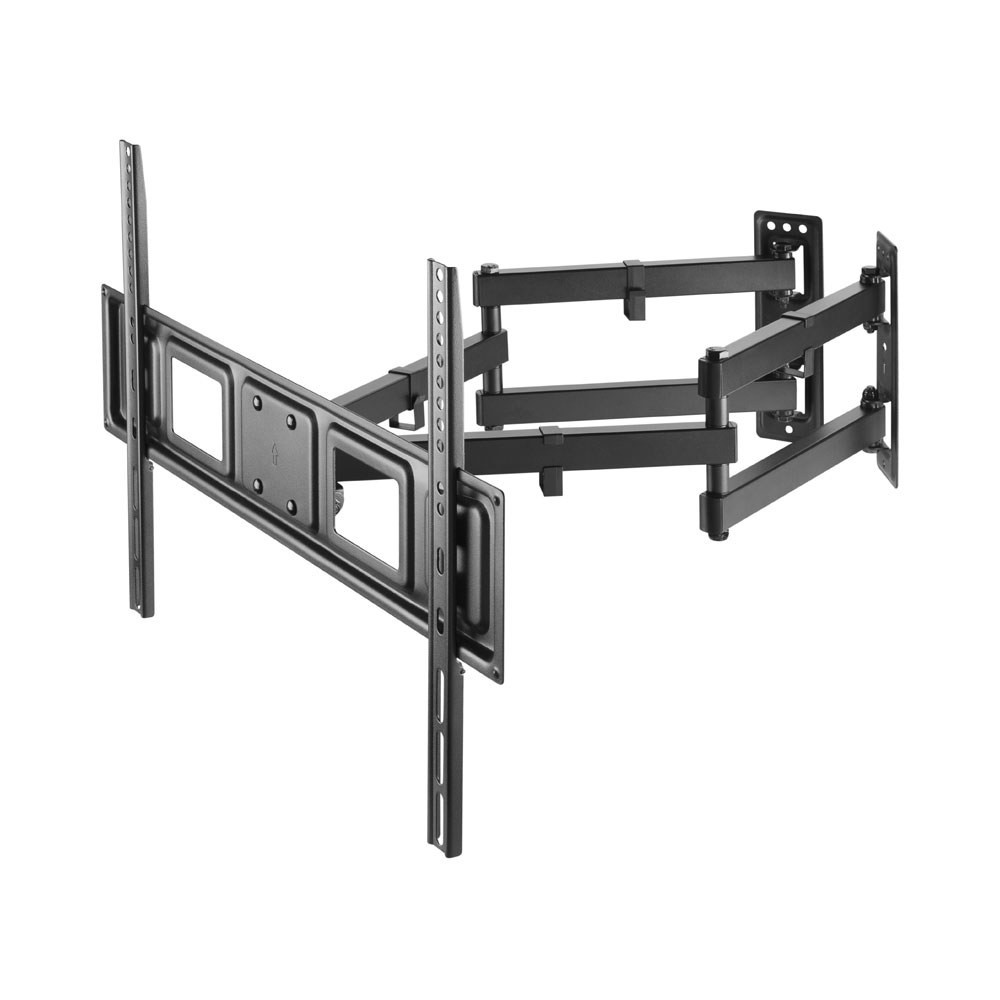

The LPA63-466C Full-Motion Corner TV Wall Mount fits most 32-70" TVs up to 45kg. With split arms, it can be installed easily on flat walls or the dead corner space. A full range of motion provides the user with wide viewing options and the ample swivel, tilt and extension ability positions the TV nearly anywhere. The +3°~-3° leveling adjustment ensures the TV is perfectly positioned. In addition, the integrated cable clips provide a clean and organized look.
FEATURES:
- Free-Tilting Design - makes easy forward or backward adjustments for better viewing and reduced glare
- Swiveling Arms - offer maximum viewing flexibility (makes every seat the best seat)
- Leveling Adjustments - allows the TV to be perfectly positioned after hanging
- Split Wall Plate - works on different angled corner walls and saves space (can also be installed on a flat wall)

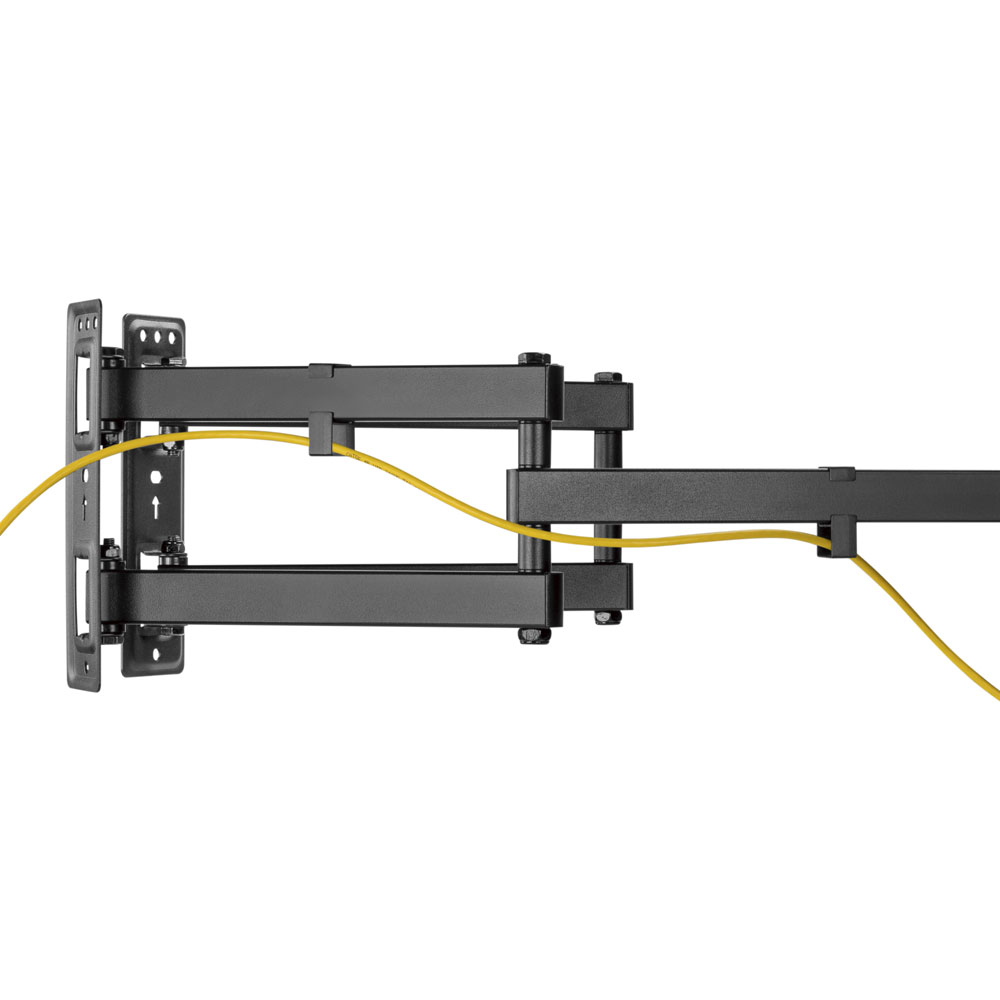

- Cable Management - keeps everything organized
SPECIFICATIONS:
| Material: | Steel and Plastic |
| Metal Sheet Thickness: | Bracket Arm THK = 1.5mm cold-rolled sheet |
| VESA Panel THK = 1.8mm cold-rolled sheet | |
| Wall Plate THK = 2mm cold-rolled sheet | |
| Pipe Size: | 30 × 20 × 1.5mm Square Steel Tube |
| Surface Finish: | Powder Coating |
| Colour: | Fine Texture Black |

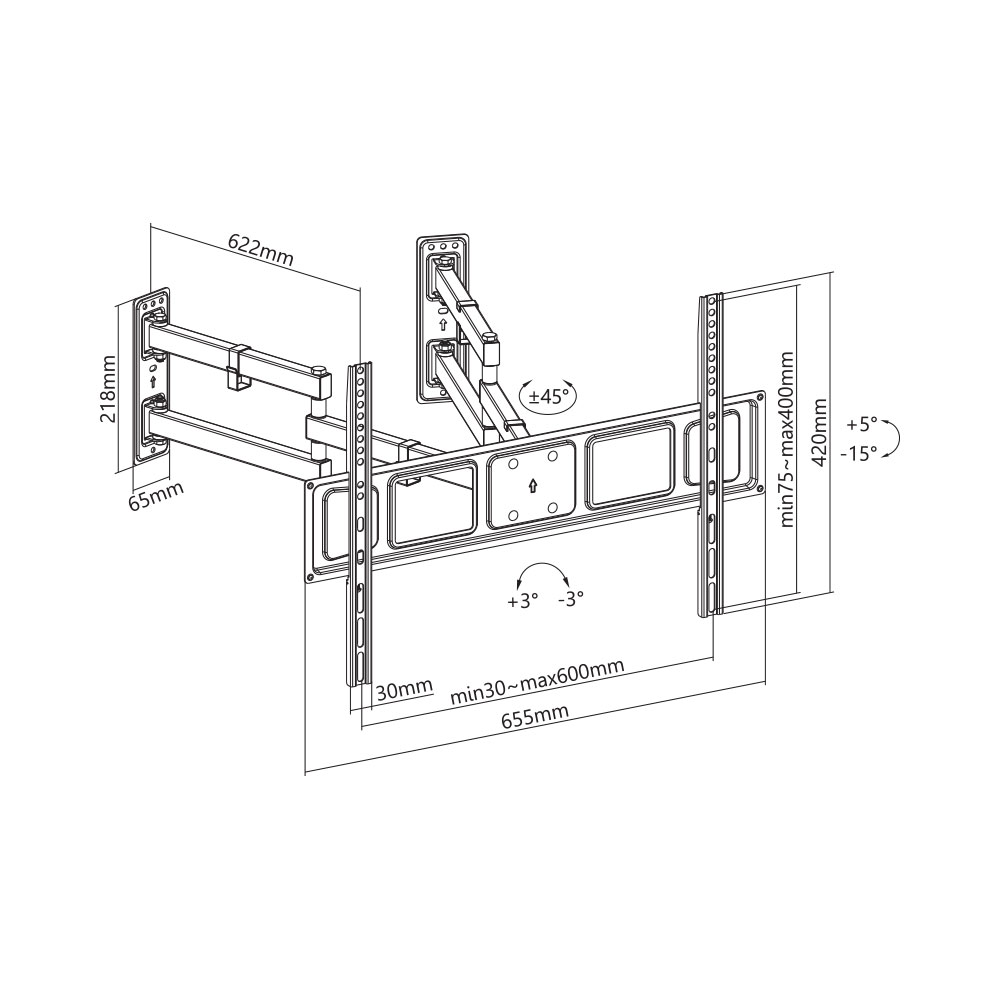

| Dimensions: | 655 × 420 × 622mm |
| Fit Screen Size: | 32-70" |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA and Universal |
| VESA Compatible: | 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400 |
| Max. Mounting Hole: | 600x400 |
| Weight Capacity: | 45kg |
| Tilt Range: | +5°~-15° |
| Swivel Range: | +45°~-45° |
| Screen Level: | +3°~-3° |
| Screen Free Tilting: | No |
| Installation: | Solid Wall, Double Stud (406mm / 450mm) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Direction Indicator: | Yes |
| Cable Management: | Yes |
| Anti-theft: | No |
| Bubble Level: | No |
