LINKQNET CAT6A STP EASY PASS PLUG AND TRANSPARENT STRAIN-RELIEF BOOT

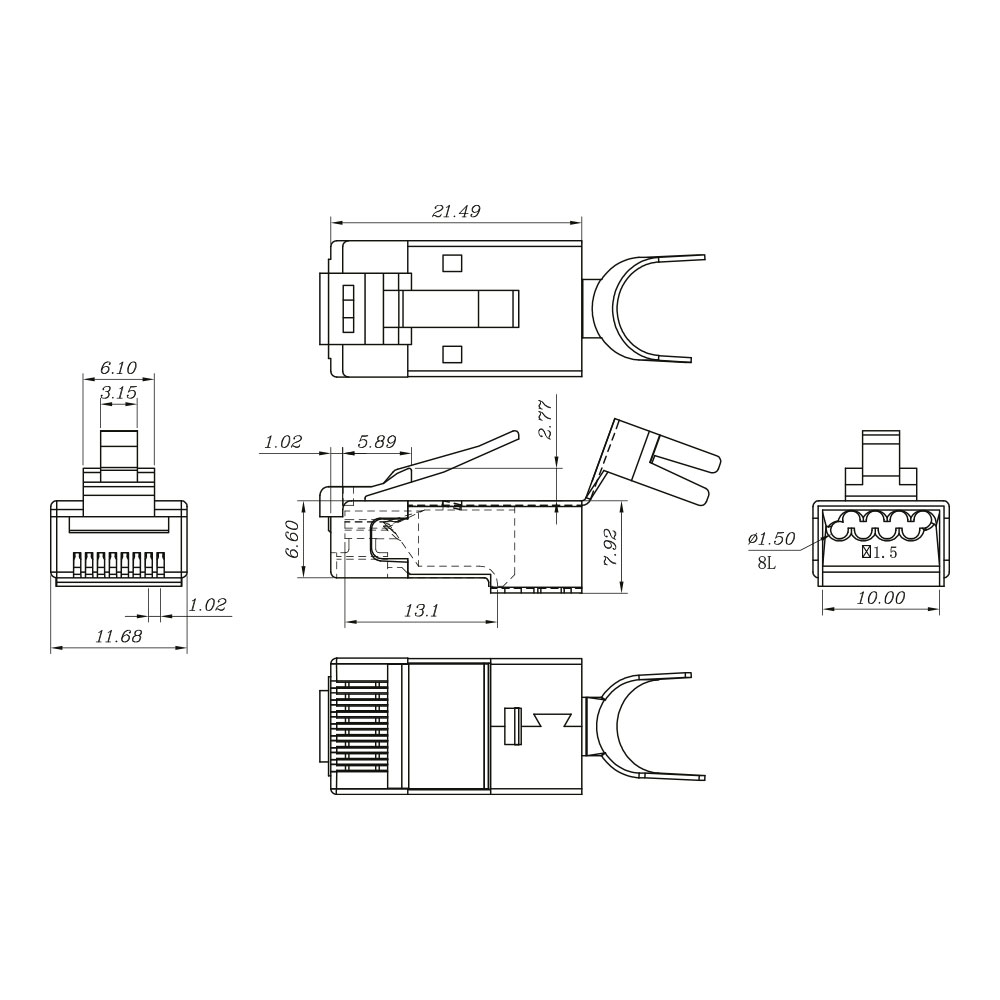

LINKQNET CAT6A STP EASY PASS PLUG AND TRANSPARENT STRAIN-RELIEF BOOT - Image 2
LINKQNET CAT6A STP EASY PASS PLUG AND TRANSPARENT STRAIN-RELIEF BOOT - Image 3
LINKQNET CAT6A STP EASY PASS PLUG AND TRANSPARENT STRAIN-RELIEF BOOT - Image 4

LINKQNET CAT6A STP EASY PASS PLUG AND TRANSPARENT STRAIN-RELIEF BOOT

POWER OVER ETHERNET (PoE):



Maximum Power from PSE 90W
Maximum Power at PD 71.3W
Number of Energized Pair 4
IEEE 802.3bt Type-4 Class-8
IEC 60512-99-002:2022
SKU: NET-CAT6A-BOOTCRIMP Categories: , , , , , Tags: , , , , , , , Brand:

LinkQnet CAT6A STP Easy Pass Plug and Transparent Strain-Relief Boot

This modular plug is well-designed to be terminated with a wide range of CAT6A stranded and solid cables.  The 1.5mm pass-through plug is compatible with 1.35mm to 1.45mm stranded and solid cable ODs.

POWER OVER ETHERNET (PoE):

Maximum Power from PSE 90W
Maximum Power at PD 71.3W
Number of Energized Pair 4
IEEE 802.3bt Type-4 Class-8
IEC 60512-99-002:2022



SPECIFICATIONS:

Contact Pins (Conductors) Material Copper-Alloy
Shielded Copper-Alloy
Gold Plating Thickness 50u"
Housing Material Polycarbonate
Housing UL 94-V2
Mating Cycles 1,200 Min.
Height of 8P8C Contact Pins 6.02mm ±0.13mm
Storage Temperature -40°C~70°C
Operating Temperature <35°C
Relative Humidity <70% RH
UL Applications 250V AC Max. @2A
Dielectric Withstanding Voltage 1000V AC in 60s
Insulation Resistance 500MΩ
Contact Resistance 20mΩ Max.
Two-Level Hole with Insert 4+4



COMPLIANT WITH INTERNATIONAL STANDARDS:



  • IEC 60512-99-002
  • IEEE 802.3bt Type-4 Class-8
  • ANSI/TIA-568.2-D
  • ISO/IEC 11801
  • IEC 60603-7-51
  • EN 50173-1
  • EN 50173-2
  • IEC 61935-2
  • ANSI/TIA-1096-A (Formerly FCC Part 68.5 Subpart F)

Additional information

Weight 0.01 kg
Dimensions 2 × 1 × 0.5 cm
