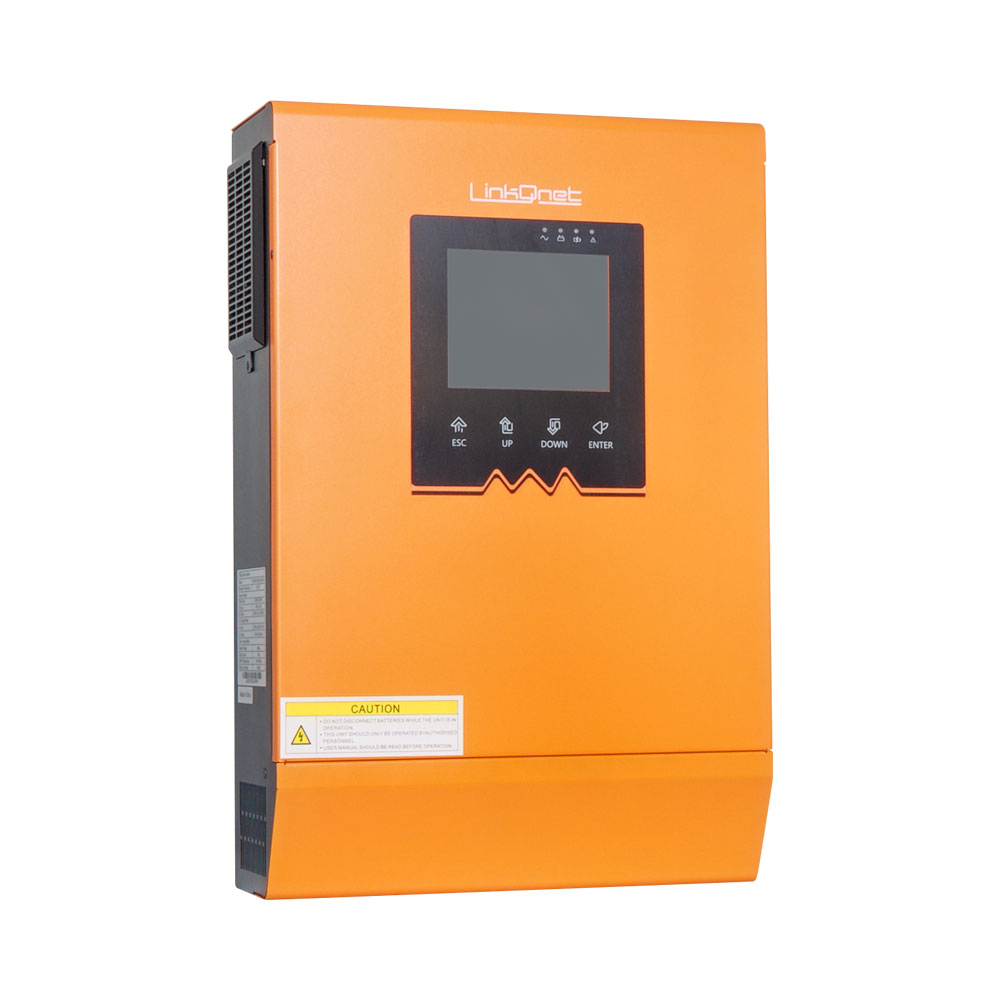

LINKQNET 3024TG2 PRO | 3KVA 24V PURE SINEWAVE OFF-GRID HYBRID INVERTER
SPECIFICATIONS:
| Peak Power | 3000VA |
| RMS Power | 3000W |
| AC Voltage | 230V |
| DC Voltage | 24V |
| Transfer Time | 10ms |
| AC Charge | 120A |
| SCC Type | MPPT |
| Ideal SCC Voltage | 120V – 430V DC |
| Max. PV OC Voltage | 500V DC |
| Max. SCC Power | 4000W |
| SCC Charge | 120A |
| Max. Combined Charge | 120A |
| Parallel Capable | No |
| Communication | USB, RS485, CAN, Dry Contact |
| Direct Bluetooth | No |
| Wi-Fi Option | Yes |
| 3G Option | No |
| SNMP Option | No |
| Battery Types | Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom |
| BMS Support | Yes |
| Warranty | Two Years – Conditional |
| Product Dimensions (H × W × D) | 310 × 467 × 116mm |
| Package Dimensions (H × W × D) | 570 × 375 × 200mm |
| Net Weight | 9.25kg |
| Gross Weight | 10.85kg |
38 in stock
LinkQnet 3024TG2 Pro | 3kVA 24V Pure Sinewave Off-Grid Hybrid Inverter
SPECIFICATIONS:
| Peak Power | 3000VA |
| RMS Power | 3000W |
| AC Voltage | 230V |
| DC Voltage | 24V |
| Transfer Time | 10ms |
| AC Charge | 120A |
| SCC Type | MPPT |
| Ideal SCC Voltage | 120V - 430V DC |
| Max. PV OC Voltage | 500V DC |
| Max. SCC Power | 4000W |
| SCC Charge | 120A |
| Max. Combined Charge | 120A |
| Parallel Capable | No |
| Communication | USB, RS485, CAN, Dry Contact |
| Direct Bluetooth | No |
| Wi-Fi Option | Yes |
| 3G Option | No |
| SNMP Option | No |
| Battery Types | Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom |
| BMS Support | Yes |
| Warranty | Two Years - Conditional |
| Product Dimensions (H × W × D) | 310 × 467 × 116mm |
| Package Dimensions (H × W × D) | 570 × 375 × 200mm |
| Net Weight | 9.25kg |
| Gross Weight | 10.85kg |
